Part Number
Manufacturer
Description
Unit Price
In Stock

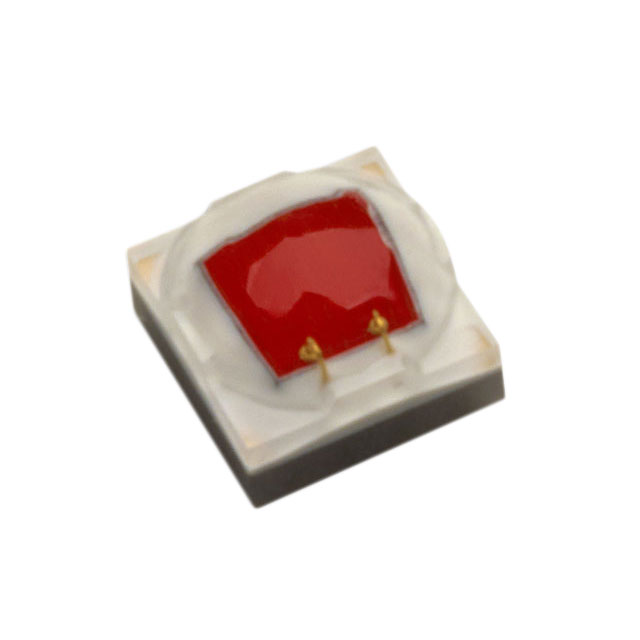

L1C1-FRD1000000000
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON C
Part Status : Active
Color : Red
Wavelength : 735nm (720nm ~ 750nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 1.73V
Lumens/Watt @ Current - Test : -
Current - Max : 700mA
Flux @ Current/Temperature - Test : 210mW (190mW ~ 230mW)
Temperature - Test : 85°C
Viewing Angle : 162°
Mounting Type : Surface Mount
Package / Case : 0707 (1919 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON C
Part Status : Active
Color : Red
Wavelength : 735nm (720nm ~ 750nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 1.73V
Lumens/Watt @ Current - Test : -
Current - Max : 700mA
Flux @ Current/Temperature - Test : 210mW (190mW ~ 230mW)
Temperature - Test : 85°C
Viewing Angle : 162°
Mounting Type : Surface Mount
Package / Case : 0707 (1919 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
797 in stock
L1C1-GRN1000000000
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON C
Part Status : Active
Color : Green
Wavelength : 530nm (520nm ~ 540nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.55V
Lumens/Watt @ Current - Test : 105 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 94 lm (90 lm ~ 97 lm)
Temperature - Test : 85°C
Viewing Angle : 170°
Mounting Type : Surface Mount
Package / Case : 0707 (1919 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON C
Part Status : Active
Color : Green
Wavelength : 530nm (520nm ~ 540nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.55V
Lumens/Watt @ Current - Test : 105 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 94 lm (90 lm ~ 97 lm)
Temperature - Test : 85°C
Viewing Angle : 170°
Mounting Type : Surface Mount
Package / Case : 0707 (1919 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
2579 in stock
L1C1-LME1000000000
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON C
Part Status : Active
Color : Green
Wavelength : -
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.75V
Lumens/Watt @ Current - Test : 152 lm/W
Current - Max : 1.225A
Flux @ Current/Temperature - Test : 146 lm (140 lm ~ 152 lm)
Temperature - Test : 85°C
Viewing Angle : 150°
Mounting Type : Surface Mount
Package / Case : 0707 (1919 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON C
Part Status : Active
Color : Green
Wavelength : -
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.75V
Lumens/Watt @ Current - Test : 152 lm/W
Current - Max : 1.225A
Flux @ Current/Temperature - Test : 146 lm (140 lm ~ 152 lm)
Temperature - Test : 85°C
Viewing Angle : 150°
Mounting Type : Surface Mount
Package / Case : 0707 (1919 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
1124 in stock
L1C1-MNT1000000000
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON C
Part Status : Discontinued at
Color : Green
Wavelength : -
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.75V
Lumens/Watt @ Current - Test : 152 lm/W
Current - Max : 1.225A
Flux @ Current/Temperature - Test : 146 lm (140 lm ~ 152 lm)
Temperature - Test : 85°C
Viewing Angle : 150°
Mounting Type : Surface Mount
Package / Case : 0707 (1919 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON C
Part Status : Discontinued at
Color : Green
Wavelength : -
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.75V
Lumens/Watt @ Current - Test : 152 lm/W
Current - Max : 1.225A
Flux @ Current/Temperature - Test : 146 lm (140 lm ~ 152 lm)
Temperature - Test : 85°C
Viewing Angle : 150°
Mounting Type : Surface Mount
Package / Case : 0707 (1919 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
839 in stock

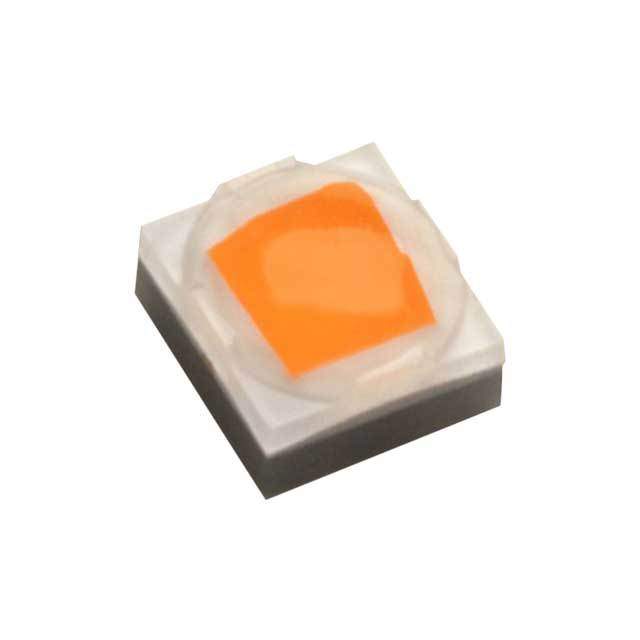

L1C1-PCA1000000000
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON C
Part Status : Discontinued at
Color : Amber
Wavelength : -
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.75V
Lumens/Watt @ Current - Test : 98 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 94 lm (Typ)
Temperature - Test : 85°C
Viewing Angle : 150°
Mounting Type : Surface Mount
Package / Case : 0707 (1919 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON C
Part Status : Discontinued at
Color : Amber
Wavelength : -
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.75V
Lumens/Watt @ Current - Test : 98 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 94 lm (Typ)
Temperature - Test : 85°C
Viewing Angle : 150°
Mounting Type : Surface Mount
Package / Case : 0707 (1919 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
586 in stock
L1C1-RED1000000000
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON C
Part Status : Active
Color : Red
Wavelength : 629nm (624nm ~ 634nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2V
Lumens/Watt @ Current - Test : 53 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 37 lm (35 lm ~ 39 lm)
Temperature - Test : 85°C
Viewing Angle : 162°
Mounting Type : Surface Mount
Package / Case : 0707 (1919 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON C
Part Status : Active
Color : Red
Wavelength : 629nm (624nm ~ 634nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2V
Lumens/Watt @ Current - Test : 53 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 37 lm (35 lm ~ 39 lm)
Temperature - Test : 85°C
Viewing Angle : 162°
Mounting Type : Surface Mount
Package / Case : 0707 (1919 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
2680 in stock

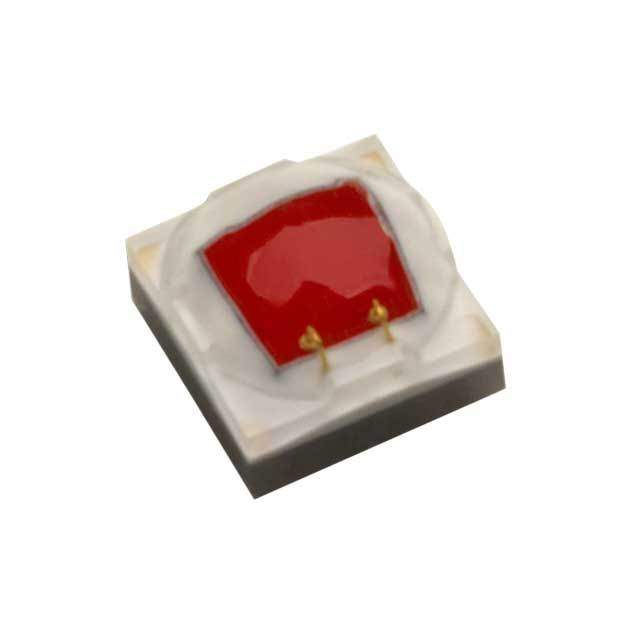

L1C1-RNG1000000000
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON C
Part Status : Discontinued at
Color : Red-Orange
Wavelength : 619nm (614nm ~ 624nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.05V
Lumens/Watt @ Current - Test : 72 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 52 lm (Typ)
Temperature - Test : 85°C
Viewing Angle : 150°
Mounting Type : Surface Mount
Package / Case : 0707 (1919 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON C
Part Status : Discontinued at
Color : Red-Orange
Wavelength : 619nm (614nm ~ 624nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.05V
Lumens/Watt @ Current - Test : 72 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 52 lm (Typ)
Temperature - Test : 85°C
Viewing Angle : 150°
Mounting Type : Surface Mount
Package / Case : 0707 (1919 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
100 in stock

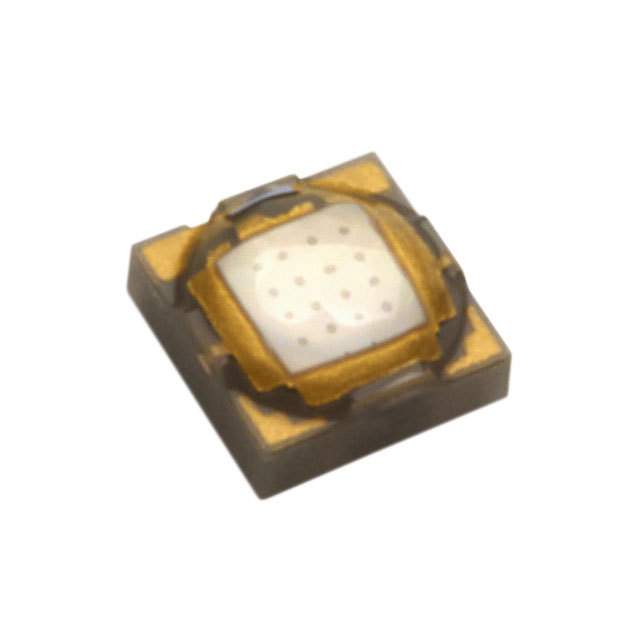

L1C1-RYL1000000000
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON C
Part Status : Active
Color : Blue
Wavelength : 450nm (440nm ~ 460nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.75V
Lumens/Watt @ Current - Test : -
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 506mW (480mW ~ 532mW)
Temperature - Test : 85°C
Viewing Angle : 165°
Mounting Type : Surface Mount
Package / Case : 0707 (1919 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON C
Part Status : Active
Color : Blue
Wavelength : 450nm (440nm ~ 460nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.75V
Lumens/Watt @ Current - Test : -
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 506mW (480mW ~ 532mW)
Temperature - Test : 85°C
Viewing Angle : 165°
Mounting Type : Surface Mount
Package / Case : 0707 (1919 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
1726 in stock
L1CU-BLU1000000000
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON CZ
Part Status : Active
Color : Blue
Wavelength : 475nm (465nm ~ 485nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.83V
Lumens/Watt @ Current - Test : 33 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 33 lm (Typ)
Temperature - Test : 85°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 3-SMD, No Lead
Supplier Device Package : 3-SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.036" (0.92mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON CZ
Part Status : Active
Color : Blue
Wavelength : 475nm (465nm ~ 485nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.83V
Lumens/Watt @ Current - Test : 33 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 33 lm (Typ)
Temperature - Test : 85°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 3-SMD, No Lead
Supplier Device Package : 3-SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.036" (0.92mm)
0
1258 in stock
L1CU-CYN1000000000
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON CZ
Part Status : Active
Color : Cyan
Wavelength : 500nm (490nm ~ 510nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 3.05V
Lumens/Watt @ Current - Test : 68 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 73 lm (Typ)
Temperature - Test : 85°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 3-SMD, No Lead
Supplier Device Package : 3-SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.036" (0.92mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON CZ
Part Status : Active
Color : Cyan
Wavelength : 500nm (490nm ~ 510nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 3.05V
Lumens/Watt @ Current - Test : 68 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 73 lm (Typ)
Temperature - Test : 85°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 3-SMD, No Lead
Supplier Device Package : 3-SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.036" (0.92mm)
0
849 in stock
L1CU-GRN1000000000
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON CZ
Part Status : Active
Color : Green
Wavelength : 530nm (520nm ~ 540nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 3.05V
Lumens/Watt @ Current - Test : 93 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 99 lm (Typ)
Temperature - Test : 85°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 3-SMD, No Lead
Supplier Device Package : 3-SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.036" (0.92mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON CZ
Part Status : Active
Color : Green
Wavelength : 530nm (520nm ~ 540nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 3.05V
Lumens/Watt @ Current - Test : 93 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 99 lm (Typ)
Temperature - Test : 85°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 3-SMD, No Lead
Supplier Device Package : 3-SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.036" (0.92mm)
0
2787 in stock

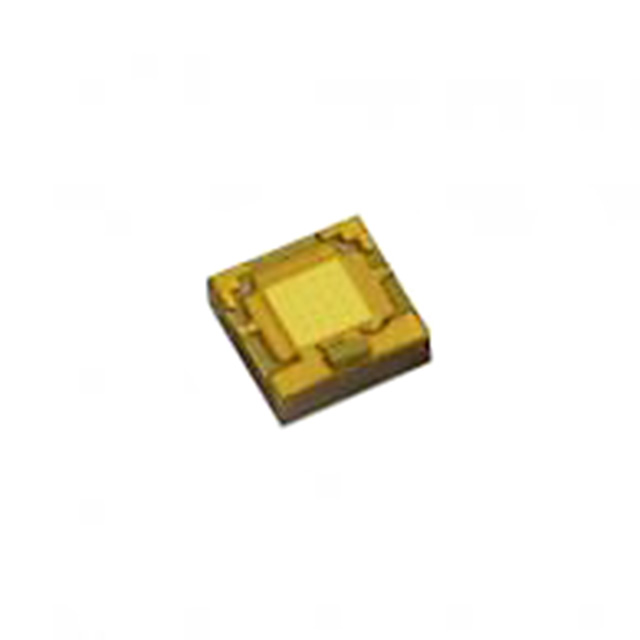

L1CU-LME1000000000
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON CZ
Part Status : Active
Color : Lime
Wavelength : -
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 122 lm (Typ)
Temperature - Test : 85°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 3-SMD, No Lead
Supplier Device Package : 3-SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.036" (0.92mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON CZ
Part Status : Active
Color : Lime
Wavelength : -
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 122 lm (Typ)
Temperature - Test : 85°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 3-SMD, No Lead
Supplier Device Package : 3-SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.036" (0.92mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
