Part Number
Manufacturer
Description
Unit Price
In Stock
L135-A589003500000
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON 3535L
Part Status : Active
Color : Amber
Wavelength : -
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 3.05V
Lumens/Watt @ Current - Test : -
Current - Max : 200mA
Flux @ Current/Temperature - Test : -
Temperature - Test : 25°C
Viewing Angle : 115°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : 3535
Size / Dimension : 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) : 0.035" (0.90mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON 3535L
Part Status : Active
Color : Amber
Wavelength : -
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 3.05V
Lumens/Watt @ Current - Test : -
Current - Max : 200mA
Flux @ Current/Temperature - Test : -
Temperature - Test : 25°C
Viewing Angle : 115°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : 3535
Size / Dimension : 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
19604 in stock

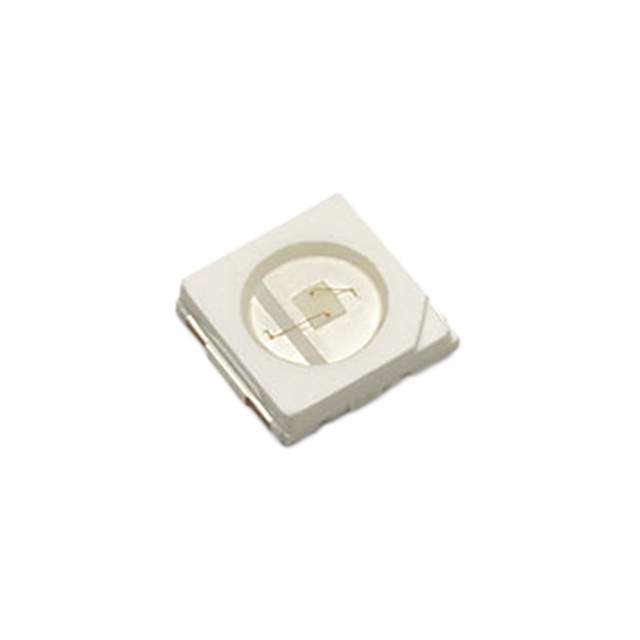

L135-B475003500000
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON 3535L
Part Status : Active
Color : Blue
Wavelength : 475nm (469nm ~ 480nm)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 3V
Lumens/Watt @ Current - Test : 37 lm/W
Current - Max : 200mA
Flux @ Current/Temperature - Test : 11 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 115°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : 3535
Size / Dimension : 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) : 0.035" (0.90mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON 3535L
Part Status : Active
Color : Blue
Wavelength : 475nm (469nm ~ 480nm)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 3V
Lumens/Watt @ Current - Test : 37 lm/W
Current - Max : 200mA
Flux @ Current/Temperature - Test : 11 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 115°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : 3535
Size / Dimension : 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
10563 in stock

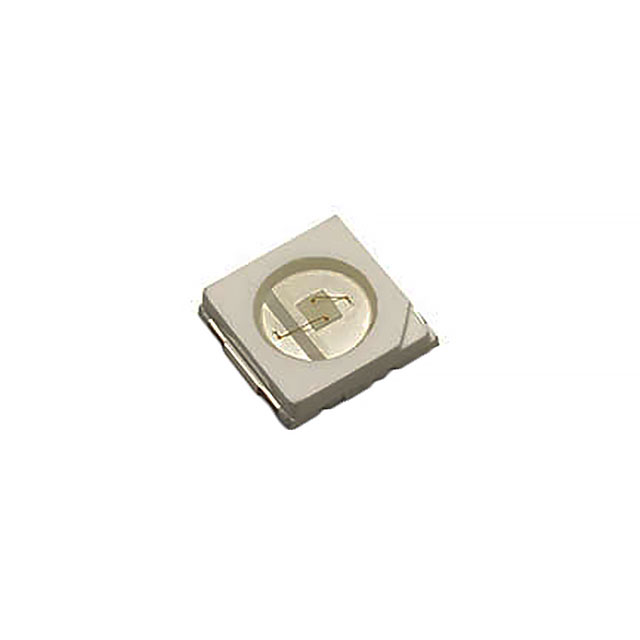

L135-B475003500001
Lumileds
Manufacturer : Lumileds
Packaging : Tape & Reel (TR)
Series : LUXEON 3535L
Part Status : Discontinued at
Color : Blue
Wavelength : 475nm (469nm ~ 480nm)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 3V
Lumens/Watt @ Current - Test : 37 lm/W
Current - Max : 200mA
Flux @ Current/Temperature - Test : 11 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 115°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : 3535
Size / Dimension : 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) : 0.035" (0.90mm)
Packaging : Tape & Reel (TR)
Series : LUXEON 3535L
Part Status : Discontinued at
Color : Blue
Wavelength : 475nm (469nm ~ 480nm)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 3V
Lumens/Watt @ Current - Test : 37 lm/W
Current - Max : 200mA
Flux @ Current/Temperature - Test : 11 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 115°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : 3535
Size / Dimension : 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
100 in stock
L135-G525003500000
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON 3535L
Part Status : Active
Color : Green
Wavelength : 530nm (520nm ~ 540nm)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 69 lm/W
Current - Max : 125mA
Flux @ Current/Temperature - Test : 22 lm (21 lm ~ 23 lm)
Temperature - Test : 25°C
Viewing Angle : 115°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : 3535
Size / Dimension : 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) : 0.035" (0.90mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON 3535L
Part Status : Active
Color : Green
Wavelength : 530nm (520nm ~ 540nm)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 69 lm/W
Current - Max : 125mA
Flux @ Current/Temperature - Test : 22 lm (21 lm ~ 23 lm)
Temperature - Test : 25°C
Viewing Angle : 115°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : 3535
Size / Dimension : 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
4702 in stock
L135-G525003500001
Lumileds
Manufacturer : Lumileds
Packaging : Tape & Reel (TR)
Series : LUXEON 3535L
Part Status : Discontinued at
Color : Green
Wavelength : 530nm (520nm ~ 540nm)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 72 lm/W
Current - Max : 125mA
Flux @ Current/Temperature - Test : 23 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 115°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : 3535
Size / Dimension : 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) : 0.035" (0.90mm)
Packaging : Tape & Reel (TR)
Series : LUXEON 3535L
Part Status : Discontinued at
Color : Green
Wavelength : 530nm (520nm ~ 540nm)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 72 lm/W
Current - Max : 125mA
Flux @ Current/Temperature - Test : 23 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 115°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : 3535
Size / Dimension : 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
100 in stock

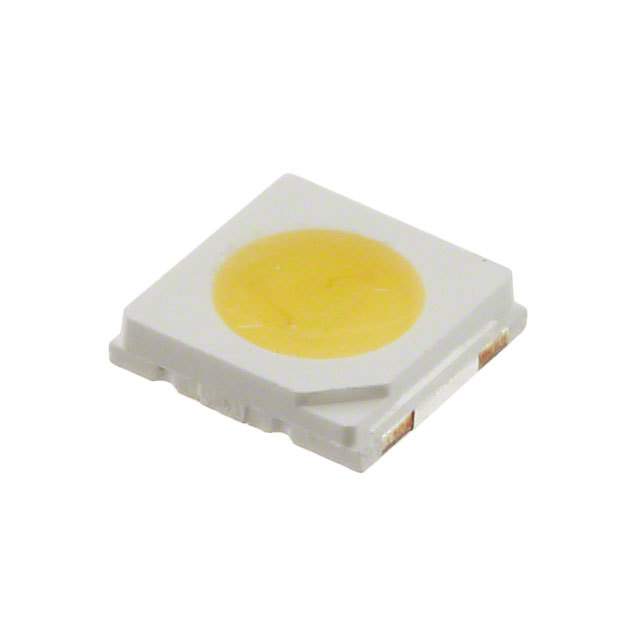

L135-L567L00000001
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON 3535L
Part Status : Active
Color : Lime
Wavelength : -
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 3.05V
Lumens/Watt @ Current - Test : 184 lm/W
Current - Max : 200mA
Flux @ Current/Temperature - Test : 56 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 115°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : 3535
Size / Dimension : 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) : 0.035" (0.90mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON 3535L
Part Status : Active
Color : Lime
Wavelength : -
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 3.05V
Lumens/Watt @ Current - Test : 184 lm/W
Current - Max : 200mA
Flux @ Current/Temperature - Test : 56 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 115°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : 3535
Size / Dimension : 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
7061 in stock
L135-O615003500001
Lumileds
Manufacturer : Lumileds
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : LUXEON 3535L
Part Status : Obsolete
Color : Orange
Wavelength : 615nm (610nm ~ 620nm)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 2.1V
Lumens/Watt @ Current - Test : 76 lm/W
Current - Max : 125mA
Flux @ Current/Temperature - Test : 16 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 115°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : 3535
Size / Dimension : 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) : 0.035" (0.90mm)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : LUXEON 3535L
Part Status : Obsolete
Color : Orange
Wavelength : 615nm (610nm ~ 620nm)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 2.1V
Lumens/Watt @ Current - Test : 76 lm/W
Current - Max : 125mA
Flux @ Current/Temperature - Test : 16 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 115°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : 3535
Size / Dimension : 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
100 in stock

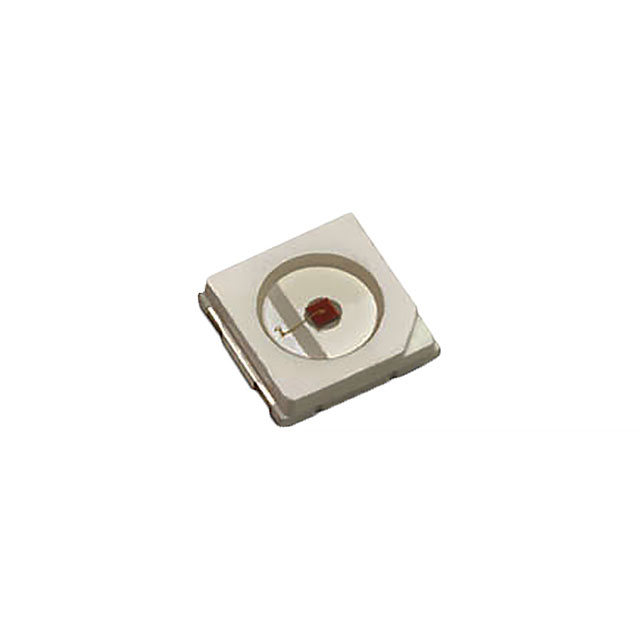

L135-R625003500001
Lumileds
Manufacturer : Lumileds
Packaging : Tape & Reel (TR)
Series : LUXEON 3535L
Part Status : Discontinued at
Color : Red
Wavelength : 625nm (620nm ~ 630nm)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 2.1V
Lumens/Watt @ Current - Test : 67 lm/W
Current - Max : 125mA
Flux @ Current/Temperature - Test : 14 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 115°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : 3535
Size / Dimension : 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) : 0.035" (0.90mm)
Packaging : Tape & Reel (TR)
Series : LUXEON 3535L
Part Status : Discontinued at
Color : Red
Wavelength : 625nm (620nm ~ 630nm)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 2.1V
Lumens/Watt @ Current - Test : 67 lm/W
Current - Max : 125mA
Flux @ Current/Temperature - Test : 14 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 115°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : 3535
Size / Dimension : 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
100 in stock
L135-U450003500000
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON 3535L
Part Status : Active
Color : Blue
Wavelength : 448nm (440nm ~ 455nm)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 3.05V
Lumens/Watt @ Current - Test : -
Current - Max : 200mA
Flux @ Current/Temperature - Test : 143mW (130mW ~ 155mW)
Temperature - Test : 25°C
Viewing Angle : 115°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : 3535
Size / Dimension : 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) : 0.035" (0.90mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON 3535L
Part Status : Active
Color : Blue
Wavelength : 448nm (440nm ~ 455nm)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 3.05V
Lumens/Watt @ Current - Test : -
Current - Max : 200mA
Flux @ Current/Temperature - Test : 143mW (130mW ~ 155mW)
Temperature - Test : 25°C
Viewing Angle : 115°
Mounting Type : Surface Mount
Package / Case : 1414 (3535 Metric)
Supplier Device Package : 3535
Size / Dimension : 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
3720 in stock

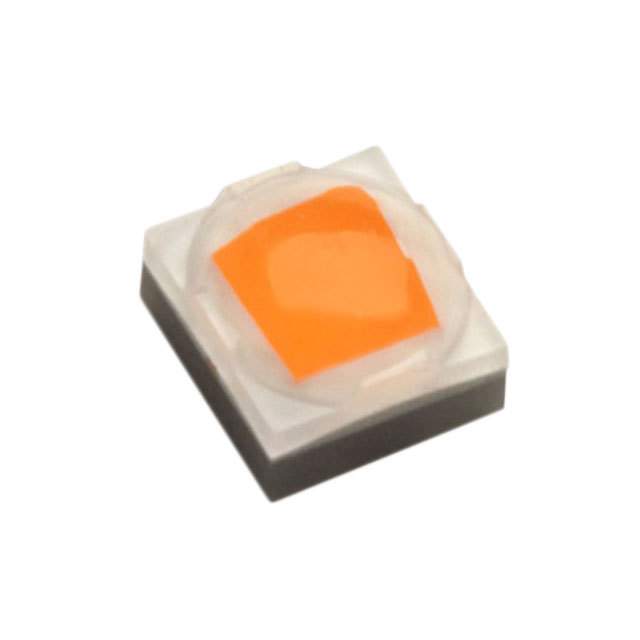

L1C1-AMB1000000000
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON C
Part Status : Active
Color : Amber
Wavelength : 593nm (585nm ~ 600nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.05V
Lumens/Watt @ Current - Test : 35 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 25 lm (20 lm ~ 30 lm)
Temperature - Test : 85°C
Viewing Angle : 162°
Mounting Type : Surface Mount
Package / Case : 0707 (1919 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON C
Part Status : Active
Color : Amber
Wavelength : 593nm (585nm ~ 600nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.05V
Lumens/Watt @ Current - Test : 35 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 25 lm (20 lm ~ 30 lm)
Temperature - Test : 85°C
Viewing Angle : 162°
Mounting Type : Surface Mount
Package / Case : 0707 (1919 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
436 in stock
L1C1-BLU1000000000
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON C
Part Status : Active
Color : Blue
Wavelength : 475nm (465nm ~ 485nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.9V
Lumens/Watt @ Current - Test : 36 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 37 lm (Typ)
Temperature - Test : 85°C
Viewing Angle : 150°
Mounting Type : Surface Mount
Package / Case : 0707 (1919 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON C
Part Status : Active
Color : Blue
Wavelength : 475nm (465nm ~ 485nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.9V
Lumens/Watt @ Current - Test : 36 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 37 lm (Typ)
Temperature - Test : 85°C
Viewing Angle : 150°
Mounting Type : Surface Mount
Package / Case : 0707 (1919 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
1498 in stock

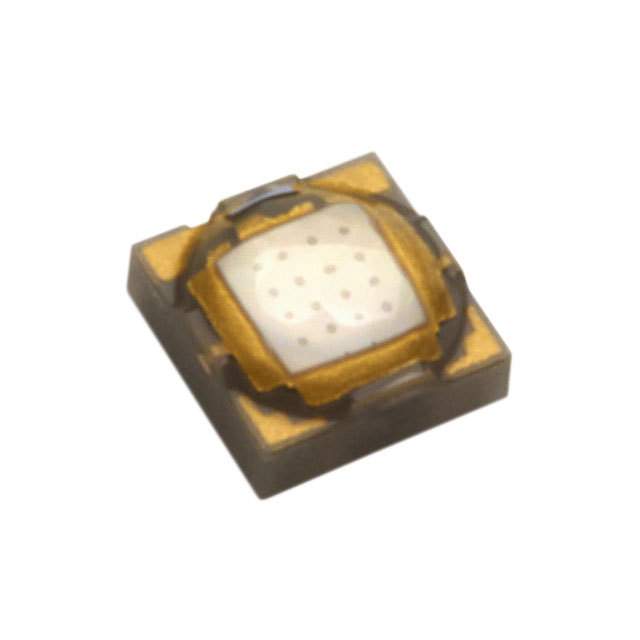

L1C1-CYN1000000000
Lumileds
Manufacturer : Lumileds
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON C
Part Status : Active
Color : Cyan
Wavelength : 500nm (490nm ~ 510nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.6V
Lumens/Watt @ Current - Test : 76 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 69 lm (65 lm ~ 72 lm)
Temperature - Test : 85°C
Viewing Angle : 170°
Mounting Type : Surface Mount
Package / Case : 0707 (1919 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LUXEON C
Part Status : Active
Color : Cyan
Wavelength : 500nm (490nm ~ 510nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.6V
Lumens/Watt @ Current - Test : 76 lm/W
Current - Max : 1.05A
Flux @ Current/Temperature - Test : 69 lm (65 lm ~ 72 lm)
Temperature - Test : 85°C
Viewing Angle : 170°
Mounting Type : Surface Mount
Package / Case : 0707 (1919 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
929 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
