Part Number

Manufacturer

Description

Unit Price

In Stock

GB CS8PM1.13-GZHX-34-0-350-R18-XX

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : -
Series : OSLON® SSL 80
Part Status : Obsolete
Color : Blue
Wavelength : 470nm
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.85V
Lumens/Watt @ Current - Test : 29 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 29 lm (24 lm ~ 33 lm)
Temperature - Test : 25°C
Viewing Angle : 80°
Mounting Type : Surface Mount
Package / Case : 1212 (3030 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.091" (2.31mm)

100 in stock

GB CS8PM1.13-GZHX-35-0-350-R18

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : -
Series : OSLON® SSL 80
Part Status : Obsolete
Color : Blue
Wavelength : 470nm (464nm ~ 476nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.85V
Lumens/Watt @ Current - Test : 29 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 29 lm (24 lm ~ 33 lm)
Temperature - Test : 25°C
Viewing Angle : 80°
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Size / Dimension : -
Height - Seated (Max) : -

100 in stock

GB CS8PM1.13-HXHY-34-1-350-R18-LM

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : -
Series : OSLON® SSL 80
Part Status : Obsolete
Color : Blue
Wavelength : 470nm
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.85V
Lumens/Watt @ Current - Test : 34 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 34 lm (28 lm ~ 39 lm)
Temperature - Test : 25°C
Viewing Angle : 80°
Mounting Type : Surface Mount
Package / Case : 1212 (3030 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.091" (2.31mm)

100 in stock

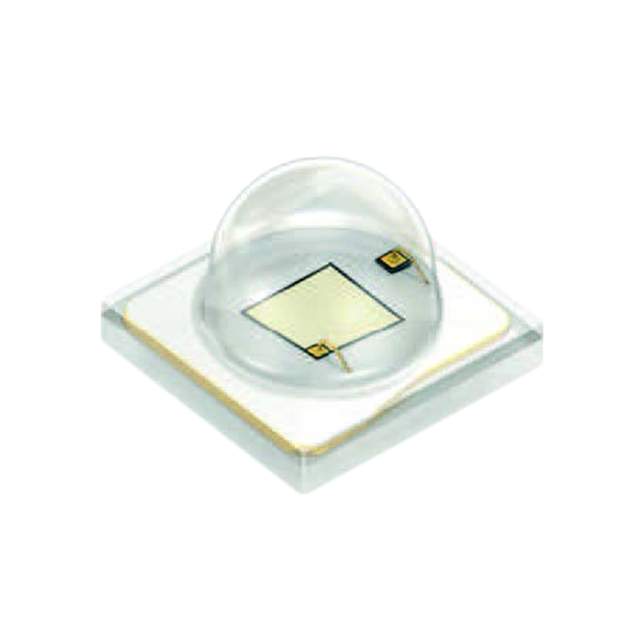

GB CS8PM1.13-HXHY-35-0-350-R18

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : OSLON® SSL 80
Part Status : Obsolete
Color : Blue
Wavelength : 470nm (464nm ~ 476nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.85V
Lumens/Watt @ Current - Test : 34 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 34 lm (28 lm ~ 39 lm)
Temperature - Test : 25°C
Viewing Angle : 80°
Mounting Type : Surface Mount
Package / Case : 1212 (3030 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.087" (2.21mm)

100 in stock

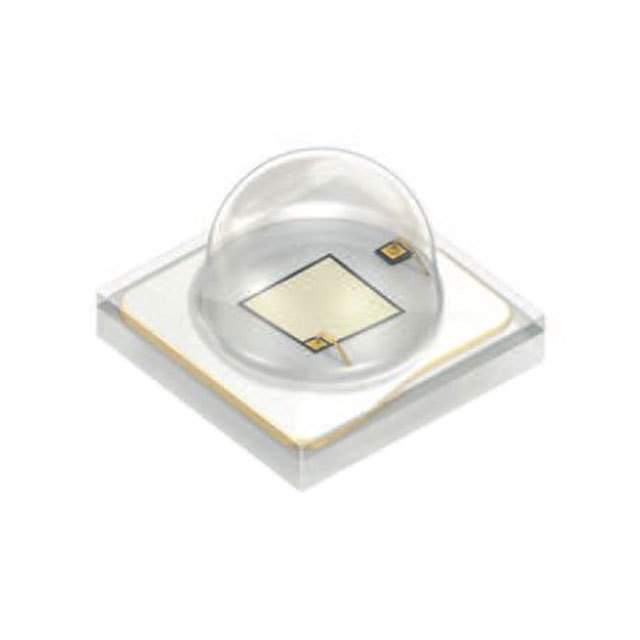

GB CS8PM1.13-HYHZ-35-0-350-R18

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OSLON® SSL 80
Part Status : Active
Color : Blue
Wavelength : 470nm
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.85V
Lumens/Watt @ Current - Test : 39 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 39 lm (33 lm ~ 45 lm)
Temperature - Test : 25°C
Viewing Angle : 80°
Mounting Type : Surface Mount
Package / Case : 1212 (3030 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.091" (2.31mm)

4686 in stock

GB CSHPM1.13-GZHX-34-0-350-R18-XX

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : -
Series : OSLON® SSL 150
Part Status : Obsolete
Color : Blue
Wavelength : 470nm
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.85V
Lumens/Watt @ Current - Test : 29 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 29 lm (24 lm ~ 33 lm)
Temperature - Test : 25°C
Viewing Angle : 150°
Mounting Type : Surface Mount
Package / Case : 1212 (3030 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.061" (1.54mm)

100 in stock

GB CSHPM1.13-GZHX-35-0-350-R18

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : -
Series : OSLON® SSL 150
Part Status : Obsolete
Color : Blue
Wavelength : 470nm (464nm ~ 476nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.85V
Lumens/Watt @ Current - Test : 29 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 29 lm (24 lm ~ 33 lm)
Temperature - Test : 25°C
Viewing Angle : 150°
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Size / Dimension : -
Height - Seated (Max) : -

100 in stock

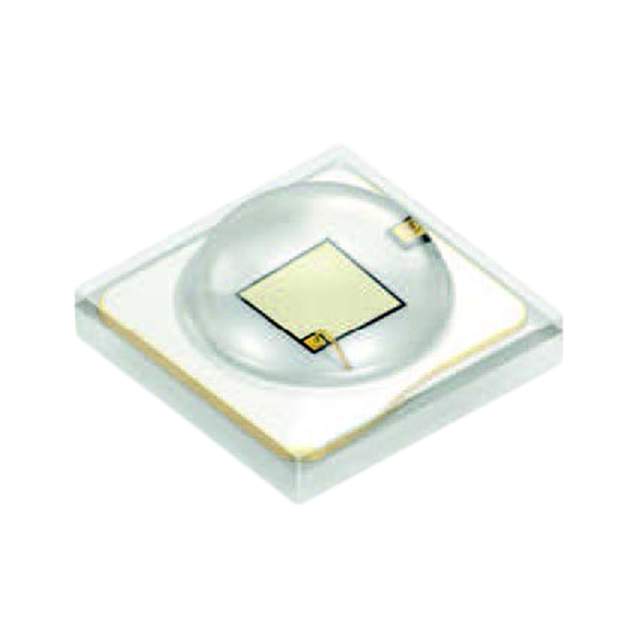

GB CSHPM1.13-HXHY-35-0-350-R18

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Series : OSLON® SSL 150
Part Status : Obsolete
Color : Blue
Wavelength : 470nm (464nm ~ 476nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.85V
Lumens/Watt @ Current - Test : 34 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 34 lm (28 lm ~ 39 lm)
Temperature - Test : 25°C
Viewing Angle : 150°
Mounting Type : Surface Mount
Package / Case : 1212 (3030 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.061" (1.54mm)

100 in stock

GB CSHPM1.13-HXHZ-35-0-350-R18

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : -
Series : OSLON® SSL 150
Part Status : Active
Color : Blue
Wavelength : 470nm
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.85V
Lumens/Watt @ Current - Test : 37 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 37 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 150°
Mounting Type : Surface Mount
Package / Case : 1212 (3030 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.061" (1.54mm)

100 in stock

GB DASPA1.13-DRDT-23

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Series : DURIS® P 5
Part Status : Obsolete
Color : Blue
Wavelength : 464nm (459nm ~ 468nm)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 19 lm/W
Current - Max : 250mA
Flux @ Current/Temperature - Test : 6 lm (5 lm ~ 7 lm)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1008 (2520 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.102" L x 0.087" W (2.60mm x 2.20mm)
Height - Seated (Max) : 0.052" (1.31mm)

100 in stock

GB DASPA1.13-DRDT-23-LN-100-R18-LM

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : -
Series : *
Part Status : Last Time Buy
Color : -
Wavelength : -
Current - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
Flux @ Current/Temperature - Test : -
Temperature - Test : -
Viewing Angle : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Size / Dimension : -
Height - Seated (Max) : -

100 in stock

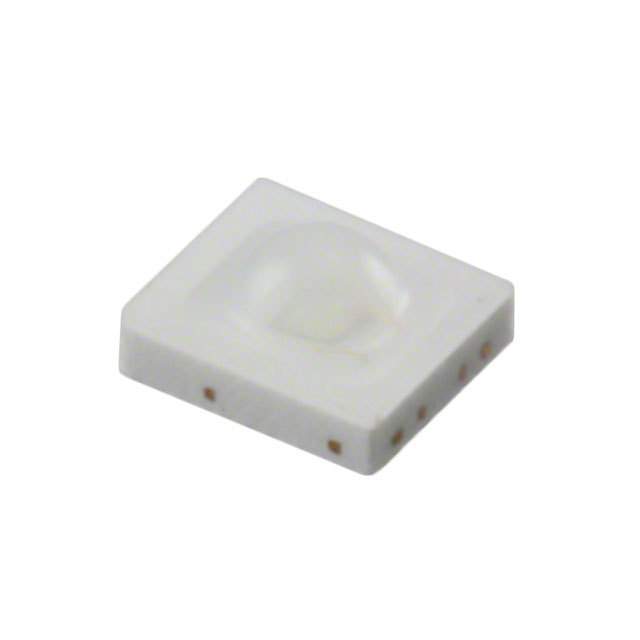

GB DASPA1.13-DTEP-24-1-100-R18

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Series : DURIS® P 5
Part Status : Last Time Buy
Color : Blue
Wavelength : 466nm (459nm ~ 472nm)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 22 lm/W
Current - Max : 250mA
Flux @ Current/Temperature - Test : 7 lm (6 lm ~ 8 lm)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1009 (2622 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.102" L x 0.087" W (2.60mm x 2.20mm)
Height - Seated (Max) : 0.052" (1.31mm)

100 in stock
