LED Lighting - COBs, Engines, Modules Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

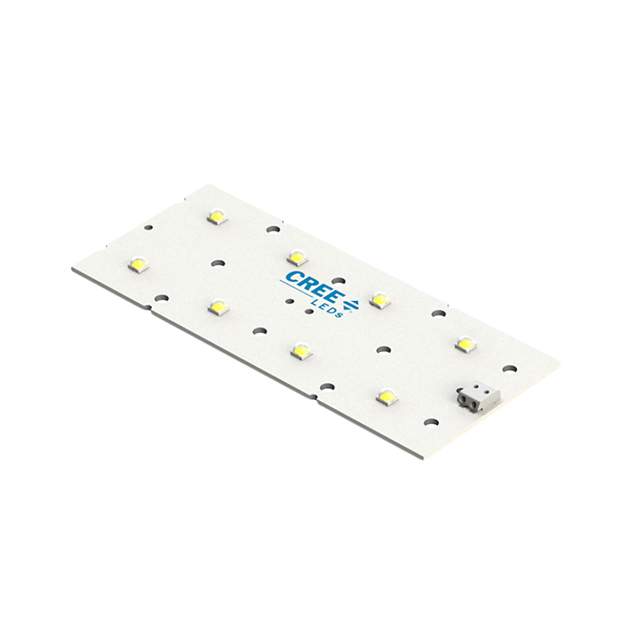

XHP35A-0R-08-0D0BE450E

Opulent Americas

Manufacturer : Opulent Americas
Packaging : Tray
Series : XHP35A
Part Status : Active
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 5080 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 45.2V
Lumens/Watt @ Current - Test : 161 lm/W
Current - Max : 2.1A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 107.95mm L x 44.96mm W
Height : -
Light Emitting Surface (LES) : -
Lens Type : Domed

45 in stock

XHP35A-0R-12-0D0BE240E

Opulent Americas

Manufacturer : Opulent Americas
Packaging : Tray
Series : XHP35A
Part Status : Active
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 7080 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 45.2V
Lumens/Watt @ Current - Test : 149 lm/W
Current - Max : 3.15A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 146.56mm L x 44.96mm W
Height : -
Light Emitting Surface (LES) : -
Lens Type : Domed

46 in stock

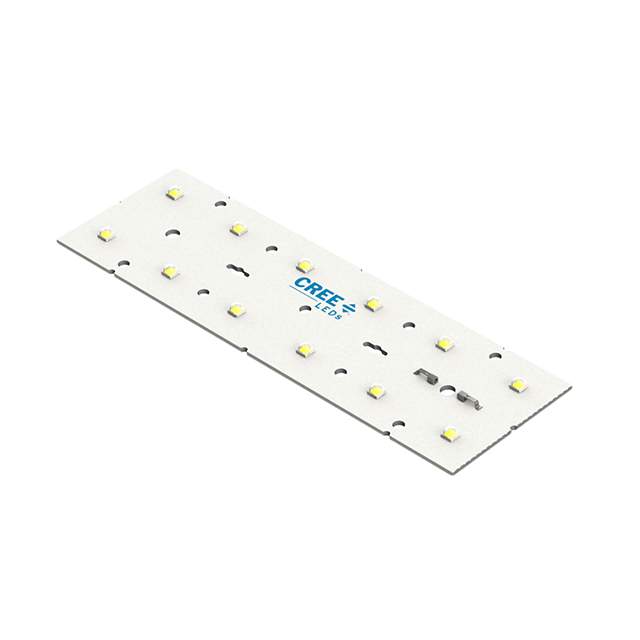

XHP35A-0R-12-0D0BE450E

Opulent Americas

Manufacturer : Opulent Americas
Packaging : Tray
Series : XHP35A
Part Status : Active
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 7620 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 45.2V
Lumens/Watt @ Current - Test : 161 lm/W
Current - Max : 3.15A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 146.56mm L x 44.96mm W
Height : -
Light Emitting Surface (LES) : -
Lens Type : Domed

43 in stock

XHP35A-H0-0000-0D0BC230E-SB01

Opulent Americas

Manufacturer : Opulent Americas
Packaging : -
Series : Xlamp® XHP35
Part Status : Active
Type : LED Module
Color : White, Warm
CCT (K) : 3000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 458 lm (440 lm ~ 475 lm)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 11.3V
Lumens/Watt @ Current - Test : 116 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 70
Viewing Angle : 115°
Features : -
Size / Dimension : 19.89mm Diameter
Height : -
Light Emitting Surface (LES) : -
Lens Type : Flat

115 in stock

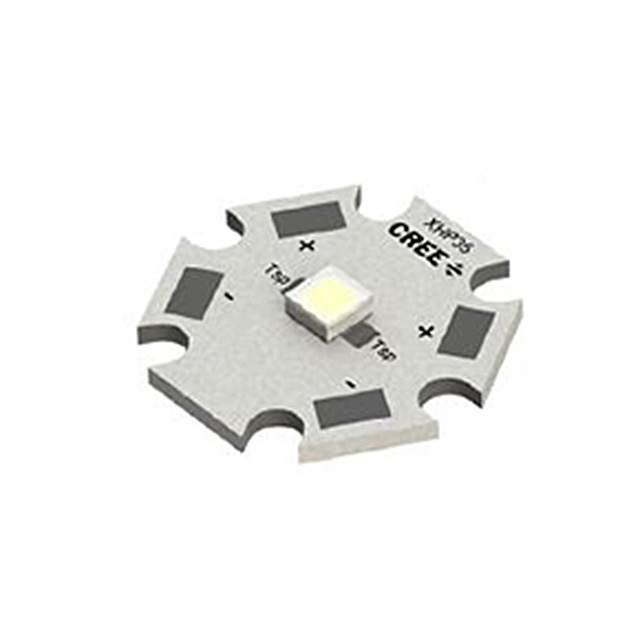

XHP35A-H0-0000-0D0BC440E-SB01

Opulent Americas

Manufacturer : Opulent Americas
Packaging : -
Series : Xlamp® XHP35
Part Status : Active
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 493 lm (475 lm ~ 510 lm)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 11.3V
Lumens/Watt @ Current - Test : 125 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 70
Viewing Angle : 115°
Features : -
Size / Dimension : 19.89mm Diameter
Height : -
Light Emitting Surface (LES) : -
Lens Type : Flat

139 in stock

XHP35A-H0-0000-0D0BC450E-SB01

Opulent Americas

Manufacturer : Opulent Americas
Packaging : -
Series : Xlamp® XHP35
Part Status : Active
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 493 lm (475 lm ~ 510 lm)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 11.3V
Lumens/Watt @ Current - Test : 125 lm/W
Current - Max : 1.05A
CRI (Color Rendering Index) : 70
Viewing Angle : 115°
Features : -
Size / Dimension : 19.89mm Diameter
Height : -
Light Emitting Surface (LES) : -
Lens Type : Flat

62 in stock

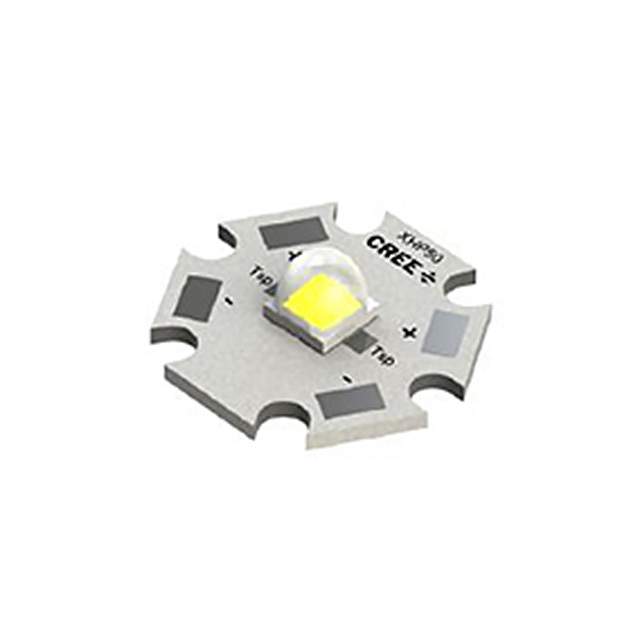

XHP50A-00-0000-0D0BH430E-SB01

Opulent Americas

Manufacturer : Opulent Americas
Packaging : -
Series : Xlamp® XHP50
Part Status : Not For New Designs
Type : LED Module
Color : White, Warm
CCT (K) : 3000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1005 lm (970 lm ~ 1040 lm)
Current - Test : 1.4A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 11.5V
Lumens/Watt @ Current - Test : 62 lm/W
Current - Max : 1.5A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 19.89mm Diameter
Height : -
Light Emitting Surface (LES) : -
Lens Type : Domed

16 in stock

XHP50A-00-0000-0D0BJ440E-SB01

Opulent Americas

Manufacturer : Opulent Americas
Packaging : -
Series : Xlamp® XHP50
Part Status : Not For New Designs
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1160 lm (1120 lm ~ 1200 lm)
Current - Test : 1.4A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 11.5V
Lumens/Watt @ Current - Test : 72 lm/W
Current - Max : 1.5A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 19.89mm Diameter
Height : -
Light Emitting Surface (LES) : -
Lens Type : Domed

181 in stock

XHP50A-00-0000-0D0BJ450E-SB01

Opulent Americas

Manufacturer : Opulent Americas
Packaging : -
Series : Xlamp® XHP50
Part Status : Not For New Designs
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1160 lm (1120 lm ~ 1200 lm)
Current - Test : 1.4A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 11.5V
Lumens/Watt @ Current - Test : 72 lm/W
Current - Max : 1.5A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 19.89mm Diameter
Height : -
Light Emitting Surface (LES) : -
Lens Type : Domed

102 in stock

XHP50A-0L-02-0D0BH430E

Opulent Americas

Manufacturer : Opulent Americas
Packaging : Tray
Series : XHP50A
Part Status : Not For New Designs
Type : LED Module
Color : White, Warm
CCT (K) : 3000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 1940 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 23V
Lumens/Watt @ Current - Test : 121 lm/W
Current - Max : 1.5A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 93.98mm L x 33.02mm W
Height : -
Light Emitting Surface (LES) : -
Lens Type : Domed

100 in stock

XHP50A-0L-02-0D0BJ40E2

Opulent Americas

Manufacturer : Opulent Americas
Packaging : Tray
Series : XHP50A
Part Status : Not For New Designs
Type : LED Module
Color : White, Cool
CCT (K) : 5700K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 2240 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 23V
Lumens/Watt @ Current - Test : 139 lm/W
Current - Max : 1.5A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 93.98mm L x 33.02mm W
Height : -
Light Emitting Surface (LES) : -
Lens Type : Domed

100 in stock

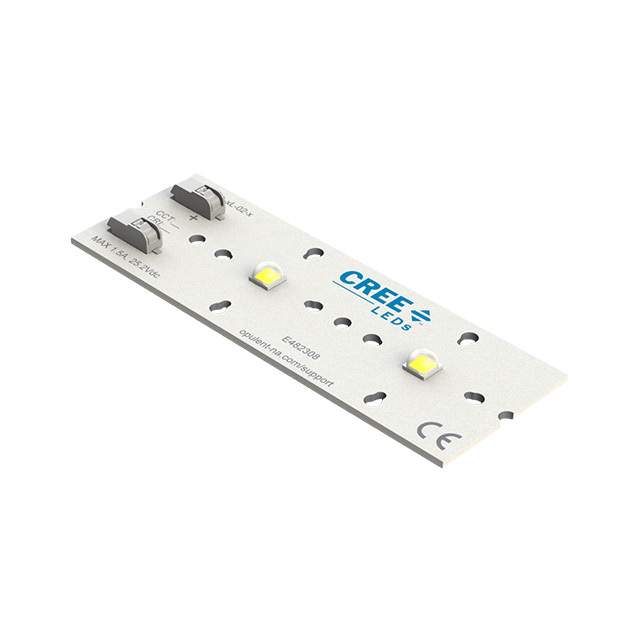

XHP50A-0L-02-0D0BJ440E

Opulent Americas

Manufacturer : Opulent Americas
Packaging : Tray
Series : XHP50A
Part Status : Not For New Designs
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 2240 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 23V
Lumens/Watt @ Current - Test : 139 lm/W
Current - Max : 1.5A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 93.98mm L x 33.02mm W
Height : -
Light Emitting Surface (LES) : -
Lens Type : Domed

43 in stock
