IRL 81A E9545 IRL 81A E9545

OSRAM Opto Semiconductors, Inc.
Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 25mW/sr @ 20mA
Wavelength : 860nm
Voltage - Forward (Vf) (Typ) : 1.3V
Viewing Angle : 24°
Orientation : -
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial
0
100 in stock

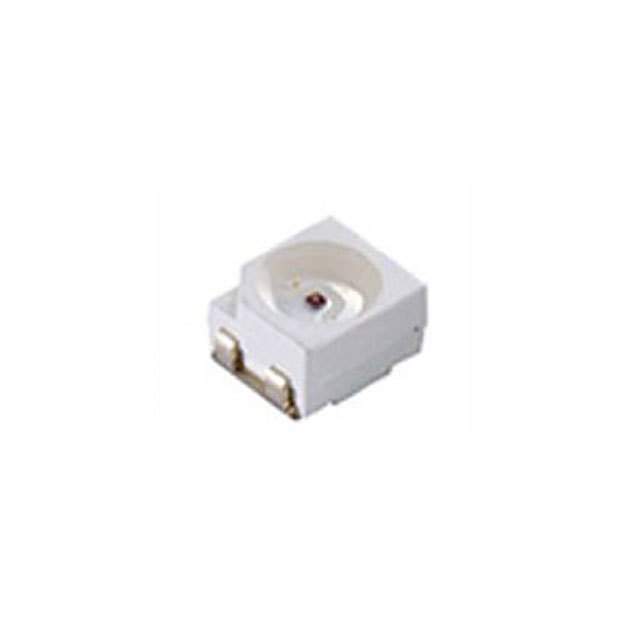

JFN1104LS-AR JFN1104LS-AR

Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 5mW/sr @ 50mA
Wavelength : 950nm
Voltage - Forward (Vf) (Typ) : 1.35V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 2-PLCC
0
1679 in stock

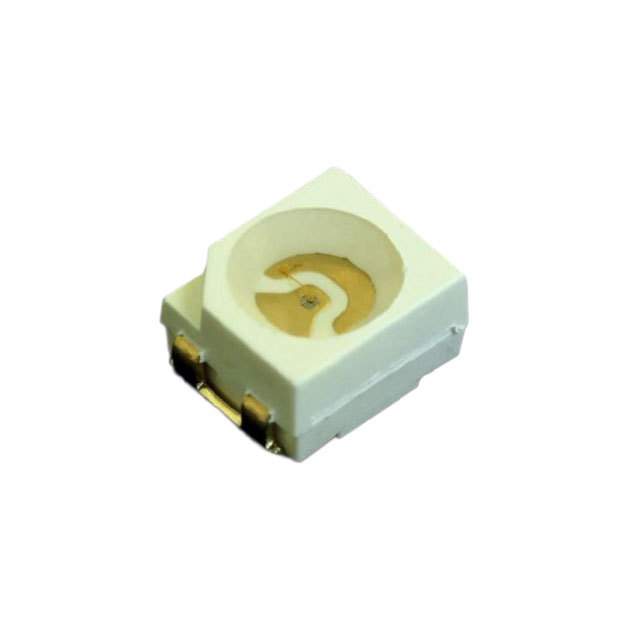

JGN1104LS-AR JGN1104LS-AR

Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 5mW/sr @ 50mA
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 2-PLCC
0
865 in stock

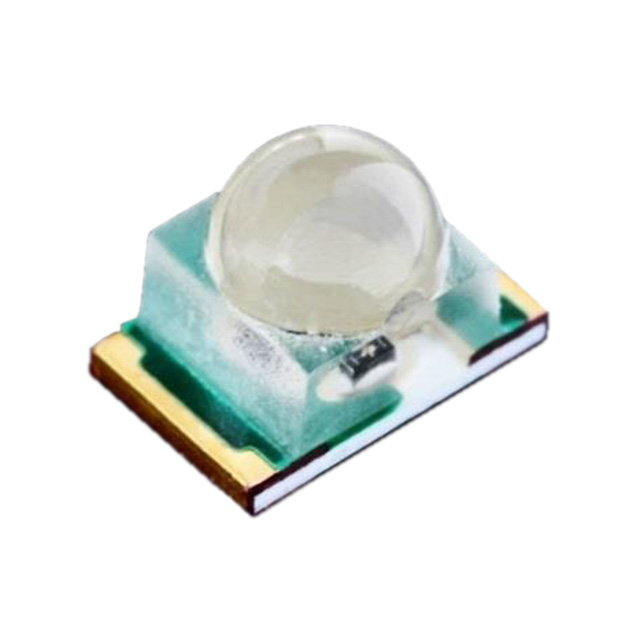

JGN1105H-TR JGN1105H-TR

Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 120mA
Radiant Intensity (Ie) Min @ If : 50mW/sr @ 50mA
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 1.45V
Viewing Angle : 30°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
0
592 in stock

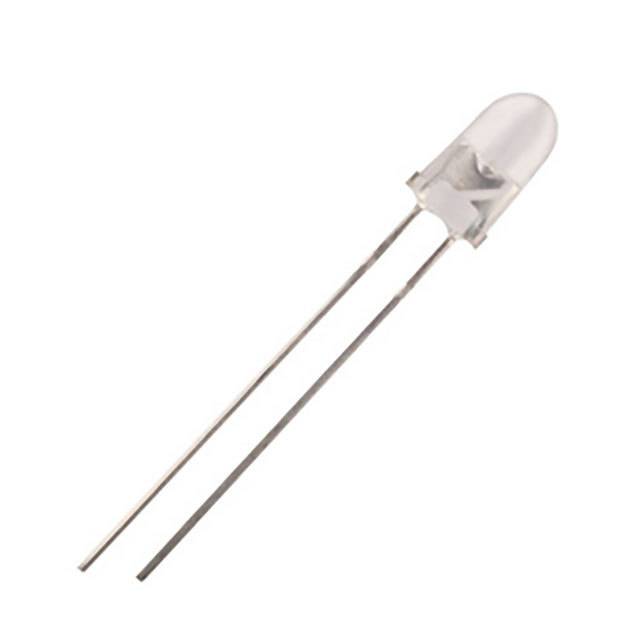

JGN5306X JGN5306X

Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 67.2mW/sr @ 50mA
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 1.5V
Viewing Angle : 8°
Orientation : Top View
Operating Temperature : -30°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : Radial, 5mm Dia (T 1 3/4)
0
100 in stock

L0F3-U380100002001 L0F3-U380100002001

Lumileds
Manufacturer : Lumileds
Packaging : -
Series : LUXEON UV FC1
Part Status : Discontinued at
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 380nm ~ 390nm
Voltage - Forward (Vf) (Typ) : 3.2V
Viewing Angle : 140°
Orientation : Top View
Operating Temperature : -40°C ~ 120°C (TC)
Mounting Type : Surface Mount
Package / Case : 0404 (1010 Metric)
0
100 in stock

L0F3-U380100003001 L0F3-U380100003001

Lumileds
Manufacturer : Lumileds
Packaging : -
Series : LUXEON UV FC1
Part Status : Discontinued at
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 380nm ~ 390nm
Voltage - Forward (Vf) (Typ) : 3.2V
Viewing Angle : 140°
Orientation : Top View
Operating Temperature : -40°C ~ 120°C (TC)
Mounting Type : Surface Mount
Package / Case : 0404 (1010 Metric)
0
100 in stock

L0F3-U380100004001 L0F3-U380100004001

Lumileds
Manufacturer : Lumileds
Packaging : -
Series : LUXEON UV FC1
Part Status : Discontinued at
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 380nm ~ 390nm
Voltage - Forward (Vf) (Typ) : 3.2V
Viewing Angle : 140°
Orientation : Top View
Operating Temperature : -40°C ~ 120°C (TC)
Mounting Type : Surface Mount
Package / Case : 0404 (1010 Metric)
0
100 in stock

L0F3-U380200004001 L0F3-U380200004001

Lumileds
Manufacturer : Lumileds
Packaging : -
Series : LUXEON UV FC2
Part Status : Discontinued at
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 2A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 380nm ~ 390nm
Voltage - Forward (Vf) (Typ) : 3.2V
Viewing Angle : 140°
Orientation : Top View
Operating Temperature : -40°C ~ 120°C (TC)
Mounting Type : Surface Mount
Package / Case : 0404 (1010 Metric)
0
100 in stock

L0F3-U380200006001 L0F3-U380200006001

Lumileds
Manufacturer : Lumileds
Packaging : -
Series : LUXEON UV FC2
Part Status : Discontinued at
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 2A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 380nm ~ 390nm
Voltage - Forward (Vf) (Typ) : 3.2V
Viewing Angle : 140°
Orientation : Top View
Operating Temperature : -40°C ~ 120°C (TC)
Mounting Type : Surface Mount
Package / Case : 0404 (1010 Metric)
0
100 in stock

L0F3-U380200008001 L0F3-U380200008001

Lumileds
Manufacturer : Lumileds
Packaging : -
Series : LUXEON UV FC2
Part Status : Discontinued at
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 2A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 380nm ~ 390nm
Voltage - Forward (Vf) (Typ) : 3.2V
Viewing Angle : 140°
Orientation : Top View
Operating Temperature : -40°C ~ 120°C (TC)
Mounting Type : Surface Mount
Package / Case : 0404 (1010 Metric)
0
100 in stock

L0F3-U390100005001 L0F3-U390100005001

Lumileds
Manufacturer : Lumileds
Packaging : -
Series : LUXEON UV FC1
Part Status : Discontinued at
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 390nm ~ 400nm
Voltage - Forward (Vf) (Typ) : 3.1V
Viewing Angle : 140°
Orientation : Top View
Operating Temperature : -40°C ~ 120°C (TC)
Mounting Type : Surface Mount
Package / Case : 0404 (1010 Metric)
0
100 in stock
