17PM-K249U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 800mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 14.16 / 100
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.7 Ohms
Features : Round Shaft
Series : 17PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 800mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 14.16 / 100
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.7 Ohms
Features : Round Shaft
0
100 in stock
17PM-K264U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 14.16 / 100
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 6.9 Ohms
Features : Round Shaft
Series : 17PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 14.16 / 100
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 6.9 Ohms
Features : Round Shaft
0
100 in stock
17PM-K342B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 900mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 43.9 / 310
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4 Ohms
Features : Round Shaft
Series : 17PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 900mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 43.9 / 310
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4 Ohms
Features : Round Shaft
0
100 in stock
17PM-K342U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.4A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 35.41 / 250
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2 Ohms
Features : Round Shaft
Series : 17PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.4A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 35.41 / 250
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2 Ohms
Features : Round Shaft
0
100 in stock
17PM-K348B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 1.4A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 43.9 / 310
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 1.8 Ohms
Features : Round Shaft
Series : 17PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 1.4A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 43.9 / 310
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 1.8 Ohms
Features : Round Shaft
0
100 in stock
17PM-K349U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 35.41 / 250
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 3.6 Ohms
Features : Round Shaft
Series : 17PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 35.41 / 250
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 3.6 Ohms
Features : Round Shaft
0
100 in stock
17PM-K442B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 900mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 70.82 / 500
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 5.6 Ohms
Features : Round Shaft
Series : 17PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 900mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 70.82 / 500
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 5.6 Ohms
Features : Round Shaft
0
100 in stock
17PM-K442U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.4A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 56.66 / 400
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.8 Ohms
Features : Round Shaft
Series : 17PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.4A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 56.66 / 400
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.8 Ohms
Features : Round Shaft
0
100 in stock

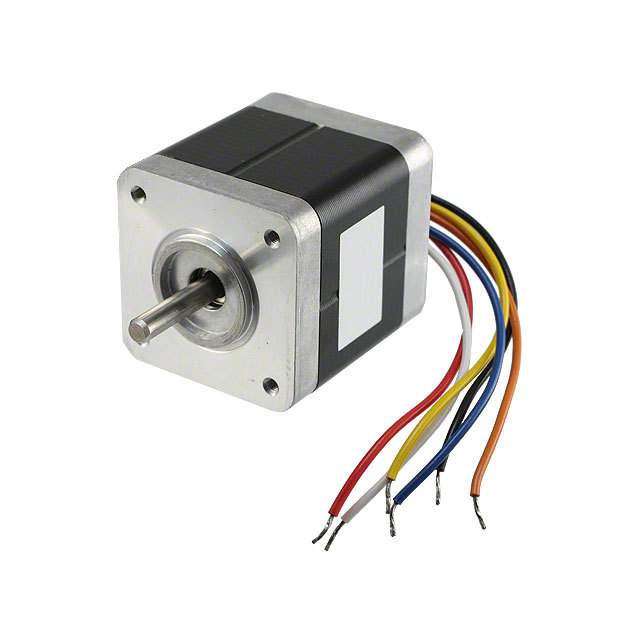

17PM-K444-00VS
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 48.15 / 340
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 3.3 Ohms
Features : Flatted Shaft
Series : 17PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 48.15 / 340
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 3.3 Ohms
Features : Flatted Shaft
0
100 in stock

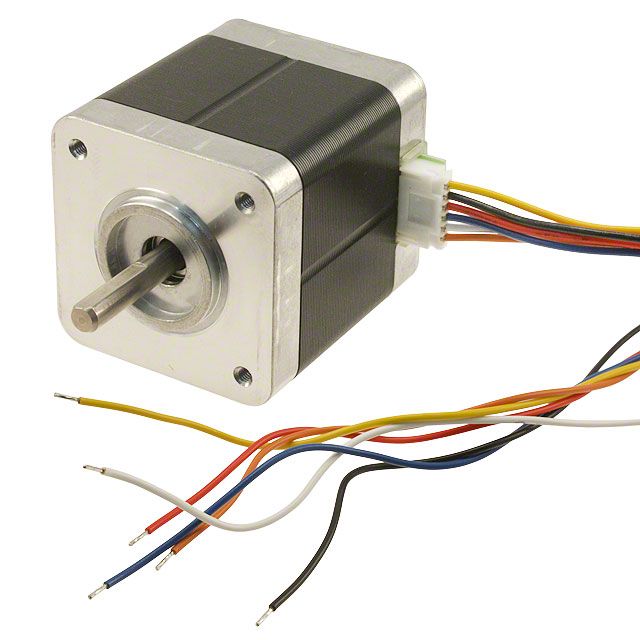

17PM-K444-99VS
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 48.15 / 340
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 3.3 Ohms
Features : Flatted Shaft
Series : 17PM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 48.15 / 340
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 3.3 Ohms
Features : Flatted Shaft
0
100 in stock
17PM-K449U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 56.66 / 400
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4.9 Ohms
Features : Round Shaft
Series : 17PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 56.66 / 400
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4.9 Ohms
Features : Round Shaft
0
100 in stock
17PM-K455-00VS
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 800mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 48.15 / 340
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 7.3 Ohms
Features : Flatted Shaft
Series : 17PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 800mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 48.15 / 340
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 7.3 Ohms
Features : Flatted Shaft
0
18 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
