Part Number
Manufacturer
Description
Unit Price
In Stock
14PM-M064U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 400mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 4.82 / 34
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 9 Ohms
Features : Round Shaft
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 400mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 4.82 / 34
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 9 Ohms
Features : Round Shaft
0
100 in stock
14PM-M144B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 850mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 24.93 / 176
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : 5.4 Ohms
Features : Round Shaft
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 850mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 24.93 / 176
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : 5.4 Ohms
Features : Round Shaft
0
100 in stock
14PM-M144U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 17.71 / 125
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.7 Ohms
Features : Round Shaft
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 17.71 / 125
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.7 Ohms
Features : Round Shaft
0
100 in stock

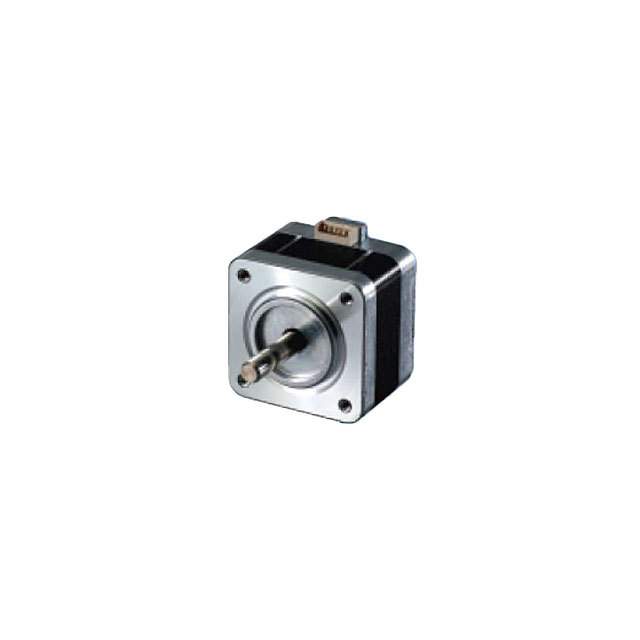

14PM-M247B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 4.82 / 34
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : 3.8 Ohms
Features : Round Shaft
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 4.82 / 34
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : 3.8 Ohms
Features : Round Shaft
0
100 in stock
14PM-M247U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 800mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 3.40 / 24
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 1.9 Ohms
Features : Round Shaft
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 800mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 3.40 / 24
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 1.9 Ohms
Features : Round Shaft
0
100 in stock
14PM-M264U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 400mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 3.40 / 24
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 7.6 Ohms
Features : Round Shaft
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 400mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 3.40 / 24
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 7.6 Ohms
Features : Round Shaft
0
100 in stock
14PM-M444B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 700mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 31.87 / 225
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : 8 Ohms
Features : Round Shaft
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 700mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 31.87 / 225
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : 8 Ohms
Features : Round Shaft
0
100 in stock
14PM-M444U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 26.91 / 190
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4 Ohms
Features : Round Shaft
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 26.91 / 190
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4 Ohms
Features : Round Shaft
0
100 in stock

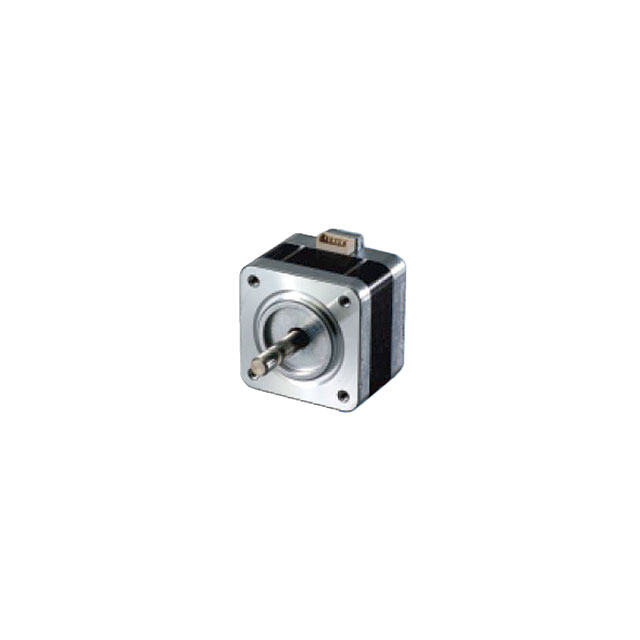

14PY-Z047B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 14PY
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 7.79 / 55
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : 4.8 Ohms
Features : Round Shaft
Series : 14PY
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 7.79 / 55
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : 4.8 Ohms
Features : Round Shaft
0
100 in stock
14PY-Z047U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 14PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 800mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 5.67 / 40
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.4 Ohms
Features : Round Shaft
Series : 14PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 800mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 5.67 / 40
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.4 Ohms
Features : Round Shaft
0
100 in stock
14PY-Z064U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 14PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 400mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 5.67 / 40
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 9 Ohms
Features : Round Shaft
Series : 14PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 400mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 5.67 / 40
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 9 Ohms
Features : Round Shaft
0
100 in stock
14PY-Z247B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 14PY
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 7.79 / 55
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4.8 Ohms
Features : Round Shaft
Series : 14PY
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 7.79 / 55
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4.8 Ohms
Features : Round Shaft
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
