Part Number
Manufacturer
Description
Unit Price
In Stock

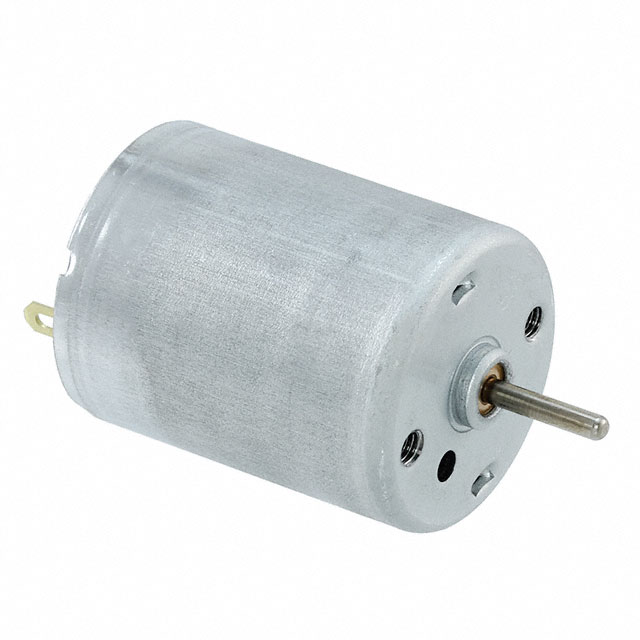

82710001
Crouzet
Manufacturer : Crouzet
Series : -
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 3365 RPM
Torque - Rated (oz-in / mNm) : 0.425 / 3
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.453" (11.50mm)
Mounting Hole Spacing : 0.670" (17.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
Series : -
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 3365 RPM
Torque - Rated (oz-in / mNm) : 0.425 / 3
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.453" (11.50mm)
Mounting Hole Spacing : 0.670" (17.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
4 in stock
82710002
Crouzet
Manufacturer : Crouzet
Series : -
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 24VDC
RPM : 3320 RPM
Torque - Rated (oz-in / mNm) : 0.425 / 3
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.453" (11.50mm)
Mounting Hole Spacing : 0.670" (17.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
Series : -
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 24VDC
RPM : 3320 RPM
Torque - Rated (oz-in / mNm) : 0.425 / 3
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.453" (11.50mm)
Mounting Hole Spacing : 0.670" (17.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
100 in stock
82710004
Crouzet
Manufacturer : Crouzet
Series : -
Part Status : Obsolete
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 3365 RPM
Torque - Rated (oz-in / mNm) : 0.425 / 3
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.453" (11.50mm)
Mounting Hole Spacing : 0.670" (17.00mm)
Termination Style : Solder Tab
Features : Noise Filter
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
Series : -
Part Status : Obsolete
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 3365 RPM
Torque - Rated (oz-in / mNm) : 0.425 / 3
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.453" (11.50mm)
Mounting Hole Spacing : 0.670" (17.00mm)
Termination Style : Solder Tab
Features : Noise Filter
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
100 in stock
82710005
Crouzet
Manufacturer : Crouzet
Series : -
Part Status : Obsolete
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 24VDC
RPM : 3320 RPM
Torque - Rated (oz-in / mNm) : 0.425 / 3
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.453" (11.50mm)
Mounting Hole Spacing : 0.670" (17.00mm)
Termination Style : Solder Tab
Features : Noise Filter
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
Series : -
Part Status : Obsolete
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 24VDC
RPM : 3320 RPM
Torque - Rated (oz-in / mNm) : 0.425 / 3
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.453" (11.50mm)
Mounting Hole Spacing : 0.670" (17.00mm)
Termination Style : Solder Tab
Features : Noise Filter
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
100 in stock
82712001
Crouzet
Manufacturer : Crouzet
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 696 RPM
Torque - Rated (oz-in / mNm) : 70.81 / 500
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.535" (13.60mm)
Mounting Hole Spacing : 0.807" (20.50mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 4.8
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 696 RPM
Torque - Rated (oz-in / mNm) : 70.81 / 500
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.535" (13.60mm)
Mounting Hole Spacing : 0.807" (20.50mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 4.8
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
100 in stock
82712002
Crouzet
Manufacturer : Crouzet
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 342 RPM
Torque - Rated (oz-in / mNm) : 70.81 / 500
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.535" (13.60mm)
Mounting Hole Spacing : 0.807" (20.50mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 9.76
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 342 RPM
Torque - Rated (oz-in / mNm) : 70.81 / 500
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.535" (13.60mm)
Mounting Hole Spacing : 0.807" (20.50mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 9.76
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
100 in stock
82712003
Crouzet
Manufacturer : Crouzet
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 222 RPM
Torque - Rated (oz-in / mNm) : 70.81 / 500
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.535" (13.60mm)
Mounting Hole Spacing : 0.807" (20.50mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 15
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 222 RPM
Torque - Rated (oz-in / mNm) : 70.81 / 500
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.535" (13.60mm)
Mounting Hole Spacing : 0.807" (20.50mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 15
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
100 in stock

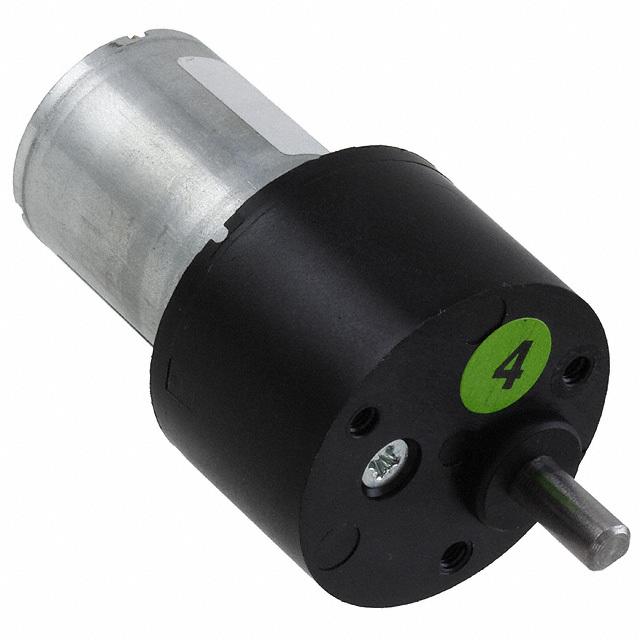

82712004
Crouzet
Manufacturer : Crouzet
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 109 RPM
Torque - Rated (oz-in / mNm) : 70.81 / 500
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.535" (13.60mm)
Mounting Hole Spacing : 0.807" (20.50mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 30.5
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 109 RPM
Torque - Rated (oz-in / mNm) : 70.81 / 500
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.535" (13.60mm)
Mounting Hole Spacing : 0.807" (20.50mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 30.5
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
1 in stock
82712005
Crouzet
Manufacturer : Crouzet
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 71 RPM
Torque - Rated (oz-in / mNm) : 70.81 / 500
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.535" (13.60mm)
Mounting Hole Spacing : 0.807" (20.50mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 47
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 71 RPM
Torque - Rated (oz-in / mNm) : 70.81 / 500
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.535" (13.60mm)
Mounting Hole Spacing : 0.807" (20.50mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 47
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
100 in stock
82712006
Crouzet
Manufacturer : Crouzet
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 35 RPM
Torque - Rated (oz-in / mNm) : 70.81 / 500
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.535" (13.60mm)
Mounting Hole Spacing : 0.807" (20.50mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 95
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 35 RPM
Torque - Rated (oz-in / mNm) : 70.81 / 500
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.535" (13.60mm)
Mounting Hole Spacing : 0.807" (20.50mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 95
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
100 in stock
82712007
Crouzet
Manufacturer : Crouzet
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : Brushed
Voltage - Rated : 24VDC
RPM : 696 RPM
Torque - Rated (oz-in / mNm) : 70.81 / 500
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.535" (13.60mm)
Mounting Hole Spacing : 0.807" (20.50mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 4.8
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : Brushed
Voltage - Rated : 24VDC
RPM : 696 RPM
Torque - Rated (oz-in / mNm) : 70.81 / 500
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.535" (13.60mm)
Mounting Hole Spacing : 0.807" (20.50mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 4.8
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
100 in stock
82712008
Crouzet
Manufacturer : Crouzet
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : Brushed
Voltage - Rated : 24VDC
RPM : 342 RPM
Torque - Rated (oz-in / mNm) : 70.81 / 500
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.535" (13.60mm)
Mounting Hole Spacing : 0.807" (20.50mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 9.76
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : Brushed
Voltage - Rated : 24VDC
RPM : 342 RPM
Torque - Rated (oz-in / mNm) : 70.81 / 500
Power - Rated : 1.4W
Encoder Type : -
Size / Dimension : Round - 0.960" Dia (24.40mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.535" (13.60mm)
Mounting Hole Spacing : 0.807" (20.50mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : 9.76
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
