Part Number

Manufacturer

Description

Unit Price

In Stock

TX58/41/18-3C94

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : 2300
Initial Permeability (µi) : -
Material : 3C94
Core Factor (危I/A) mm1 : 1
Effective Length (le) mm : 152
Effective Area (Ae) mm² : 152
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 23200
Finish : Epoxy
Supplier Device Package : TX 58 x 41 x 18
Height : 18.60mm
Length : -
Width : -
Diameter : 59.80mm

100 in stock

TX58/41/18-3E10-M

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : ±30%
Gap : Ungapped
Effective Permeability (µe) : 9500
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 1
Effective Length (le) mm : 152
Effective Area (Ae) mm² : 152
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 23200
Finish : Epoxy
Supplier Device Package : TX 58 x 41 x 18
Height : 18.60mm
Length : -
Width : -
Diameter : 59.80mm

100 in stock

TX58/41/18-3E27

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : 5500
Initial Permeability (µi) : -
Material : 3E27
Core Factor (危I/A) mm1 : 1
Effective Length (le) mm : 152
Effective Area (Ae) mm² : 152
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 23200
Finish : Epoxy
Supplier Device Package : TX 58 x 41 x 18
Height : 18.60mm
Length : -
Width : -
Diameter : 59.80mm

100 in stock

TX58/41/18-3E6

FERROXCUBE

100 in stock

TX58/41/18-3E65

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : 5200
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 1
Effective Length (le) mm : 152
Effective Area (Ae) mm² : 152
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 23200
Finish : Epoxy
Supplier Device Package : TX 58 x 41 x 18
Height : 18.60mm
Length : -
Width : -
Diameter : 59.80mm

100 in stock

TX58/41/18-4C65

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : 4C65
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : Epoxy
Supplier Device Package : TX 58 x 41 x 18
Height : 18.60mm
Length : -
Width : -
Diameter : 59.80mm

100 in stock

TX63/38/25-3C11

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : 3C11
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : Epoxy
Supplier Device Package : -
Height : 25.00mm
Length : -
Width : -
Diameter : 63.00mm

100 in stock

TX63/38/25-3C90

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : 3C90
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : Epoxy
Supplier Device Package : -
Height : 25.00mm
Length : -
Width : -
Diameter : 63.00mm

46 in stock

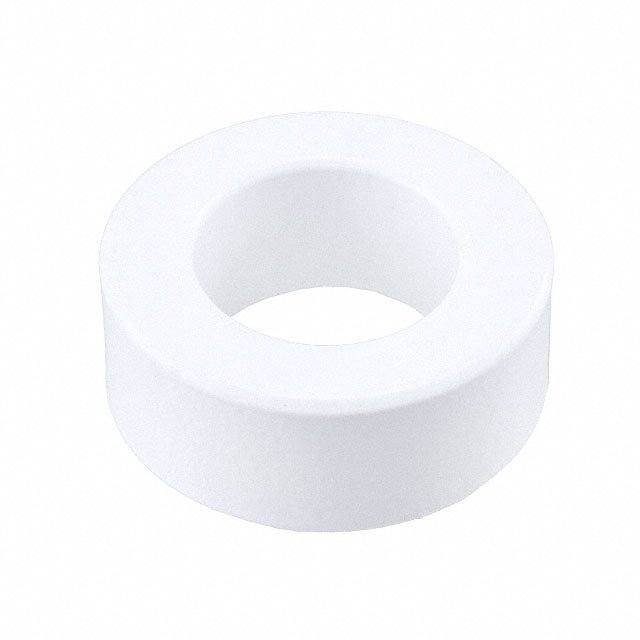

TX63/38/25-3C94

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : 2300
Initial Permeability (µi) : -
Material : 3C94
Core Factor (危I/A) mm1 : 0.497
Effective Length (le) mm : 152
Effective Area (Ae) mm² : 306
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 46500
Finish : Epoxy
Supplier Device Package : -
Height : 25.00mm
Length : -
Width : -
Diameter : 63.00mm

100 in stock

TX63/38/25-3E10-M

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : ±30%
Gap : Ungapped
Effective Permeability (µe) : 9500
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.497
Effective Length (le) mm : 152
Effective Area (Ae) mm² : 306
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 46500
Finish : Epoxy
Supplier Device Package : -
Height : 25.00mm
Length : -
Width : -
Diameter : 63.00mm

100 in stock

TX63/38/25-3E27

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : -
Gap : -
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : 3E27
Core Factor (危I/A) mm1 : -
Effective Length (le) mm : -
Effective Area (Ae) mm² : -
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : -
Finish : Epoxy
Supplier Device Package : -
Height : 25.00mm
Length : -
Width : -
Diameter : 63.00mm

100 in stock

TX63/38/25-3E27-M7

FERROXCUBE

Manufacturer : Ferroxcube
Series : *
Part Status : Active
Core Type : Toroid
Inductance Factor (Al) : -
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : 7000
Initial Permeability (µi) : -
Material : 3E27
Core Factor (危I/A) mm1 : 0.497
Effective Length (le) mm : 152
Effective Area (Ae) mm² : 306
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 46500
Finish : Epoxy
Supplier Device Package : -
Height : 25.00mm
Length : -
Width : -
Diameter : 63.00mm

100 in stock
