- Isolators
- Optoisolators - Logic Output
Part Number
Manufacturer
Description
Unit Price
In Stock

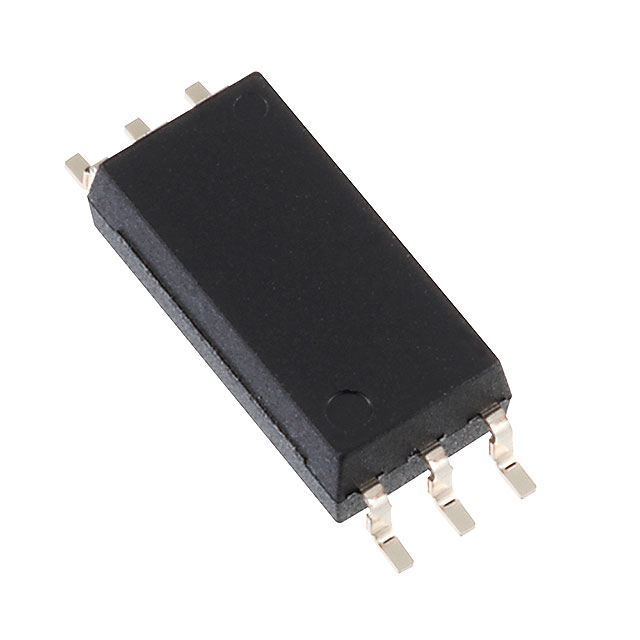

TLP2770(TP,E
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 10mA
Data Rate : 20MBd
Propagation Delay tpLH / tpHL (Max) : 60ns, 60ns
Rise / Fall Time (Typ) : 1.3ns, 1ns
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 8mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 10mA
Data Rate : 20MBd
Propagation Delay tpLH / tpHL (Max) : 60ns, 60ns
Rise / Fall Time (Typ) : 1.3ns, 1ns
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 8mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
0
14 in stock
.jpg "Show details for TLP2955(F)")
TLP2955(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 25mA
Data Rate : -
Propagation Delay tpLH / tpHL (Max) : 250ns, 250ns
Rise / Fall Time (Typ) : 16ns, 14ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 3 V ~ 20 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 25mA
Data Rate : -
Propagation Delay tpLH / tpHL (Max) : 250ns, 250ns
Rise / Fall Time (Typ) : 16ns, 14ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 3 V ~ 20 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
253 in stock
.jpg "Show details for TLP2962(F)")
TLP2962(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 15MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 3ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 15MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 3ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
453 in stock
.jpg "Show details for TLP2962(TP1,F)")
TLP2962(TP1,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 15MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 3ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 15MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 3ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
100 in stock
.jpg "Show details for TLP714(F)")
TLP714(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 15mA
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 550ns, 400ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 15mA
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 550ns, 400ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
0
393 in stock
.jpg "Show details for TLP715(F)")
TLP715(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 25mA
Data Rate : 5Mbps
Propagation Delay tpLH / tpHL (Max) : 250ns, 250ns
Rise / Fall Time (Typ) : 30ns, 30ns
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 25mA
Data Rate : 5Mbps
Propagation Delay tpLH / tpHL (Max) : 250ns, 250ns
Rise / Fall Time (Typ) : 30ns, 30ns
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
0
2703 in stock
.jpg "Show details for TLP716(TP,F)")
TLP716(TP,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 10mA
Data Rate : 15MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 15ns, 15ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 10mA
Data Rate : 15MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 15ns, 15ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
0
1758 in stock
.jpg "Show details for TLP718(F)")

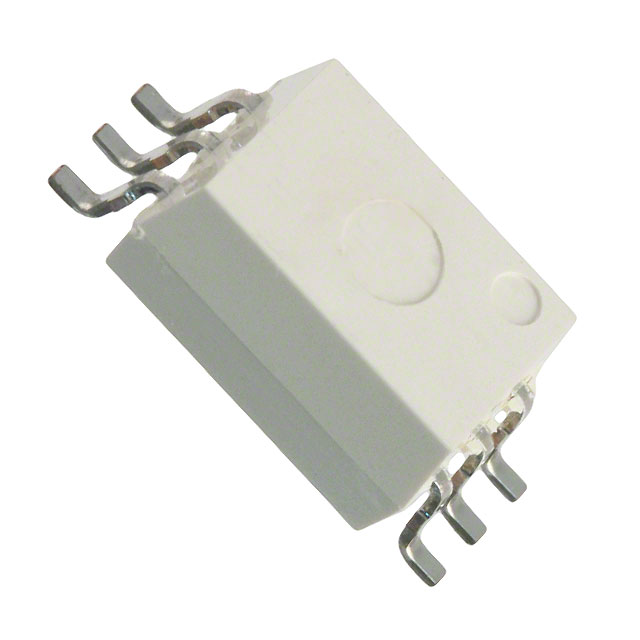

TLP718(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 25mA
Data Rate : 5Mbps
Propagation Delay tpLH / tpHL (Max) : 250ns, 250ns
Rise / Fall Time (Typ) : 30ns, 30ns
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 25mA
Data Rate : 5Mbps
Propagation Delay tpLH / tpHL (Max) : 250ns, 250ns
Rise / Fall Time (Typ) : 30ns, 30ns
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
0
3454 in stock
.jpg "Show details for TLP754(F)")
TLP754(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 15mA
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 550ns, 400ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 15mA
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 550ns, 400ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
293 in stock
.jpg "Show details for TLPN137(F)")
TLPN137(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 3ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 3ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
180 in stock
VO0600T
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 4000Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Drain
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 23ns, 7ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 4000Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Drain
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 23ns, 7ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
1947 in stock
VO0601T
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 4000Vrms
Common Mode Transient Immunity (Min) : 5kV/µs
Input Type : DC
Output Type : Open Drain
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 23ns, 7ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 60mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 4000Vrms
Common Mode Transient Immunity (Min) : 5kV/µs
Input Type : DC
Output Type : Open Drain
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 23ns, 7ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 60mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
12485 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
