Part Number
Manufacturer
Description
Unit Price
In Stock
TLP2366(V4-TPL,E
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 10mA
Data Rate : 20MBd
Propagation Delay tpLH / tpHL (Max) : 40ns, 40ns
Rise / Fall Time (Typ) : 15ns, 15ns
Voltage - Forward (Vf) (Typ) : 1.61V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 5 Leads
Supplier Device Package : 6-SO, 5 Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 10mA
Data Rate : 20MBd
Propagation Delay tpLH / tpHL (Max) : 40ns, 40ns
Rise / Fall Time (Typ) : 15ns, 15ns
Voltage - Forward (Vf) (Typ) : 1.61V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 5 Leads
Supplier Device Package : 6-SO, 5 Lead
0
40 in stock

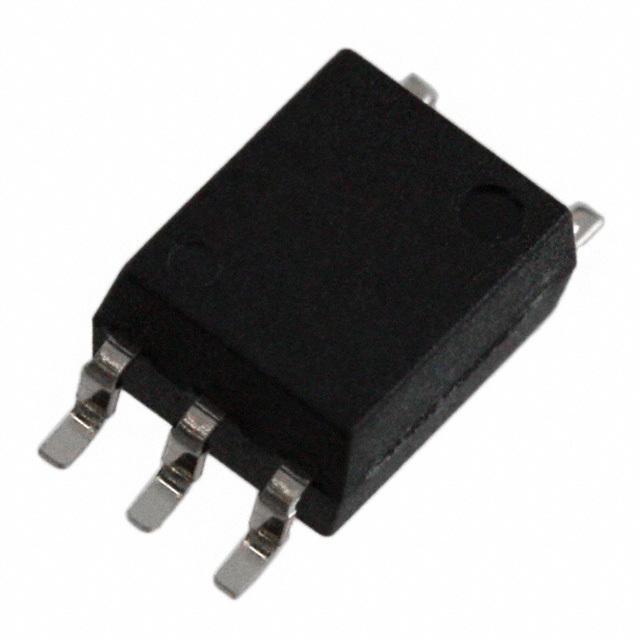

TLP2367(TPR,E
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Input Type : DC
Output Type : Tri-State
Current - Output / Channel : 10mA
Data Rate : 50MBd
Propagation Delay tpLH / tpHL (Max) : 20ns, 20ns
Rise / Fall Time (Typ) : 2ns, 1ns
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 15mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 5 Leads
Supplier Device Package : 6-SO, 5 Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Input Type : DC
Output Type : Tri-State
Current - Output / Channel : 10mA
Data Rate : 50MBd
Propagation Delay tpLH / tpHL (Max) : 20ns, 20ns
Rise / Fall Time (Typ) : 2ns, 1ns
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 15mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 5 Leads
Supplier Device Package : 6-SO, 5 Lead
0
120 in stock
.jpg "Show details for TLP2368(E)")
TLP2368(E)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 20MBd
Propagation Delay tpLH / tpHL (Max) : 60ns, 60ns
Rise / Fall Time (Typ) : 30ns, 30ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 5 Leads
Supplier Device Package : 6-SO, 5 Lead
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 20MBd
Propagation Delay tpLH / tpHL (Max) : 60ns, 60ns
Rise / Fall Time (Typ) : 30ns, 30ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 5 Leads
Supplier Device Package : 6-SO, 5 Lead
0
165 in stock
TLP2368(TPL,E
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 20MBd
Propagation Delay tpLH / tpHL (Max) : 60ns, 60ns
Rise / Fall Time (Typ) : 30ns, 30ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 5 Leads
Supplier Device Package : 6-SO, 5 Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 20MBd
Propagation Delay tpLH / tpHL (Max) : 60ns, 60ns
Rise / Fall Time (Typ) : 30ns, 30ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 5 Leads
Supplier Device Package : 6-SO, 5 Lead
0
24269 in stock
.jpg "Show details for TLP2630(F)")

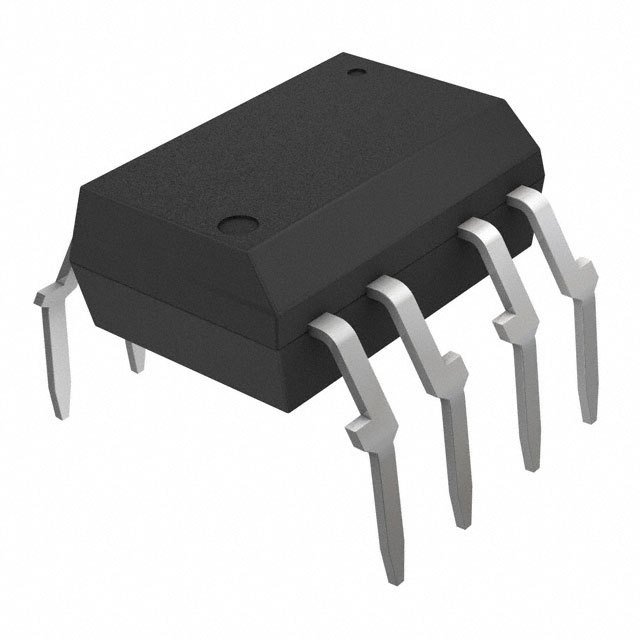

TLP2630(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 200V/µs, 500V/µs (Typ)
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 16mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 30ns, 30ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 200V/µs, 500V/µs (Typ)
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 16mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 30ns, 30ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
2753 in stock
.jpg "Show details for TLP2631(F)")
TLP2631(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 16mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 30ns, 30ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 16mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 30ns, 30ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
7578 in stock

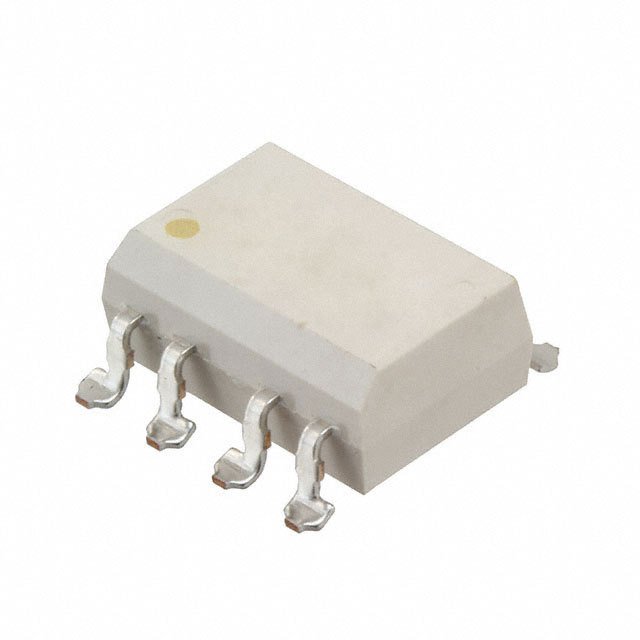

TLP2631TP1F
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 16mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 30ns, 30ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 16mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 30ns, 30ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
123 in stock
.jpg "Show details for TLP2662(F)")
TLP2662(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 12ns, 3ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.400", 10.16mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 12ns, 3ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.400", 10.16mm)
Supplier Device Package : 8-DIP
0
200 in stock
.jpg "Show details for TLP2662(TP1,F)")
TLP2662(TP1,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 12ns, 3ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 12ns, 3ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
984 in stock
TLP2745(TP,E
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 30kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 50mA
Data Rate : -
Propagation Delay tpLH / tpHL (Max) : 120ns, 120ns
Rise / Fall Time (Typ) : 3ns, 3ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 15mA
Voltage - Supply : 4.5 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 30kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 50mA
Data Rate : -
Propagation Delay tpLH / tpHL (Max) : 120ns, 120ns
Rise / Fall Time (Typ) : 3ns, 3ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 15mA
Voltage - Supply : 4.5 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
0
27415 in stock
TLP2748(TP,E
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 30kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 50mA
Data Rate : -
Propagation Delay tpLH / tpHL (Max) : 120ns, 120ns
Rise / Fall Time (Typ) : 3ns, 3ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 15mA
Voltage - Supply : 4.5 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 30kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 50mA
Data Rate : -
Propagation Delay tpLH / tpHL (Max) : 120ns, 120ns
Rise / Fall Time (Typ) : 3ns, 3ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 15mA
Voltage - Supply : 4.5 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
0
790 in stock
TLP2767(TP,E
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Input Type : DC
Output Type : Tri-State
Current - Output / Channel : 10mA
Data Rate : 50MBd
Propagation Delay tpLH / tpHL (Max) : 20ns, 20ns
Rise / Fall Time (Typ) : 2ns, 1ns
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 15mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Input Type : DC
Output Type : Tri-State
Current - Output / Channel : 10mA
Data Rate : 50MBd
Propagation Delay tpLH / tpHL (Max) : 20ns, 20ns
Rise / Fall Time (Typ) : 2ns, 1ns
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 15mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
0
1002 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
