- Isolators
- Optoisolators - Logic Output
Part Number
Manufacturer
Description
Unit Price
In Stock
PS9122-N-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Strip
Series : NEPOC
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 20mA
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 700ns, 500ns
Rise / Fall Time (Typ) : 60ns, 70ns
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 2.7 V ~ 3.6 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
Packaging : Strip
Series : NEPOC
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 20mA
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 700ns, 500ns
Rise / Fall Time (Typ) : 60ns, 70ns
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 2.7 V ~ 3.6 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
0
200 in stock
PS9123-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Bulk
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 13mA
Data Rate : 15Mbps
Propagation Delay tpLH / tpHL (Max) : 60ns, 60ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
Packaging : Bulk
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 13mA
Data Rate : 15Mbps
Propagation Delay tpLH / tpHL (Max) : 60ns, 60ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
0
390 in stock
PS9123-F3-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Discontinued at
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 13mA
Data Rate : 15Mbps
Propagation Delay tpLH / tpHL (Max) : 60ns, 60ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Discontinued at
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 13mA
Data Rate : 15Mbps
Propagation Delay tpLH / tpHL (Max) : 60ns, 60ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
0
100 in stock
PS9151-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Strip
Series : NEPOC
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 2mA
Data Rate : 15Mbps
Propagation Delay tpLH / tpHL (Max) : 60ns, 60ns
Rise / Fall Time (Typ) : 4ns, 4ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
Packaging : Strip
Series : NEPOC
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 2mA
Data Rate : 15Mbps
Propagation Delay tpLH / tpHL (Max) : 60ns, 60ns
Rise / Fall Time (Typ) : 4ns, 4ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
0
216 in stock

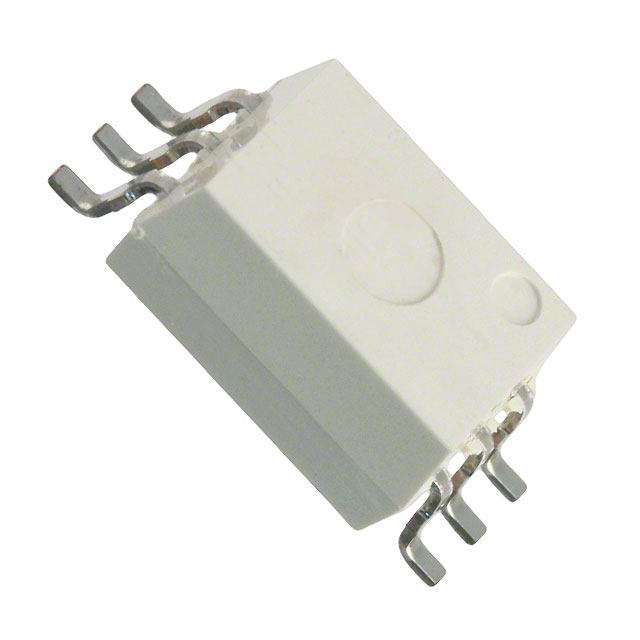

PS9303L-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Bulk
Series : NEPOC
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 25mA
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 500ns, 550ns
Rise / Fall Time (Typ) : 120ns, 90ns
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SMD
Packaging : Bulk
Series : NEPOC
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 25mA
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 500ns, 550ns
Rise / Fall Time (Typ) : 120ns, 90ns
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SMD
0
173 in stock
PS9313L2-AX
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Strip
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 15mA
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 750ns, 500ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Packaging : Strip
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 15mA
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 750ns, 500ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
0
100 in stock
PS9513-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 15mA
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 750ns, 500ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 15mA
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 750ns, 500ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
99 in stock
PS9513L2-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 15mA
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 750ns, 500ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 15mA
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 750ns, 500ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
0
136 in stock
PS9587-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Tube
Series : NEPOC
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 20ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 30mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : NEPOC
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 20ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 30mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
95 in stock
PS9817A-1-F3-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NEPOC
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 20ns, 5ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NEPOC
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 20ns, 5ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SSOP
0
624 in stock
PS9817A-2-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Bulk
Alternate Packaging
Series : NEPOC
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 20ns, 5ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 15mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SSOP
Packaging : Bulk
Alternate Packaging
Series : NEPOC
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 20ns, 5ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 15mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SSOP
0
1409 in stock
PS9817A-2-F3-AX
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NEPOC
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 20ns, 5ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 15mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NEPOC
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 20ns, 5ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 15mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SSOP
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
