- Isolators
- Optoisolators - Logic Output
Part Number
Manufacturer
Description
Unit Price
In Stock
OPI1268
Optek Technology / TT Electronics
Manufacturer : TT Electronics/Optek Technology
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 16000VDC
Common Mode Transient Immunity (Min) : -
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 2Mbps
Propagation Delay tpLH / tpHL (Max) : 200ns, 100ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 30mA
Voltage - Supply : 7V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (1.100", 27.94mm), 5 Leads
Supplier Device Package : -
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 16000VDC
Common Mode Transient Immunity (Min) : -
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 2Mbps
Propagation Delay tpLH / tpHL (Max) : 200ns, 100ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 30mA
Voltage - Supply : 7V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (1.100", 27.94mm), 5 Leads
Supplier Device Package : -
0
3156 in stock

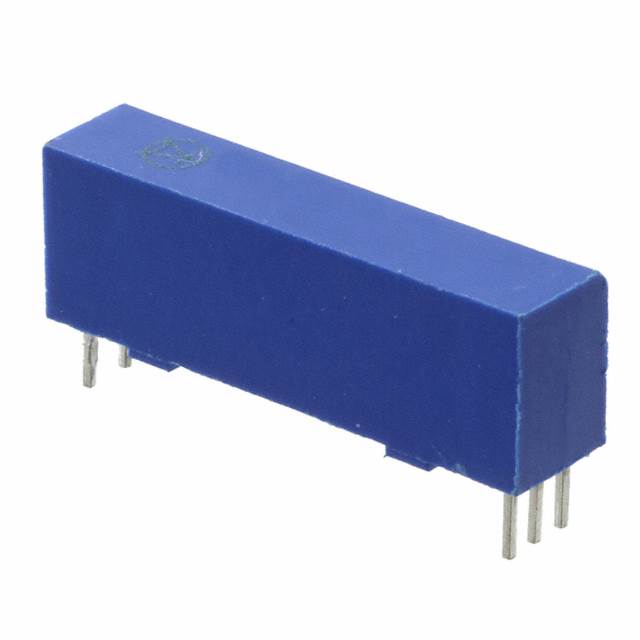

OPI1268S
Optek Technology / TT Electronics
Manufacturer : TT Electronics/Optek Technology
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 20000VDC
Common Mode Transient Immunity (Min) : -
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 2Mbps
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 30mA
Voltage - Supply : 7V
Operating Temperature : -50°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (1.100", 27.94mm), 5 Leads
Supplier Device Package : -
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 20000VDC
Common Mode Transient Immunity (Min) : -
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 2Mbps
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 30mA
Voltage - Supply : 7V
Operating Temperature : -50°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (1.100", 27.94mm), 5 Leads
Supplier Device Package : -
0
7971 in stock

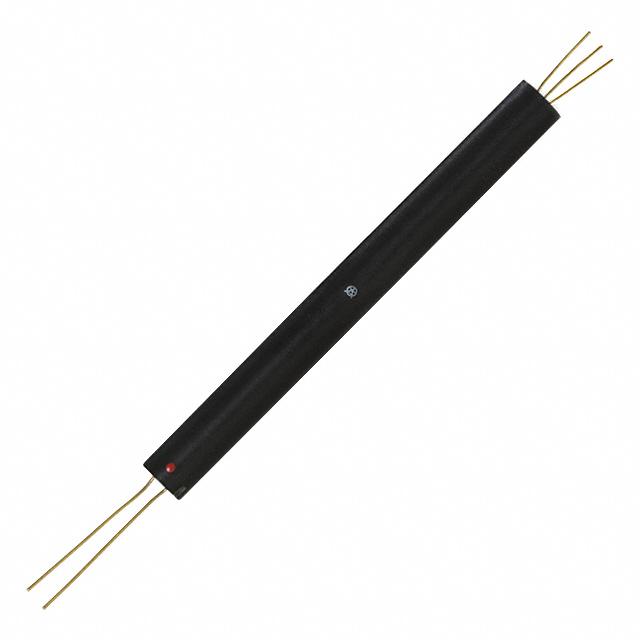

OPI155
Optek Technology / TT Electronics
Manufacturer : TT Electronics/Optek Technology
Packaging : Bulk
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 50000VDC
Common Mode Transient Immunity (Min) : -
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 25mA
Data Rate : 5Mbps
Propagation Delay tpLH / tpHL (Max) : 70ns, 120ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 7V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : -
Supplier Device Package : -
Packaging : Bulk
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 50000VDC
Common Mode Transient Immunity (Min) : -
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 25mA
Data Rate : 5Mbps
Propagation Delay tpLH / tpHL (Max) : 70ns, 120ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 7V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : -
Supplier Device Package : -
0
131 in stock
PS9113-AX
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Strip
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 15mA
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 750ns, 500ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
Packaging : Strip
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 15mA
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 750ns, 500ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
0
100 in stock
PS9113-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Strip
Series : -
Part Status : Discontinued at
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 15mA
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 750ns, 500ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
Packaging : Strip
Series : -
Part Status : Discontinued at
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 15mA
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 750ns, 500ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
0
2388 in stock
PS9117A-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Bulk
Alternate Packaging
Series : NEPOC
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 20ns, 5ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 30mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
Packaging : Bulk
Alternate Packaging
Series : NEPOC
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 20ns, 5ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 30mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
0
1867 in stock
PS9117A-F3-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NEPOC
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 20ns, 5ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 30mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NEPOC
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 20ns, 5ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 30mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
0
51470 in stock
PS9121-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Bulk
Alternate Packaging
Series : NEPOC
Part Status : Discontinued at
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 15Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 20ns, 5ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 30mA
Voltage - Supply : 2.7 V ~ 3.6 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
Packaging : Bulk
Alternate Packaging
Series : NEPOC
Part Status : Discontinued at
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 15Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 20ns, 5ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 30mA
Voltage - Supply : 2.7 V ~ 3.6 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
0
39 in stock
PS9121-AX
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Bulk
Series : NEPOC
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 15Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 20ns, 5ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 30mA
Voltage - Supply : 2.7 V ~ 3.6 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
Packaging : Bulk
Series : NEPOC
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 15Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 20ns, 5ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 30mA
Voltage - Supply : 2.7 V ~ 3.6 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
0
100 in stock
PS9121-F3-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : NEPOC
Part Status : Discontinued at
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 15Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 20ns, 5ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 30mA
Voltage - Supply : 2.7 V ~ 3.6 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : NEPOC
Part Status : Discontinued at
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 15Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 20ns, 5ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 30mA
Voltage - Supply : 2.7 V ~ 3.6 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
0
5000 in stock
PS9121-F3-AX
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NEPOC
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 15Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 20ns, 5ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 30mA
Voltage - Supply : 2.7 V ~ 3.6 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NEPOC
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 25mA
Data Rate : 15Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 20ns, 5ns
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 30mA
Voltage - Supply : 2.7 V ~ 3.6 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
0
5000 in stock
PS9122-F3-L-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : NEPOC
Part Status : Discontinued at
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 150kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 20mA
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 700ns, 500ns
Rise / Fall Time (Typ) : 60ns, 70ns
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : NEPOC
Part Status : Discontinued at
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 150kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 20mA
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 700ns, 500ns
Rise / Fall Time (Typ) : 60ns, 70ns
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SO
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
