- Isolators
- Optoisolators - Logic Output
Part Number
Manufacturer
Description
Unit Price
In Stock
6N137VM
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs (Typ)
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 30ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs (Typ)
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 30ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
1926 in stock
6N137-X006
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5300Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Drain
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 23ns, 7ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.400", 10.16mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5300Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Drain
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 23ns, 7ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.400", 10.16mm)
Supplier Device Package : 8-DIP
0
1838 in stock
6N137-X007T
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5300Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Drain
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 23ns, 7ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5300Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Drain
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 23ns, 7ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
1387 in stock
6N137-X009T
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5300Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Drain
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 23ns, 7ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5300Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Drain
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 23ns, 7ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
100 in stock

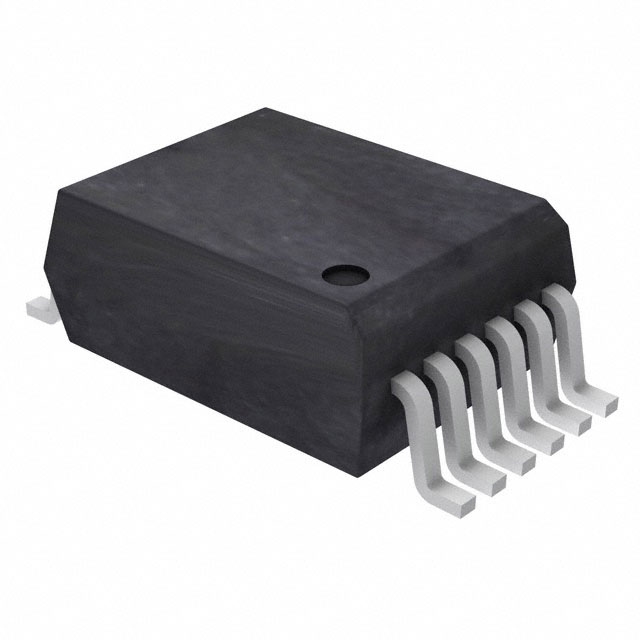

ACFL-6211T-000E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Alternate Packaging
Series : Automotive, AEC-Q100, R²Coupler™
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 10mA
Data Rate : 15MBd
Propagation Delay tpLH / tpHL (Max) : 35ns, 35ns
Rise / Fall Time (Typ) : 10ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 12-BSOP (0.295", 7.50mm Width)
Supplier Device Package : 12-SO
Packaging : Tube
Alternate Packaging
Series : Automotive, AEC-Q100, R²Coupler™
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 10mA
Data Rate : 15MBd
Propagation Delay tpLH / tpHL (Max) : 35ns, 35ns
Rise / Fall Time (Typ) : 10ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 12-BSOP (0.295", 7.50mm Width)
Supplier Device Package : 12-SO
0
539 in stock
ACFL-6211U-000E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : R²Coupler™
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 10mA
Data Rate : -
Propagation Delay tpLH / tpHL (Max) : 35ns, 35ns
Rise / Fall Time (Typ) : 10ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 12-BSOP (0.295", 7.50mm Width)
Supplier Device Package : 12-SO
Packaging : Tube
Series : R²Coupler™
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 10mA
Data Rate : -
Propagation Delay tpLH / tpHL (Max) : 35ns, 35ns
Rise / Fall Time (Typ) : 10ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 12-BSOP (0.295", 7.50mm Width)
Supplier Device Package : 12-SO
0
1351 in stock

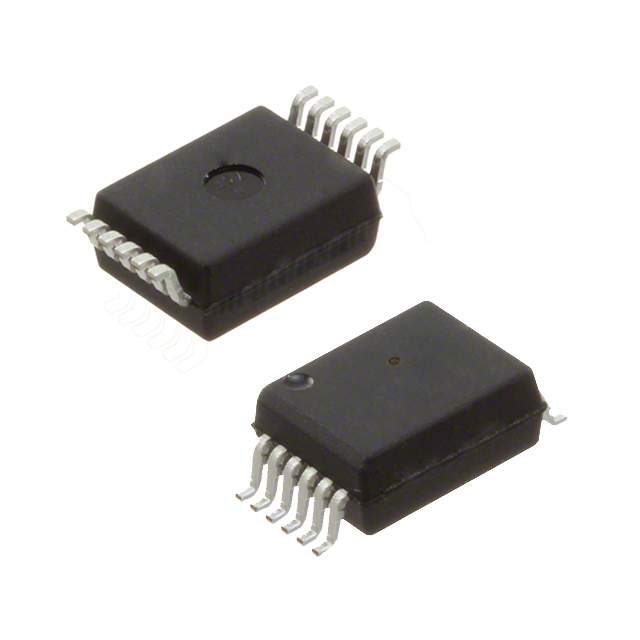

ACFL-6212U-000E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : R²Coupler™
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 10mA
Data Rate : -
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 10ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 12-BSOP (0.295", 7.50mm Width)
Supplier Device Package : 12-SO
Packaging : Tube
Series : R²Coupler™
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 10mA
Data Rate : -
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 10ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 12-BSOP (0.295", 7.50mm Width)
Supplier Device Package : 12-SO
0
1329 in stock

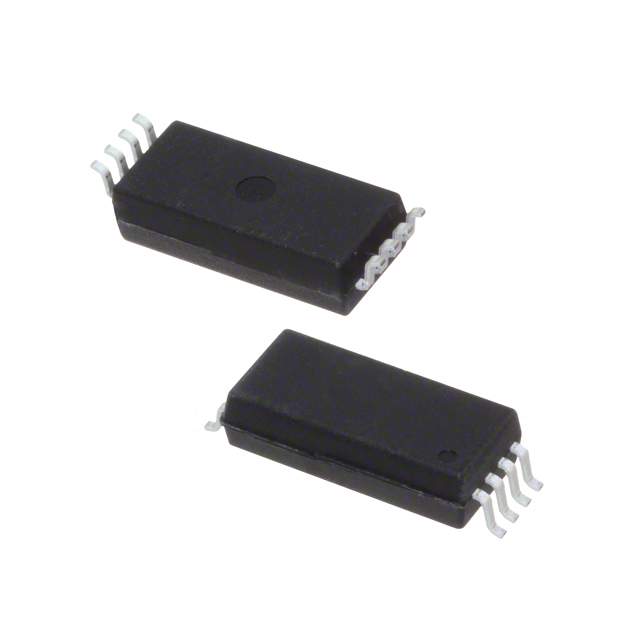

ACNT-H61L-000E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 7500Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : -
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : -
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.535", 13.60mm Width)
Supplier Device Package : 8-SO Stretched
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 7500Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : -
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : -
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.535", 13.60mm Width)
Supplier Device Package : 8-SO Stretched
0
2305 in stock
ACNT-H61L-500E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 7500Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : -
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : -
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.535", 13.60mm Width)
Supplier Device Package : 8-SO Stretched
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 7500Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : -
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : -
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.535", 13.60mm Width)
Supplier Device Package : 8-SO Stretched
0
100 in stock
ACNV2601-300E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 7500Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 80ns, 80ns
Rise / Fall Time (Typ) : 25ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.64V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 10-SMD, Gull Wing
Supplier Device Package : 10-DIP Gull Wing
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 7500Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 80ns, 80ns
Rise / Fall Time (Typ) : 25ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.64V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 10-SMD, Gull Wing
Supplier Device Package : 10-DIP Gull Wing
0
739 in stock
ACNV2601-500E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 7500Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 80ns, 80ns
Rise / Fall Time (Typ) : 25ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.64V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 10-SMD, Gull Wing
Supplier Device Package : 10-DIP Gull Wing
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 7500Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 80ns, 80ns
Rise / Fall Time (Typ) : 25ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.64V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 10-SMD, Gull Wing
Supplier Device Package : 10-DIP Gull Wing
0
1366 in stock
ACNV260E-000E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 80ns, 80ns
Rise / Fall Time (Typ) : 25ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.64V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : 10-DIP (0.433", 11.01mm)
Supplier Device Package : 10-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 80ns, 80ns
Rise / Fall Time (Typ) : 25ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.64V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : 10-DIP (0.433", 11.01mm)
Supplier Device Package : 10-DIP
0
966 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
