- Isolators
- Optoisolators - Logic Output
Part Number
Manufacturer
Description
Unit Price
In Stock
APS1551SX
Panasonic
Manufacturer : Panasonic Electric Works
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 10mA
Data Rate : 50Mbps
Propagation Delay tpLH / tpHL (Max) : 30ns, 30ns
Rise / Fall Time (Typ) : 4ns, 5ns
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 6-SO, 5 Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 10mA
Data Rate : 50Mbps
Propagation Delay tpLH / tpHL (Max) : 30ns, 30ns
Rise / Fall Time (Typ) : 4ns, 5ns
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 6-SO, 5 Lead
0
521 in stock

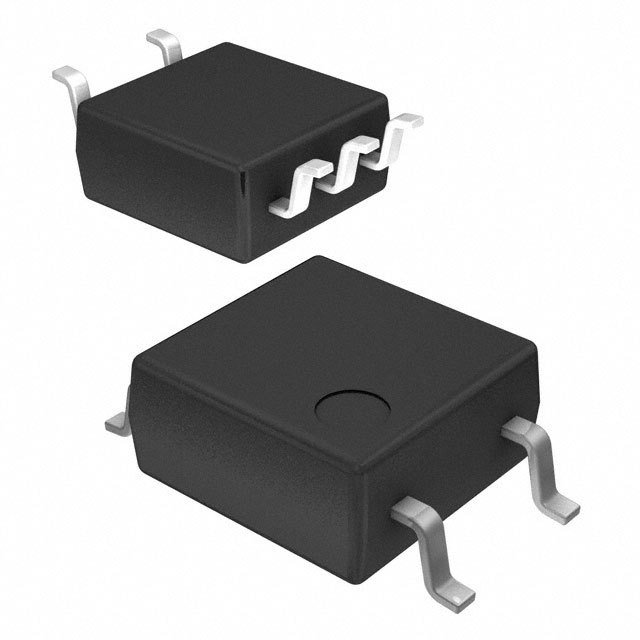

APS1551SZ
Panasonic
Manufacturer : Panasonic Electric Works
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 10mA
Data Rate : 50Mbps
Propagation Delay tpLH / tpHL (Max) : 30ns, 30ns
Rise / Fall Time (Typ) : 4ns, 5ns
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 6-SO, 5 Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 10mA
Data Rate : 50Mbps
Propagation Delay tpLH / tpHL (Max) : 30ns, 30ns
Rise / Fall Time (Typ) : 4ns, 5ns
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 6-SO, 5 Lead
0
990 in stock
CPC5001G
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 5kV/µs, 7kV/µs
Input Type : Logic
Output Type : Open Drain
Current - Output / Channel : -
Data Rate : 5MBd
Propagation Delay tpLH / tpHL (Max) : 250ns, 100ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : -
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 5kV/µs, 7kV/µs
Input Type : Logic
Output Type : Open Drain
Current - Output / Channel : -
Data Rate : 5MBd
Propagation Delay tpLH / tpHL (Max) : 250ns, 100ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : -
0
441 in stock

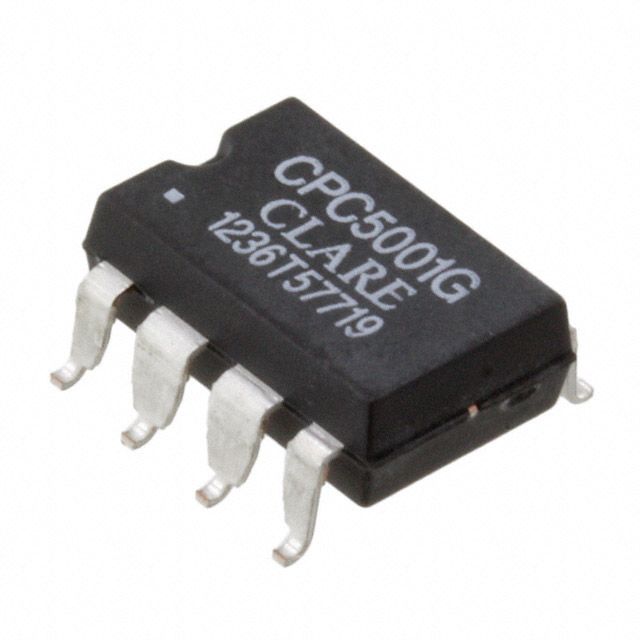

CPC5001GSTR
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 5kV/µs, 7kV/µs
Input Type : Logic
Output Type : Open Drain
Current - Output / Channel : -
Data Rate : 5MBd
Propagation Delay tpLH / tpHL (Max) : 250ns, 100ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 5kV/µs, 7kV/µs
Input Type : Logic
Output Type : Open Drain
Current - Output / Channel : -
Data Rate : 5MBd
Propagation Delay tpLH / tpHL (Max) : 250ns, 100ns
Rise / Fall Time (Typ) : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : -
0
33 in stock
CPC5002G
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 5kV/µs, 7kV/µs
Input Type : DC
Output Type : Open Drain
Current - Output / Channel : 10mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 120ns, 120ns
Rise / Fall Time (Typ) : -, 15ns
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 5kV/µs, 7kV/µs
Input Type : DC
Output Type : Open Drain
Current - Output / Channel : 10mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 120ns, 120ns
Rise / Fall Time (Typ) : -, 15ns
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
3246 in stock
CPC5002GSTR
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 5kV/µs, 7kV/µs
Input Type : DC
Output Type : Open Drain
Current - Output / Channel : 10mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 120ns, 120ns
Rise / Fall Time (Typ) : -, 15ns
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 5kV/µs, 7kV/µs
Input Type : DC
Output Type : Open Drain
Current - Output / Channel : 10mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 120ns, 120ns
Rise / Fall Time (Typ) : -, 15ns
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
389 in stock
.jpg "Show details for EL0600(TA)")
EL0600(TA)
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : -
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 30ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 7V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : -
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 30ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 7V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOP
0
4009 in stock
.jpg "Show details for EL0601(TA)")
EL0601(TA)
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 5kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 30ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 7V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 5kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 30ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 7V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOP
0
100 in stock
.jpg "Show details for EL0631(TA)")
EL0631(TA)
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 40ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 7V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 40ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 7V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOP
0
1715 in stock
EL2601
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 5kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 40ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 7V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 5kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 40ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 7V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
15 in stock
EL2630
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 5kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 40ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 7V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 5kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 40ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 7V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
5 in stock
.jpg "Show details for EL2630S(TA)")
EL2630S(TA)
Everlight Electronics
Manufacturer : Everlight Electronics Co Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 5kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 40ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 7V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 5kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 40ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 7V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
990 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
