- Isolators
- Optoisolators - Logic Output
Part Number
Manufacturer
Description
Unit Price
In Stock
5962-8876801PA
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 1500VDC
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Tri-State
Current - Output / Channel : 15mA
Data Rate : 5MBd
Propagation Delay tpLH / tpHL (Max) : 350ns, 350ns
Rise / Fall Time (Typ) : 45ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 8mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 1500VDC
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Tri-State
Current - Output / Channel : 15mA
Data Rate : 5MBd
Propagation Delay tpLH / tpHL (Max) : 350ns, 350ns
Rise / Fall Time (Typ) : 45ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 8mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
87 in stock
5962-8876901PA
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 1500VDC
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 15mA
Data Rate : 5MBd
Propagation Delay tpLH / tpHL (Max) : 350ns, 350ns
Rise / Fall Time (Typ) : 45ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 8mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 1500VDC
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 15mA
Data Rate : 5MBd
Propagation Delay tpLH / tpHL (Max) : 350ns, 350ns
Rise / Fall Time (Typ) : 45ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 8mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
19 in stock
5962-8876901XA
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 1500VDC
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 15mA
Data Rate : 5MBd
Propagation Delay tpLH / tpHL (Max) : 350ns, 350ns
Rise / Fall Time (Typ) : 45ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 8mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 1500VDC
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 15mA
Data Rate : 5MBd
Propagation Delay tpLH / tpHL (Max) : 350ns, 350ns
Rise / Fall Time (Typ) : 45ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 8mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
0
31 in stock

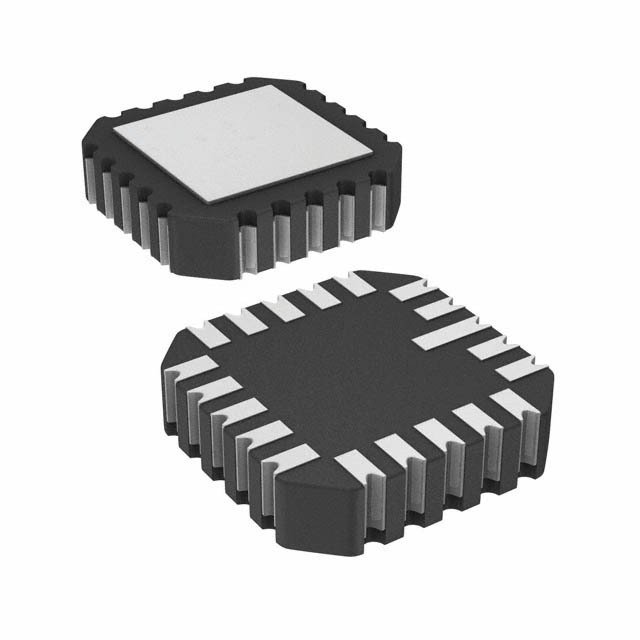

5962-88769022A
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 1500VDC
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 15mA
Data Rate : 5MBd
Propagation Delay tpLH / tpHL (Max) : 350ns, 350ns
Rise / Fall Time (Typ) : 45ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 8mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 20-CLCC
Supplier Device Package : 20-LCCC
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 1500VDC
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 15mA
Data Rate : 5MBd
Propagation Delay tpLH / tpHL (Max) : 350ns, 350ns
Rise / Fall Time (Typ) : 45ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 8mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 20-CLCC
Supplier Device Package : 20-LCCC
0
80 in stock

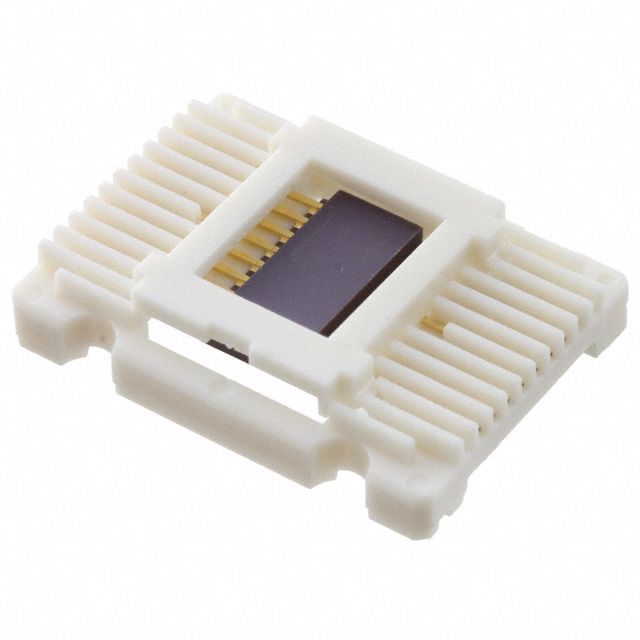

5962-8876903FC
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 4
Inputs - Side 1/Side 2 : 4/0
Voltage - Isolation : 1500VDC
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 15mA
Data Rate : 5MBd
Propagation Delay tpLH / tpHL (Max) : 350ns, 350ns
Rise / Fall Time (Typ) : 45ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 8mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-Flatpack
Supplier Device Package : 16-Flatpack
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 4
Inputs - Side 1/Side 2 : 4/0
Voltage - Isolation : 1500VDC
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 15mA
Data Rate : 5MBd
Propagation Delay tpLH / tpHL (Max) : 350ns, 350ns
Rise / Fall Time (Typ) : 45ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 8mA
Voltage - Supply : 4.5 V ~ 20 V
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-Flatpack
Supplier Device Package : 16-Flatpack
0
2 in stock
6N134
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 1500VDC
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 25mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 35ns, 35ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 1500VDC
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 25mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 35ns, 35ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-DIP
0
74 in stock
6N134/883B
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 1500VDC
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 25mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 35ns, 35ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 1500VDC
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 25mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 35ns, 35ns
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-DIP
0
237 in stock
6N137-000E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 24ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 24ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
4818 in stock
6N137-500E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 24ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 24ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
0
6526 in stock
6N137A
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 27ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 27ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
6181 in stock
6N137A-X007T
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 27ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 27ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
779 in stock
6N137A-X017T
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 27ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 27ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
