Part Number
Manufacturer
Description
Unit Price
In Stock
.jpg "Show details for TLP705(TP,F)")

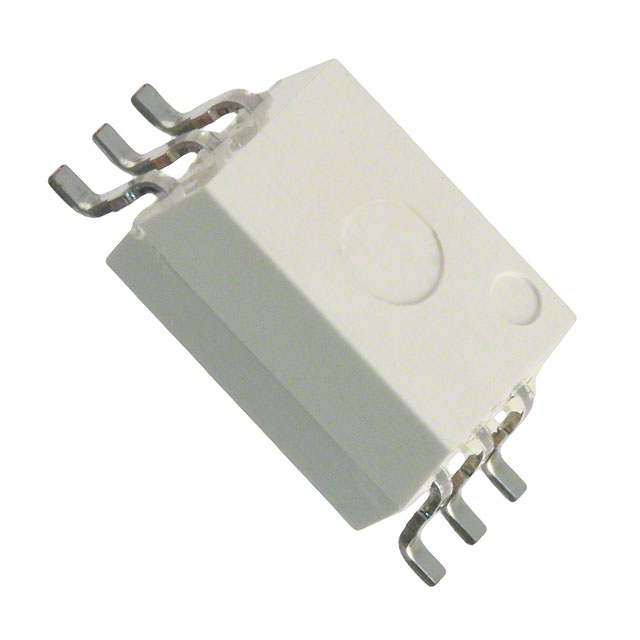

TLP705(TP,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 170ns, 170ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : -
Current - Output High, Low : 300mA, 300mA
Current - Peak Output : 450mA
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Approvals : UR
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 170ns, 170ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : -
Current - Output High, Low : 300mA, 300mA
Current - Peak Output : 450mA
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Approvals : UR
0
100 in stock
.jpg "Show details for TLP705A(F)")
TLP705A(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 170ns, 170ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 35ns, 15ns
Current - Output High, Low : 400mA, 400mA
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.57V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP
Approvals : cUL, UL
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 170ns, 170ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 35ns, 15ns
Current - Output High, Low : 400mA, 400mA
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.57V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP
Approvals : cUL, UL
0
692 in stock

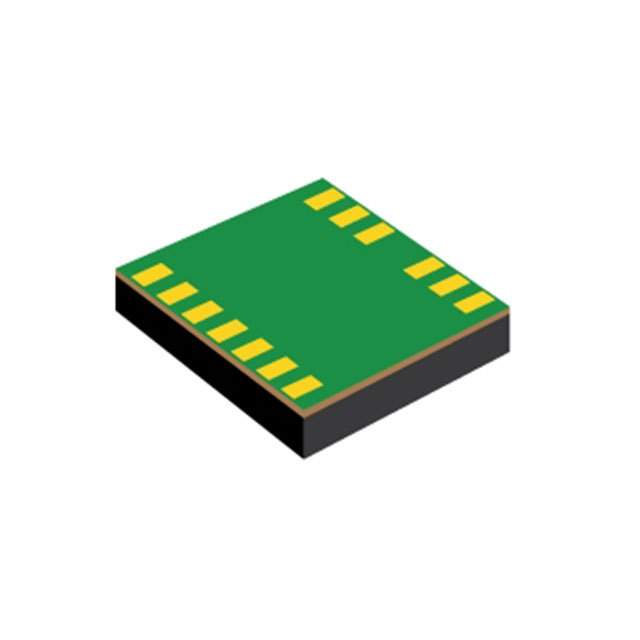

UCC20225NPLR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 2
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 100V/ns
Propagation Delay tpLH / tpHL (Max) : 30ns, 30ns
Pulse Width Distortion (Max) : 6ns
Rise / Fall Time (Typ) : 6ns, 7ns
Current - Output High, Low : 4A, 6A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 3 V ~ 18 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 13-VFLGA
Supplier Device Package : 13-VLGA (5x5)
Approvals : CQC, CSA, UR, VDE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 2
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 100V/ns
Propagation Delay tpLH / tpHL (Max) : 30ns, 30ns
Pulse Width Distortion (Max) : 6ns
Rise / Fall Time (Typ) : 6ns, 7ns
Current - Output High, Low : 4A, 6A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 3 V ~ 18 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 13-VFLGA
Supplier Device Package : 13-VLGA (5x5)
Approvals : CQC, CSA, UR, VDE
0
2258 in stock

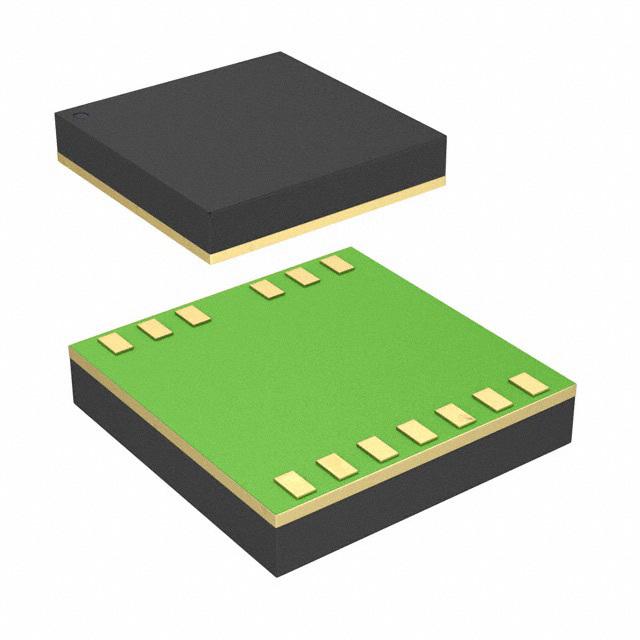

UCC20225NPLT
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 2
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 100V/ns
Propagation Delay tpLH / tpHL (Max) : 30ns, 30ns
Pulse Width Distortion (Max) : 6ns
Rise / Fall Time (Typ) : 6ns, 7ns
Current - Output High, Low : 4A, 6A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 3 V ~ 18 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 13-VLGA
Supplier Device Package : 13-VLGA (5x5)
Approvals : CQC, CSA, UR, VDE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 2
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 100V/ns
Propagation Delay tpLH / tpHL (Max) : 30ns, 30ns
Pulse Width Distortion (Max) : 6ns
Rise / Fall Time (Typ) : 6ns, 7ns
Current - Output High, Low : 4A, 6A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 3 V ~ 18 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 13-VLGA
Supplier Device Package : 13-VLGA (5x5)
Approvals : CQC, CSA, UR, VDE
0
116 in stock
UCC20520DW
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 2
Voltage - Isolation : 5700Vrms
Common Mode Transient Immunity (Min) : 100V/ns
Propagation Delay tpLH / tpHL (Max) : 30ns, 30ns
Pulse Width Distortion (Max) : 5ns
Rise / Fall Time (Typ) : 6ns, 7ns
Current - Output High, Low : 4A, 6A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 9.2 V ~ 25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : CQC, CSA, UR, VDE
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 2
Voltage - Isolation : 5700Vrms
Common Mode Transient Immunity (Min) : 100V/ns
Propagation Delay tpLH / tpHL (Max) : 30ns, 30ns
Pulse Width Distortion (Max) : 5ns
Rise / Fall Time (Typ) : 6ns, 7ns
Current - Output High, Low : 4A, 6A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 9.2 V ~ 25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : CQC, CSA, UR, VDE
0
350 in stock
UCC20520DWR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 2
Voltage - Isolation : 5700Vrms
Common Mode Transient Immunity (Min) : 100V/ns
Propagation Delay tpLH / tpHL (Max) : 30ns, 30ns
Pulse Width Distortion (Max) : 5ns
Rise / Fall Time (Typ) : 6ns, 7ns
Current - Output High, Low : 4A, 6A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 3 V ~ 18 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 2
Voltage - Isolation : 5700Vrms
Common Mode Transient Immunity (Min) : 100V/ns
Propagation Delay tpLH / tpHL (Max) : 30ns, 30ns
Pulse Width Distortion (Max) : 5ns
Rise / Fall Time (Typ) : 6ns, 7ns
Current - Output High, Low : 4A, 6A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 3 V ~ 18 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : -
0
1932 in stock

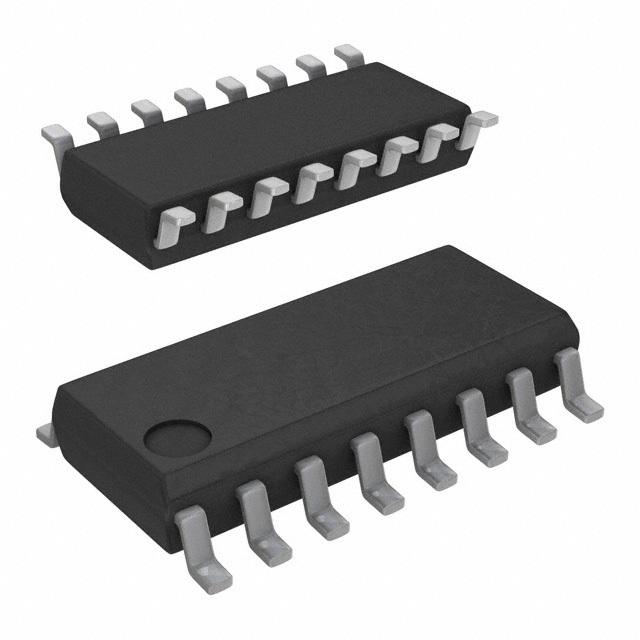

UCC21220D
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tube
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 2
Voltage - Isolation : 3000Vrms
Common Mode Transient Immunity (Min) : 100V/ns
Propagation Delay tpLH / tpHL (Max) : 40ns, 40ns
Pulse Width Distortion (Max) : 5.5ns
Rise / Fall Time (Typ) : 5ns, 6ns
Current - Output High, Low : 4A, 6A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
Approvals : -
Packaging : Tube
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 2
Voltage - Isolation : 3000Vrms
Common Mode Transient Immunity (Min) : 100V/ns
Propagation Delay tpLH / tpHL (Max) : 40ns, 40ns
Pulse Width Distortion (Max) : 5.5ns
Rise / Fall Time (Typ) : 5ns, 6ns
Current - Output High, Low : 4A, 6A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
Approvals : -
0
1880 in stock
UCC21225ANPLR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 2
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 100V/ns
Propagation Delay tpLH / tpHL (Max) : 30ns, 30ns
Pulse Width Distortion (Max) : 6ns
Rise / Fall Time (Typ) : 6ns, 7ns
Current - Output High, Low : 4A, 6A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 3 V ~ 18 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 13-VFLGA
Supplier Device Package : 13-VLGA (5x5)
Approvals : CQC, CSA, UR, VDE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 2
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 100V/ns
Propagation Delay tpLH / tpHL (Max) : 30ns, 30ns
Pulse Width Distortion (Max) : 6ns
Rise / Fall Time (Typ) : 6ns, 7ns
Current - Output High, Low : 4A, 6A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 3 V ~ 18 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 13-VFLGA
Supplier Device Package : 13-VLGA (5x5)
Approvals : CQC, CSA, UR, VDE
0
6000 in stock
UCC21225ANPLT
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 2
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 100V/ns
Propagation Delay tpLH / tpHL (Max) : 30ns, 30ns
Pulse Width Distortion (Max) : 6ns
Rise / Fall Time (Typ) : 6ns, 7ns
Current - Output High, Low : 4A, 6A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 3 V ~ 18 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 13-VLGA
Supplier Device Package : 13-VLGA (5x5)
Approvals : CQC, CSA, UR, VDE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 2
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 100V/ns
Propagation Delay tpLH / tpHL (Max) : 30ns, 30ns
Pulse Width Distortion (Max) : 6ns
Rise / Fall Time (Typ) : 6ns, 7ns
Current - Output High, Low : 4A, 6A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 3 V ~ 18 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 13-VLGA
Supplier Device Package : 13-VLGA (5x5)
Approvals : CQC, CSA, UR, VDE
0
1486 in stock
UCC21520ADW
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 2
Voltage - Isolation : 5700Vrms
Common Mode Transient Immunity (Min) : 100V/ns
Propagation Delay tpLH / tpHL (Max) : 30ns, 30ns
Pulse Width Distortion (Max) : 5ns
Rise / Fall Time (Typ) : 6ns, 7ns
Current - Output High, Low : 4A, 6A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 6.5 V ~ 25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : CQC, CSA, UR, VDE
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 2
Voltage - Isolation : 5700Vrms
Common Mode Transient Immunity (Min) : 100V/ns
Propagation Delay tpLH / tpHL (Max) : 30ns, 30ns
Pulse Width Distortion (Max) : 5ns
Rise / Fall Time (Typ) : 6ns, 7ns
Current - Output High, Low : 4A, 6A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 6.5 V ~ 25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : CQC, CSA, UR, VDE
0
1184 in stock
UCC21520ADWR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 2
Voltage - Isolation : 5700Vrms
Common Mode Transient Immunity (Min) : 100V/ns
Propagation Delay tpLH / tpHL (Max) : 30ns, 30ns
Pulse Width Distortion (Max) : 5ns
Rise / Fall Time (Typ) : 6ns, 7ns
Current - Output High, Low : 4A, 6A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 6.5 V ~ 25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : CQC, CSA, UR, VDE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 2
Voltage - Isolation : 5700Vrms
Common Mode Transient Immunity (Min) : 100V/ns
Propagation Delay tpLH / tpHL (Max) : 30ns, 30ns
Pulse Width Distortion (Max) : 5ns
Rise / Fall Time (Typ) : 6ns, 7ns
Current - Output High, Low : 4A, 6A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 6.5 V ~ 25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : CQC, CSA, UR, VDE
0
1288 in stock
UCC21520DW
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 2
Voltage - Isolation : 5700Vrms
Common Mode Transient Immunity (Min) : 100V/ns
Propagation Delay tpLH / tpHL (Max) : 30ns, 30ns
Pulse Width Distortion (Max) : 5ns
Rise / Fall Time (Typ) : 6ns, 7ns
Current - Output High, Low : 4A, 6A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 6.5 V ~ 25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : CQC, CSA, UR, VDE
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 2
Voltage - Isolation : 5700Vrms
Common Mode Transient Immunity (Min) : 100V/ns
Propagation Delay tpLH / tpHL (Max) : 30ns, 30ns
Pulse Width Distortion (Max) : 5ns
Rise / Fall Time (Typ) : 6ns, 7ns
Current - Output High, Low : 4A, 6A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 6.5 V ~ 25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : CQC, CSA, UR, VDE
0
2474 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
