- Isolators
- Isolators - Gate Drivers
Part Number
Manufacturer
Description
Unit Price
In Stock

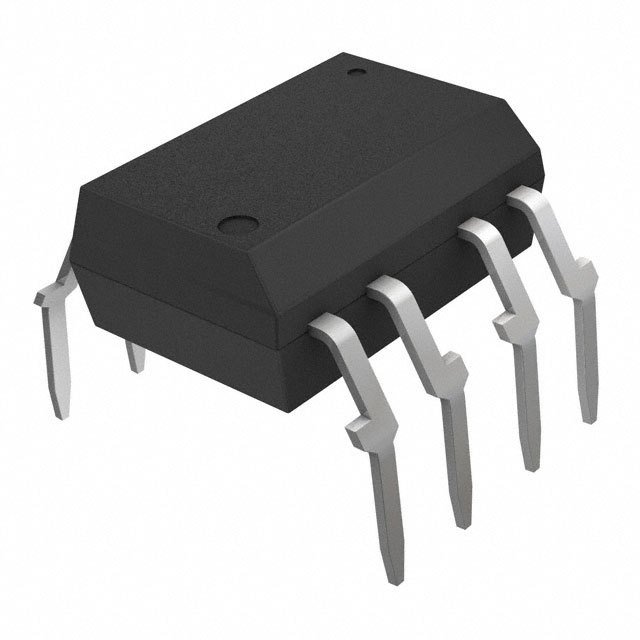

.jpg "Show details for TLP350(F)")
TLP350(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : UR
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : UR
0
100 in stock
.jpg "Show details for TLP350(TP1,F)")
TLP350(TP1,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : UR
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : UR
0
100 in stock
.jpg "Show details for TLP351(F)")
TLP351(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 700ns, 700ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 400mA, 400mA
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : -
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 700ns, 700ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 400mA, 400mA
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : -
0
531 in stock
.jpg "Show details for TLP352(D4,F)")
TLP352(D4,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : CSA, cUL, UL, VDE
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : CSA, cUL, UL, VDE
0
100 in stock
.jpg "Show details for TLP352(D4-TP1,F)")
TLP352(D4-TP1,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : CSA, cUL, UL, VDE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : CSA, cUL, UL, VDE
0
824 in stock
.jpg "Show details for TLP352(F)")
TLP352(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : CSA, cUL, UL
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : CSA, cUL, UL
0
50 in stock
.jpg "Show details for TLP352(LF1,F)")
TLP352(LF1,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : CSA, cUL, UL
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : CSA, cUL, UL
0
50 in stock
.jpg "Show details for TLP352(TP1,F)")
TLP352(TP1,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : CSA, cUL, UL
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : CSA, cUL, UL
0
4969 in stock
.jpg "Show details for TLP352F(D4,F)")
TLP352F(D4,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : CSA, cUL, UL, VDE
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : CSA, cUL, UL, VDE
0
95 in stock
.jpg "Show details for TLP352F(D4-TP4,F)")
TLP352F(D4-TP4,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : CSA, cUL, UL, VDE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : CSA, cUL, UL, VDE
0
977 in stock
.jpg "Show details for TLP358(TP1,F)")
TLP358(TP1,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : -
Part Status : Discontinued at
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : 250ns
Rise / Fall Time (Typ) : 17ns, 17ns
Current - Output High, Low : 5A, 5A
Current - Peak Output : 6A
Voltage - Forward (Vf) (Typ) : 1.57V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : cUL, UL
Packaging : Tape & Reel (TR)
Series : -
Part Status : Discontinued at
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : 250ns
Rise / Fall Time (Typ) : 17ns, 17ns
Current - Output High, Low : 5A, 5A
Current - Peak Output : 6A
Voltage - Forward (Vf) (Typ) : 1.57V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : cUL, UL
0
100 in stock
.jpg "Show details for TLP358H(TP1,F)")
TLP358H(TP1,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : -
Part Status : Discontinued at
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : 250ns
Rise / Fall Time (Typ) : 17ns, 17ns
Current - Output High, Low : 5A, 5A
Current - Peak Output : 6A
Voltage - Forward (Vf) (Typ) : 1.57V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : cUL, UL
Packaging : Tape & Reel (TR)
Series : -
Part Status : Discontinued at
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : 250ns
Rise / Fall Time (Typ) : 17ns, 17ns
Current - Output High, Low : 5A, 5A
Current - Peak Output : 6A
Voltage - Forward (Vf) (Typ) : 1.57V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : cUL, UL
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
