- Isolators
- Isolators - Gate Drivers
Part Number
Manufacturer
Description
Unit Price
In Stock

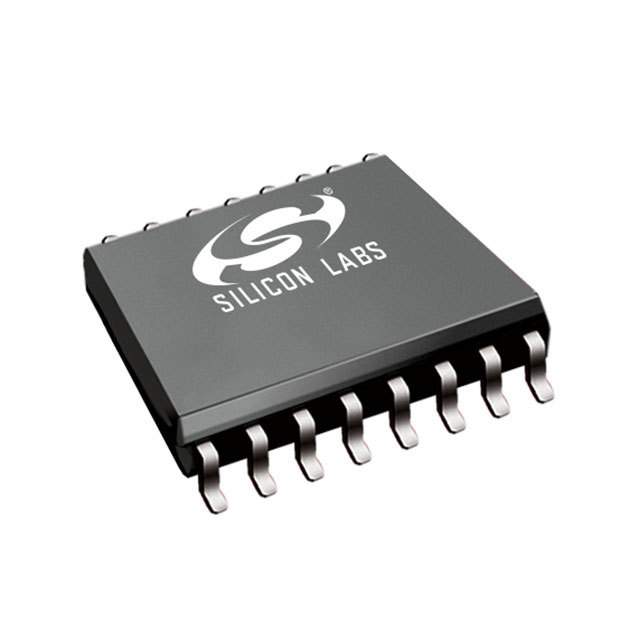

SI8286CC-ISR
Energy Micro (Silicon Labs)
Manufacturer : Silicon Labs
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 35kV/µs
Propagation Delay tpLH / tpHL (Max) : 50ns, 50ns
Pulse Width Distortion (Max) : 5ns
Rise / Fall Time (Typ) : 5.5ns, 8.5ns
Current - Output High, Low : 2.5A, 3A
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 2.8 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : CQC, CSA, UL, VDE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 35kV/µs
Propagation Delay tpLH / tpHL (Max) : 50ns, 50ns
Pulse Width Distortion (Max) : 5ns
Rise / Fall Time (Typ) : 5.5ns, 8.5ns
Current - Output High, Low : 2.5A, 3A
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 2.8 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : CQC, CSA, UL, VDE
0
100 in stock
SI8751AB-IS
Energy Micro (Silicon Labs)
Manufacturer : Silicon Labs
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : -
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : -
Current - Output High, Low : -
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 2.25 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Approvals : CQC, CSA, UR, VDE
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : -
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : -
Current - Output High, Low : -
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 2.25 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Approvals : CQC, CSA, UR, VDE
0
383 in stock
SI8751AB-ISR
Energy Micro (Silicon Labs)
Manufacturer : Silicon Labs
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : -
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : -
Current - Output High, Low : -
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 2.25 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Approvals : CQC, CSA, UR, VDE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : -
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : -
Current - Output High, Low : -
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 2.25 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Approvals : CQC, CSA, UR, VDE
0
20751 in stock
SI8752AB-AS
Energy Micro (Silicon Labs)
Manufacturer : Silicon Labs
Packaging : Tube
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : -
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : -
Current - Output High, Low : -
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Approvals : CQC, CSA, UR, VDE
Packaging : Tube
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : -
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : -
Current - Output High, Low : -
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Approvals : CQC, CSA, UR, VDE
0
52 in stock
SI8752AB-IS
Energy Micro (Silicon Labs)
Manufacturer : Silicon Labs
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : -
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : -
Current - Output High, Low : -
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Approvals : CQC, CSA, UR, VDE
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : -
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : -
Current - Output High, Low : -
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Approvals : CQC, CSA, UR, VDE
0
71 in stock
SI8752AB-ISR
Energy Micro (Silicon Labs)
Manufacturer : Silicon Labs
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : -
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : -
Current - Output High, Low : -
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Approvals : CQC, CSA, UR, VDE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : -
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : -
Current - Output High, Low : -
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Approvals : CQC, CSA, UR, VDE
0
1163 in stock

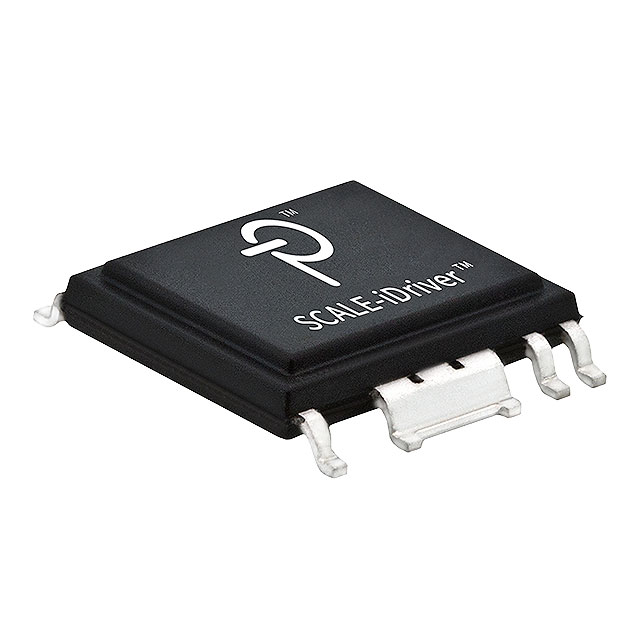

SID1102K
Power Integrations
Manufacturer : Power Integrations
Packaging : Tube
Alternate Packaging
Series : SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 1000Vrms
Common Mode Transient Immunity (Min) : 100kV/µs
Propagation Delay tpLH / tpHL (Max) : 350ns, 350ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 29ns, 14ns
Current - Output High, Low : 5A, 5A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : VDE
Packaging : Tube
Alternate Packaging
Series : SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 1000Vrms
Common Mode Transient Immunity (Min) : 100kV/µs
Propagation Delay tpLH / tpHL (Max) : 350ns, 350ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 29ns, 14ns
Current - Output High, Low : 5A, 5A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : VDE
0
236 in stock
SID1102K-TL
Power Integrations
Manufacturer : Power Integrations
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 1000Vrms
Common Mode Transient Immunity (Min) : 100kV/µs
Propagation Delay tpLH / tpHL (Max) : 350ns, 350ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 29ns, 14ns
Current - Output High, Low : 5A, 5A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : VDE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 1000Vrms
Common Mode Transient Immunity (Min) : 100kV/µs
Propagation Delay tpLH / tpHL (Max) : 350ns, 350ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 29ns, 14ns
Current - Output High, Low : 5A, 5A
Current - Peak Output : -
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : VDE
0
990 in stock
SID1112K
Power Integrations
Manufacturer : Power Integrations
Packaging : -
Series : SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs (Typ)
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 1125ns (Max), 1125ns (Max)
Current - Output High, Low : 480mA, 520mA
Current - Peak Output : 1A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : VDE
Packaging : -
Series : SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs (Typ)
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 1125ns (Max), 1125ns (Max)
Current - Output High, Low : 480mA, 520mA
Current - Peak Output : 1A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : VDE
0
240 in stock
SID1112K-TL
Power Integrations
Manufacturer : Power Integrations
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs (Typ)
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 1125ns (Max), 1125ns (Max)
Current - Output High, Low : 480mA, 520mA
Current - Peak Output : 1A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : VDE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs (Typ)
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 1125ns (Max), 1125ns (Max)
Current - Output High, Low : 480mA, 520mA
Current - Peak Output : 1A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : VDE
0
1000 in stock
SID1132K
Power Integrations
Manufacturer : Power Integrations
Packaging : Tube
Alternate Packaging
Series : SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : -
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 450ns, 450ns (Max)
Current - Output High, Low : 1.2A, 1.3A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
Packaging : Tube
Alternate Packaging
Series : SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : -
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 450ns, 450ns (Max)
Current - Output High, Low : 1.2A, 1.3A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
0
1775 in stock
SID1132KQ
Power Integrations
Manufacturer : Power Integrations
Packaging : -
Series : Automotive, AEC-Q100, SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs (Typ)
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 450ns, 450ns
Current - Output High, Low : 1.2A, 1.3A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
Packaging : -
Series : Automotive, AEC-Q100, SCALE-iDriver™
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs (Typ)
Propagation Delay tpLH / tpHL (Max) : 340ns, 330ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 450ns, 450ns
Current - Output High, Low : 1.2A, 1.3A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.75 V ~ 5.25 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package : eSOP-R16B
Approvals : -
0
240 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
