Part Number
Manufacturer
Description
Unit Price
In Stock
PS9331L-V-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Strip
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 175ns, 175ns
Pulse Width Distortion (Max) : 75ns
Rise / Fall Time (Typ) : 40ns, 40ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Approvals : CSA, SEMKO, UL, VDE
Packaging : Strip
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 175ns, 175ns
Pulse Width Distortion (Max) : 75ns
Rise / Fall Time (Typ) : 40ns, 40ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Approvals : CSA, SEMKO, UL, VDE
0
11 in stock

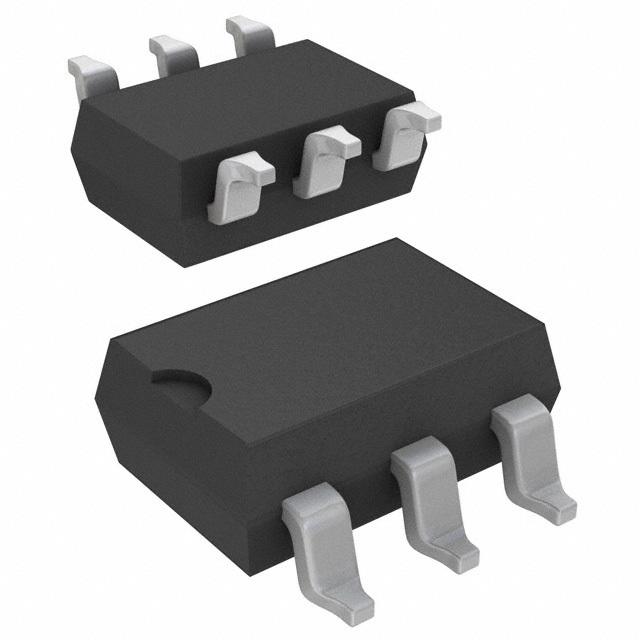

PS9331L-V-E3-AX
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 175ns, 175ns
Pulse Width Distortion (Max) : 75ns
Rise / Fall Time (Typ) : 40ns, 40ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Approvals : CSA, SEMKO, UL, VDE
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 175ns, 175ns
Pulse Width Distortion (Max) : 75ns
Rise / Fall Time (Typ) : 40ns, 40ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Approvals : CSA, SEMKO, UL, VDE
0
100 in stock
PS9331L-V-E3-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Discontinued at
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 175ns, 175ns
Pulse Width Distortion (Max) : 75ns
Rise / Fall Time (Typ) : 40ns, 40ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Approvals : CSA, SEMKO, UL, VDE
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Discontinued at
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 175ns, 175ns
Pulse Width Distortion (Max) : 75ns
Rise / Fall Time (Typ) : 40ns, 40ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Approvals : CSA, SEMKO, UL, VDE
0
100 in stock
PS9332L2-V-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Bulk
Series : -
Part Status : Discontinued at
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 75ns
Rise / Fall Time (Typ) : 17ns, 17ns
Current - Output High, Low : 1.5A, 1.5A
Current - Peak Output : 2A
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.268", 6.81mm Width)
Supplier Device Package : 8-SDIP Gull Wing
Approvals : CSA, SEMKO, UL, VDE
Packaging : Bulk
Series : -
Part Status : Discontinued at
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 75ns
Rise / Fall Time (Typ) : 17ns, 17ns
Current - Output High, Low : 1.5A, 1.5A
Current - Peak Output : 2A
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.268", 6.81mm Width)
Supplier Device Package : 8-SDIP Gull Wing
Approvals : CSA, SEMKO, UL, VDE
0
100 in stock
PS9332L2-V-E3-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Tape & Reel (TR)
Series : -
Part Status : Discontinued at
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 75ns
Rise / Fall Time (Typ) : 17ns, 17ns
Current - Output High, Low : 1.5A, 1.5A
Current - Peak Output : 2A
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.268", 6.81mm Width)
Supplier Device Package : 8-SDIP Gull Wing
Approvals : CSA, SEMKO, UL, VDE
Packaging : Tape & Reel (TR)
Series : -
Part Status : Discontinued at
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 75ns
Rise / Fall Time (Typ) : 17ns, 17ns
Current - Output High, Low : 1.5A, 1.5A
Current - Peak Output : 2A
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.268", 6.81mm Width)
Supplier Device Package : 8-SDIP Gull Wing
Approvals : CSA, SEMKO, UL, VDE
0
100 in stock
PS9332L2-V-E3-AX
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 75ns
Rise / Fall Time (Typ) : 17ns, 17ns
Current - Output High, Low : 1.5A, 1.5A
Current - Peak Output : 2A
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.268", 6.81mm Width)
Supplier Device Package : 8-SDIP Gull Wing
Approvals : CSA, SEMKO, UL, VDE
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 75ns
Rise / Fall Time (Typ) : 17ns, 17ns
Current - Output High, Low : 1.5A, 1.5A
Current - Peak Output : 2A
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.268", 6.81mm Width)
Supplier Device Package : 8-SDIP Gull Wing
Approvals : CSA, SEMKO, UL, VDE
0
100 in stock
PS9401-2-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Bulk
Series : NEPOC
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 2
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 700ns, 700ns
Pulse Width Distortion (Max) : 500ns
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 400mA, 400mA
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 16-SSOP
Approvals : -
Packaging : Bulk
Series : NEPOC
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 2
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 700ns, 700ns
Pulse Width Distortion (Max) : 500ns
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 400mA, 400mA
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 16-SSOP
Approvals : -
0
100 in stock

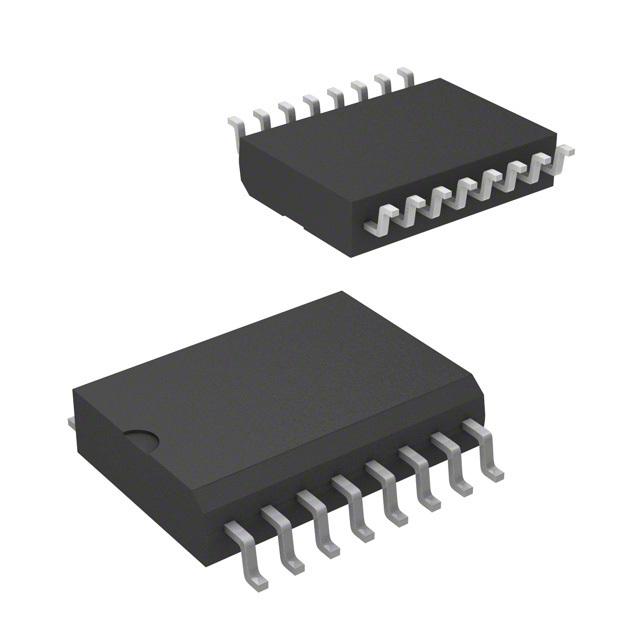

PS9402-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Bulk
Series : -
Part Status : Discontinued at
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 100ns
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SSOP
Approvals : CSA, UL
Packaging : Bulk
Series : -
Part Status : Discontinued at
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 100ns
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SSOP
Approvals : CSA, UL
0
100 in stock
PS9402-E3-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Tape & Reel (TR)
Series : -
Part Status : Discontinued at
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 100ns
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SSOP
Approvals : CSA, UL
Packaging : Tape & Reel (TR)
Series : -
Part Status : Discontinued at
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 100ns
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SSOP
Approvals : CSA, UL
0
100 in stock
PS9402-V-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Strip
Series : -
Part Status : Discontinued at
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 100ns
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SSOP
Approvals : CSA, UL, VDE
Packaging : Strip
Series : -
Part Status : Discontinued at
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 100ns
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SSOP
Approvals : CSA, UL, VDE
0
100 in stock
PS9402-V-E3-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Strip
Series : -
Part Status : Discontinued at
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 100ns
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SSOP
Approvals : CSA, UL, VDE
Packaging : Strip
Series : -
Part Status : Discontinued at
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 100ns
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SSOP
Approvals : CSA, UL, VDE
0
100 in stock
PS9505-AX
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Bulk
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Propagation Delay tpLH / tpHL (Max) : 250ns, 250ns
Pulse Width Distortion (Max) : 100ns
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : CSA, SEMKO, UL
Packaging : Bulk
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Propagation Delay tpLH / tpHL (Max) : 250ns, 250ns
Pulse Width Distortion (Max) : 100ns
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.56V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : CSA, SEMKO, UL
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
