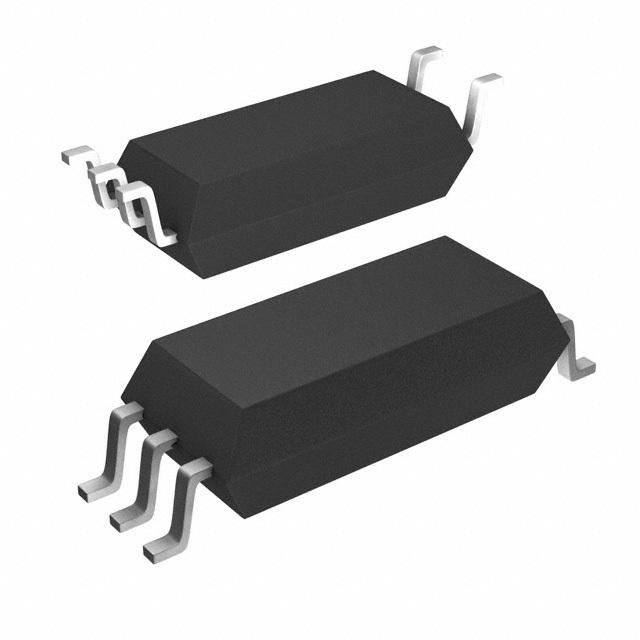

FOD8384V
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 35kV/µs
Propagation Delay tpLH / tpHL (Max) : 210ns, 210ns
Pulse Width Distortion (Max) : 65ns
Rise / Fall Time (Typ) : 35ns, 25ns
Current - Output High, Low : 2.5A, 2.5A
Current - Peak Output : 3A
Voltage - Forward (Vf) (Typ) : 1.43V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.346", 8.80mm Width), 5 Leads
Supplier Device Package : 5-SOP
Approvals : IEC/EN/DIN, UL
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 35kV/µs
Propagation Delay tpLH / tpHL (Max) : 210ns, 210ns
Pulse Width Distortion (Max) : 65ns
Rise / Fall Time (Typ) : 35ns, 25ns
Current - Output High, Low : 2.5A, 2.5A
Current - Peak Output : 3A
Voltage - Forward (Vf) (Typ) : 1.43V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.346", 8.80mm Width), 5 Leads
Supplier Device Package : 5-SOP
Approvals : IEC/EN/DIN, UL
0
1784 in stock

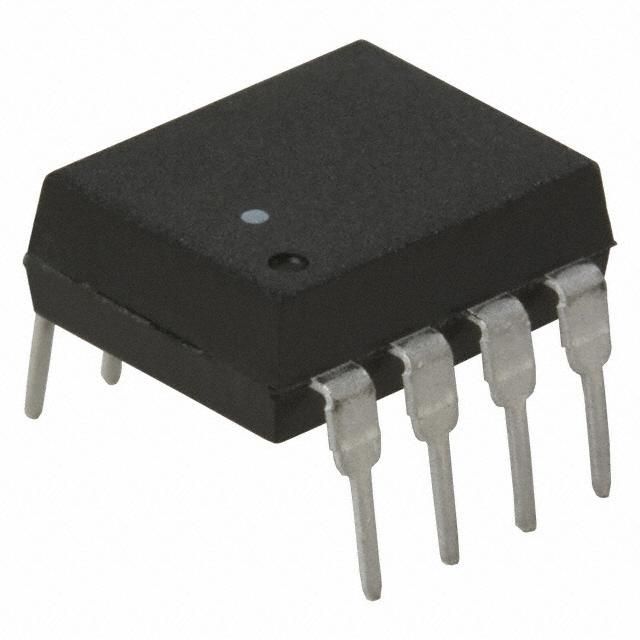

HCNW3120-000E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : 300ns
Rise / Fall Time (Typ) : 100ns, 100ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.400", 10.16mm)
Supplier Device Package : 8-DIP
Approvals : CSA, IEC/EN/DIN, UR
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : 300ns
Rise / Fall Time (Typ) : 100ns, 100ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.400", 10.16mm)
Supplier Device Package : 8-DIP
Approvals : CSA, IEC/EN/DIN, UR
0
5920 in stock
HCNW3120-300E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : 300ns
Rise / Fall Time (Typ) : 100ns, 100ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
Approvals : CSA, IEC/EN/DIN, UR
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : 300ns
Rise / Fall Time (Typ) : 100ns, 100ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
Approvals : CSA, IEC/EN/DIN, UR
0
1758 in stock
HCNW3120-500E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : 300ns
Rise / Fall Time (Typ) : 100ns, 100ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
Approvals : CSA, IEC/EN/DIN, UR
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : 300ns
Rise / Fall Time (Typ) : 100ns, 100ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.6V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
Approvals : CSA, IEC/EN/DIN, UR
0
1556 in stock

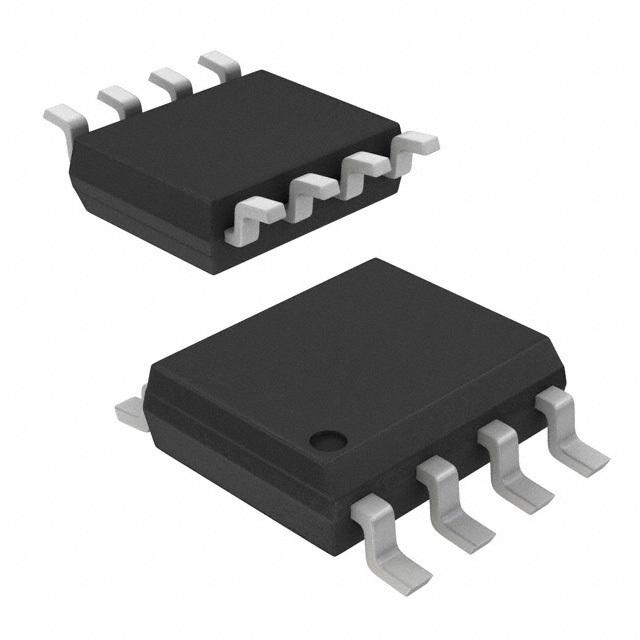

HCPL-0302-000E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 700ns, 700ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 200mA, 200mA
Current - Peak Output : 400mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Approvals : CSA, UR
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 700ns, 700ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 200mA, 200mA
Current - Peak Output : 400mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Approvals : CSA, UR
0
1441 in stock
HCPL-0302-500E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 700ns, 700ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 200mA, 200mA
Current - Peak Output : 400mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Approvals : CSA, UR
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 700ns, 700ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 200mA, 200mA
Current - Peak Output : 400mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Approvals : CSA, UR
0
4478 in stock
HCPL-0314-000E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Propagation Delay tpLH / tpHL (Max) : 700ns, 700ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 400mA, 400mA
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Approvals : CSA, UR
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Propagation Delay tpLH / tpHL (Max) : 700ns, 700ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 400mA, 400mA
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Approvals : CSA, UR
0
3334 in stock
HCPL-0314-500E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Propagation Delay tpLH / tpHL (Max) : 700ns, 700ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 400mA, 400mA
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Approvals : CSA, UR
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Propagation Delay tpLH / tpHL (Max) : 700ns, 700ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 400mA, 400mA
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Approvals : CSA, UR
0
1358 in stock
HCPL-3020-500E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 700ns, 700ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 200mA, 200mA
Current - Peak Output : 400mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
Approvals : CSA, UR
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 700ns, 700ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 200mA, 200mA
Current - Peak Output : 400mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
Approvals : CSA, UR
0
4929 in stock
HCPL-3100
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 2µs, 2µs
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 200ns, 200ns
Current - Output High, Low : -
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : UR
Packaging : Tube
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 2µs, 2µs
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 200ns, 200ns
Current - Output High, Low : -
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : UR
0
100 in stock
HCPL-3100-000E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 2µs, 2µs
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 200ns, 200ns
Current - Output High, Low : -
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : UR
Packaging : Tube
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 2µs, 2µs
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 200ns, 200ns
Current - Output High, Low : -
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : UR
0
100 in stock
HCPL-3100-300E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 2µs, 2µs
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 200ns, 200ns
Current - Output High, Low : -
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
Approvals : UR
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 2µs, 2µs
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 200ns, 200ns
Current - Output High, Low : -
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
Approvals : UR
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
