- Isolators
- Isolators - Gate Drivers
Part Number
Manufacturer
Description
Unit Price
In Stock
FOD3180T
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 65ns
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.43V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.400", 10.16mm)
Supplier Device Package : 8-DIP
Approvals : cUL, UL
Packaging : Tube
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 65ns
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.43V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.400", 10.16mm)
Supplier Device Package : 8-DIP
Approvals : cUL, UL
0
100 in stock

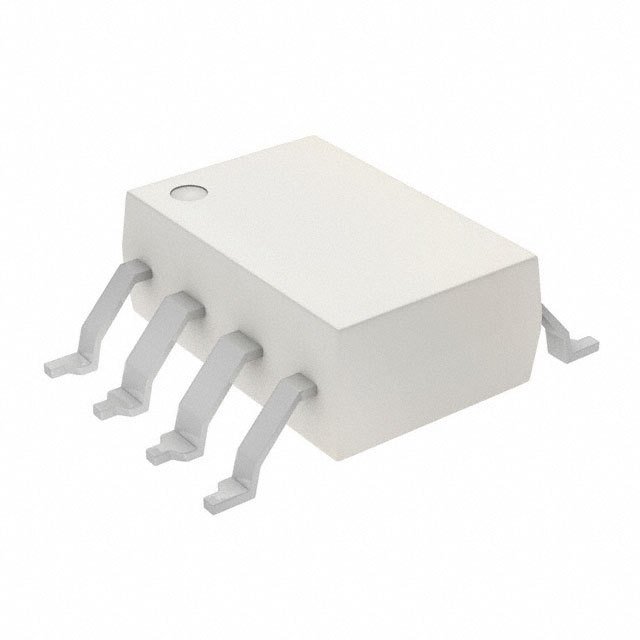

FOD3180TSV
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 65ns
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.43V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : cUL, UL, VDE
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 65ns
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.43V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : cUL, UL, VDE
0
680 in stock

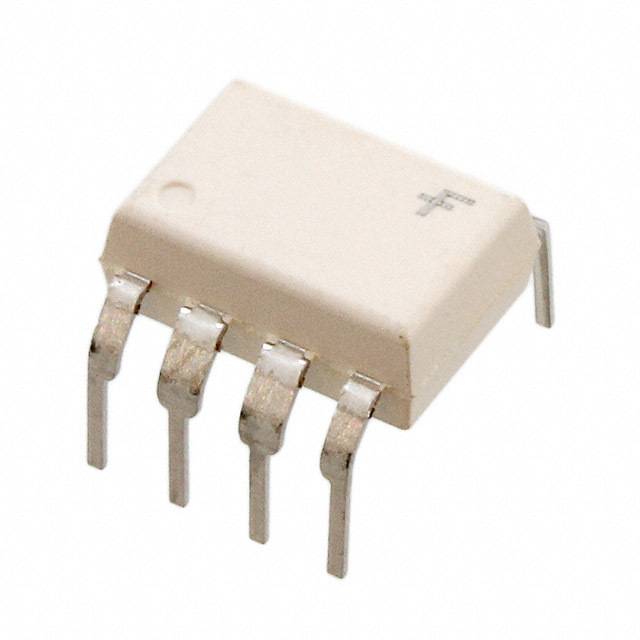

FOD3180TV
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 65ns
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.43V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.400", 10.16mm)
Supplier Device Package : 8-DIP
Approvals : cUL, UL, VDE
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 65ns
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.43V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.400", 10.16mm)
Supplier Device Package : 8-DIP
Approvals : cUL, UL, VDE
0
1553 in stock
FOD3180V
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 65ns
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.43V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : cUL, UL, VDE
Packaging : Tube
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 65ns
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.43V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : cUL, UL, VDE
0
100 in stock
FOD3181
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 500mA, 500mA
Current - Peak Output : 1.5A
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -20°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : cUL, UL
Packaging : Tube
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 500mA, 500mA
Current - Peak Output : 1.5A
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -20°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : cUL, UL
0
100 in stock
FOD3181S
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 500mA, 500mA
Current - Peak Output : 1.5A
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -20°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : cUL, UL
Packaging : Tube
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 500mA, 500mA
Current - Peak Output : 1.5A
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -20°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : cUL, UL
0
100 in stock
FOD3181SD
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 500mA, 500mA
Current - Peak Output : 1.5A
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -20°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : cUL, UL
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 500mA, 500mA
Current - Peak Output : 1.5A
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -20°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : cUL, UL
0
100 in stock
FOD3181SDV
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 500mA, 500mA
Current - Peak Output : 1.5A
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -20°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : cUL, UL, VDE
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 500mA, 500mA
Current - Peak Output : 1.5A
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -20°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : cUL, UL, VDE
0
100 in stock
FOD3181SV
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 500mA, 500mA
Current - Peak Output : 1.5A
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -20°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : cUL, UL, VDE
Packaging : Tube
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 500mA, 500mA
Current - Peak Output : 1.5A
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -20°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : cUL, UL, VDE
0
100 in stock
FOD3181T
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 500mA, 500mA
Current - Peak Output : 1.5A
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -20°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.400", 10.16mm)
Supplier Device Package : 8-DIP
Approvals : cUL, UL
Packaging : Tube
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 500mA, 500mA
Current - Peak Output : 1.5A
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -20°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.400", 10.16mm)
Supplier Device Package : 8-DIP
Approvals : cUL, UL
0
100 in stock
FOD3181TV
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 500mA, 500mA
Current - Peak Output : 1.5A
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -20°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.400", 10.16mm)
Supplier Device Package : 8-DIP
Approvals : cUL, UL, VDE
Packaging : Tube
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 500mA, 500mA
Current - Peak Output : 1.5A
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -20°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.400", 10.16mm)
Supplier Device Package : 8-DIP
Approvals : cUL, UL, VDE
0
100 in stock
FOD3181V
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 500mA, 500mA
Current - Peak Output : 1.5A
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -20°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : cUL, UL, VDE
Packaging : Tube
Series : -
Part Status : Obsolete
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 75ns, 55ns
Current - Output High, Low : 500mA, 500mA
Current - Peak Output : 1.5A
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -20°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : cUL, UL, VDE
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
