- Isolators
- Isolators - Gate Drivers
Part Number
Manufacturer
Description
Unit Price
In Stock
ADUM4121-1BRIZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 150kV/µs
Propagation Delay tpLH / tpHL (Max) : 42ns, 53ns
Pulse Width Distortion (Max) : 13ns
Rise / Fall Time (Typ) : 18ns, 18ns
Current - Output High, Low : -
Current - Peak Output : 2.3A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 7.5 V ~ 35 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 8-SOIC
Approvals : CSA, UR, VDE
Packaging : Tube
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 150kV/µs
Propagation Delay tpLH / tpHL (Max) : 42ns, 53ns
Pulse Width Distortion (Max) : 13ns
Rise / Fall Time (Typ) : 18ns, 18ns
Current - Output High, Low : -
Current - Peak Output : 2.3A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 7.5 V ~ 35 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 8-SOIC
Approvals : CSA, UR, VDE
0
35 in stock
ADUM4121-1CRIZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 150kV/µs
Propagation Delay tpLH / tpHL (Max) : 42ns, 53ns
Pulse Width Distortion (Max) : 13ns
Rise / Fall Time (Typ) : 18ns, 18ns
Current - Output High, Low : -
Current - Peak Output : 2.3A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 11.6 V ~ 35 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 8-SOIC
Approvals : CSA, UR, VDE
Packaging : Tube
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 150kV/µs
Propagation Delay tpLH / tpHL (Max) : 42ns, 53ns
Pulse Width Distortion (Max) : 13ns
Rise / Fall Time (Typ) : 18ns, 18ns
Current - Output High, Low : -
Current - Peak Output : 2.3A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 11.6 V ~ 35 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 8-SOIC
Approvals : CSA, UR, VDE
0
80 in stock

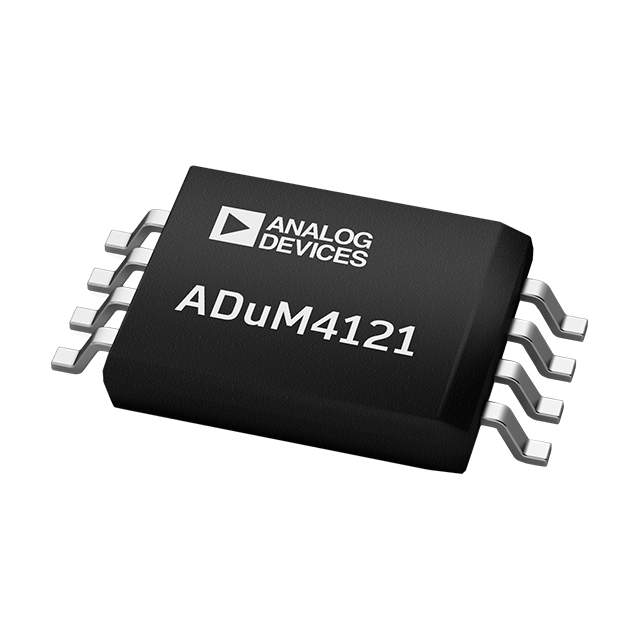

ADUM4121ARIZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 150kV/µs
Propagation Delay tpLH / tpHL (Max) : 42ns, 53ns
Pulse Width Distortion (Max) : 13ns
Rise / Fall Time (Typ) : 18ns, 18ns
Current - Output High, Low : -
Current - Peak Output : 2.3A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.5 V ~ 35 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 8-SOIC-IC
Approvals : CSA, UR, VDE
Packaging : Tube
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 150kV/µs
Propagation Delay tpLH / tpHL (Max) : 42ns, 53ns
Pulse Width Distortion (Max) : 13ns
Rise / Fall Time (Typ) : 18ns, 18ns
Current - Output High, Low : -
Current - Peak Output : 2.3A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.5 V ~ 35 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 8-SOIC-IC
Approvals : CSA, UR, VDE
0
78 in stock
ADUM4121BRIZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 150kV/µs
Propagation Delay tpLH / tpHL (Max) : 42ns, 53ns
Pulse Width Distortion (Max) : 13ns
Rise / Fall Time (Typ) : 18ns, 18ns
Current - Output High, Low : -
Current - Peak Output : 2.3A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 7.5 V ~ 35 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 8-SOIC-IC
Approvals : CSA, UR, VDE
Packaging : Tube
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 150kV/µs
Propagation Delay tpLH / tpHL (Max) : 42ns, 53ns
Pulse Width Distortion (Max) : 13ns
Rise / Fall Time (Typ) : 18ns, 18ns
Current - Output High, Low : -
Current - Peak Output : 2.3A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 7.5 V ~ 35 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 8-SOIC-IC
Approvals : CSA, UR, VDE
0
170 in stock
ADUM4121CRIZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 150kV/µs
Propagation Delay tpLH / tpHL (Max) : 42ns, 53ns
Pulse Width Distortion (Max) : 13ns
Rise / Fall Time (Typ) : 18ns, 18ns
Current - Output High, Low : -
Current - Peak Output : 2.3A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 11.6 V ~ 35 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 8-SOIC
Approvals : CSA, UR, VDE
Packaging : Tube
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 150kV/µs
Propagation Delay tpLH / tpHL (Max) : 42ns, 53ns
Pulse Width Distortion (Max) : 13ns
Rise / Fall Time (Typ) : 18ns, 18ns
Current - Output High, Low : -
Current - Peak Output : 2.3A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 11.6 V ~ 35 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 8-SOIC
Approvals : CSA, UR, VDE
0
150 in stock
ADUM4135BRWZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 100kV/µs
Propagation Delay tpLH / tpHL (Max) : 66ns, 66ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 16ns, 16ns
Current - Output High, Low : -
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 12 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : -
Packaging : Tube
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 100kV/µs
Propagation Delay tpLH / tpHL (Max) : 66ns, 66ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 16ns, 16ns
Current - Output High, Low : -
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 12 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : -
0
2652 in stock
ADUM4136BRWZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 100kV/µs
Propagation Delay tpLH / tpHL (Max) : 68ns, 68ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 16ns, 16ns
Current - Output High, Low : -
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 12 V ~ 35 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : CSA, UR, VDE
Packaging : Tube
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 100kV/µs
Propagation Delay tpLH / tpHL (Max) : 68ns, 68ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 16ns, 16ns
Current - Output High, Low : -
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 12 V ~ 35 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : CSA, UR, VDE
0
430 in stock
ADUM4223ARWZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 2
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 59ns, 59ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 12ns, 12ns
Current - Output High, Low : -
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.5 V ~ 18 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : CSA, UR, VDE
Packaging : Tube
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 2
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 59ns, 59ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 12ns, 12ns
Current - Output High, Low : -
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.5 V ~ 18 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : CSA, UR, VDE
0
186 in stock
ADUM4223ARWZ-RL
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 2
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 59ns, 59ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 12ns, 12ns
Current - Output High, Low : -
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.5 V ~ 18 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : CSA, UR, VDE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 2
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 59ns, 59ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 12ns, 12ns
Current - Output High, Low : -
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.5 V ~ 18 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : CSA, UR, VDE
0
948 in stock
ADUM4223BRWZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 2
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 54ns, 54ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 12ns, 12ns
Current - Output High, Low : -
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 7.5 V ~ 18 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : CSA, UR, VDE
Packaging : Tube
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 2
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 54ns, 54ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 12ns, 12ns
Current - Output High, Low : -
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 7.5 V ~ 18 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : CSA, UR, VDE
0
383 in stock
ADUM4223BRWZ-RL
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 2
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 54ns, 54ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 12ns, 12ns
Current - Output High, Low : -
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 7.5 V ~ 18 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : CSA, UR, VDE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 2
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 54ns, 54ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 12ns, 12ns
Current - Output High, Low : -
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 7.5 V ~ 18 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : CSA, UR, VDE
0
960 in stock
ADUM4223CRWZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 2
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 54ns, 54ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 12ns, 12ns
Current - Output High, Low : -
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 11.5 V ~ 18 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : CSA, UR, VDE
Packaging : Tube
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 2
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 54ns, 54ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 12ns, 12ns
Current - Output High, Low : -
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 11.5 V ~ 18 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Approvals : CSA, UR, VDE
0
462 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
