Part Number
Manufacturer
Description
Unit Price
In Stock
UCC27210DRMT
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 8 V ~ 17 V
Logic Voltage - VIL, VIH : 2.4V, 5.8V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 120V
Rise / Fall Time (Typ) : 7.2ns, 5.5ns
Operating Temperature : -40°C ~ 140°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-VDFN Exposed Pad
Supplier Device Package : 8-VSON (4x4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 8 V ~ 17 V
Logic Voltage - VIL, VIH : 2.4V, 5.8V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 120V
Rise / Fall Time (Typ) : 7.2ns, 5.5ns
Operating Temperature : -40°C ~ 140°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-VDFN Exposed Pad
Supplier Device Package : 8-VSON (4x4)
0
14 in stock

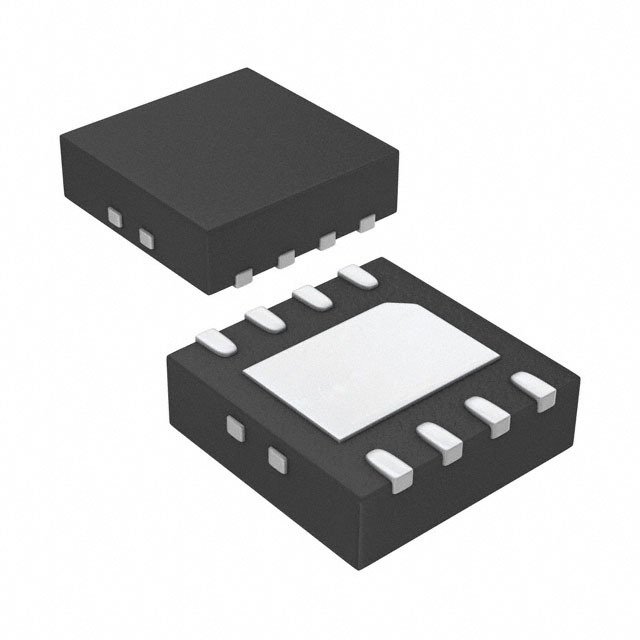

UCC27211ADRMT
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 8 V ~ 17 V
Logic Voltage - VIL, VIH : 1.3V, 2.7V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 120V
Rise / Fall Time (Typ) : 7.2ns, 5.5ns
Operating Temperature : -40°C ~ 140°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-VDFN Exposed Pad
Supplier Device Package : 8-VSON (4x4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 8 V ~ 17 V
Logic Voltage - VIL, VIH : 1.3V, 2.7V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 120V
Rise / Fall Time (Typ) : 7.2ns, 5.5ns
Operating Temperature : -40°C ~ 140°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-VDFN Exposed Pad
Supplier Device Package : 8-VSON (4x4)
0
4759 in stock
UCC27211AQDDARQ1
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 8 V ~ 17 V
Logic Voltage - VIL, VIH : 1.2V, 2.55V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 120V
Rise / Fall Time (Typ) : 7.2ns, 5.5ns
Operating Temperature : -40°C ~ 140°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO PowerPad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 8 V ~ 17 V
Logic Voltage - VIL, VIH : 1.2V, 2.55V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 120V
Rise / Fall Time (Typ) : 7.2ns, 5.5ns
Operating Temperature : -40°C ~ 140°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO PowerPad
0
3198 in stock
UCC27211D
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 8 V ~ 17 V
Logic Voltage - VIL, VIH : 1.3V, 2.7V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 120V
Rise / Fall Time (Typ) : 7.2ns, 5.5ns
Operating Temperature : -40°C ~ 140°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 8 V ~ 17 V
Logic Voltage - VIL, VIH : 1.3V, 2.7V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 120V
Rise / Fall Time (Typ) : 7.2ns, 5.5ns
Operating Temperature : -40°C ~ 140°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
969 in stock
UCC27211DDA
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 8 V ~ 17 V
Logic Voltage - VIL, VIH : 1.3V, 2.8V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 120V
Rise / Fall Time (Typ) : 7.2ns, 5.5ns
Operating Temperature : -40°C ~ 140°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO PowerPad
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 8 V ~ 17 V
Logic Voltage - VIL, VIH : 1.3V, 2.8V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 120V
Rise / Fall Time (Typ) : 7.2ns, 5.5ns
Operating Temperature : -40°C ~ 140°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO PowerPad
0
612 in stock
UCC27211DDAR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 8 V ~ 17 V
Logic Voltage - VIL, VIH : 1.3V, 2.8V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 120V
Rise / Fall Time (Typ) : 7.2ns, 5.5ns
Operating Temperature : -40°C ~ 140°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO PowerPad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 8 V ~ 17 V
Logic Voltage - VIL, VIH : 1.3V, 2.8V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 120V
Rise / Fall Time (Typ) : 7.2ns, 5.5ns
Operating Temperature : -40°C ~ 140°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO PowerPad
0
4464 in stock

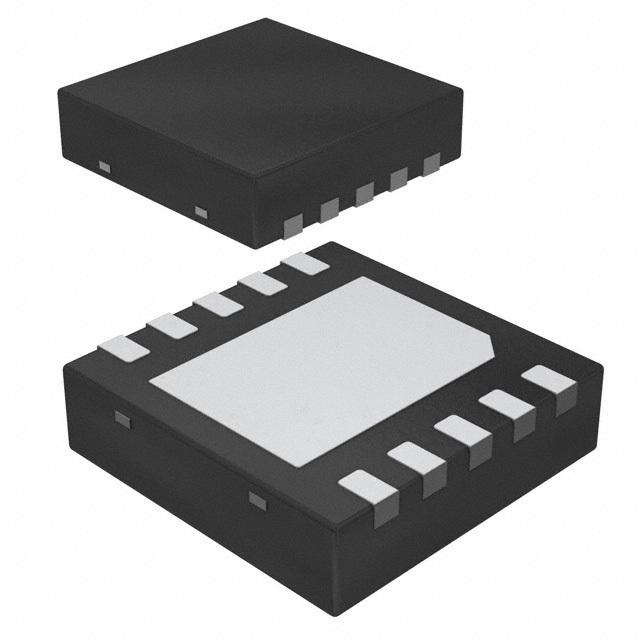

UCC27211DPRT
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 8 V ~ 17 V
Logic Voltage - VIL, VIH : 1.3V, 2.7V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 120V
Rise / Fall Time (Typ) : 7.2ns, 5.5ns
Operating Temperature : -40°C ~ 140°C (TJ)
Mounting Type : Surface Mount
Package / Case : 10-WDFN Exposed Pad
Supplier Device Package : 10-WSON (4x4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 8 V ~ 17 V
Logic Voltage - VIL, VIH : 1.3V, 2.7V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 120V
Rise / Fall Time (Typ) : 7.2ns, 5.5ns
Operating Temperature : -40°C ~ 140°C (TJ)
Mounting Type : Surface Mount
Package / Case : 10-WDFN Exposed Pad
Supplier Device Package : 10-WSON (4x4)
0
769 in stock
UCC27211DR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 8 V ~ 17 V
Logic Voltage - VIL, VIH : 1.3V, 2.7V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 120V
Rise / Fall Time (Typ) : 7.2ns, 5.5ns
Operating Temperature : -40°C ~ 140°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 8 V ~ 17 V
Logic Voltage - VIL, VIH : 1.3V, 2.7V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 120V
Rise / Fall Time (Typ) : 7.2ns, 5.5ns
Operating Temperature : -40°C ~ 140°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
3518 in stock
UCC27211DRMT
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 8 V ~ 17 V
Logic Voltage - VIL, VIH : 1.3V, 2.7V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 120V
Rise / Fall Time (Typ) : 7.2ns, 5.5ns
Operating Temperature : -40°C ~ 140°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-VDFN Exposed Pad
Supplier Device Package : 8-VSON (4x4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 8 V ~ 17 V
Logic Voltage - VIL, VIH : 1.3V, 2.7V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 120V
Rise / Fall Time (Typ) : 7.2ns, 5.5ns
Operating Temperature : -40°C ~ 140°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-VDFN Exposed Pad
Supplier Device Package : 8-VSON (4x4)
0
181 in stock
UCC27212AQDDARQ1
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 7 V ~ 17 V
Logic Voltage - VIL, VIH : 1.2V, 2.55V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 7.8ns, 6ns
Operating Temperature : -40°C ~ 140°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO PowerPad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 7 V ~ 17 V
Logic Voltage - VIL, VIH : 1.2V, 2.55V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 7.8ns, 6ns
Operating Temperature : -40°C ~ 140°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO PowerPad
0
2420 in stock
UCC27212DPRT
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 7 V ~ 17 V
Logic Voltage - VIL, VIH : 1.2V, 2.55V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 100V
Rise / Fall Time (Typ) : 7.8ns, 6ns
Operating Temperature : -40°C ~ 140°C (TJ)
Mounting Type : Surface Mount
Package / Case : 10-WDFN Exposed Pad
Supplier Device Package : 10-WSON (4x4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 7 V ~ 17 V
Logic Voltage - VIL, VIH : 1.2V, 2.55V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 100V
Rise / Fall Time (Typ) : 7.8ns, 6ns
Operating Temperature : -40°C ~ 140°C (TJ)
Mounting Type : Surface Mount
Package / Case : 10-WDFN Exposed Pad
Supplier Device Package : 10-WSON (4x4)
0
1393 in stock
UCC27221PWP
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Obsolete
Driven Configuration : Half-Bridge
Channel Type : Synchronous
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 3.7 V ~ 20 V
Logic Voltage - VIL, VIH : 0.7V, 2.6V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 17ns, 17ns
Operating Temperature : -55°C ~ 115°C (TJ)
Mounting Type : Surface Mount
Package / Case : 14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package : 14-HTSSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Obsolete
Driven Configuration : Half-Bridge
Channel Type : Synchronous
Number of Drivers : 2
Gate Type : N-Channel MOSFET
Voltage - Supply : 3.7 V ~ 20 V
Logic Voltage - VIL, VIH : 0.7V, 2.6V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 17ns, 17ns
Operating Temperature : -55°C ~ 115°C (TJ)
Mounting Type : Surface Mount
Package / Case : 14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package : 14-HTSSOP
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
