Part Number
Manufacturer
Description
Unit Price
In Stock

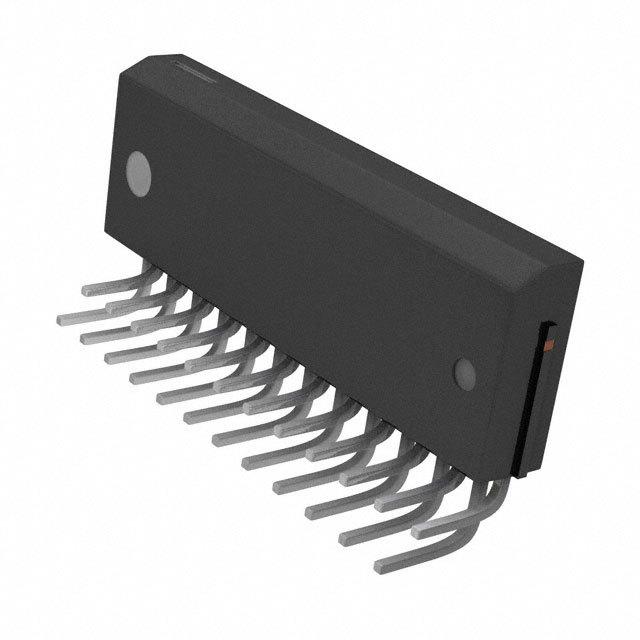

SMA6865MZ-LF2451
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : Power MOSFET
Rds On (Typ) : -
Current - Output / Channel : 2.5A
Current - Peak Output : 3.75A
Voltage - Supply : 20V
Voltage - Load : 400V (Max)
Operating Temperature : -20°C ~ 150°C (TJ)
Features : -
Fault Protection : Current Limiting, Over Temperature, UVLO
Mounting Type : Through Hole
Package / Case : 24-SSIP Formed Leads
Supplier Device Package : 24-SIP, LF2451
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : Power MOSFET
Rds On (Typ) : -
Current - Output / Channel : 2.5A
Current - Peak Output : 3.75A
Voltage - Supply : 20V
Voltage - Load : 400V (Max)
Operating Temperature : -20°C ~ 150°C (TJ)
Features : -
Fault Protection : Current Limiting, Over Temperature, UVLO
Mounting Type : Through Hole
Package / Case : 24-SSIP Formed Leads
Supplier Device Package : 24-SIP, LF2451
0
111 in stock

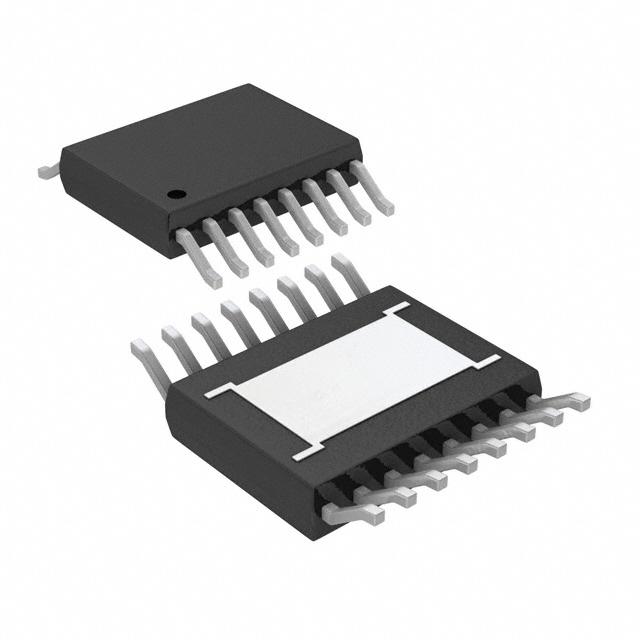

SPI-6631M
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
Output Configuration : Half Bridge (3)
Applications : DC Motors, General Purpose
Interface : Logic
Load Type : Inductive
Technology : DMOS
Rds On (Typ) : -
Current - Output / Channel : 3A
Current - Peak Output : -
Voltage - Supply : 13 V ~ 33 V
Voltage - Load : 13 V ~ 33 V
Operating Temperature : -20°C ~ 150°C (TJ)
Features : -
Fault Protection : Current Limiting, Over Temperature, UVLO
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width) Exposed Pad
Supplier Device Package : 16-HSOP
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
Output Configuration : Half Bridge (3)
Applications : DC Motors, General Purpose
Interface : Logic
Load Type : Inductive
Technology : DMOS
Rds On (Typ) : -
Current - Output / Channel : 3A
Current - Peak Output : -
Voltage - Supply : 13 V ~ 33 V
Voltage - Load : 13 V ~ 33 V
Operating Temperature : -20°C ~ 150°C (TJ)
Features : -
Fault Protection : Current Limiting, Over Temperature, UVLO
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width) Exposed Pad
Supplier Device Package : 16-HSOP
0
100 in stock
STK531U369A-E
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 10A
Current - Peak Output : 20A
Voltage - Supply : 12.5 V ~ 17.5 V
Voltage - Load : 450V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Status Flag
Fault Protection : Current Limiting, UVLO
Mounting Type : Through Hole
Package / Case : 29-SSIP Module, 21 Leads, Formed Leads
Supplier Device Package : 29-SIP
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 10A
Current - Peak Output : 20A
Voltage - Supply : 12.5 V ~ 17.5 V
Voltage - Load : 450V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Status Flag
Fault Protection : Current Limiting, UVLO
Mounting Type : Through Hole
Package / Case : 29-SSIP Module, 21 Leads, Formed Leads
Supplier Device Package : 29-SIP
0
100 in stock

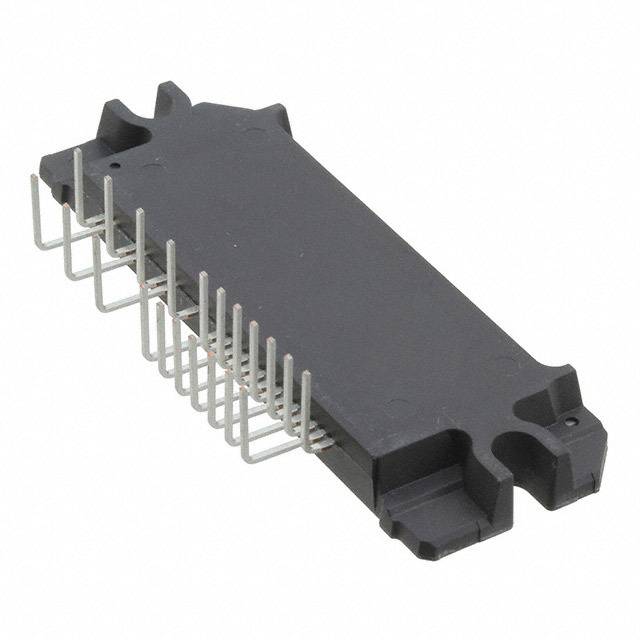

STK534U342C-E
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 5A
Current - Peak Output : 10A
Voltage - Supply : 12.5 V ~ 17.5 V
Voltage - Load : 450V (Max)
Operating Temperature : -20°C ~ 150°C (TJ)
Features : Bootstrap Circuit
Fault Protection : UVLO
Mounting Type : Through Hole
Package / Case : 29-SSIP Module, 21 Leads, Formed Leads
Supplier Device Package : 29-SIP
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 5A
Current - Peak Output : 10A
Voltage - Supply : 12.5 V ~ 17.5 V
Voltage - Load : 450V (Max)
Operating Temperature : -20°C ~ 150°C (TJ)
Features : Bootstrap Circuit
Fault Protection : UVLO
Mounting Type : Through Hole
Package / Case : 29-SSIP Module, 21 Leads, Formed Leads
Supplier Device Package : 29-SIP
0
100 in stock
STK534U362C-E
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 10A
Current - Peak Output : 20A
Voltage - Supply : 12.5 V ~ 17.5 V
Voltage - Load : 450V (Max)
Operating Temperature : -20°C ~ 150°C (TJ)
Features : Bootstrap Circuit
Fault Protection : UVLO
Mounting Type : Through Hole
Package / Case : 29-SSIP Module, 21 Leads, Formed Leads
Supplier Device Package : -
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 10A
Current - Peak Output : 20A
Voltage - Supply : 12.5 V ~ 17.5 V
Voltage - Load : 450V (Max)
Operating Temperature : -20°C ~ 150°C (TJ)
Features : Bootstrap Circuit
Fault Protection : UVLO
Mounting Type : Through Hole
Package / Case : 29-SSIP Module, 21 Leads, Formed Leads
Supplier Device Package : -
0
100 in stock
STK534U363C-E
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 10A
Current - Peak Output : 20A
Voltage - Supply : 12.5 V ~ 17.5 V
Voltage - Load : 450V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Bootstrap Circuit
Fault Protection : UVLO
Mounting Type : Through Hole
Package / Case : 29-SSIP Module, 21 Leads, Formed Leads
Supplier Device Package : 29-SIP
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 10A
Current - Peak Output : 20A
Voltage - Supply : 12.5 V ~ 17.5 V
Voltage - Load : 450V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Bootstrap Circuit
Fault Protection : UVLO
Mounting Type : Through Hole
Package / Case : 29-SSIP Module, 21 Leads, Formed Leads
Supplier Device Package : 29-SIP
0
44 in stock
STK544UC61K-E
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : -
Series : -
Part Status : Obsolete
Output Configuration : Half Bridge (3)
Applications : -
Interface : Logic
Load Type : -
Technology : -
Rds On (Typ) : -
Current - Output / Channel : 10A
Current - Peak Output : -
Voltage - Supply : 12.5 V ~ 17.5 V
Voltage - Load : -
Operating Temperature : -40°C ~ 100°C (TA)
Features : -
Fault Protection : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Packaging : -
Series : -
Part Status : Obsolete
Output Configuration : Half Bridge (3)
Applications : -
Interface : Logic
Load Type : -
Technology : -
Rds On (Typ) : -
Current - Output / Channel : 10A
Current - Peak Output : -
Voltage - Supply : 12.5 V ~ 17.5 V
Voltage - Load : -
Operating Temperature : -40°C ~ 100°C (TA)
Features : -
Fault Protection : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
0
100 in stock

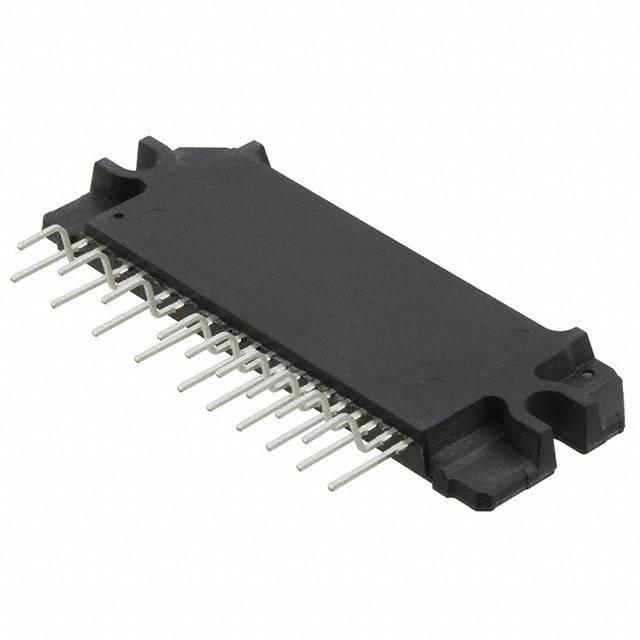

STK544UC62K-E
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 10A
Current - Peak Output : 20A
Voltage - Supply : 12.5 V ~ 17.5 V
Voltage - Load : 450V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Bootstrap Circuit
Fault Protection : Shoot-Through, UVLO
Mounting Type : Through Hole
Package / Case : 23-SIP, 19 Leads, Formed Leads
Supplier Device Package : 23-SIP-1
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 10A
Current - Peak Output : 20A
Voltage - Supply : 12.5 V ~ 17.5 V
Voltage - Load : 450V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Bootstrap Circuit
Fault Protection : Shoot-Through, UVLO
Mounting Type : Through Hole
Package / Case : 23-SIP, 19 Leads, Formed Leads
Supplier Device Package : 23-SIP-1
0
100 in stock
STK551U362A-E
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 10A
Current - Peak Output : 20A
Voltage - Supply : 12.5 V ~ 17.5 V
Voltage - Load : 450V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Bootstrap Circuit, Status Flag
Fault Protection : Current Limiting, Shoot-Through, UVLO
Mounting Type : Through Hole
Package / Case : 29-SSIP Module, 21 Leads, Formed Leads
Supplier Device Package : 21-SIP
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 10A
Current - Peak Output : 20A
Voltage - Supply : 12.5 V ~ 17.5 V
Voltage - Load : 450V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Bootstrap Circuit, Status Flag
Fault Protection : Current Limiting, Shoot-Through, UVLO
Mounting Type : Through Hole
Package / Case : 29-SSIP Module, 21 Leads, Formed Leads
Supplier Device Package : 21-SIP
0
19 in stock
STK551U392A-E
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 10A
Current - Peak Output : 20A
Voltage - Supply : 12.5 V ~ 17.5 V
Voltage - Load : 450V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Bootstrap Circuit, Latch Function, Status Flag
Fault Protection : Current Limiting, Shoot-Through, UVLO
Mounting Type : Through Hole
Package / Case : 29-SSIP Module, 21 Leads, Formed Leads
Supplier Device Package : 21-SIP
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 10A
Current - Peak Output : 20A
Voltage - Supply : 12.5 V ~ 17.5 V
Voltage - Load : 450V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Bootstrap Circuit, Latch Function, Status Flag
Fault Protection : Current Limiting, Shoot-Through, UVLO
Mounting Type : Through Hole
Package / Case : 29-SSIP Module, 21 Leads, Formed Leads
Supplier Device Package : 21-SIP
0
24 in stock
STK551U3A2A-E
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 20A
Current - Peak Output : 40A
Voltage - Supply : 12.5 V ~ 17.5 V
Voltage - Load : 450V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Bootstrap Circuit, Latch Function, Status Flag
Fault Protection : Current Limiting, Shoot-Through, UVLO
Mounting Type : Through Hole
Package / Case : 29-SSIP Module, 21 Leads, Formed Leads
Supplier Device Package : 21-SIP
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 20A
Current - Peak Output : 40A
Voltage - Supply : 12.5 V ~ 17.5 V
Voltage - Load : 450V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Bootstrap Circuit, Latch Function, Status Flag
Fault Protection : Current Limiting, Shoot-Through, UVLO
Mounting Type : Through Hole
Package / Case : 29-SSIP Module, 21 Leads, Formed Leads
Supplier Device Package : 21-SIP
0
3 in stock
STK554U362A-E
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 10A
Current - Peak Output : 20A
Voltage - Supply : 12.5 V ~ 17.5 V
Voltage - Load : 450V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Bootstrap Circuit, Status Flag
Fault Protection : Current Limiting, Shoot-Through, UVLO
Mounting Type : Through Hole
Package / Case : 29-SSIP Module, 21 Leads, Formed Leads
Supplier Device Package : 21-SIP
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 10A
Current - Peak Output : 20A
Voltage - Supply : 12.5 V ~ 17.5 V
Voltage - Load : 450V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Bootstrap Circuit, Status Flag
Fault Protection : Current Limiting, Shoot-Through, UVLO
Mounting Type : Through Hole
Package / Case : 29-SSIP Module, 21 Leads, Formed Leads
Supplier Device Package : 21-SIP
0
1 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
