Part Number
Manufacturer
Description
Unit Price
In Stock

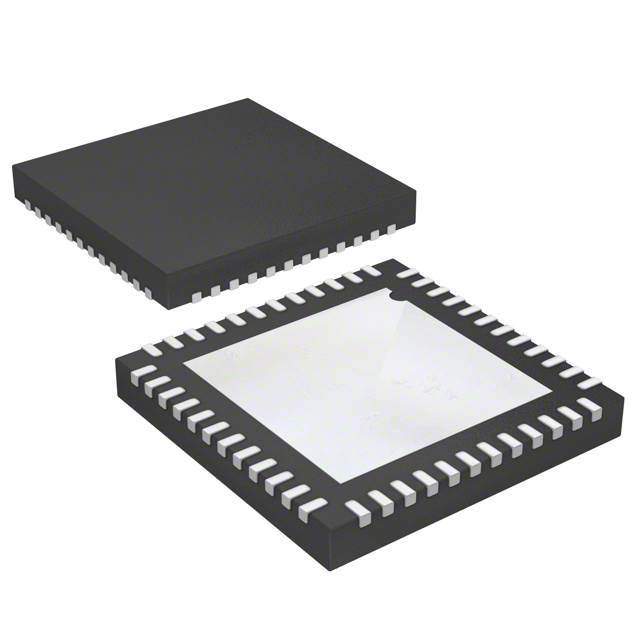

L6207QTR
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Half Bridge (4)
Applications : DC Motors, Stepper Motors, Voltage Regulators
Interface : Logic
Load Type : Inductive
Technology : DMOS
Rds On (Typ) : 280 mOhm LS, 340 mOhm HS
Current - Output / Channel : 2.5A
Current - Peak Output : 5.6A
Voltage - Supply : 8 V ~ 52 V
Voltage - Load : 8 V ~ 52 V
Operating Temperature : -25°C ~ 125°C (TJ)
Features : Bootstrap Circuit
Fault Protection : Current Limiting, Over Temperature, UVLO
Mounting Type : Surface Mount
Package / Case : 48-VFQFN Exposed Pad
Supplier Device Package : 48-VFQFPN (7x7)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Half Bridge (4)
Applications : DC Motors, Stepper Motors, Voltage Regulators
Interface : Logic
Load Type : Inductive
Technology : DMOS
Rds On (Typ) : 280 mOhm LS, 340 mOhm HS
Current - Output / Channel : 2.5A
Current - Peak Output : 5.6A
Voltage - Supply : 8 V ~ 52 V
Voltage - Load : 8 V ~ 52 V
Operating Temperature : -25°C ~ 125°C (TJ)
Features : Bootstrap Circuit
Fault Protection : Current Limiting, Over Temperature, UVLO
Mounting Type : Surface Mount
Package / Case : 48-VFQFN Exposed Pad
Supplier Device Package : 48-VFQFPN (7x7)
0
99 in stock
L9960
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : General Purpose
Interface : SPI
Load Type : Inductive, Capacitive, Resistive
Technology : Power MOSFET
Rds On (Typ) : 400 mOhm LS + HS
Current - Output / Channel : -
Current - Peak Output : -
Voltage - Supply : 4.5 V ~ 5.5 V
Voltage - Load : 4.5 V ~ 28 V
Operating Temperature : -40°C ~ 170°C (TJ)
Features : Slew Rate Controlled
Fault Protection : Over Temperature, Short Circuit
Mounting Type : Surface Mount
Package / Case : 36-PowerFSOP (0.295", 7.50mm Width)
Supplier Device Package : PowerSSO-36
Packaging : Tube
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : General Purpose
Interface : SPI
Load Type : Inductive, Capacitive, Resistive
Technology : Power MOSFET
Rds On (Typ) : 400 mOhm LS + HS
Current - Output / Channel : -
Current - Peak Output : -
Voltage - Supply : 4.5 V ~ 5.5 V
Voltage - Load : 4.5 V ~ 28 V
Operating Temperature : -40°C ~ 170°C (TJ)
Features : Slew Rate Controlled
Fault Protection : Over Temperature, Short Circuit
Mounting Type : Surface Mount
Package / Case : 36-PowerFSOP (0.295", 7.50mm Width)
Supplier Device Package : PowerSSO-36
0
100 in stock
L9960T
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : General Purpose
Interface : SPI
Load Type : Inductive, Capacitive, Resistive
Technology : Power MOSFET
Rds On (Typ) : 400 mOhm LS + HS
Current - Output / Channel : -
Current - Peak Output : -
Voltage - Supply : 4.5 V ~ 5.5 V
Voltage - Load : 4.5 V ~ 28 V
Operating Temperature : -40°C ~ 170°C (TJ)
Features : Slew Rate Controlled
Fault Protection : Over Temperature, Short Circuit
Mounting Type : Surface Mount
Package / Case : 36-PowerFSOP (0.295", 7.50mm Width)
Supplier Device Package : PowerSSO-36
Packaging : Tube
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : General Purpose
Interface : SPI
Load Type : Inductive, Capacitive, Resistive
Technology : Power MOSFET
Rds On (Typ) : 400 mOhm LS + HS
Current - Output / Channel : -
Current - Peak Output : -
Voltage - Supply : 4.5 V ~ 5.5 V
Voltage - Load : 4.5 V ~ 28 V
Operating Temperature : -40°C ~ 170°C (TJ)
Features : Slew Rate Controlled
Fault Protection : Over Temperature, Short Circuit
Mounting Type : Surface Mount
Package / Case : 36-PowerFSOP (0.295", 7.50mm Width)
Supplier Device Package : PowerSSO-36
0
100 in stock

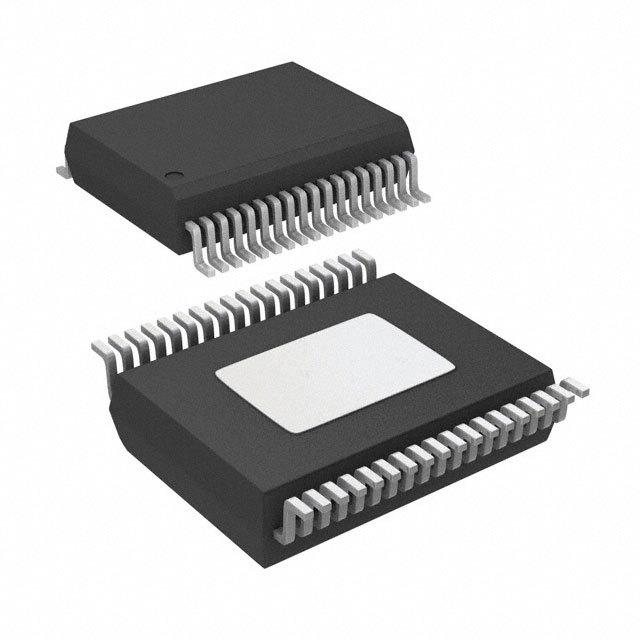

L9960TR
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : General Purpose
Interface : SPI
Load Type : Inductive, Capacitive, Resistive
Technology : Power MOSFET
Rds On (Typ) : 400 mOhm LS + HS
Current - Output / Channel : -
Current - Peak Output : -
Voltage - Supply : 4.5 V ~ 5.5 V
Voltage - Load : 4.5 V ~ 28 V
Operating Temperature : -40°C ~ 170°C (TJ)
Features : Slew Rate Controlled
Fault Protection : Over Temperature, Short Circuit
Mounting Type : Surface Mount
Package / Case : 36-PowerFSOP (0.295", 7.50mm Width)
Supplier Device Package : PowerSSO-36
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : General Purpose
Interface : SPI
Load Type : Inductive, Capacitive, Resistive
Technology : Power MOSFET
Rds On (Typ) : 400 mOhm LS + HS
Current - Output / Channel : -
Current - Peak Output : -
Voltage - Supply : 4.5 V ~ 5.5 V
Voltage - Load : 4.5 V ~ 28 V
Operating Temperature : -40°C ~ 170°C (TJ)
Features : Slew Rate Controlled
Fault Protection : Over Temperature, Short Circuit
Mounting Type : Surface Mount
Package / Case : 36-PowerFSOP (0.295", 7.50mm Width)
Supplier Device Package : PowerSSO-36
0
474 in stock
L9960T-TR
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : General Purpose
Interface : SPI
Load Type : Inductive, Capacitive, Resistive
Technology : Power MOSFET
Rds On (Typ) : 400 mOhm LS + HS
Current - Output / Channel : -
Current - Peak Output : -
Voltage - Supply : 4.5 V ~ 5.5 V
Voltage - Load : 4.5 V ~ 28 V
Operating Temperature : -40°C ~ 170°C (TJ)
Features : Slew Rate Controlled
Fault Protection : Over Temperature, Short Circuit
Mounting Type : Surface Mount
Package / Case : 36-PowerFSOP (0.295", 7.50mm Width)
Supplier Device Package : PowerSSO-36
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : General Purpose
Interface : SPI
Load Type : Inductive, Capacitive, Resistive
Technology : Power MOSFET
Rds On (Typ) : 400 mOhm LS + HS
Current - Output / Channel : -
Current - Peak Output : -
Voltage - Supply : 4.5 V ~ 5.5 V
Voltage - Load : 4.5 V ~ 28 V
Operating Temperature : -40°C ~ 170°C (TJ)
Features : Slew Rate Controlled
Fault Protection : Over Temperature, Short Circuit
Mounting Type : Surface Mount
Package / Case : 36-PowerFSOP (0.295", 7.50mm Width)
Supplier Device Package : PowerSSO-36
0
100 in stock

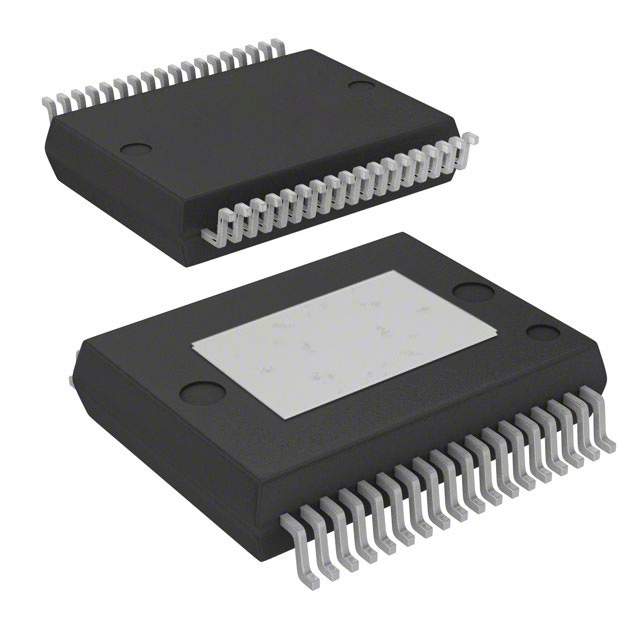

L99SD01TR-E
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Output Configuration : Half Bridge
Applications : Solenoids
Interface : I²C, PWM
Load Type : Inductive
Technology : Power MOSFET
Rds On (Typ) : 150 mOhm LS (Max), 150 mOhm HS (Max)
Current - Output / Channel : 14A
Current - Peak Output : -
Voltage - Supply : 6 V ~ 28 V
Voltage - Load : 45V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Status Flag
Fault Protection : Current Limiting, Open Load Detect, Over Temperature, Over Voltage, UVLO
Mounting Type : Surface Mount
Package / Case : 36-PowerBFSOP (0.295", 7.50mm Width)
Supplier Device Package : PowerSSO-36
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Output Configuration : Half Bridge
Applications : Solenoids
Interface : I²C, PWM
Load Type : Inductive
Technology : Power MOSFET
Rds On (Typ) : 150 mOhm LS (Max), 150 mOhm HS (Max)
Current - Output / Channel : 14A
Current - Peak Output : -
Voltage - Supply : 6 V ~ 28 V
Voltage - Load : 45V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Status Flag
Fault Protection : Current Limiting, Open Load Detect, Over Temperature, Over Voltage, UVLO
Mounting Type : Surface Mount
Package / Case : 36-PowerBFSOP (0.295", 7.50mm Width)
Supplier Device Package : PowerSSO-36
0
100 in stock

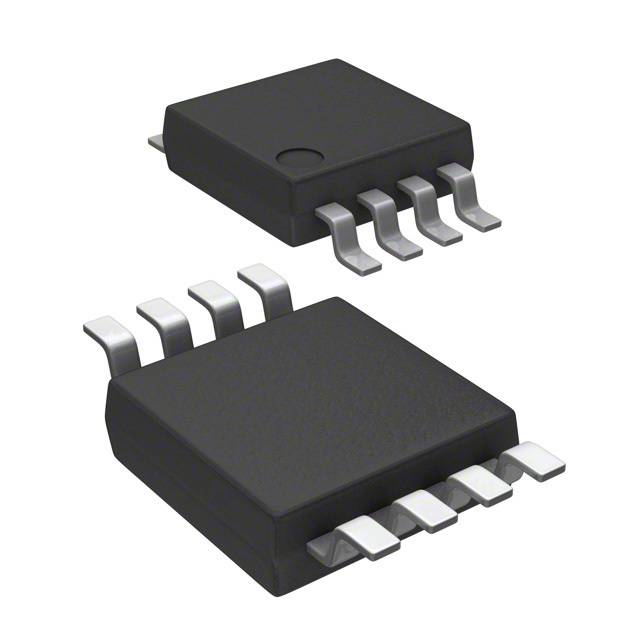

LA6581MC-BH
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : Logic
Load Type : Inductive
Technology : Bipolar
Rds On (Typ) : -
Current - Output / Channel : 500mA
Current - Peak Output : -
Voltage - Supply : 2.2 V ~ 16 V
Voltage - Load : 2.2 V ~ 16 V
Operating Temperature : -30°C ~ 150°C (TJ)
Features : -
Fault Protection : Over Temperature
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : Logic
Load Type : Inductive
Technology : Bipolar
Rds On (Typ) : -
Current - Output / Channel : 500mA
Current - Peak Output : -
Voltage - Supply : 2.2 V ~ 16 V
Voltage - Load : 2.2 V ~ 16 V
Operating Temperature : -30°C ~ 150°C (TJ)
Features : -
Fault Protection : Over Temperature
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
100 in stock
LA6581MC-DH
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : Logic
Load Type : Inductive
Technology : Bipolar
Rds On (Typ) : -
Current - Output / Channel : 500mA
Current - Peak Output : -
Voltage - Supply : 2.2 V ~ 16 V
Voltage - Load : 2.2 V ~ 16 V
Operating Temperature : -30°C ~ 150°C (TJ)
Features : -
Fault Protection : Over Temperature
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : Logic
Load Type : Inductive
Technology : Bipolar
Rds On (Typ) : -
Current - Output / Channel : 500mA
Current - Peak Output : -
Voltage - Supply : 2.2 V ~ 16 V
Voltage - Load : 2.2 V ~ 16 V
Operating Temperature : -30°C ~ 150°C (TJ)
Features : -
Fault Protection : Over Temperature
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
100 in stock
LA6581T-TE-L-E
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : Logic
Load Type : Inductive
Technology : Bipolar
Rds On (Typ) : -
Current - Output / Channel : 300mA
Current - Peak Output : -
Voltage - Supply : 2.5 V ~ 16 V
Voltage - Load : 2.5 V ~ 16 V
Operating Temperature : -20°C ~ 90°C (TA)
Features : -
Fault Protection : Over Temperature
Mounting Type : Surface Mount
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : Logic
Load Type : Inductive
Technology : Bipolar
Rds On (Typ) : -
Current - Output / Channel : 300mA
Current - Peak Output : -
Voltage - Supply : 2.5 V ~ 16 V
Voltage - Load : 2.5 V ~ 16 V
Operating Temperature : -20°C ~ 90°C (TA)
Features : -
Fault Protection : Over Temperature
Mounting Type : Surface Mount
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
0
100 in stock
LA6581T-TE-L-H
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : Logic
Load Type : Inductive
Technology : Bipolar
Rds On (Typ) : -
Current - Output / Channel : 300mA
Current - Peak Output : -
Voltage - Supply : 2.5 V ~ 16 V
Voltage - Load : 2.5 V ~ 16 V
Operating Temperature : -20°C ~ 90°C (TA)
Features : -
Fault Protection : Over Temperature
Mounting Type : Surface Mount
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : Logic
Load Type : Inductive
Technology : Bipolar
Rds On (Typ) : -
Current - Output / Channel : 300mA
Current - Peak Output : -
Voltage - Supply : 2.5 V ~ 16 V
Voltage - Load : 2.5 V ~ 16 V
Operating Temperature : -20°C ~ 90°C (TA)
Features : -
Fault Protection : Over Temperature
Mounting Type : Surface Mount
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
0
100 in stock
LA6583MC-AH
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : Logic
Load Type : Inductive
Technology : Bipolar
Rds On (Typ) : -
Current - Output / Channel : 800mA
Current - Peak Output : -
Voltage - Supply : 2.8 V ~ 14 V
Voltage - Load : 2.8 V ~ 14 V
Operating Temperature : -30°C ~ 150°C (TJ)
Features : -
Fault Protection : -
Mounting Type : Surface Mount
Package / Case : 10-LSOP (0.173", 4.40mm Width)
Supplier Device Package : 10-MFPSK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : Logic
Load Type : Inductive
Technology : Bipolar
Rds On (Typ) : -
Current - Output / Channel : 800mA
Current - Peak Output : -
Voltage - Supply : 2.8 V ~ 14 V
Voltage - Load : 2.8 V ~ 14 V
Operating Temperature : -30°C ~ 150°C (TJ)
Features : -
Fault Protection : -
Mounting Type : Surface Mount
Package / Case : 10-LSOP (0.173", 4.40mm Width)
Supplier Device Package : 10-MFPSK
0
100 in stock
LA6584JA-ZH
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : Logic
Load Type : Inductive
Technology : Bipolar
Rds On (Typ) : -
Current - Output / Channel : 1.2A
Current - Peak Output : -
Voltage - Supply : 2.8 V ~ 14 V
Voltage - Load : 2.8 V ~ 14 V
Operating Temperature : -30°C ~ 90°C (TA)
Features : -
Fault Protection : -
Mounting Type : Surface Mount
Package / Case : 20-LSSOP (0.154", 3.90mm Width)
Supplier Device Package : 20-SSOP
Packaging : Tube
Series : -
Part Status : Obsolete
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : Logic
Load Type : Inductive
Technology : Bipolar
Rds On (Typ) : -
Current - Output / Channel : 1.2A
Current - Peak Output : -
Voltage - Supply : 2.8 V ~ 14 V
Voltage - Load : 2.8 V ~ 14 V
Operating Temperature : -30°C ~ 90°C (TA)
Features : -
Fault Protection : -
Mounting Type : Surface Mount
Package / Case : 20-LSSOP (0.154", 3.90mm Width)
Supplier Device Package : 20-SSOP
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
