Part Number

Manufacturer

Description

Unit Price

In Stock

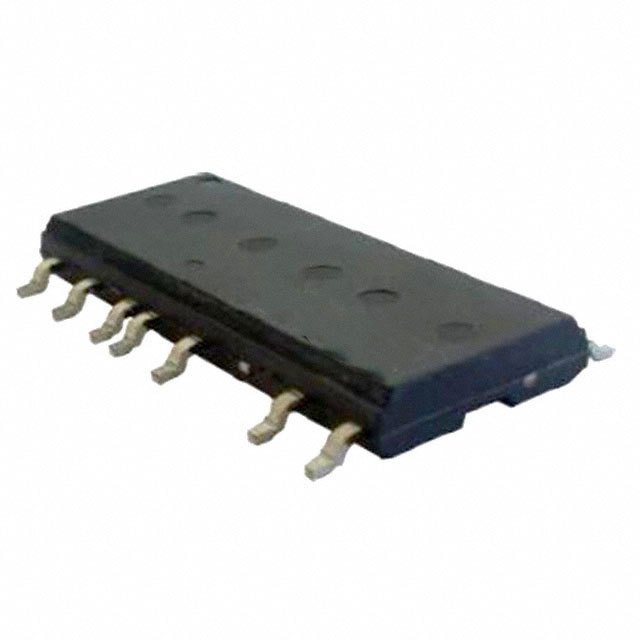

IRSM515-065PA

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Tube
Series : µIPM™DIP
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : UMOS
Rds On (Typ) : 1 Ohm
Current - Output / Channel : 2.6A
Current - Peak Output : 15A
Voltage - Supply : 13.5 V ~ 16.5 V
Voltage - Load : 400V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Bootstrap Circuit
Fault Protection : UVLO
Mounting Type : Surface Mount
Package / Case : 32-PowerSMD Module, 23 Leads
Supplier Device Package : 23-SOP

90 in stock

IRSM515-084DA

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Tube
Series : µIPM™DIP
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : UMOS
Rds On (Typ) : 340 mOhm
Current - Output / Channel : 4.6A
Current - Peak Output : 15A
Voltage - Supply : 13.5 V ~ 16.5 V
Voltage - Load : 200V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Bootstrap Circuit
Fault Protection : UVLO
Mounting Type : Through Hole
Package / Case : 23-DIP Module
Supplier Device Package : 23-DIP

117 in stock

IRSM515-084PA

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Tube
Series : µIPM™DIP
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : UMOS
Rds On (Typ) : 340 mOhm
Current - Output / Channel : 4.6A
Current - Peak Output : 15A
Voltage - Supply : 13.5 V ~ 16.5 V
Voltage - Load : 200V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Bootstrap Circuit
Fault Protection : UVLO
Mounting Type : Surface Mount
Package / Case : 32-PowerSMD Module, 23 Leads
Supplier Device Package : 23-SOP

120 in stock

IRSM807-045MH

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Tray
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Half Bridge
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : UMOS
Rds On (Typ) : 1.5 Ohm
Current - Output / Channel : 4A
Current - Peak Output : 35A
Voltage - Supply : 12 V ~ 16.5 V
Voltage - Load : 400V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Bootstrap Circuit
Fault Protection : UVLO
Mounting Type : Surface Mount
Package / Case : 31-PowerVQFN
Supplier Device Package : 31-PQFN (8x9)

1197 in stock

IRSM807-105MH

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Tray
Alternate Packaging
Series : µIPM™
Part Status : Active
Output Configuration : Half Bridge
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : UMOS
Rds On (Typ) : 580 mOhm
Current - Output / Channel : 10A
Current - Peak Output : -
Voltage - Supply : 13.5 V ~ 16.5 V
Voltage - Load : 400V (Max)
Operating Temperature : 150°C (TJ)
Features : Bootstrap Circuit
Fault Protection : UVLO
Mounting Type : Surface Mount
Package / Case : 31-PowerVQFN
Supplier Device Package : 31-PQFN (8x9)

1237 in stock

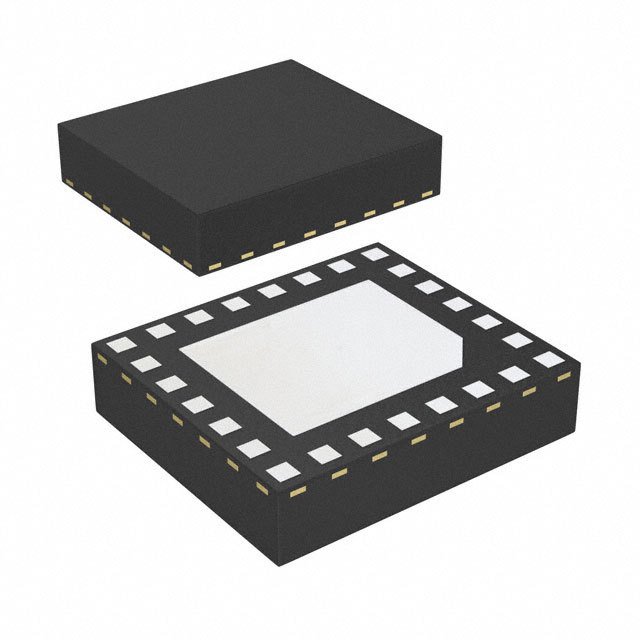

IRSM808-105MH

International Rectifier (Infineon Technologies)

1290 in stock

IRSM808-204MH

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Tray
Alternate Packaging
Series : µIPM™
Part Status : Active
Output Configuration : Half Bridge
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : UMOS
Rds On (Typ) : 130 mOhm
Current - Output / Channel : 20A
Current - Peak Output : -
Voltage - Supply : 13.5 V ~ 16.5 V
Voltage - Load : 200V (Max)
Operating Temperature : 150°C (TJ)
Features : Bootstrap Circuit
Fault Protection : UVLO
Mounting Type : Surface Mount
Package / Case : 31-PowerVQFN
Supplier Device Package : 31-PQFN (8x9)

1190 in stock

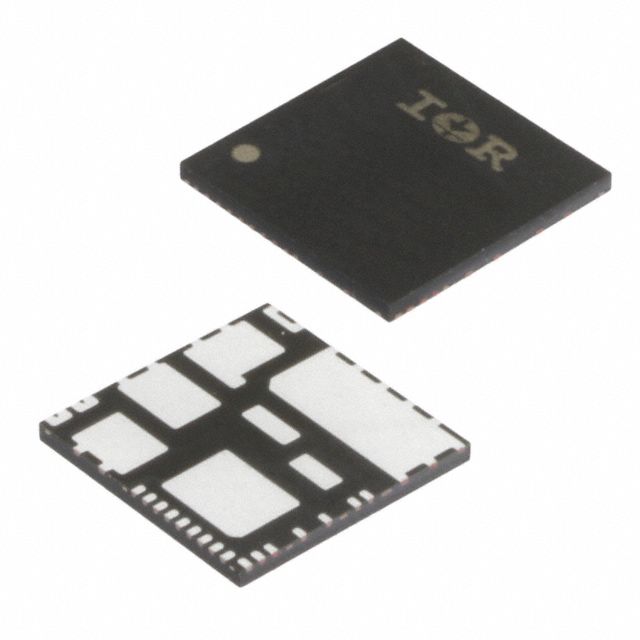

IRSM836-015MA

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Tray
Alternate Packaging
Series : µIPM™
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : UMOS
Rds On (Typ) : 4.8 Ohm
Current - Output / Channel : 1A
Current - Peak Output : 7A
Voltage - Supply : 13.5 V ~ 16.5 V
Voltage - Load : 400V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Bootstrap Circuit
Fault Protection : UVLO
Mounting Type : Surface Mount
Package / Case : 36-PowerVQFN
Supplier Device Package : 36-PQFN (12x12)

780 in stock

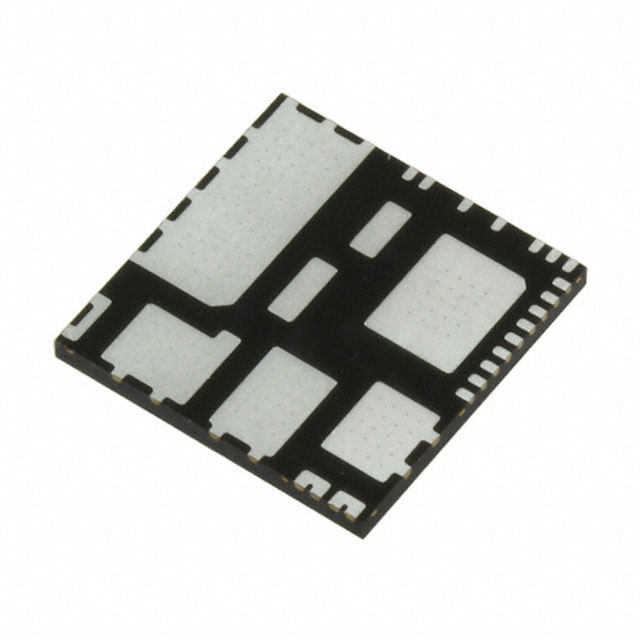

IRSM836-084MA

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Tray
Alternate Packaging
Series : µIPM™
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : UMOS
Rds On (Typ) : 310 mOhm
Current - Output / Channel : 7A
Current - Peak Output : 27A
Voltage - Supply : 10 V ~ 20 V
Voltage - Load : 200V (Max)
Operating Temperature : -40°C ~ 150°C (TJ)
Features : Bootstrap Circuit
Fault Protection : UVLO
Mounting Type : Surface Mount
Package / Case : 36-PowerVQFN
Supplier Device Package : 36-PQFN (12x12)

506 in stock

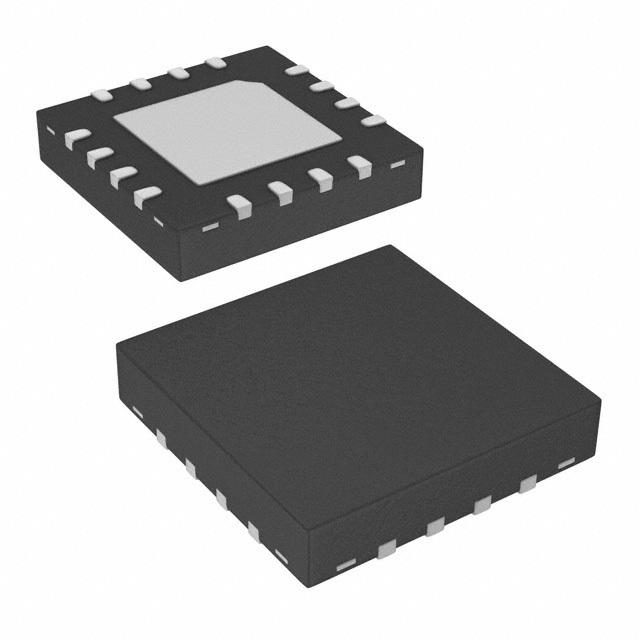

ISL55110IRZ

Intersil (Renesas Electronics America)

Manufacturer : Renesas Electronics America Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : Digital Imaging
Interface : Logic
Load Type : Capacitive and Resistive
Technology : Power MOSFET
Rds On (Typ) : 3 Ohm
Current - Output / Channel : 100mA
Current - Peak Output : 3.5A
Voltage - Supply : 2.7 V ~ 5.5 V
Voltage - Load : 5 V ~ 13.2 V
Operating Temperature : -40°C ~ 150°C (TJ)
Features : -
Fault Protection : -
Mounting Type : Surface Mount
Package / Case : 16-TQFN Exposed Pad
Supplier Device Package : 16-QFN (4x4)

14672 in stock

ISL55110IRZ-T7A

Intersil (Renesas Electronics America)

Manufacturer : Renesas Electronics America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : Digital Imaging
Interface : Logic
Load Type : Capacitive and Resistive
Technology : Power MOSFET
Rds On (Typ) : 3 Ohm
Current - Output / Channel : 100mA
Current - Peak Output : 3.5A
Voltage - Supply : 2.7 V ~ 5.5 V
Voltage - Load : 5 V ~ 13.2 V
Operating Temperature : -40°C ~ 150°C (TJ)
Features : -
Fault Protection : -
Mounting Type : Surface Mount
Package / Case : 16-TQFN Exposed Pad
Supplier Device Package : 16-QFN (4x4)

23291 in stock

ISL55110IVZ

Intersil (Renesas Electronics America)

Manufacturer : Renesas Electronics America Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : Digital Imaging
Interface : Logic
Load Type : Capacitive and Resistive
Technology : Power MOSFET
Rds On (Typ) : 3 Ohm
Current - Output / Channel : 100mA
Current - Peak Output : 3.5A
Voltage - Supply : 2.7 V ~ 5.5 V
Voltage - Load : 5 V ~ 13.2 V
Operating Temperature : -40°C ~ 150°C (TJ)
Features : -
Fault Protection : -
Mounting Type : Surface Mount
Package / Case : 8-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 8-TSSOP

6284 in stock
