Welcome to Weijie Semiconductor
- Integrated Circuits (ICs)
- Logic - Gates and Inverters
Part Number
Manufacturer
Description
Unit Price
In Stock
74LV1T87GXH
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LV
Part Status : Active
Logic Type : XNOR (Exclusive NOR)
Number of Circuits : 1
Number of Inputs : 2
Features : -
Voltage - Supply : 1.6 V ~ 5.5 V
Current - Quiescent (Max) : 1µA
Current - Output High, Low : 8mA, 8mA
Logic Level - Low : 0.1 V ~ 0.3 V
Logic Level - High : 1.28 V ~ 4.6 V
Max Propagation Delay @ V, Max CL : 5.1ns @ 5V, 30pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 5-X2SON (0.80x0.80)
Package / Case : 5-XFDFN Exposed Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LV
Part Status : Active
Logic Type : XNOR (Exclusive NOR)
Number of Circuits : 1
Number of Inputs : 2
Features : -
Voltage - Supply : 1.6 V ~ 5.5 V
Current - Quiescent (Max) : 1µA
Current - Output High, Low : 8mA, 8mA
Logic Level - Low : 0.1 V ~ 0.3 V
Logic Level - High : 1.28 V ~ 4.6 V
Max Propagation Delay @ V, Max CL : 5.1ns @ 5V, 30pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 5-X2SON (0.80x0.80)
Package / Case : 5-XFDFN Exposed Pad
0
9970 in stock
74LV32AS14-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LV
Part Status : Active
Logic Type : OR Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 2 V ~ 5.5 V
Current - Quiescent (Max) : 20µA
Current - Output High, Low : 12mA, 12mA
Logic Level - Low : 0.5V
Logic Level - High : 1.5V
Max Propagation Delay @ V, Max CL : 7.5ns @ 5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SO
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LV
Part Status : Active
Logic Type : OR Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 2 V ~ 5.5 V
Current - Quiescent (Max) : 20µA
Current - Output High, Low : 12mA, 12mA
Logic Level - Low : 0.5V
Logic Level - High : 1.5V
Max Propagation Delay @ V, Max CL : 7.5ns @ 5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SO
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
4977 in stock
74LV86AS14-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LV
Part Status : Active
Logic Type : XOR (Exclusive OR)
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 2 V ~ 5.5 V
Current - Quiescent (Max) : 20µA
Current - Output High, Low : 12mA, 12mA
Logic Level - Low : 0.5V
Logic Level - High : 1.5V
Max Propagation Delay @ V, Max CL : 8.8ns @ 5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SO
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LV
Part Status : Active
Logic Type : XOR (Exclusive OR)
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 2 V ~ 5.5 V
Current - Quiescent (Max) : 20µA
Current - Output High, Low : 12mA, 12mA
Logic Level - Low : 0.5V
Logic Level - High : 1.5V
Max Propagation Delay @ V, Max CL : 8.8ns @ 5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SO
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
2245 in stock
74LVC00ABQ,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVC
Part Status : Active
Logic Type : NAND Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 1.2 V ~ 3.6 V
Current - Quiescent (Max) : 40µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.12 V ~ 0.8 V
Logic Level - High : 1.08 V ~ 2 V
Max Propagation Delay @ V, Max CL : 4.3ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-DHVQFN (2.5x3)
Package / Case : 14-VFQFN Exposed Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVC
Part Status : Active
Logic Type : NAND Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 1.2 V ~ 3.6 V
Current - Quiescent (Max) : 40µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.12 V ~ 0.8 V
Logic Level - High : 1.08 V ~ 2 V
Max Propagation Delay @ V, Max CL : 4.3ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-DHVQFN (2.5x3)
Package / Case : 14-VFQFN Exposed Pad
0
21378 in stock
74LVC00AD,112
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Tube
Alternate Packaging
Series : 74LVC
Part Status : Active
Logic Type : NAND Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 1.2 V ~ 3.6 V
Current - Quiescent (Max) : 40µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.12 V ~ 0.8 V
Logic Level - High : 1.08 V ~ 2 V
Max Propagation Delay @ V, Max CL : 4.3ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SO
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Packaging : Tube
Alternate Packaging
Series : 74LVC
Part Status : Active
Logic Type : NAND Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 1.2 V ~ 3.6 V
Current - Quiescent (Max) : 40µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.12 V ~ 0.8 V
Logic Level - High : 1.08 V ~ 2 V
Max Propagation Delay @ V, Max CL : 4.3ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SO
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
1477 in stock
74LVC00AD,118
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVC
Part Status : Active
Logic Type : NAND Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 1.2 V ~ 3.6 V
Current - Quiescent (Max) : 40µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.12 V ~ 0.8 V
Logic Level - High : 1.08 V ~ 2 V
Max Propagation Delay @ V, Max CL : 4.3ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SO
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVC
Part Status : Active
Logic Type : NAND Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 1.2 V ~ 3.6 V
Current - Quiescent (Max) : 40µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.12 V ~ 0.8 V
Logic Level - High : 1.08 V ~ 2 V
Max Propagation Delay @ V, Max CL : 4.3ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SO
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
2588 in stock

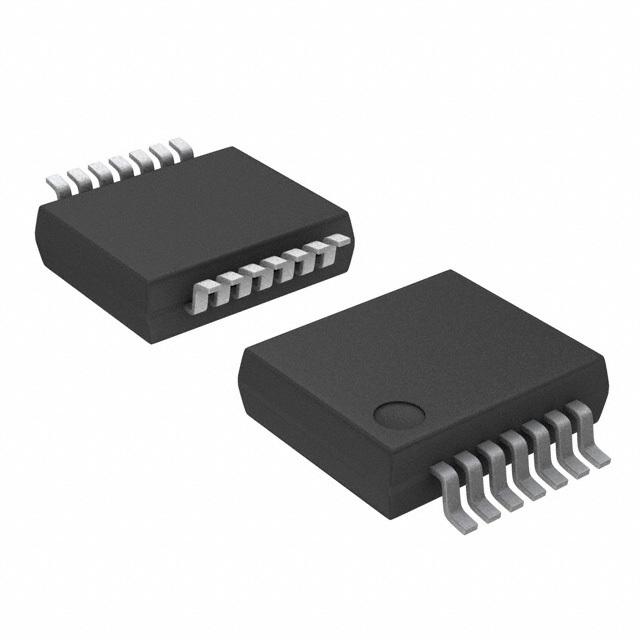

74LVC00ADB,118
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVC
Part Status : Active
Logic Type : NAND Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 1.2 V ~ 3.6 V
Current - Quiescent (Max) : 40µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.12 V ~ 0.8 V
Logic Level - High : 1.08 V ~ 2 V
Max Propagation Delay @ V, Max CL : 4.3ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SSOP
Package / Case : 14-SSOP (0.209", 5.30mm Width)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVC
Part Status : Active
Logic Type : NAND Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 1.2 V ~ 3.6 V
Current - Quiescent (Max) : 40µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.12 V ~ 0.8 V
Logic Level - High : 1.08 V ~ 2 V
Max Propagation Delay @ V, Max CL : 4.3ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SSOP
Package / Case : 14-SSOP (0.209", 5.30mm Width)
0
3851 in stock
74LVC00APW,112
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Tube
Alternate Packaging
Series : 74LVC
Part Status : Active
Logic Type : NAND Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 1.2 V ~ 3.6 V
Current - Quiescent (Max) : 40µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.12 V ~ 0.8 V
Logic Level - High : 1.08 V ~ 2 V
Max Propagation Delay @ V, Max CL : 4.3ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-TSSOP
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Packaging : Tube
Alternate Packaging
Series : 74LVC
Part Status : Active
Logic Type : NAND Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 1.2 V ~ 3.6 V
Current - Quiescent (Max) : 40µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.12 V ~ 0.8 V
Logic Level - High : 1.08 V ~ 2 V
Max Propagation Delay @ V, Max CL : 4.3ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-TSSOP
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
0
1112 in stock
74LVC00APW,118
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVC
Part Status : Active
Logic Type : NAND Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 1.2 V ~ 3.6 V
Current - Quiescent (Max) : 40µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.12 V ~ 0.8 V
Logic Level - High : 1.08 V ~ 2 V
Max Propagation Delay @ V, Max CL : 4.3ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-TSSOP
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVC
Part Status : Active
Logic Type : NAND Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 1.2 V ~ 3.6 V
Current - Quiescent (Max) : 40µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.12 V ~ 0.8 V
Logic Level - High : 1.08 V ~ 2 V
Max Propagation Delay @ V, Max CL : 4.3ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-TSSOP
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
0
4423 in stock
74LVC00AS14-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Series : 74LVC
Part Status : Discontinued at
Logic Type : NAND Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 1.65 V ~ 5.5 V
Current - Quiescent (Max) : 10µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.7 V ~ 0.8 V
Logic Level - High : 1.7 V ~ 2 V
Max Propagation Delay @ V, Max CL : 4.1ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SO
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Packaging : Cut Tape (CT)
Series : 74LVC
Part Status : Discontinued at
Logic Type : NAND Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 1.65 V ~ 5.5 V
Current - Quiescent (Max) : 10µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.7 V ~ 0.8 V
Logic Level - High : 1.7 V ~ 2 V
Max Propagation Delay @ V, Max CL : 4.1ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SO
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
1967 in stock
74LVC00AT14-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVC
Part Status : Discontinued at
Logic Type : NAND Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 1.65 V ~ 5.5 V
Current - Quiescent (Max) : 10µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.7 V ~ 0.8 V
Logic Level - High : 1.7 V ~ 2 V
Max Propagation Delay @ V, Max CL : 4.1ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-TSSOP
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVC
Part Status : Discontinued at
Logic Type : NAND Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 1.65 V ~ 5.5 V
Current - Quiescent (Max) : 10µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.7 V ~ 0.8 V
Logic Level - High : 1.7 V ~ 2 V
Max Propagation Delay @ V, Max CL : 4.1ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-TSSOP
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
0
1783 in stock
74LVC02ABQ,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVC
Part Status : Discontinued at
Logic Type : NOR Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 1.2 V ~ 3.6 V
Current - Quiescent (Max) : 40µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.12 V ~ 0.8 V
Logic Level - High : 1.08 V ~ 2 V
Max Propagation Delay @ V, Max CL : 4.4ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-DHVQFN (2.5x3)
Package / Case : 14-VFQFN Exposed Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVC
Part Status : Discontinued at
Logic Type : NOR Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 1.2 V ~ 3.6 V
Current - Quiescent (Max) : 40µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.12 V ~ 0.8 V
Logic Level - High : 1.08 V ~ 2 V
Max Propagation Delay @ V, Max CL : 4.4ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-DHVQFN (2.5x3)
Package / Case : 14-VFQFN Exposed Pad
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
