74HCT1G32GW,165
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 74HCT
Part Status : Obsolete
Logic Type : OR Gate
Number of Circuits : 1
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 20µA
Current - Output High, Low : 2mA, 2mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 10ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 5-TSSOP
Package / Case : 5-TSSOP, SC-70-5, SOT-353
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 74HCT
Part Status : Obsolete
Logic Type : OR Gate
Number of Circuits : 1
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 20µA
Current - Output High, Low : 2mA, 2mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 10ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 5-TSSOP
Package / Case : 5-TSSOP, SC-70-5, SOT-353
0
100 in stock
74HCT1G86GW,125
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : XOR (Exclusive OR)
Number of Circuits : 1
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 10µA
Current - Output High, Low : 2mA, 2mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 23ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 5-TSSOP
Package / Case : 5-TSSOP, SC-70-5, SOT-353
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : XOR (Exclusive OR)
Number of Circuits : 1
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 10µA
Current - Output High, Low : 2mA, 2mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 23ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 5-TSSOP
Package / Case : 5-TSSOP, SC-70-5, SOT-353
0
2405 in stock
74HCT1G86GW,165
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 74HCT
Part Status : Obsolete
Logic Type : XOR (Exclusive OR)
Number of Circuits : 1
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 20µA
Current - Output High, Low : 2mA, 2mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 13ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 5-TSSOP
Package / Case : 5-TSSOP, SC-70-5, SOT-353
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 74HCT
Part Status : Obsolete
Logic Type : XOR (Exclusive OR)
Number of Circuits : 1
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 20µA
Current - Output High, Low : 2mA, 2mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 13ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 5-TSSOP
Package / Case : 5-TSSOP, SC-70-5, SOT-353
0
100 in stock
74HCT20D,652
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Tube
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : NAND Gate
Number of Circuits : 2
Number of Inputs : 4
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 2µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 28ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SO
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Packaging : Tube
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : NAND Gate
Number of Circuits : 2
Number of Inputs : 4
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 2µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 28ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SO
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
708 in stock
74HCT27D,652
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Tube
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : NOR Gate
Number of Circuits : 3
Number of Inputs : 3
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 2µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 21ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SO
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Packaging : Tube
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : NOR Gate
Number of Circuits : 3
Number of Inputs : 3
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 2µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 21ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SO
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
10212 in stock
74HCT2G02DP,125
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : NOR Gate
Number of Circuits : 2
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 20µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 12ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 8-TSSOP
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : NOR Gate
Number of Circuits : 2
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 20µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 12ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 8-TSSOP
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
0
11589 in stock
74HCT2G04GV,125
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : Inverter
Number of Circuits : 2
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 1µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 18ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 6-TSOP
Package / Case : SC-74, SOT-457
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : Inverter
Number of Circuits : 2
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 1µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 18ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 6-TSOP
Package / Case : SC-74, SOT-457
0
1277 in stock
74HCT2G04GW,125
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : Inverter
Number of Circuits : 2
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 1µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 18ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 6-TSSOP
Package / Case : 6-TSSOP, SC-88, SOT-363
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : Inverter
Number of Circuits : 2
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 1µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 18ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 6-TSSOP
Package / Case : 6-TSSOP, SC-88, SOT-363
0
15908 in stock

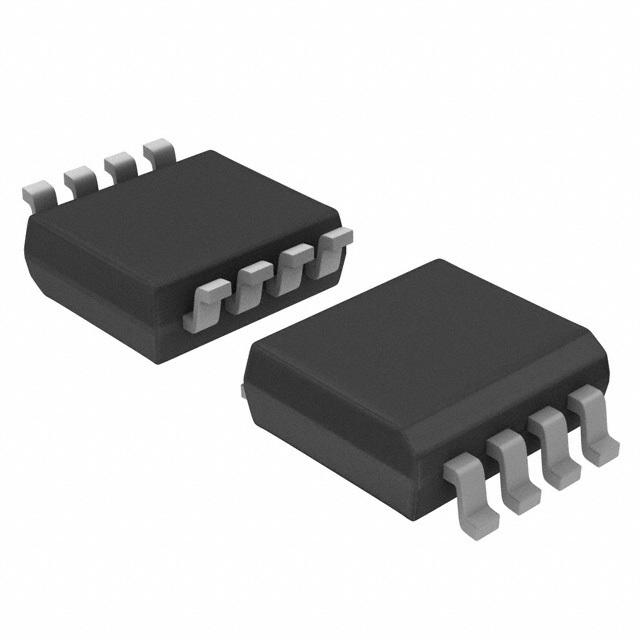

74HCT2G08DC,125
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : AND Gate
Number of Circuits : 2
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 20µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 14ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 8-VSSOP
Package / Case : 8-VFSOP (0.091", 2.30mm Width)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : AND Gate
Number of Circuits : 2
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 20µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 14ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 8-VSSOP
Package / Case : 8-VFSOP (0.091", 2.30mm Width)
0
2553 in stock
74HCT2G08DP,125
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : AND Gate
Number of Circuits : 2
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 20µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 14ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 8-TSSOP
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : AND Gate
Number of Circuits : 2
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 20µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 14ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 8-TSSOP
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
0
30230 in stock
74HCT2G14GV,125
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : Inverter
Number of Circuits : 2
Number of Inputs : 2
Features : Schmitt Trigger
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 1µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.5 V ~ 0.6 V
Logic Level - High : 1.9 V ~ 2.1 V
Max Propagation Delay @ V, Max CL : 32ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 6-TSOP
Package / Case : SC-74, SOT-457
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : Inverter
Number of Circuits : 2
Number of Inputs : 2
Features : Schmitt Trigger
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 1µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.5 V ~ 0.6 V
Logic Level - High : 1.9 V ~ 2.1 V
Max Propagation Delay @ V, Max CL : 32ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 6-TSOP
Package / Case : SC-74, SOT-457
0
59093 in stock
74HCT2G14GW,125
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : Inverter
Number of Circuits : 2
Number of Inputs : 2
Features : Schmitt Trigger
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 1µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.5 V ~ 0.6 V
Logic Level - High : 1.9 V ~ 2.1 V
Max Propagation Delay @ V, Max CL : 32ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 6-TSSOP
Package / Case : 6-TSSOP, SC-88, SOT-363
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : Inverter
Number of Circuits : 2
Number of Inputs : 2
Features : Schmitt Trigger
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 1µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.5 V ~ 0.6 V
Logic Level - High : 1.9 V ~ 2.1 V
Max Propagation Delay @ V, Max CL : 32ns @ 4.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 6-TSSOP
Package / Case : 6-TSSOP, SC-88, SOT-363
0
22960 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
