DG406BDW-E3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 60 Ohm
Channel-to-Channel Matching (δRon) : 3 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 107ns, 88ns
-3db Bandwidth : -
Charge Injection : 11pC
Channel Capacitance (CS(off), CD(off)) : 6pF, 108pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 28-SOIC
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 60 Ohm
Channel-to-Channel Matching (δRon) : 3 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 107ns, 88ns
-3db Bandwidth : -
Charge Injection : 11pC
Channel Capacitance (CS(off), CD(off)) : 6pF, 108pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 28-SOIC
0
240 in stock

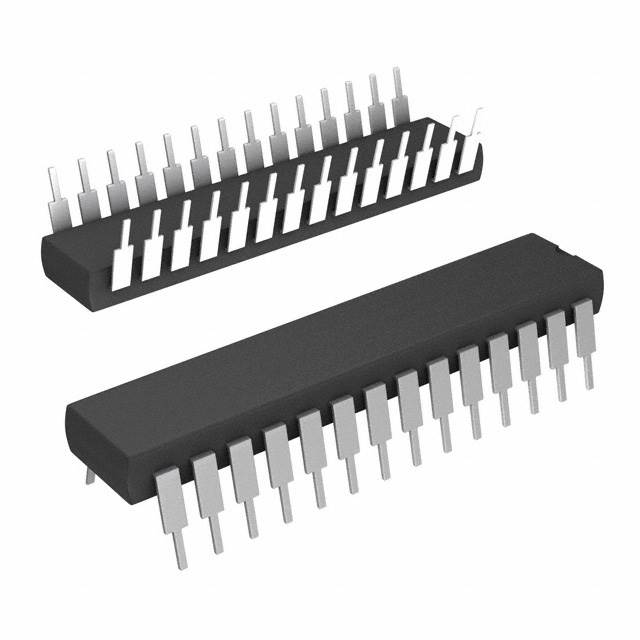

DG406CJ+
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 1.5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 30 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 200ns, 150ns
-3db Bandwidth : -
Charge Injection : 2pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 130pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -92dB @ 100kHz
Operating Temperature : 0°C ~ 70°C (TA)
Package / Case : 28-DIP (0.600", 15.24mm)
Supplier Device Package : 28-PDIP
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 1.5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 30 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 200ns, 150ns
-3db Bandwidth : -
Charge Injection : 2pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 130pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -92dB @ 100kHz
Operating Temperature : 0°C ~ 70°C (TA)
Package / Case : 28-DIP (0.600", 15.24mm)
Supplier Device Package : 28-PDIP
0
20 in stock
DG406CWI+
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 1.5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 30 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 200ns, 150ns
-3db Bandwidth : -
Charge Injection : 2pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 130pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -92dB @ 100kHz
Operating Temperature : 0°C ~ 70°C (TA)
Package / Case : 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 28-SOIC
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 1.5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 30 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 200ns, 150ns
-3db Bandwidth : -
Charge Injection : 2pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 130pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -92dB @ 100kHz
Operating Temperature : 0°C ~ 70°C (TA)
Package / Case : 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 28-SOIC
0
927 in stock
DG406DJ+
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 1.5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 30 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 200ns, 150ns
-3db Bandwidth : -
Charge Injection : 2pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 130pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -92dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-DIP (0.600", 15.24mm)
Supplier Device Package : 28-PDIP
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 1.5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 30 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 200ns, 150ns
-3db Bandwidth : -
Charge Injection : 2pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 130pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -92dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-DIP (0.600", 15.24mm)
Supplier Device Package : 28-PDIP
0
27 in stock

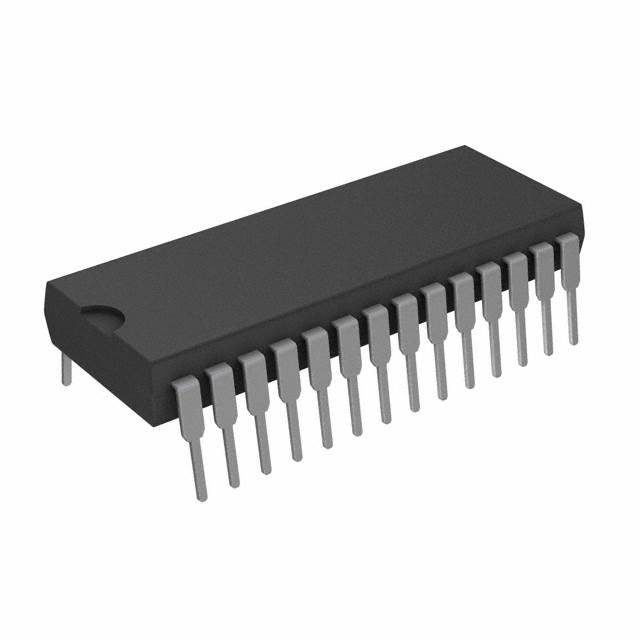

DG406DJ-E3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 200ns, 150ns
-3db Bandwidth : -
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 130pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-DIP (0.600", 15.24mm)
Supplier Device Package : 28-PDIP
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 200ns, 150ns
-3db Bandwidth : -
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 130pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-DIP (0.600", 15.24mm)
Supplier Device Package : 28-PDIP
0
161 in stock
DG406DJZ
Intersil (Renesas Electronics America)
Manufacturer : Renesas Electronics America Inc.
Packaging : Tube
Series : -
Part Status : Last Time Buy
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 34 V
Voltage - Supply, Dual (V±) : ±5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 200ns, 150ns
-3db Bandwidth : -
Charge Injection : 40pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 160pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-DIP (0.600", 15.24mm)
Supplier Device Package : 28-PDIP
Packaging : Tube
Series : -
Part Status : Last Time Buy
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 34 V
Voltage - Supply, Dual (V±) : ±5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 200ns, 150ns
-3db Bandwidth : -
Charge Injection : 40pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 160pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-DIP (0.600", 15.24mm)
Supplier Device Package : 28-PDIP
0
562 in stock

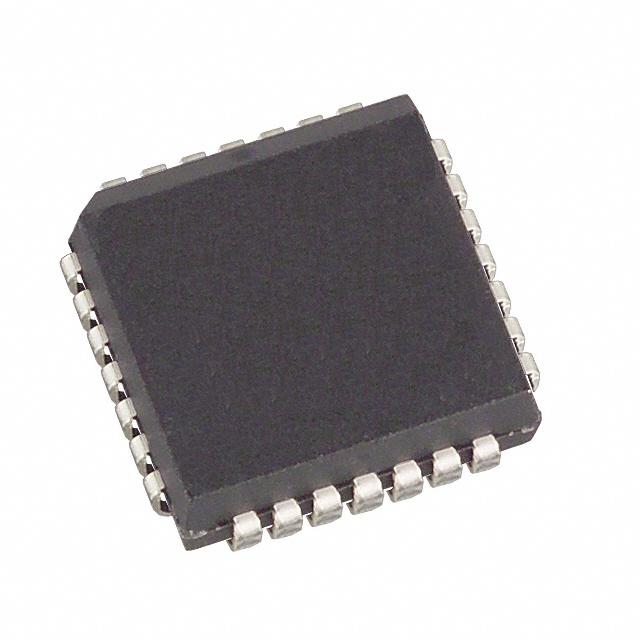

DG406DN+
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 1.5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 30 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 200ns, 150ns
-3db Bandwidth : -
Charge Injection : 2pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 130pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -92dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-LCC (J-Lead)
Supplier Device Package : 28-PLCC (11.51x11.51)
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 1.5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 30 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 200ns, 150ns
-3db Bandwidth : -
Charge Injection : 2pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 130pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -92dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-LCC (J-Lead)
Supplier Device Package : 28-PLCC (11.51x11.51)
0
65 in stock

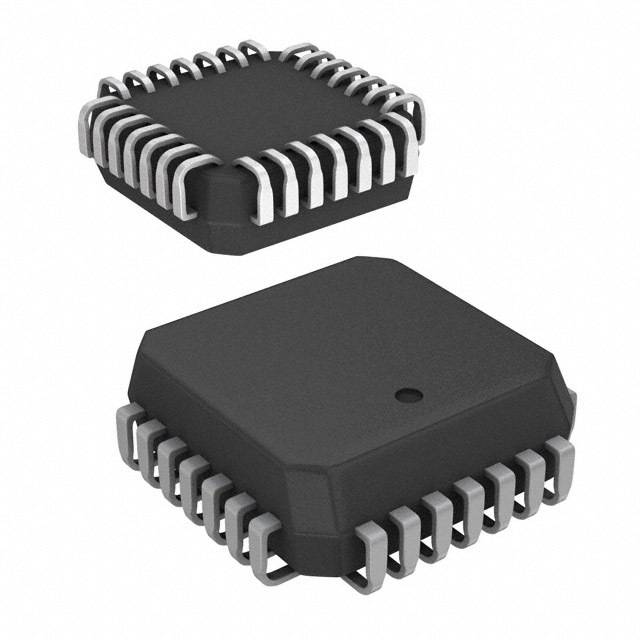

DG406DN-T1-E3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 200ns, 150ns
-3db Bandwidth : -
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 130pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-LCC (J-Lead)
Supplier Device Package : 28-PLCC (11.51x11.51)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 200ns, 150ns
-3db Bandwidth : -
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 130pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-LCC (J-Lead)
Supplier Device Package : 28-PLCC (11.51x11.51)
0
4968 in stock
DG406DW-E3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 200ns, 150ns
-3db Bandwidth : -
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 130pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 28-SOIC
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 200ns, 150ns
-3db Bandwidth : -
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 130pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 28-SOIC
0
2013 in stock
DG406DYZ
Intersil (Renesas Electronics America)
Manufacturer : Renesas Electronics America Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 34 V
Voltage - Supply, Dual (V±) : ±5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 200ns, 150ns
-3db Bandwidth : -
Charge Injection : 40pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 160pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 28-SOIC
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 34 V
Voltage - Supply, Dual (V±) : ±5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 200ns, 150ns
-3db Bandwidth : -
Charge Injection : 40pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 160pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 28-SOIC
0
722 in stock
DG406DYZ-T
Intersil (Renesas Electronics America)
Manufacturer : Renesas Electronics America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 34 V
Voltage - Supply, Dual (V±) : ±5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 200ns, 150ns
-3db Bandwidth : -
Charge Injection : 40pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 160pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 28-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 34 V
Voltage - Supply, Dual (V±) : ±5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 200ns, 150ns
-3db Bandwidth : -
Charge Injection : 40pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 160pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 28-SOIC
0
25072 in stock
DG406EUI+
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 1.5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 30 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 200ns, 150ns
-3db Bandwidth : -
Charge Injection : 2pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 130pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -92dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 28-TSSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 1.5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 30 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 200ns, 150ns
-3db Bandwidth : -
Charge Injection : 2pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 130pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -92dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 28-TSSOP
0
542 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
