DG2519EDQ-T1-GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 4 Ohm
Channel-to-Channel Matching (δRon) : 500 mOhm
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 40ns, 33ns
-3db Bandwidth : 217MHz
Charge Injection : 14pC
Channel Capacitance (CS(off), CD(off)) : -
Current - Leakage (IS(off)) (Max) : -
Crosstalk : -61dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-MSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 4 Ohm
Channel-to-Channel Matching (δRon) : 500 mOhm
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 40ns, 33ns
-3db Bandwidth : 217MHz
Charge Injection : 14pC
Channel Capacitance (CS(off), CD(off)) : -
Current - Leakage (IS(off)) (Max) : -
Crosstalk : -61dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-MSOP
0
2490 in stock
DG2523DN-T1-GE4
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : DPDT
Multiplexer/Demultiplexer Circuit : 2:2
Number of Circuits : 2
On-State Resistance (Max) : 550 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 60µs, 1µs
-3db Bandwidth : 310MHz
Charge Injection : -19pC
Channel Capacitance (CS(off), CD(off)) : -
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -61dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-VFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : DPDT
Multiplexer/Demultiplexer Circuit : 2:2
Number of Circuits : 2
On-State Resistance (Max) : 550 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 60µs, 1µs
-3db Bandwidth : 310MHz
Charge Injection : -19pC
Channel Capacitance (CS(off), CD(off)) : -
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -61dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-VFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
0
3782 in stock

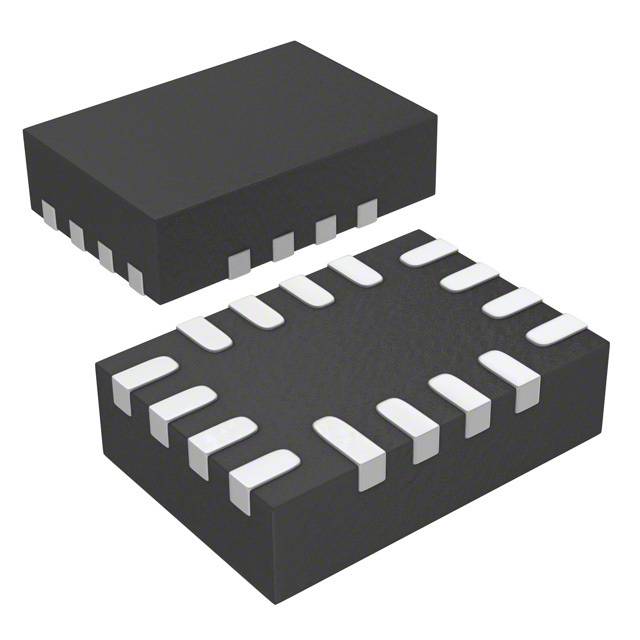

DG2525DN-T1-GE4
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : DPDT
Multiplexer/Demultiplexer Circuit : 2:2
Number of Circuits : 2
On-State Resistance (Max) : 500 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 60µs, 1µs
-3db Bandwidth : 310MHz
Charge Injection : -19pC
Channel Capacitance (CS(off), CD(off)) : -
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -61dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-UFQFN
Supplier Device Package : 16-miniQFN (1.8x2.6)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : DPDT
Multiplexer/Demultiplexer Circuit : 2:2
Number of Circuits : 2
On-State Resistance (Max) : 500 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.8 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 60µs, 1µs
-3db Bandwidth : 310MHz
Charge Injection : -19pC
Channel Capacitance (CS(off), CD(off)) : -
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -61dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-UFQFN
Supplier Device Package : 16-miniQFN (1.8x2.6)
0
2964 in stock
DG2535EDN-T1-GE4
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 500 mOhm
Channel-to-Channel Matching (δRon) : 60 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 78ns, 58ns
-3db Bandwidth : 120MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : -
Current - Leakage (IS(off)) (Max) : -
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-VFDFN Exposed Pad
Supplier Device Package : 10-DFN (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 500 mOhm
Channel-to-Channel Matching (δRon) : 60 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 78ns, 58ns
-3db Bandwidth : 120MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : -
Current - Leakage (IS(off)) (Max) : -
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-VFDFN Exposed Pad
Supplier Device Package : 10-DFN (3x3)
0
2365 in stock

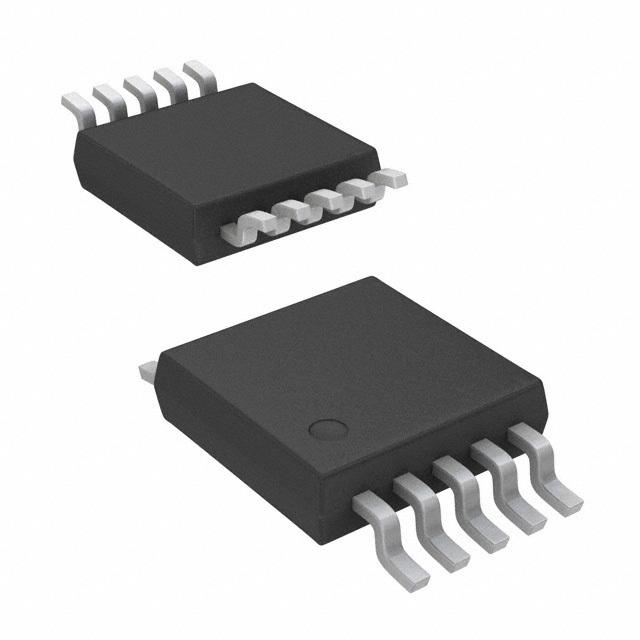

DG2535EDQ-T1-GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 500 mOhm
Channel-to-Channel Matching (δRon) : 60 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 78ns, 58ns
-3db Bandwidth : 120MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : -
Current - Leakage (IS(off)) (Max) : -
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-MSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 500 mOhm
Channel-to-Channel Matching (δRon) : 60 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 78ns, 58ns
-3db Bandwidth : 120MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : -
Current - Leakage (IS(off)) (Max) : -
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-MSOP
0
3829 in stock
DG271BCJ-E3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 50 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 65ns, 65ns
-3db Bandwidth : -
Charge Injection : -5pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 8pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -100dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 50 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 65ns, 65ns
-3db Bandwidth : -
Charge Injection : -5pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 8pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -100dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
0
601 in stock
DG271BDY-E3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 50 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 65ns, 65ns
-3db Bandwidth : -
Charge Injection : -5pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 8pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -100dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 50 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 65ns, 65ns
-3db Bandwidth : -
Charge Injection : -5pC
Channel Capacitance (CS(off), CD(off)) : 8pF, 8pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -100dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
315 in stock
DG2722DN-T1-E4
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : DPDT
Multiplexer/Demultiplexer Circuit : 2:2
Number of Circuits : 2
On-State Resistance (Max) : 8 Ohm
Channel-to-Channel Matching (δRon) : 800 mOhm
Voltage - Supply, Single (V+) : 2.6 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 30ns, 25ns
-3db Bandwidth : 900MHz
Charge Injection : 0.5pC
Channel Capacitance (CS(off), CD(off)) : 2.2pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -45dB @ 240MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-UFQFN
Supplier Device Package : 10-miniQFN (1.4x1.8)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : DPDT
Multiplexer/Demultiplexer Circuit : 2:2
Number of Circuits : 2
On-State Resistance (Max) : 8 Ohm
Channel-to-Channel Matching (δRon) : 800 mOhm
Voltage - Supply, Single (V+) : 2.6 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 30ns, 25ns
-3db Bandwidth : 900MHz
Charge Injection : 0.5pC
Channel Capacitance (CS(off), CD(off)) : 2.2pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -45dB @ 240MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-UFQFN
Supplier Device Package : 10-miniQFN (1.4x1.8)
0
818 in stock
DG2723DN-T1-E4
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 8 Ohm
Channel-to-Channel Matching (δRon) : 800 mOhm
Voltage - Supply, Single (V+) : 2.6 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 30ns, 25ns
-3db Bandwidth : 700MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 2.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -36dB @ 240MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-UFQFN
Supplier Device Package : 10-miniQFN (1.4x1.8)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 8 Ohm
Channel-to-Channel Matching (δRon) : 800 mOhm
Voltage - Supply, Single (V+) : 2.6 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 30ns, 25ns
-3db Bandwidth : 700MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 2.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -36dB @ 240MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-UFQFN
Supplier Device Package : 10-miniQFN (1.4x1.8)
0
5500 in stock
DG2733EDN-T1-GE4
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 500 mOhm
Channel-to-Channel Matching (δRon) : 60 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 78ns, 58ns
-3db Bandwidth : 120MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : -
Current - Leakage (IS(off)) (Max) : -
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-VFDFN Exposed Pad
Supplier Device Package : 10-DFN (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 500 mOhm
Channel-to-Channel Matching (δRon) : 60 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 78ns, 58ns
-3db Bandwidth : 120MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : -
Current - Leakage (IS(off)) (Max) : -
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-VFDFN Exposed Pad
Supplier Device Package : 10-DFN (3x3)
0
2333 in stock
DG2733EDQ-T1-GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 30 Ohm
Channel-to-Channel Matching (δRon) : 400 mOhm
Voltage - Supply, Single (V+) : 2.7 V ~ 5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 75ns, 50ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 7pF, 13pF
Current - Leakage (IS(off)) (Max) : -
Crosstalk : -90dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-MSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 30 Ohm
Channel-to-Channel Matching (δRon) : 400 mOhm
Voltage - Supply, Single (V+) : 2.7 V ~ 5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 75ns, 50ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 7pF, 13pF
Current - Leakage (IS(off)) (Max) : -
Crosstalk : -90dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-MSOP
0
921 in stock
DG2735ADN-T1-GE4
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 500 mOhm
Channel-to-Channel Matching (δRon) : 60 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 78ns, 58ns
-3db Bandwidth : 50MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 55pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -70dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-UFQFN
Supplier Device Package : 10-miniQFN (1.4x1.8)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 500 mOhm
Channel-to-Channel Matching (δRon) : 60 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 78ns, 58ns
-3db Bandwidth : 50MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 55pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -70dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-UFQFN
Supplier Device Package : 10-miniQFN (1.4x1.8)
0
5910 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
