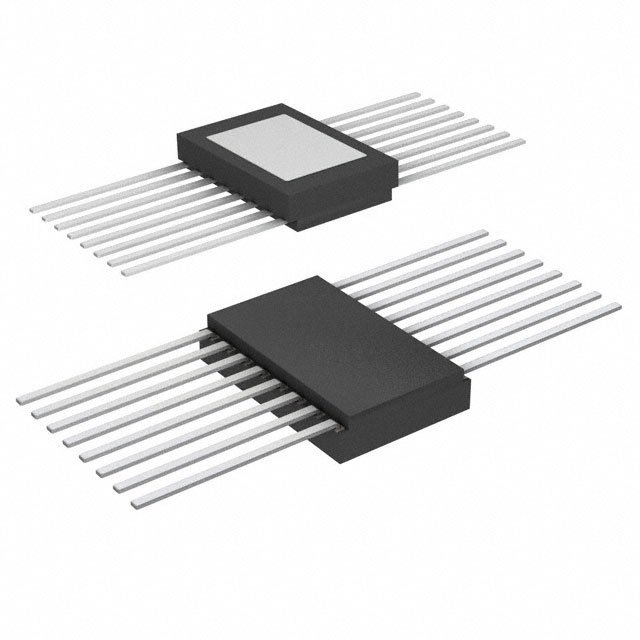

ADG5298HFZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Bulk
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 350 Ohm
Channel-to-Channel Matching (δRon) : 1.5 Ohm
Voltage - Supply, Single (V+) : 9 V ~ 40 V
Voltage - Supply, Dual (V±) : ±9 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 245ns, 260ns
-3db Bandwidth : 121MHz
Charge Injection : 0.4pC
Channel Capacitance (CS(off), CD(off)) : 2.8pF, 33pF
Current - Leakage (IS(off)) (Max) : 8nA
Crosstalk : -80dB @ 1MHz
Operating Temperature : -55°C ~ 210°C (TA)
Package / Case : 16-CFlatPack
Supplier Device Package : 16-CFlatPack
Packaging : Bulk
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 350 Ohm
Channel-to-Channel Matching (δRon) : 1.5 Ohm
Voltage - Supply, Single (V+) : 9 V ~ 40 V
Voltage - Supply, Dual (V±) : ±9 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 245ns, 260ns
-3db Bandwidth : 121MHz
Charge Injection : 0.4pC
Channel Capacitance (CS(off), CD(off)) : 2.8pF, 33pF
Current - Leakage (IS(off)) (Max) : 8nA
Crosstalk : -80dB @ 1MHz
Operating Temperature : -55°C ~ 210°C (TA)
Package / Case : 16-CFlatPack
Supplier Device Package : 16-CFlatPack
0
100 in stock

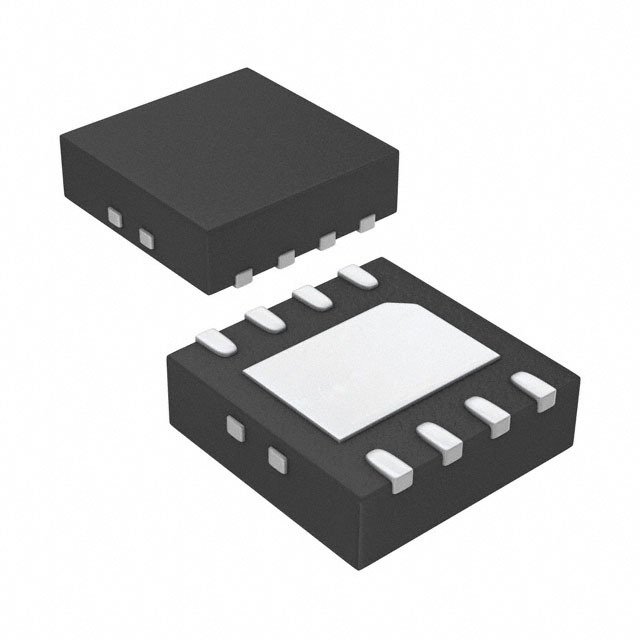

ADG5401BCPZ-RL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 7 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 9 V ~ 40 V
Voltage - Supply, Dual (V±) : ±9 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 21ns, 23ns
-3db Bandwidth : 170MHz
Charge Injection : 275pC
Channel Capacitance (CS(off), CD(off)) : 21pF, 23pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-WFDFN Exposed Pad, CSP
Supplier Device Package : 8-LFCSP-WD (2x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 7 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 9 V ~ 40 V
Voltage - Supply, Dual (V±) : ±9 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 21ns, 23ns
-3db Bandwidth : 170MHz
Charge Injection : 275pC
Channel Capacitance (CS(off), CD(off)) : 21pF, 23pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-WFDFN Exposed Pad, CSP
Supplier Device Package : 8-LFCSP-WD (2x3)
0
1000 in stock

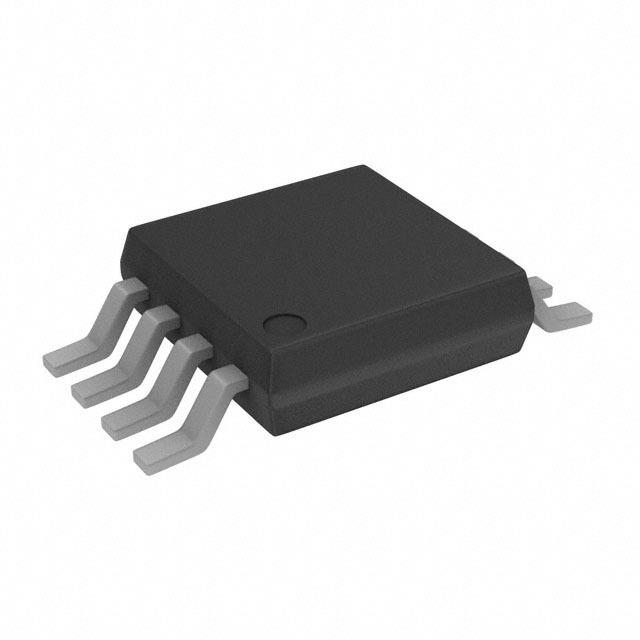

ADG5401BRMZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tray
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 7 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 9 V ~ 40 V
Voltage - Supply, Dual (V±) : ±9 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 21ns, 23ns
-3db Bandwidth : 170MHz
Charge Injection : 275pC
Channel Capacitance (CS(off), CD(off)) : 21pF, 23pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
Packaging : Tray
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 7 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 9 V ~ 40 V
Voltage - Supply, Dual (V±) : ±9 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 21ns, 23ns
-3db Bandwidth : 170MHz
Charge Injection : 275pC
Channel Capacitance (CS(off), CD(off)) : 21pF, 23pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
0
227 in stock
ADG5404BRUZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 350 mOhm
Voltage - Supply, Single (V+) : 9 V ~ 40 V
Voltage - Supply, Dual (V±) : ±9 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 185ns, 142ns
-3db Bandwidth : 54MHz
Charge Injection : 290pC
Channel Capacitance (CS(off), CD(off)) : 18pF, 88pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -58dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 14-TSSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 350 mOhm
Voltage - Supply, Single (V+) : 9 V ~ 40 V
Voltage - Supply, Dual (V±) : ±9 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 185ns, 142ns
-3db Bandwidth : 54MHz
Charge Injection : 290pC
Channel Capacitance (CS(off), CD(off)) : 18pF, 88pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -58dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 14-TSSOP
0
15375 in stock
ADG5404BRUZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 350 mOhm
Voltage - Supply, Single (V+) : 9 V ~ 40 V
Voltage - Supply, Dual (V±) : ±9 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 185ns, 142ns
-3db Bandwidth : 54MHz
Charge Injection : 290pC
Channel Capacitance (CS(off), CD(off)) : 18pF, 88pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -58dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 14-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 350 mOhm
Voltage - Supply, Single (V+) : 9 V ~ 40 V
Voltage - Supply, Dual (V±) : ±9 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 185ns, 142ns
-3db Bandwidth : 54MHz
Charge Injection : 290pC
Channel Capacitance (CS(off), CD(off)) : 18pF, 88pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -58dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 14-TSSOP
0
6508 in stock
ADG5404FBRUZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 11.5 Ohm
Channel-to-Channel Matching (δRon) : 650 mOhm
Voltage - Supply, Single (V+) : 8 V ~ 44 V
Voltage - Supply, Dual (V±) : ±5 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 535ns, 205ns
-3db Bandwidth : 110MHz
Charge Injection : 695pC
Channel Capacitance (CS(off), CD(off)) : 11pF, 47pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -73dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 14-TSSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 11.5 Ohm
Channel-to-Channel Matching (δRon) : 650 mOhm
Voltage - Supply, Single (V+) : 8 V ~ 44 V
Voltage - Supply, Dual (V±) : ±5 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 535ns, 205ns
-3db Bandwidth : 110MHz
Charge Injection : 695pC
Channel Capacitance (CS(off), CD(off)) : 11pF, 47pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -73dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 14-TSSOP
0
1724 in stock
ADG5404FBRUZ-RL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 11.5 Ohm
Channel-to-Channel Matching (δRon) : 650 mOhm
Voltage - Supply, Single (V+) : 8 V ~ 44 V
Voltage - Supply, Dual (V±) : ±5 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 535ns, 205ns
-3db Bandwidth : 110MHz
Charge Injection : 695pC
Channel Capacitance (CS(off), CD(off)) : 11pF, 47pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -73dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 14-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 11.5 Ohm
Channel-to-Channel Matching (δRon) : 650 mOhm
Voltage - Supply, Single (V+) : 8 V ~ 44 V
Voltage - Supply, Dual (V±) : ±5 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 535ns, 205ns
-3db Bandwidth : 110MHz
Charge Injection : 695pC
Channel Capacitance (CS(off), CD(off)) : 11pF, 47pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -73dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 14-TSSOP
0
815 in stock
ADG5408BCPZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 14 Ohm
Channel-to-Channel Matching (δRon) : 300 mOhm
Voltage - Supply, Single (V+) : 9 V ~ 40 V
Voltage - Supply, Dual (V±) : ±9 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 165ns, 153ns
-3db Bandwidth : 50MHz
Charge Injection : 155pC
Channel Capacitance (CS(off), CD(off)) : 17pF, 98pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-WQFN Exposed Pad, CSP
Supplier Device Package : 16-LFCSP-WQ (4x4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 14 Ohm
Channel-to-Channel Matching (δRon) : 300 mOhm
Voltage - Supply, Single (V+) : 9 V ~ 40 V
Voltage - Supply, Dual (V±) : ±9 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 165ns, 153ns
-3db Bandwidth : 50MHz
Charge Injection : 155pC
Channel Capacitance (CS(off), CD(off)) : 17pF, 98pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-WQFN Exposed Pad, CSP
Supplier Device Package : 16-LFCSP-WQ (4x4)
0
5019 in stock
ADG5408BRUZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 14 Ohm
Channel-to-Channel Matching (δRon) : 300 mOhm
Voltage - Supply, Single (V+) : 9 V ~ 40 V
Voltage - Supply, Dual (V±) : ±9 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 165ns, 153ns
-3db Bandwidth : 50MHz
Charge Injection : 155pC
Channel Capacitance (CS(off), CD(off)) : 17pF, 98pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 14 Ohm
Channel-to-Channel Matching (δRon) : 300 mOhm
Voltage - Supply, Single (V+) : 9 V ~ 40 V
Voltage - Supply, Dual (V±) : ±9 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 165ns, 153ns
-3db Bandwidth : 50MHz
Charge Injection : 155pC
Channel Capacitance (CS(off), CD(off)) : 17pF, 98pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
0
13082 in stock
ADG5408BRUZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 14 Ohm
Channel-to-Channel Matching (δRon) : 300 mOhm
Voltage - Supply, Single (V+) : 9 V ~ 40 V
Voltage - Supply, Dual (V±) : ±9 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 165ns, 153ns
-3db Bandwidth : 50MHz
Charge Injection : 155pC
Channel Capacitance (CS(off), CD(off)) : 17pF, 98pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 14 Ohm
Channel-to-Channel Matching (δRon) : 300 mOhm
Voltage - Supply, Single (V+) : 9 V ~ 40 V
Voltage - Supply, Dual (V±) : ±9 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 165ns, 153ns
-3db Bandwidth : 50MHz
Charge Injection : 155pC
Channel Capacitance (CS(off), CD(off)) : 17pF, 98pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
0
2480 in stock
ADG5408TCPZ-EP
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tray
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 14 Ohm
Channel-to-Channel Matching (δRon) : 300 mOhm
Voltage - Supply, Single (V+) : 9 V ~ 40 V
Voltage - Supply, Dual (V±) : ±9 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 165ns, 153ns
-3db Bandwidth : 50MHz
Charge Injection : 155pC
Channel Capacitance (CS(off), CD(off)) : 17pF, 98pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-WQFN Exposed Pad, CSP
Supplier Device Package : 16-LFCSP-WQ (4x4)
Packaging : Tray
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 14 Ohm
Channel-to-Channel Matching (δRon) : 300 mOhm
Voltage - Supply, Single (V+) : 9 V ~ 40 V
Voltage - Supply, Dual (V±) : ±9 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 165ns, 153ns
-3db Bandwidth : 50MHz
Charge Injection : 155pC
Channel Capacitance (CS(off), CD(off)) : 17pF, 98pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-WQFN Exposed Pad, CSP
Supplier Device Package : 16-LFCSP-WQ (4x4)
0
100 in stock
ADG5409BCPZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 2
On-State Resistance (Max) : 14 Ohm
Channel-to-Channel Matching (δRon) : 300 mOhm
Voltage - Supply, Single (V+) : 9 V ~ 40 V
Voltage - Supply, Dual (V±) : ±9 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 165ns, 153ns
-3db Bandwidth : 88MHz
Charge Injection : 155pC
Channel Capacitance (CS(off), CD(off)) : 17pF, 48pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-WQFN Exposed Pad, CSP
Supplier Device Package : 16-LFCSP-WQ (4x4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 2
On-State Resistance (Max) : 14 Ohm
Channel-to-Channel Matching (δRon) : 300 mOhm
Voltage - Supply, Single (V+) : 9 V ~ 40 V
Voltage - Supply, Dual (V±) : ±9 V ~ 22 V
Switch Time (Ton, Toff) (Max) : 165ns, 153ns
-3db Bandwidth : 88MHz
Charge Injection : 155pC
Channel Capacitance (CS(off), CD(off)) : 17pF, 48pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-WQFN Exposed Pad, CSP
Supplier Device Package : 16-LFCSP-WQ (4x4)
0
1150 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
