Part Number
Manufacturer
Description
Unit Price
In Stock

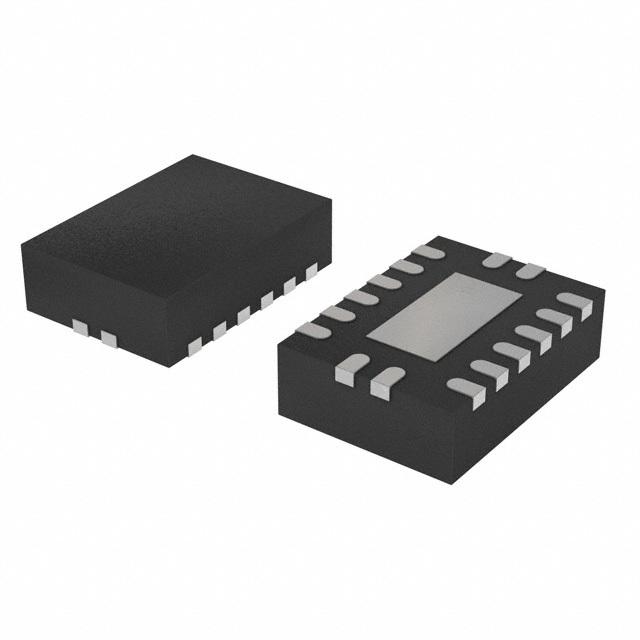

74HC4053BQ,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 120 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 10 V
Voltage - Supply, Dual (V±) : ±1.5 V ~ 5 V
Switch Time (Ton, Toff) (Max) : 31ns, 29ns
-3db Bandwidth : 170MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-VFQFN Exposed Pad
Supplier Device Package : 16-DHVQFN (2.5x3.5)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 120 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 10 V
Voltage - Supply, Dual (V±) : ±1.5 V ~ 5 V
Switch Time (Ton, Toff) (Max) : 31ns, 29ns
-3db Bandwidth : 170MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-VFQFN Exposed Pad
Supplier Device Package : 16-DHVQFN (2.5x3.5)
0
140103 in stock
.jpg "Show details for 74HC4053D(BJ)")
74HC4053D(BJ)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm (Typ)
Voltage - Supply, Single (V+) : 2 V ~ 6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 38ns, 38ns
-3db Bandwidth : 200MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -50dB @ 1MHz
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm (Typ)
Voltage - Supply, Single (V+) : 2 V ~ 6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 38ns, 38ns
-3db Bandwidth : 200MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -50dB @ 1MHz
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
2882 in stock
74HC4053D,652
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 120 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 10 V
Voltage - Supply, Dual (V±) : ±1.5 V ~ 5 V
Switch Time (Ton, Toff) (Max) : 31ns, 29ns
-3db Bandwidth : 170MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SO
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 120 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 10 V
Voltage - Supply, Dual (V±) : ±1.5 V ~ 5 V
Switch Time (Ton, Toff) (Max) : 31ns, 29ns
-3db Bandwidth : 170MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SO
0
43190 in stock

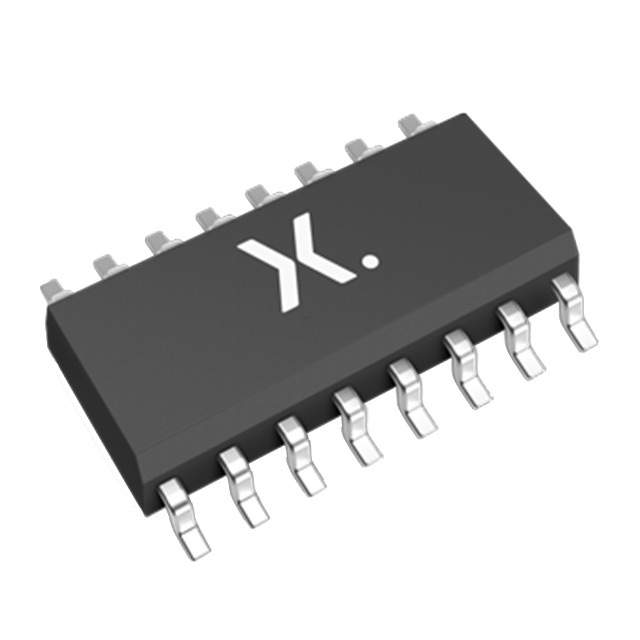

74HC4053D,653
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 120 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 10 V
Voltage - Supply, Dual (V±) : ±1.5 V ~ 5 V
Switch Time (Ton, Toff) (Max) : 31ns, 29ns
-3db Bandwidth : 170MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 120 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 10 V
Voltage - Supply, Dual (V±) : ±1.5 V ~ 5 V
Switch Time (Ton, Toff) (Max) : 31ns, 29ns
-3db Bandwidth : 170MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SO
0
9665 in stock

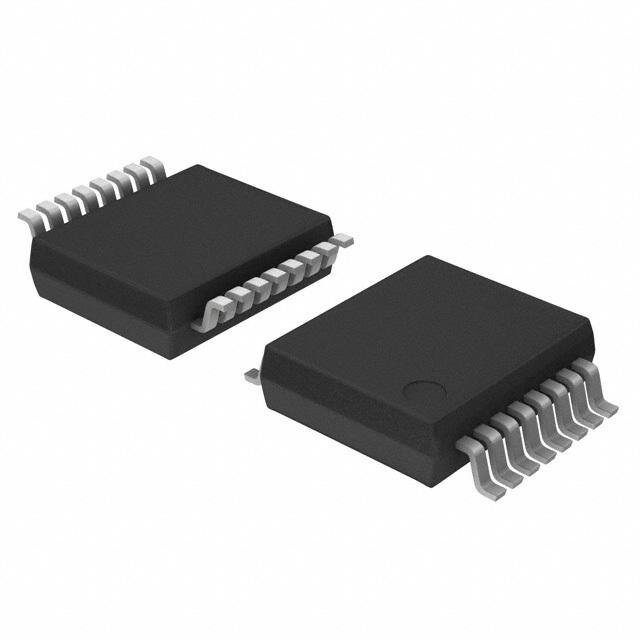

74HC4053DB,112
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 120 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 10 V
Voltage - Supply, Dual (V±) : ±1.5 V ~ 5 V
Switch Time (Ton, Toff) (Max) : 31ns, 29ns
-3db Bandwidth : 170MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-SSOP (0.209", 5.30mm Width)
Supplier Device Package : 16-SSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 120 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 10 V
Voltage - Supply, Dual (V±) : ±1.5 V ~ 5 V
Switch Time (Ton, Toff) (Max) : 31ns, 29ns
-3db Bandwidth : 170MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-SSOP (0.209", 5.30mm Width)
Supplier Device Package : 16-SSOP
0
387 in stock
74HC4053D-Q100,118
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 120 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 10 V
Voltage - Supply, Dual (V±) : ±1.5 V ~ 5 V
Switch Time (Ton, Toff) (Max) : 31ns, 29ns
-3db Bandwidth : 170MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 120 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 10 V
Voltage - Supply, Dual (V±) : ±1.5 V ~ 5 V
Switch Time (Ton, Toff) (Max) : 31ns, 29ns
-3db Bandwidth : 170MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SO
0
1542 in stock
74HC4053PW,112
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 120 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 10 V
Voltage - Supply, Dual (V±) : ±1.5 V ~ 5 V
Switch Time (Ton, Toff) (Max) : 31ns, 29ns
-3db Bandwidth : 170MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 120 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 10 V
Voltage - Supply, Dual (V±) : ±1.5 V ~ 5 V
Switch Time (Ton, Toff) (Max) : 31ns, 29ns
-3db Bandwidth : 170MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
0
2554 in stock
74HC4053PW,118
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 120 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 10 V
Voltage - Supply, Dual (V±) : ±1.5 V ~ 5 V
Switch Time (Ton, Toff) (Max) : 31ns, 29ns
-3db Bandwidth : 170MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 120 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 10 V
Voltage - Supply, Dual (V±) : ±1.5 V ~ 5 V
Switch Time (Ton, Toff) (Max) : 31ns, 29ns
-3db Bandwidth : 170MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
0
19639 in stock
74HC4053PW-Q100,11
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 120 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 10 V
Voltage - Supply, Dual (V±) : ±1.5 V ~ 5 V
Switch Time (Ton, Toff) (Max) : 31ns, 29ns
-3db Bandwidth : 170MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 120 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 10 V
Voltage - Supply, Dual (V±) : ±1.5 V ~ 5 V
Switch Time (Ton, Toff) (Max) : 31ns, 29ns
-3db Bandwidth : 170MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
0
2357 in stock
74HC4066BQ,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 95 Ohm
Channel-to-Channel Matching (δRon) : 3 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 10 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 30ns, 20ns
-3db Bandwidth : 200MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 14-VFQFN Exposed Pad
Supplier Device Package : 14-DHVQFN (2.5x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 95 Ohm
Channel-to-Channel Matching (δRon) : 3 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 10 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 30ns, 20ns
-3db Bandwidth : 200MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 14-VFQFN Exposed Pad
Supplier Device Package : 14-DHVQFN (2.5x3)
0
6543 in stock
.jpg "Show details for 74HC4066D(BJ)")
74HC4066D(BJ)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 80 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm (Typ)
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 12ns, 12ns
-3db Bandwidth : 200MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 85°C
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 14-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 80 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm (Typ)
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 12ns, 12ns
-3db Bandwidth : 200MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 85°C
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 14-SOIC
0
4955 in stock
74HC4066D,652
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 95 Ohm
Channel-to-Channel Matching (δRon) : 3 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 10 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 30ns, 20ns
-3db Bandwidth : 200MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 14-SO
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 95 Ohm
Channel-to-Channel Matching (δRon) : 3 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 10 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 30ns, 20ns
-3db Bandwidth : 200MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 14-SO
0
1140 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
