Part Number
Manufacturer
Description
Unit Price
In Stock

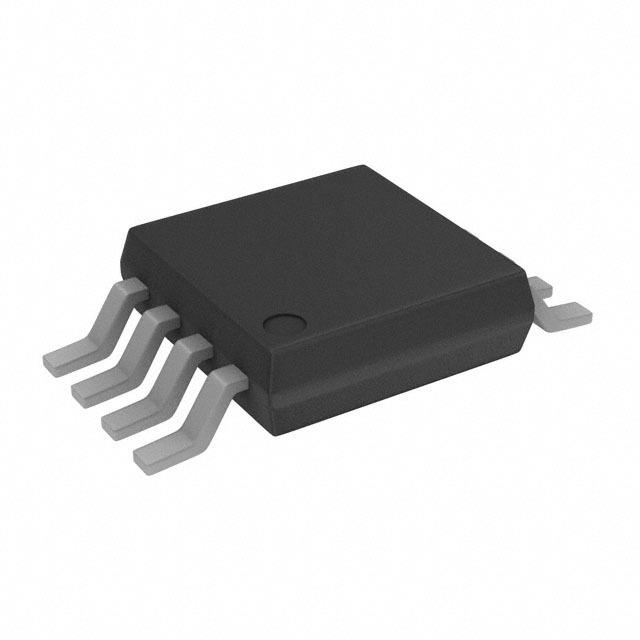

ADG419SRMZ-EP-RL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 35 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : -
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -90dB @ 1MHz
Operating Temperature : -55°C ~ 125°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 35 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : -
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -90dB @ 1MHz
Operating Temperature : -55°C ~ 125°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
0
647 in stock

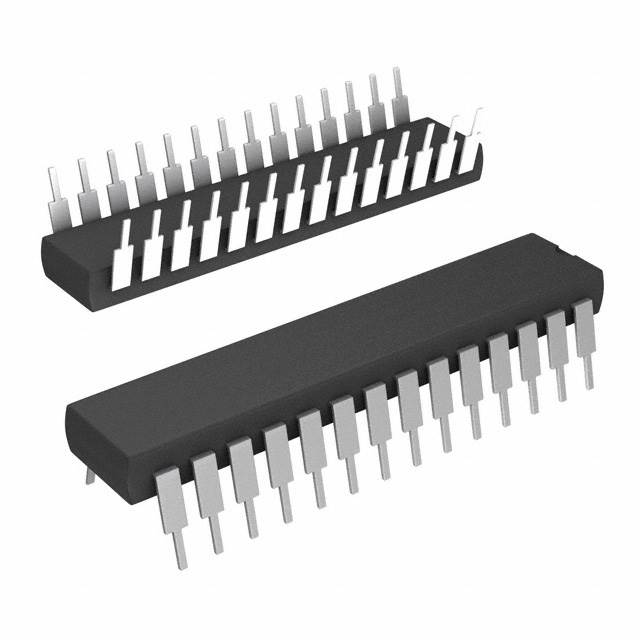

ADG426BNZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 80 Ohm
Channel-to-Channel Matching (δRon) : 4 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 160ns, 150ns
-3db Bandwidth : -
Charge Injection : 8pC
Channel Capacitance (CS(off), CD(off)) : 5pF, 50pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-DIP (0.600", 15.24mm)
Supplier Device Package : 28-PDIP
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 80 Ohm
Channel-to-Channel Matching (δRon) : 4 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 160ns, 150ns
-3db Bandwidth : -
Charge Injection : 8pC
Channel Capacitance (CS(off), CD(off)) : 5pF, 50pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-DIP (0.600", 15.24mm)
Supplier Device Package : 28-PDIP
0
65 in stock

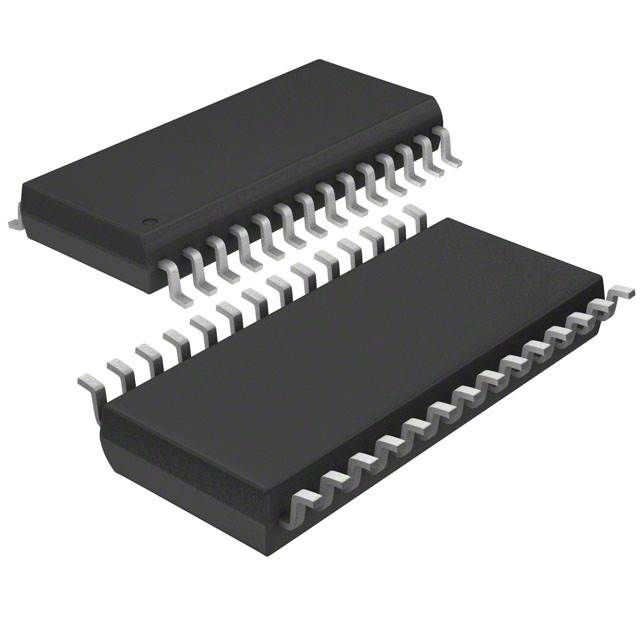

ADG426BRSZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 80 Ohm
Channel-to-Channel Matching (δRon) : 4 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 160ns, 150ns
-3db Bandwidth : -
Charge Injection : 8pC
Channel Capacitance (CS(off), CD(off)) : 5pF, 50pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-SSOP (0.209", 5.30mm Width)
Supplier Device Package : 28-SSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 80 Ohm
Channel-to-Channel Matching (δRon) : 4 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 160ns, 150ns
-3db Bandwidth : -
Charge Injection : 8pC
Channel Capacitance (CS(off), CD(off)) : 5pF, 50pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-SSOP (0.209", 5.30mm Width)
Supplier Device Package : 28-SSOP
0
4363 in stock
ADG426BRSZ-REEL
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 80 Ohm
Channel-to-Channel Matching (δRon) : 4 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 160ns, 150ns
-3db Bandwidth : -
Charge Injection : 8pC
Channel Capacitance (CS(off), CD(off)) : 5pF, 50pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-SSOP (0.209", 5.30mm Width)
Supplier Device Package : 28-SSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 80 Ohm
Channel-to-Channel Matching (δRon) : 4 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 160ns, 150ns
-3db Bandwidth : -
Charge Injection : 8pC
Channel Capacitance (CS(off), CD(off)) : 5pF, 50pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 28-SSOP (0.209", 5.30mm Width)
Supplier Device Package : 28-SSOP
0
2201 in stock

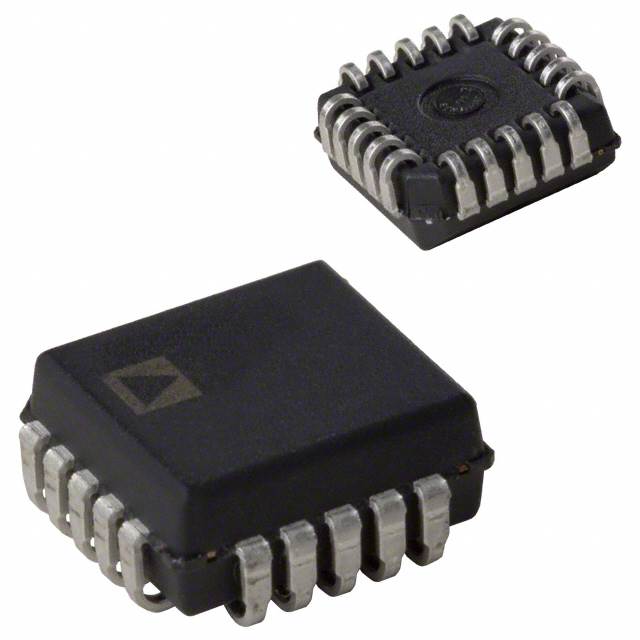

ADG428BPZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 10 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 150ns, 150ns
-3db Bandwidth : -
Charge Injection : 4pC
Channel Capacitance (CS(off), CD(off)) : 11pF, 40pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 20-LCC (J-Lead)
Supplier Device Package : 20-PLCC (9x9)
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 10 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 150ns, 150ns
-3db Bandwidth : -
Charge Injection : 4pC
Channel Capacitance (CS(off), CD(off)) : 11pF, 40pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 20-LCC (J-Lead)
Supplier Device Package : 20-PLCC (9x9)
0
100 in stock

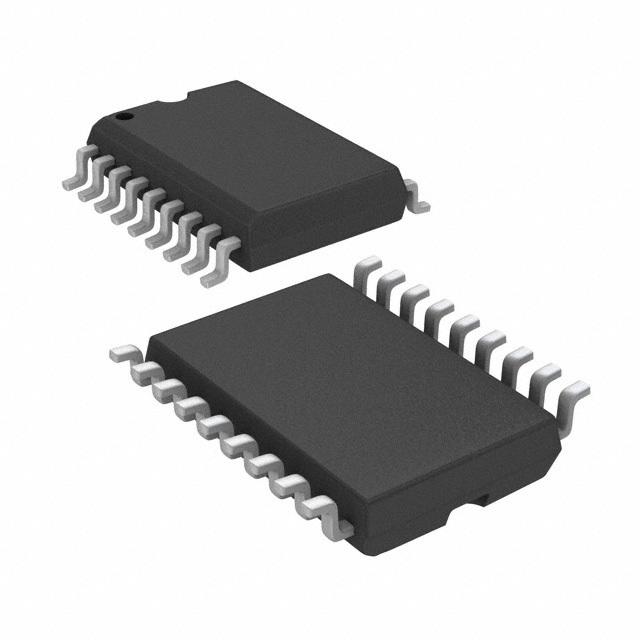

ADG428BRZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 10 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 150ns, 150ns
-3db Bandwidth : -
Charge Injection : 4pC
Channel Capacitance (CS(off), CD(off)) : 11pF, 40pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 18-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 18-SO
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 10 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 150ns, 150ns
-3db Bandwidth : -
Charge Injection : 4pC
Channel Capacitance (CS(off), CD(off)) : 11pF, 40pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 18-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 18-SO
0
100 in stock
ADG428BRZ-REEL
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 10 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 150ns, 150ns
-3db Bandwidth : -
Charge Injection : 4pC
Channel Capacitance (CS(off), CD(off)) : 11pF, 40pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 18-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 18-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 10 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 150ns, 150ns
-3db Bandwidth : -
Charge Injection : 4pC
Channel Capacitance (CS(off), CD(off)) : 11pF, 40pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 18-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 18-SO
0
100 in stock
ADG431BNZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 24 Ohm
Channel-to-Channel Matching (δRon) : 1.2 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 90ns, 60ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 9pF, 9pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 24 Ohm
Channel-to-Channel Matching (δRon) : 1.2 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 90ns, 60ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 9pF, 9pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
0
36 in stock
ADG431BRZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 24 Ohm
Channel-to-Channel Matching (δRon) : 1.2 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 90ns, 60ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 9pF, 9pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 24 Ohm
Channel-to-Channel Matching (δRon) : 1.2 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 90ns, 60ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 9pF, 9pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
536 in stock
ADG431BRZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 24 Ohm
Channel-to-Channel Matching (δRon) : 1.2 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 90ns, 60ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 9pF, 9pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 24 Ohm
Channel-to-Channel Matching (δRon) : 1.2 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 90ns, 60ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 9pF, 9pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
2567 in stock
ADG432BRZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 24 Ohm
Channel-to-Channel Matching (δRon) : 1.2 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 90ns, 60ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 9pF, 9pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 24 Ohm
Channel-to-Channel Matching (δRon) : 1.2 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 90ns, 60ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 9pF, 9pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
3763 in stock
ADG432BRZ-REEL
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 24 Ohm
Channel-to-Channel Matching (δRon) : 1.2 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 90ns, 60ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 9pF, 9pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 24 Ohm
Channel-to-Channel Matching (δRon) : 1.2 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 90ns, 60ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 9pF, 9pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
7060 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
