Welcome to Weijie Semiconductor
- Integrated Circuits (ICs)
- Interface - Analog Switches, Multiplexers, Demultiplexers
Part Number
Manufacturer
Description
Unit Price
In Stock
ADG1612BRUZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 1.1 Ohm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 156ns, 87ns
-3db Bandwidth : 38MHz
Charge Injection : 170pC
Channel Capacitance (CS(off), CD(off)) : 60pF, 60pF
Current - Leakage (IS(off)) (Max) : 300pA
Crosstalk : -110dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 1.1 Ohm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 156ns, 87ns
-3db Bandwidth : 38MHz
Charge Injection : 170pC
Channel Capacitance (CS(off), CD(off)) : 60pF, 60pF
Current - Leakage (IS(off)) (Max) : 300pA
Crosstalk : -110dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
0
9754 in stock
ADG1613BCPZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 1.1 Ohm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 156ns, 87ns
-3db Bandwidth : 38MHz
Charge Injection : 170pC
Channel Capacitance (CS(off), CD(off)) : 60pF, 60pF
Current - Leakage (IS(off)) (Max) : 300pA
Crosstalk : -110dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-VQFN Exposed Pad, CSP
Supplier Device Package : 16-LFCSP-VQ (4x4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 1.1 Ohm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 156ns, 87ns
-3db Bandwidth : 38MHz
Charge Injection : 170pC
Channel Capacitance (CS(off), CD(off)) : 60pF, 60pF
Current - Leakage (IS(off)) (Max) : 300pA
Crosstalk : -110dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-VQFN Exposed Pad, CSP
Supplier Device Package : 16-LFCSP-VQ (4x4)
0
192 in stock
ADG1613BRUZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 1.1 Ohm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 156ns, 87ns
-3db Bandwidth : 38MHz
Charge Injection : 170pC
Channel Capacitance (CS(off), CD(off)) : 60pF, 60pF
Current - Leakage (IS(off)) (Max) : 300pA
Crosstalk : -110dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 1.1 Ohm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 156ns, 87ns
-3db Bandwidth : 38MHz
Charge Injection : 170pC
Channel Capacitance (CS(off), CD(off)) : 60pF, 60pF
Current - Leakage (IS(off)) (Max) : 300pA
Crosstalk : -110dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
0
590 in stock
ADG1613BRUZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 1.1 Ohm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 156ns, 87ns
-3db Bandwidth : 38MHz
Charge Injection : 170pC
Channel Capacitance (CS(off), CD(off)) : 60pF, 60pF
Current - Leakage (IS(off)) (Max) : 300pA
Crosstalk : -110dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 1.1 Ohm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 156ns, 87ns
-3db Bandwidth : 38MHz
Charge Injection : 170pC
Channel Capacitance (CS(off), CD(off)) : 60pF, 60pF
Current - Leakage (IS(off)) (Max) : 300pA
Crosstalk : -110dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
0
704 in stock

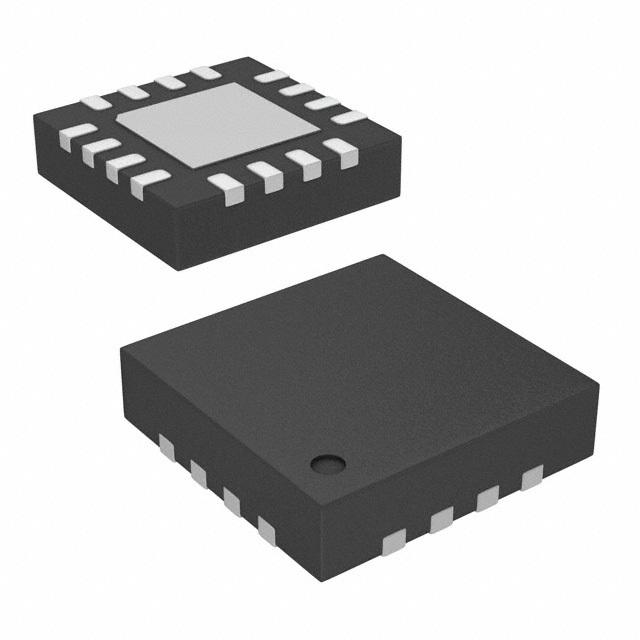

ADG1633BCPZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 4.5 Ohm
Channel-to-Channel Matching (δRon) : 120 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 38ns, 152ns
-3db Bandwidth : 109MHz
Charge Injection : -12.4pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 32pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -64dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-WFQFN Exposed Pad, CSP
Supplier Device Package : 16-LFCSP-WQ (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 4.5 Ohm
Channel-to-Channel Matching (δRon) : 120 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 38ns, 152ns
-3db Bandwidth : 109MHz
Charge Injection : -12.4pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 32pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -64dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-WFQFN Exposed Pad, CSP
Supplier Device Package : 16-LFCSP-WQ (3x3)
0
2486 in stock
ADG1633BRUZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 4.5 Ohm
Channel-to-Channel Matching (δRon) : 120 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 38ns, 152ns
-3db Bandwidth : 109MHz
Charge Injection : -12.4pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 32pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -64dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 4.5 Ohm
Channel-to-Channel Matching (δRon) : 120 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 38ns, 152ns
-3db Bandwidth : 109MHz
Charge Injection : -12.4pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 32pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -64dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
0
392 in stock

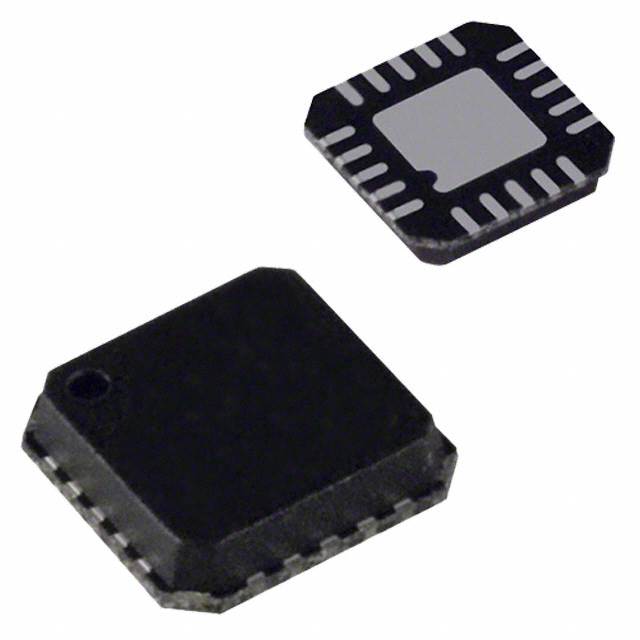

ADG1634BCPZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 4
On-State Resistance (Max) : 4.5 Ohm
Channel-to-Channel Matching (δRon) : 120 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 38ns, 152ns
-3db Bandwidth : 109MHz
Charge Injection : -12.4pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 32pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -64dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 20-VFQFN Exposed Pad, CSP
Supplier Device Package : 20-LFCSP-VQ (4x4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 4
On-State Resistance (Max) : 4.5 Ohm
Channel-to-Channel Matching (δRon) : 120 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 38ns, 152ns
-3db Bandwidth : 109MHz
Charge Injection : -12.4pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 32pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -64dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 20-VFQFN Exposed Pad, CSP
Supplier Device Package : 20-LFCSP-VQ (4x4)
0
94 in stock
ADG1634BRUZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 4
On-State Resistance (Max) : 4.5 Ohm
Channel-to-Channel Matching (δRon) : 120 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 38ns, 152ns
-3db Bandwidth : 109MHz
Charge Injection : -12.4pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 32pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -64dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 20-TSSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 4
On-State Resistance (Max) : 4.5 Ohm
Channel-to-Channel Matching (δRon) : 120 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 38ns, 152ns
-3db Bandwidth : 109MHz
Charge Injection : -12.4pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 32pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -64dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 20-TSSOP
0
7814 in stock
ADG1634BRUZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 4
On-State Resistance (Max) : 4.5 Ohm
Channel-to-Channel Matching (δRon) : 120 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 38ns, 152ns
-3db Bandwidth : 109MHz
Charge Injection : -12.4pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 32pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -64dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 20-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 4
On-State Resistance (Max) : 4.5 Ohm
Channel-to-Channel Matching (δRon) : 120 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 38ns, 152ns
-3db Bandwidth : 109MHz
Charge Injection : -12.4pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 32pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -64dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 20-TSSOP
0
5719 in stock
ADG1636BCPZ-REEL
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 1.1 Ohm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 95ns, 161ns
-3db Bandwidth : 27MHz
Charge Injection : 150pC
Channel Capacitance (CS(off), CD(off)) : 65pF, 120pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -90dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-VQFN Exposed Pad, CSP
Supplier Device Package : 16-LFCSP-VQ (4x4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 1.1 Ohm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 95ns, 161ns
-3db Bandwidth : 27MHz
Charge Injection : 150pC
Channel Capacitance (CS(off), CD(off)) : 65pF, 120pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -90dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-VQFN Exposed Pad, CSP
Supplier Device Package : 16-LFCSP-VQ (4x4)
0
2912 in stock

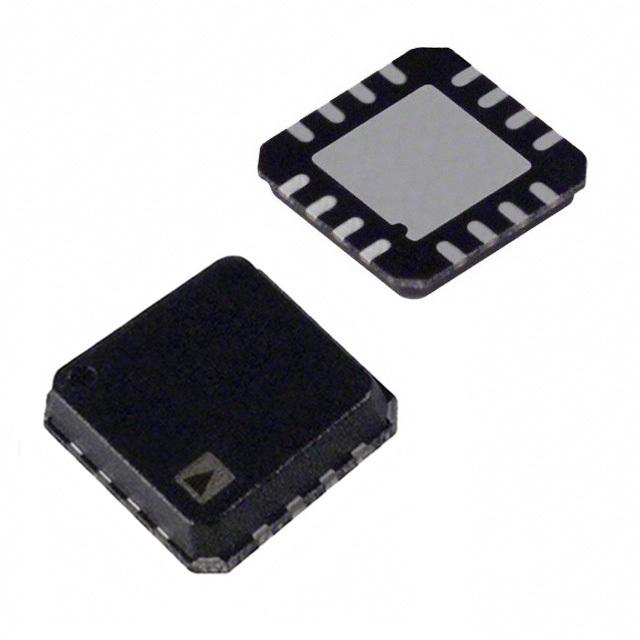

ADG1636BCPZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 1.1 Ohm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 95ns, 161ns
-3db Bandwidth : 27MHz
Charge Injection : 150pC
Channel Capacitance (CS(off), CD(off)) : 65pF, 120pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -90dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-VQFN Exposed Pad, CSP
Supplier Device Package : 16-LFCSP-VQ (4x4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 1.1 Ohm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 95ns, 161ns
-3db Bandwidth : 27MHz
Charge Injection : 150pC
Channel Capacitance (CS(off), CD(off)) : 65pF, 120pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -90dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-VQFN Exposed Pad, CSP
Supplier Device Package : 16-LFCSP-VQ (4x4)
0
13114 in stock
ADG1636BRUZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 1.1 Ohm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 95ns, 161ns
-3db Bandwidth : 27MHz
Charge Injection : 150pC
Channel Capacitance (CS(off), CD(off)) : 65pF, 120pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -90dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 1.1 Ohm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 3.3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 95ns, 161ns
-3db Bandwidth : 27MHz
Charge Injection : 150pC
Channel Capacitance (CS(off), CD(off)) : 65pF, 120pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -90dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
0
2541 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
