Welcome to Weijie Semiconductor
- Integrated Circuits (ICs)
- Interface - Analog Switches, Multiplexers, Demultiplexers
Part Number
Manufacturer
Description
Unit Price
In Stock
NX3L1G3157GW-Q100H
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Obsolete
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : 20 mOhm
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 25ns, 10ns
-3db Bandwidth : 60MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : 6-TSSOP
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Obsolete
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : 20 mOhm
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 25ns, 10ns
-3db Bandwidth : 60MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : 6-TSSOP
0
100 in stock
NX3L1G384GM,132
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 24ns, 7ns
-3db Bandwidth : 60MHz
Charge Injection : 6pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : 6-XSON, SOT886 (1.45x1)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 24ns, 7ns
-3db Bandwidth : 60MHz
Charge Injection : 6pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : 6-XSON, SOT886 (1.45x1)
0
4641 in stock

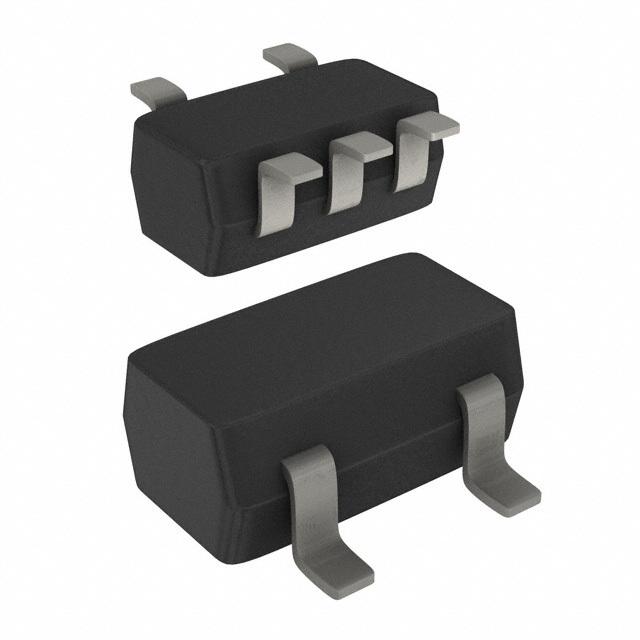

NX3L1G384GW,125
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 24ns, 7ns
-3db Bandwidth : 60MHz
Charge Injection : 6pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 5-TSSOP, SC-70-5, SOT-353
Supplier Device Package : 5-TSSOP
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 24ns, 7ns
-3db Bandwidth : 60MHz
Charge Injection : 6pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 5-TSSOP, SC-70-5, SOT-353
Supplier Device Package : 5-TSSOP
0
100 in stock

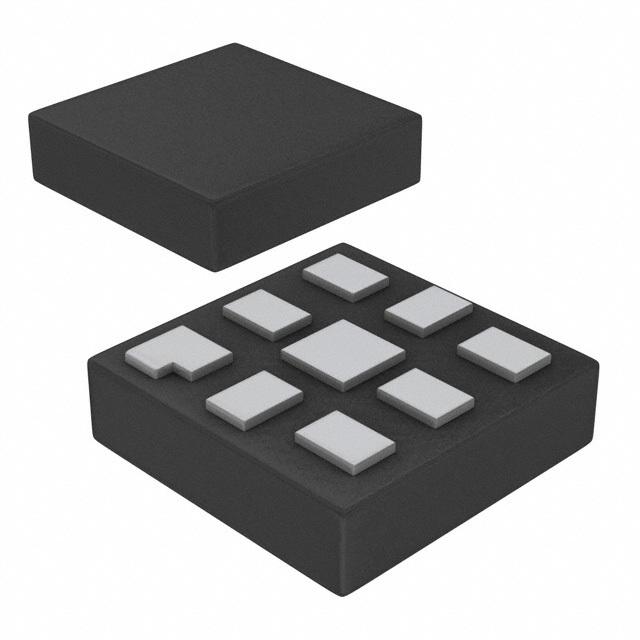

NX3L1G53GM,125
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : 20 mOhm
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 24ns, 8ns
-3db Bandwidth : 60MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-XFQFN Exposed Pad
Supplier Device Package : 8-XQFN (1.6x1.6)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : 20 mOhm
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 24ns, 8ns
-3db Bandwidth : 60MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-XFQFN Exposed Pad
Supplier Device Package : 8-XQFN (1.6x1.6)
0
7240 in stock
NX3L1G53GT,115
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : 20 mOhm
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 24ns, 8ns
-3db Bandwidth : 60MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-XFDFN
Supplier Device Package : 8-XSON, SOT833-1 (1.95x1)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : 20 mOhm
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 24ns, 8ns
-3db Bandwidth : 60MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-XFDFN
Supplier Device Package : 8-XSON, SOT833-1 (1.95x1)
0
4848 in stock
NX3L1G66GM,132
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 23ns, 8ns
-3db Bandwidth : 60MHz
Charge Injection : 6pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : 6-XSON, SOT886 (1.45x1)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 23ns, 8ns
-3db Bandwidth : 60MHz
Charge Injection : 6pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : 6-XSON, SOT886 (1.45x1)
0
2177 in stock

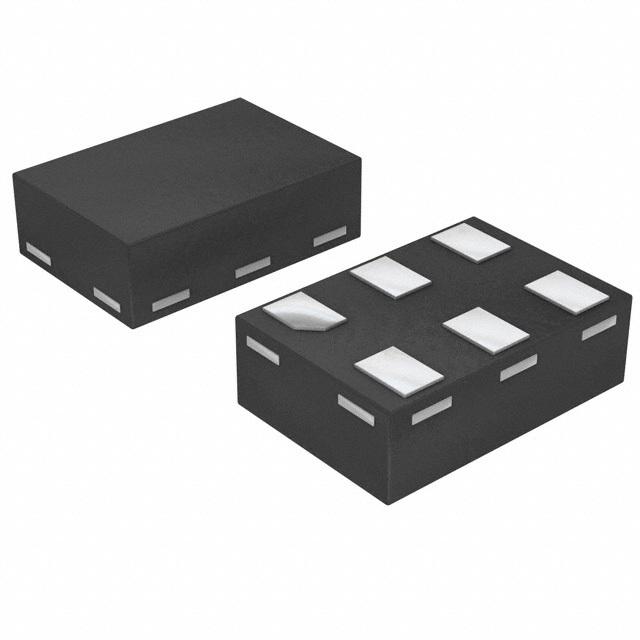

NX3L1T3157GM,132
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 500 mOhm
Channel-to-Channel Matching (δRon) : 20 mOhm
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 40ns, 20ns
-3db Bandwidth : 60MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : 6-XSON, SOT886 (1.45x1)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 500 mOhm
Channel-to-Channel Matching (δRon) : 20 mOhm
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 40ns, 20ns
-3db Bandwidth : 60MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : 6-XSON, SOT886 (1.45x1)
0
62865 in stock
NX3L1T384GM,115
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 40ns, 15ns
-3db Bandwidth : 60MHz
Charge Injection : 6pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : 6-XSON, SOT886 (1.45x1)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 40ns, 15ns
-3db Bandwidth : 60MHz
Charge Injection : 6pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : 6-XSON, SOT886 (1.45x1)
0
1884 in stock
NX3L1T5157GM,132
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : 20 mOhm
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 40ns, 20ns
-3db Bandwidth : 60MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : 6-XSON, SOT886 (1.45x1)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : 20 mOhm
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 40ns, 20ns
-3db Bandwidth : 60MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : 6-XSON, SOT886 (1.45x1)
0
3495 in stock
NX3L1T53GM,125
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : 20 mOhm
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 40ns, 20ns
-3db Bandwidth : 60MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-XFQFN Exposed Pad
Supplier Device Package : 8-XQFN (1.6x1.6)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : 20 mOhm
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 40ns, 20ns
-3db Bandwidth : 60MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-XFQFN Exposed Pad
Supplier Device Package : 8-XQFN (1.6x1.6)
0
361 in stock
NX3L1T53GT,115
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : 20 mOhm
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 40ns, 20ns
-3db Bandwidth : 60MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-XFDFN
Supplier Device Package : 8-XSON, SOT833-1 (1.95x1)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : 20 mOhm
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 40ns, 20ns
-3db Bandwidth : 60MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 8-XFDFN
Supplier Device Package : 8-XSON, SOT833-1 (1.95x1)
0
3560 in stock
NX3L2267GM,115
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : 90 mOhm
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 40ns, 20ns
-3db Bandwidth : 60MHz
Charge Injection : 37pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 10-XFQFN
Supplier Device Package : 10-XQFN (1.55x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : 90 mOhm
Voltage - Supply, Single (V+) : 1.4 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 40ns, 20ns
-3db Bandwidth : 60MHz
Charge Injection : 37pC
Channel Capacitance (CS(off), CD(off)) : 35pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 10-XFQFN
Supplier Device Package : 10-XQFN (1.55x2)
0
427 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
