AD7511DIKNZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 180ns, 350ns (Typ)
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 8pF, 1pF
Current - Leakage (IS(off)) (Max) : 5nA
Crosstalk : -
Operating Temperature : 0°C ~ 70°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 180ns, 350ns (Typ)
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 8pF, 1pF
Current - Leakage (IS(off)) (Max) : 5nA
Crosstalk : -
Operating Temperature : 0°C ~ 70°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
0
18 in stock
ADG1201BRJZ-R2
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 200 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 5 V ~ 16.5 V
Voltage - Supply, Dual (V±) : ±5 V ~ 16.5 V
Switch Time (Ton, Toff) (Max) : 170ns, 105ns
-3db Bandwidth : 660MHz
Charge Injection : -0.8pC
Channel Capacitance (CS(off), CD(off)) : 3pF, 3.3pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : SOT-23-6
Supplier Device Package : SOT-23-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 200 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 5 V ~ 16.5 V
Voltage - Supply, Dual (V±) : ±5 V ~ 16.5 V
Switch Time (Ton, Toff) (Max) : 170ns, 105ns
-3db Bandwidth : 660MHz
Charge Injection : -0.8pC
Channel Capacitance (CS(off), CD(off)) : 3pF, 3.3pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : SOT-23-6
Supplier Device Package : SOT-23-6
0
10504 in stock
ADG1201BRJZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 200 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 5 V ~ 16.5 V
Voltage - Supply, Dual (V±) : ±5 V ~ 16.5 V
Switch Time (Ton, Toff) (Max) : 170ns, 105ns
-3db Bandwidth : 660MHz
Charge Injection : -0.8pC
Channel Capacitance (CS(off), CD(off)) : 3pF, 3.3pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : SOT-23-6
Supplier Device Package : SOT-23-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 200 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 5 V ~ 16.5 V
Voltage - Supply, Dual (V±) : ±5 V ~ 16.5 V
Switch Time (Ton, Toff) (Max) : 170ns, 105ns
-3db Bandwidth : 660MHz
Charge Injection : -0.8pC
Channel Capacitance (CS(off), CD(off)) : 3pF, 3.3pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : SOT-23-6
Supplier Device Package : SOT-23-6
0
2402 in stock
ADG1204YCPZ-500RL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 190 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 85ns, 110ns
-3db Bandwidth : 800MHz
Charge Injection : -0.7pC
Channel Capacitance (CS(off), CD(off)) : 1.5pF, 4.2pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -80dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 12-WFQFN Exposed Pad, CSP
Supplier Device Package : 12-LFCSP-WQ (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 190 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 85ns, 110ns
-3db Bandwidth : 800MHz
Charge Injection : -0.7pC
Channel Capacitance (CS(off), CD(off)) : 1.5pF, 4.2pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -80dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 12-WFQFN Exposed Pad, CSP
Supplier Device Package : 12-LFCSP-WQ (3x3)
0
4948 in stock

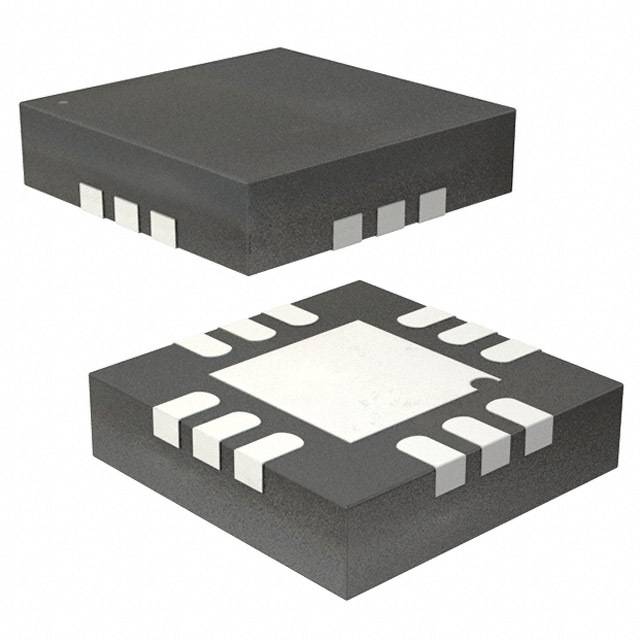

ADG1204YCPZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 190 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 85ns, 110ns
-3db Bandwidth : 800MHz
Charge Injection : -0.7pC
Channel Capacitance (CS(off), CD(off)) : 1.5pF, 4.2pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -80dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 12-WFQFN Exposed Pad, CSP
Supplier Device Package : 12-LFCSP-WQ (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 190 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 85ns, 110ns
-3db Bandwidth : 800MHz
Charge Injection : -0.7pC
Channel Capacitance (CS(off), CD(off)) : 1.5pF, 4.2pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -80dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 12-WFQFN Exposed Pad, CSP
Supplier Device Package : 12-LFCSP-WQ (3x3)
0
2667 in stock
ADG1204YRUZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 190 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 85ns, 110ns
-3db Bandwidth : 800MHz
Charge Injection : -0.7pC
Channel Capacitance (CS(off), CD(off)) : 1.5pF, 4.2pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -80dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 14-TSSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 190 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 85ns, 110ns
-3db Bandwidth : 800MHz
Charge Injection : -0.7pC
Channel Capacitance (CS(off), CD(off)) : 1.5pF, 4.2pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -80dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 14-TSSOP
0
371 in stock
ADG1204YRUZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 190 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 85ns, 110ns
-3db Bandwidth : 800MHz
Charge Injection : -0.7pC
Channel Capacitance (CS(off), CD(off)) : 1.5pF, 4.2pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -80dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 14-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 190 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 85ns, 110ns
-3db Bandwidth : 800MHz
Charge Injection : -0.7pC
Channel Capacitance (CS(off), CD(off)) : 1.5pF, 4.2pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -80dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 14-TSSOP
0
570 in stock
ADG1206YCPZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 200 Ohm
Channel-to-Channel Matching (δRon) : 3.5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 16.5 V
Voltage - Supply, Dual (V±) : ±5 V ~ 16.5 V
Switch Time (Ton, Toff) (Max) : 95ns, 100ns
-3db Bandwidth : 280MHz
Charge Injection : 0.5pC
Channel Capacitance (CS(off), CD(off)) : 2pF, 12pF
Current - Leakage (IS(off)) (Max) : 200pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 32-WFQFN Exposed Pad, CSP
Supplier Device Package : 32-LFCSP-WQ (5x5)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 200 Ohm
Channel-to-Channel Matching (δRon) : 3.5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 16.5 V
Voltage - Supply, Dual (V±) : ±5 V ~ 16.5 V
Switch Time (Ton, Toff) (Max) : 95ns, 100ns
-3db Bandwidth : 280MHz
Charge Injection : 0.5pC
Channel Capacitance (CS(off), CD(off)) : 2pF, 12pF
Current - Leakage (IS(off)) (Max) : 200pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 32-WFQFN Exposed Pad, CSP
Supplier Device Package : 32-LFCSP-WQ (5x5)
0
15812 in stock
ADG1206YRUZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 200 Ohm
Channel-to-Channel Matching (δRon) : 3.5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 16.5 V
Voltage - Supply, Dual (V±) : ±5 V ~ 16.5 V
Switch Time (Ton, Toff) (Max) : 95ns, 100ns
-3db Bandwidth : 280MHz
Charge Injection : 0.5pC
Channel Capacitance (CS(off), CD(off)) : 2pF, 12pF
Current - Leakage (IS(off)) (Max) : 200pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 28-TSSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 200 Ohm
Channel-to-Channel Matching (δRon) : 3.5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 16.5 V
Voltage - Supply, Dual (V±) : ±5 V ~ 16.5 V
Switch Time (Ton, Toff) (Max) : 95ns, 100ns
-3db Bandwidth : 280MHz
Charge Injection : 0.5pC
Channel Capacitance (CS(off), CD(off)) : 2pF, 12pF
Current - Leakage (IS(off)) (Max) : 200pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 28-TSSOP
0
2036 in stock
ADG1206YRUZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 200 Ohm
Channel-to-Channel Matching (δRon) : 3.5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 16.5 V
Voltage - Supply, Dual (V±) : ±5 V ~ 16.5 V
Switch Time (Ton, Toff) (Max) : 95ns, 100ns
-3db Bandwidth : 280MHz
Charge Injection : 0.5pC
Channel Capacitance (CS(off), CD(off)) : 2pF, 12pF
Current - Leakage (IS(off)) (Max) : 200pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 28-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 200 Ohm
Channel-to-Channel Matching (δRon) : 3.5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 16.5 V
Voltage - Supply, Dual (V±) : ±5 V ~ 16.5 V
Switch Time (Ton, Toff) (Max) : 95ns, 100ns
-3db Bandwidth : 280MHz
Charge Injection : 0.5pC
Channel Capacitance (CS(off), CD(off)) : 2pF, 12pF
Current - Leakage (IS(off)) (Max) : 200pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 28-TSSOP
0
8657 in stock
ADG1207YCPZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 2
On-State Resistance (Max) : 200 Ohm
Channel-to-Channel Matching (δRon) : 3.5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 16.5 V
Voltage - Supply, Dual (V±) : ±5 V ~ 16.5 V
Switch Time (Ton, Toff) (Max) : 95ns, 100ns
-3db Bandwidth : 490MHz
Charge Injection : 0.5pC
Channel Capacitance (CS(off), CD(off)) : 2pF, 9pF
Current - Leakage (IS(off)) (Max) : 200pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 32-WFQFN Exposed Pad, CSP
Supplier Device Package : 32-LFCSP-WQ (5x5)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 2
On-State Resistance (Max) : 200 Ohm
Channel-to-Channel Matching (δRon) : 3.5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 16.5 V
Voltage - Supply, Dual (V±) : ±5 V ~ 16.5 V
Switch Time (Ton, Toff) (Max) : 95ns, 100ns
-3db Bandwidth : 490MHz
Charge Injection : 0.5pC
Channel Capacitance (CS(off), CD(off)) : 2pF, 9pF
Current - Leakage (IS(off)) (Max) : 200pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 32-WFQFN Exposed Pad, CSP
Supplier Device Package : 32-LFCSP-WQ (5x5)
0
2766 in stock
ADG1207YRUZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 2
On-State Resistance (Max) : 200 Ohm
Channel-to-Channel Matching (δRon) : 3.5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 16.5 V
Voltage - Supply, Dual (V±) : ±5 V ~ 16.5 V
Switch Time (Ton, Toff) (Max) : 95ns, 100ns
-3db Bandwidth : 490MHz
Charge Injection : 0.5pC
Channel Capacitance (CS(off), CD(off)) : 2pF, 9pF
Current - Leakage (IS(off)) (Max) : 200pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 28-TSSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 2
On-State Resistance (Max) : 200 Ohm
Channel-to-Channel Matching (δRon) : 3.5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 16.5 V
Voltage - Supply, Dual (V±) : ±5 V ~ 16.5 V
Switch Time (Ton, Toff) (Max) : 95ns, 100ns
-3db Bandwidth : 490MHz
Charge Injection : 0.5pC
Channel Capacitance (CS(off), CD(off)) : 2pF, 9pF
Current - Leakage (IS(off)) (Max) : 200pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 28-TSSOP
0
1240 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
