MAX4522EUE+
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : ±2 V ~ 6 V
Switch Time (Ton, Toff) (Max) : 80ns, 30ns
-3db Bandwidth : -
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 2pF, 2pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : ±2 V ~ 6 V
Switch Time (Ton, Toff) (Max) : 80ns, 30ns
-3db Bandwidth : -
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 2pF, 2pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
0
245 in stock
MAX4523CSE+
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : ±2 V ~ 6 V
Switch Time (Ton, Toff) (Max) : 80ns, 30ns
-3db Bandwidth : -
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 2pF, 2pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : 0°C ~ 70°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SO
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : ±2 V ~ 6 V
Switch Time (Ton, Toff) (Max) : 80ns, 30ns
-3db Bandwidth : -
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 2pF, 2pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : 0°C ~ 70°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SO
0
295 in stock

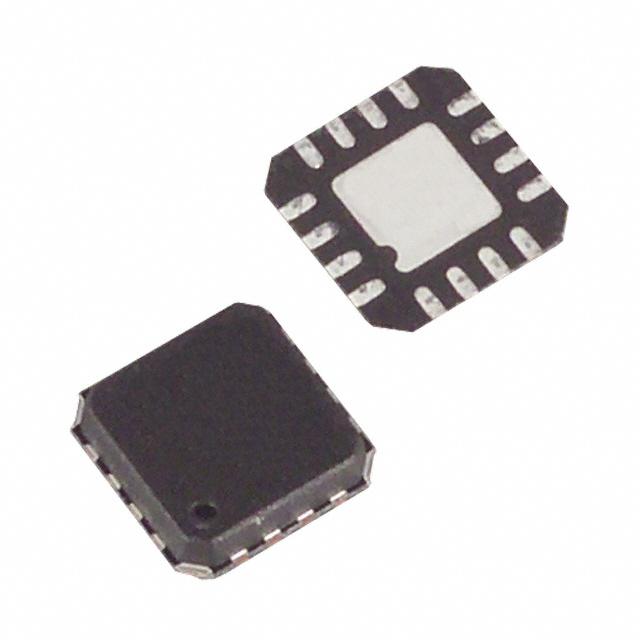

MAX4523EGE+
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : ±2 V ~ 6 V
Switch Time (Ton, Toff) (Max) : 80ns, 30ns
-3db Bandwidth : -
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 2pF, 2pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-VQFN Exposed Pad
Supplier Device Package : 16-QFN-EP (4x4)
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : ±2 V ~ 6 V
Switch Time (Ton, Toff) (Max) : 80ns, 30ns
-3db Bandwidth : -
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 2pF, 2pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-VQFN Exposed Pad
Supplier Device Package : 16-QFN-EP (4x4)
0
643 in stock
MAX4523ESE+
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : ±2 V ~ 6 V
Switch Time (Ton, Toff) (Max) : 80ns, 30ns
-3db Bandwidth : -
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 2pF, 2pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SO
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : ±2 V ~ 6 V
Switch Time (Ton, Toff) (Max) : 80ns, 30ns
-3db Bandwidth : -
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 2pF, 2pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SO
0
292 in stock
MAX4523EUE+
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : ±2 V ~ 6 V
Switch Time (Ton, Toff) (Max) : 80ns, 30ns
-3db Bandwidth : -
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 2pF, 2pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : ±2 V ~ 6 V
Switch Time (Ton, Toff) (Max) : 80ns, 30ns
-3db Bandwidth : -
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 2pF, 2pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
0
182 in stock
MAX4524CUB+
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 150 Ohm
Channel-to-Channel Matching (δRon) : 2 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 150ns, 120ns
-3db Bandwidth : -
Charge Injection : 0.8pC
Channel Capacitance (CS(off), CD(off)) : 4pF, 14pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -
Operating Temperature : 0°C ~ 70°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-uMAX
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 150 Ohm
Channel-to-Channel Matching (δRon) : 2 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 150ns, 120ns
-3db Bandwidth : -
Charge Injection : 0.8pC
Channel Capacitance (CS(off), CD(off)) : 4pF, 14pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -
Operating Temperature : 0°C ~ 70°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-uMAX
0
220 in stock
MAX4524EUB+
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 150 Ohm
Channel-to-Channel Matching (δRon) : 2 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 150ns, 120ns
-3db Bandwidth : -
Charge Injection : 0.8pC
Channel Capacitance (CS(off), CD(off)) : 4pF, 14pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-uMAX
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 150 Ohm
Channel-to-Channel Matching (δRon) : 2 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 150ns, 120ns
-3db Bandwidth : -
Charge Injection : 0.8pC
Channel Capacitance (CS(off), CD(off)) : 4pF, 14pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-uMAX
0
2218 in stock

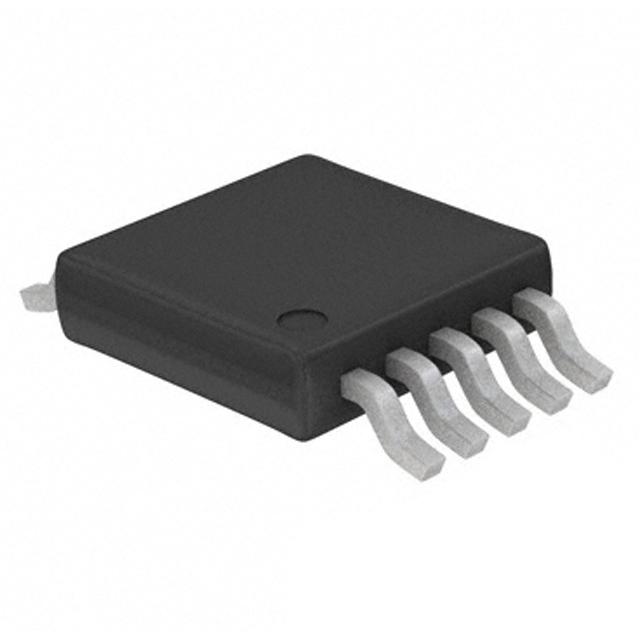

MAX4524LEUB+
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 80 Ohm
Channel-to-Channel Matching (δRon) : 2 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 150ns, 120ns
-3db Bandwidth : 200MHz
Charge Injection : 0.8pC
Channel Capacitance (CS(off), CD(off)) : 4pF, 14pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-uMAX
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 1
On-State Resistance (Max) : 80 Ohm
Channel-to-Channel Matching (δRon) : 2 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 150ns, 120ns
-3db Bandwidth : 200MHz
Charge Injection : 0.8pC
Channel Capacitance (CS(off), CD(off)) : 4pF, 14pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-uMAX
0
210 in stock
MAX4525CUB+
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : DPDT
Multiplexer/Demultiplexer Circuit : 2:2
Number of Circuits : 1
On-State Resistance (Max) : 150 Ohm
Channel-to-Channel Matching (δRon) : 2 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 150ns, 120ns
-3db Bandwidth : -
Charge Injection : 0.8pC
Channel Capacitance (CS(off), CD(off)) : 4pF, 6pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -74dB @ 1MHz
Operating Temperature : 0°C ~ 70°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-uMAX
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : DPDT
Multiplexer/Demultiplexer Circuit : 2:2
Number of Circuits : 1
On-State Resistance (Max) : 150 Ohm
Channel-to-Channel Matching (δRon) : 2 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 150ns, 120ns
-3db Bandwidth : -
Charge Injection : 0.8pC
Channel Capacitance (CS(off), CD(off)) : 4pF, 6pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -74dB @ 1MHz
Operating Temperature : 0°C ~ 70°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-uMAX
0
420 in stock
MAX4525EUB+
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : DPDT
Multiplexer/Demultiplexer Circuit : 2:2
Number of Circuits : 1
On-State Resistance (Max) : 150 Ohm
Channel-to-Channel Matching (δRon) : 2 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 150ns, 120ns
-3db Bandwidth : -
Charge Injection : 0.8pC
Channel Capacitance (CS(off), CD(off)) : 4pF, 6pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -74dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-uMAX
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : DPDT
Multiplexer/Demultiplexer Circuit : 2:2
Number of Circuits : 1
On-State Resistance (Max) : 150 Ohm
Channel-to-Channel Matching (δRon) : 2 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 150ns, 120ns
-3db Bandwidth : -
Charge Injection : 0.8pC
Channel Capacitance (CS(off), CD(off)) : 4pF, 6pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -74dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-uMAX
0
639 in stock
MAX4525LEUB+
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : DPDT
Multiplexer/Demultiplexer Circuit : 2:2
Number of Circuits : 1
On-State Resistance (Max) : 80 Ohm
Channel-to-Channel Matching (δRon) : 2 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 150ns, 120ns
-3db Bandwidth : 200MHz
Charge Injection : 0.8pC
Channel Capacitance (CS(off), CD(off)) : 4pF, 6pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -96dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-uMAX
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : DPDT
Multiplexer/Demultiplexer Circuit : 2:2
Number of Circuits : 1
On-State Resistance (Max) : 80 Ohm
Channel-to-Channel Matching (δRon) : 2 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 150ns, 120ns
-3db Bandwidth : 200MHz
Charge Injection : 0.8pC
Channel Capacitance (CS(off), CD(off)) : 4pF, 6pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -96dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-uMAX
0
284 in stock
MAX4526CSA+
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 175 Ohm
Channel-to-Channel Matching (δRon) : 500 mOhm
Voltage - Supply, Single (V+) : 4.5 V ~ 36 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 18 V
Switch Time (Ton, Toff) (Max) : -
-3db Bandwidth : -
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 13pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -
Operating Temperature : 0°C ~ 70°C (TA)
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 175 Ohm
Channel-to-Channel Matching (δRon) : 500 mOhm
Voltage - Supply, Single (V+) : 4.5 V ~ 36 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 18 V
Switch Time (Ton, Toff) (Max) : -
-3db Bandwidth : -
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 13pF
Current - Leakage (IS(off)) (Max) : 500pA
Crosstalk : -
Operating Temperature : 0°C ~ 70°C (TA)
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
4791 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
