Part Number
Manufacturer
Description
Unit Price
In Stock
74LV4066PW,118
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 35 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1 V ~ 6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 16ns, 28ns
-3db Bandwidth : 200MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 2µA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 14-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 35 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1 V ~ 6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 16ns, 28ns
-3db Bandwidth : 200MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 2µA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 14-TSSOP
0
10031 in stock
74LVC1G3157DW-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 250 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4ns, 7.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7pC
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -42dB @ 10MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SOT-363
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 250 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4ns, 7.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7pC
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -42dB @ 10MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SOT-363
0
20999 in stock

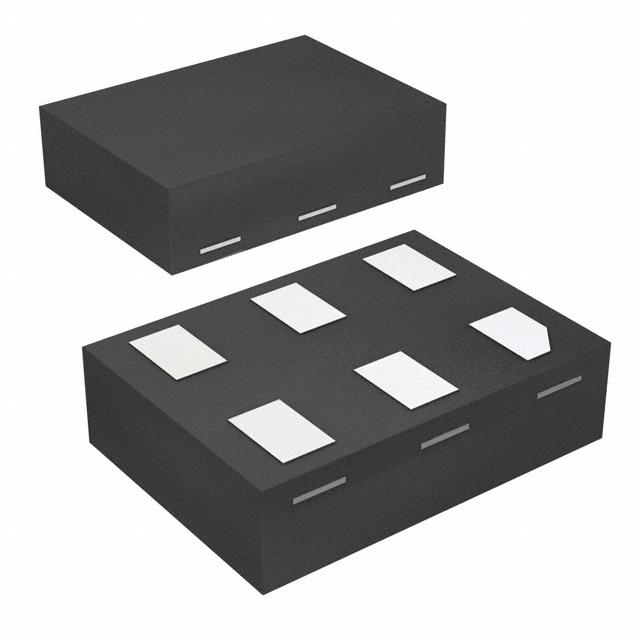

74LVC1G3157FZ4-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 250 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4ns, 7.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7pC
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -42dB @ 10MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : X2-DFN1410-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 250 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4ns, 7.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7pC
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -42dB @ 10MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : X2-DFN1410-6
0
10415 in stock
74LVC1G3157GF,132
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4ns, 3.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7.5pC
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 5µA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : 6-XSON, SOT891 (1x1)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4ns, 3.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7.5pC
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 5µA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : 6-XSON, SOT891 (1x1)
0
5595 in stock

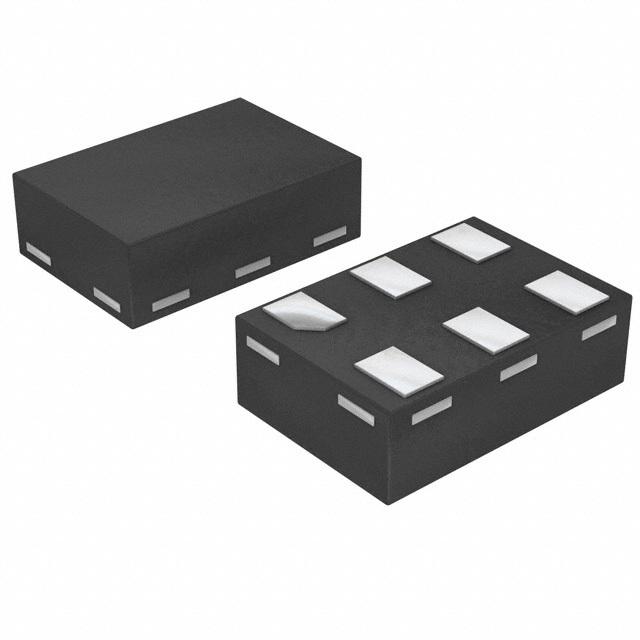

74LVC1G3157GM,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4ns, 3.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7.5pC
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 5µA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : 6-XSON, SOT886 (1.45x1)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4ns, 3.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7.5pC
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 5µA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : 6-XSON, SOT886 (1.45x1)
0
4974 in stock
74LVC1G3157GN,132
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4ns, 3.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7.5pC
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 5µA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : 6-XSON (0.9x1)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4ns, 3.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7.5pC
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 5µA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : 6-XSON (0.9x1)
0
3715 in stock

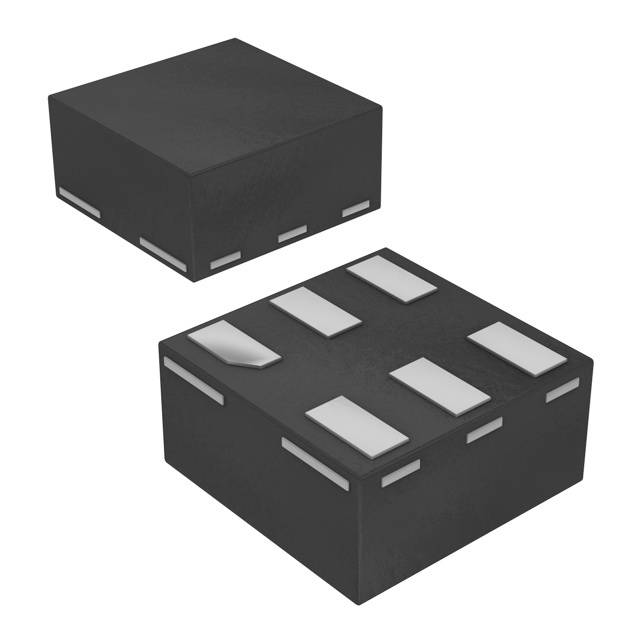

74LVC1G3157GS,132
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4ns, 3.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7.5pC
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 5µA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : 6-XSON (1x1)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4ns, 3.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7.5pC
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 5µA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : 6-XSON (1x1)
0
5000 in stock
74LVC1G3157GV,125
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4ns, 3.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7.5pC
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 5µA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : SC-74, SOT-457
Supplier Device Package : 6-TSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4ns, 3.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7.5pC
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 5µA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : SC-74, SOT-457
Supplier Device Package : 6-TSOP
0
7698 in stock
74LVC1G3157GV-Q10H
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4ns, 3.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7.5pC
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 5µA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : SC-74, SOT-457
Supplier Device Package : 6-TSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4ns, 3.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7.5pC
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 5µA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : SC-74, SOT-457
Supplier Device Package : 6-TSOP
0
100 in stock
74LVC1G3157GW,125
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4ns, 3.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7.5pC
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 5µA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : 6-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4ns, 3.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7.5pC
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 5µA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : 6-TSSOP
0
93341 in stock
74LVC1G3157GXZ
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4ns, 3.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7.5pC
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 5µA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XDFN
Supplier Device Package : 6-X2SON (1.0x0.8)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4ns, 3.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7.5pC
Channel Capacitance (CS(off), CD(off)) : 6pF
Current - Leakage (IS(off)) (Max) : 5µA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XDFN
Supplier Device Package : 6-X2SON (1.0x0.8)
0
3700 in stock
74LVC1G384GF,132
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4.2ns, 5ns
-3db Bandwidth : 500MHz
Charge Injection : 7.5pC
Channel Capacitance (CS(off), CD(off)) : 5pF
Current - Leakage (IS(off)) (Max) : 5µA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : 6-XSON, SOT891 (1x1)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 4.2ns, 5ns
-3db Bandwidth : 500MHz
Charge Injection : 7.5pC
Channel Capacitance (CS(off), CD(off)) : 5pF
Current - Leakage (IS(off)) (Max) : 5µA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 6-XFDFN
Supplier Device Package : 6-XSON, SOT891 (1x1)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
