- Integrated Circuits (ICs)
- Interface - Analog Switches, Multiplexers, Demultiplexers
Part Number
Manufacturer
Description
Unit Price
In Stock
HI3-0201HS-5Z
Intersil (Renesas Electronics America)
Manufacturer : Renesas Electronics America Inc.
Packaging : Tube
Series : -
Part Status : Last Time Buy
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 50 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 50ns, 50ns
-3db Bandwidth : -
Charge Injection : 10pC
Channel Capacitance (CS(off), CD(off)) : 10pF, 10pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -86dB @ 100kHz
Operating Temperature : 0°C ~ 75°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
Packaging : Tube
Series : -
Part Status : Last Time Buy
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 50 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 50ns, 50ns
-3db Bandwidth : -
Charge Injection : 10pC
Channel Capacitance (CS(off), CD(off)) : 10pF, 10pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -86dB @ 100kHz
Operating Temperature : 0°C ~ 75°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
0
100 in stock
HI3-0506A-5Z
Intersil (Renesas Electronics America)
Manufacturer : Renesas Electronics America Inc.
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 1.8 kOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 300ns, 300ns (Typ)
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 10pF, 52pF
Current - Leakage (IS(off)) (Max) : 30pA (Typ)
Crosstalk : -
Operating Temperature : 0°C ~ 75°C (TA)
Package / Case : 28-DIP (0.600", 15.24mm)
Supplier Device Package : 28-PDIP
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 16:1
Number of Circuits : 1
On-State Resistance (Max) : 1.8 kOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 300ns, 300ns (Typ)
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 10pF, 52pF
Current - Leakage (IS(off)) (Max) : 30pA (Typ)
Crosstalk : -
Operating Temperature : 0°C ~ 75°C (TA)
Package / Case : 28-DIP (0.600", 15.24mm)
Supplier Device Package : 28-PDIP
0
850 in stock
HI3-0508-5Z
Intersil (Renesas Electronics America)
Manufacturer : Renesas Electronics America Inc.
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 400 Ohm
Channel-to-Channel Matching (δRon) : 20 Ohm
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 250ns, 250ns (Typ)
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 10pF, 17pF
Current - Leakage (IS(off)) (Max) : 30pA (Typ)
Crosstalk : -
Operating Temperature : 0°C ~ 75°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 400 Ohm
Channel-to-Channel Matching (δRon) : 20 Ohm
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 250ns, 250ns (Typ)
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 10pF, 17pF
Current - Leakage (IS(off)) (Max) : 30pA (Typ)
Crosstalk : -
Operating Temperature : 0°C ~ 75°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
0
543 in stock
HI3-0508A-5Z
Intersil (Renesas Electronics America)
Manufacturer : Renesas Electronics America Inc.
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 1.8 kOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 300ns, 300ns (Typ)
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 10pF, 25pF
Current - Leakage (IS(off)) (Max) : 30pA (Typ)
Crosstalk : -
Operating Temperature : 0°C ~ 75°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 1.8 kOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 300ns, 300ns (Typ)
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 10pF, 25pF
Current - Leakage (IS(off)) (Max) : 30pA (Typ)
Crosstalk : -
Operating Temperature : 0°C ~ 75°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
0
994 in stock
HI3-0509A-5Z
Intersil (Renesas Electronics America)
Manufacturer : Renesas Electronics America Inc.
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 2
On-State Resistance (Max) : 1.8 kOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 300ns, 300ns (Typ)
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 10pF, 12pF
Current - Leakage (IS(off)) (Max) : 30pA (Typ)
Crosstalk : -
Operating Temperature : 0°C ~ 75°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 2
On-State Resistance (Max) : 1.8 kOhm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 300ns, 300ns (Typ)
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 10pF, 12pF
Current - Leakage (IS(off)) (Max) : 30pA (Typ)
Crosstalk : -
Operating Temperature : 0°C ~ 75°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
0
305 in stock

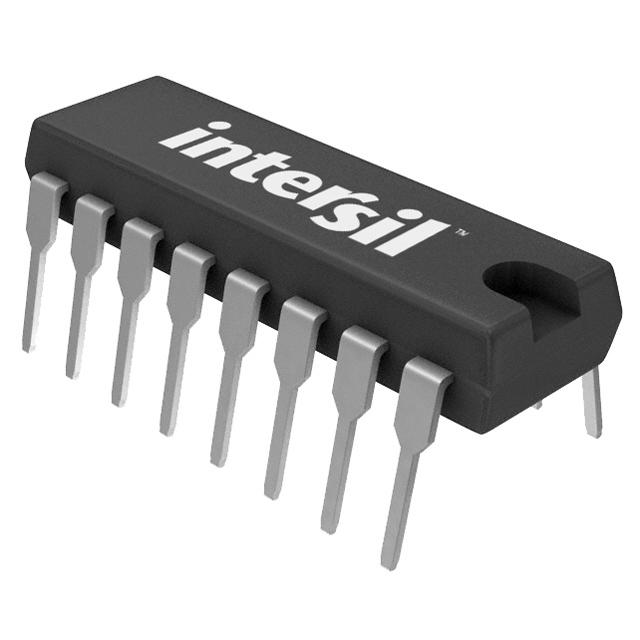

HI3-5043-5Z
Intersil (Renesas Electronics America)
Manufacturer : Renesas Electronics America Inc.
Packaging : Tube
Series : -
Part Status : Last Time Buy
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 75 Ohm
Channel-to-Channel Matching (δRon) : 2 Ohm
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 500ns, 500ns
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 11pF, 11pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -88dB @ 100kHz
Operating Temperature : 0°C ~ 75°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
Packaging : Tube
Series : -
Part Status : Last Time Buy
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 75 Ohm
Channel-to-Channel Matching (δRon) : 2 Ohm
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 500ns, 500ns
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 11pF, 11pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -88dB @ 100kHz
Operating Temperature : 0°C ~ 75°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
0
135 in stock
HI-8190PCIF
Holt Integrated Circuits, Inc.
Manufacturer : Holt Integrated Circuits Inc.
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 17 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 3.3 V ~ 15 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 15 V
Switch Time (Ton, Toff) (Max) : 35ns, 20ns
-3db Bandwidth : -
Charge Injection : 4pC
Channel Capacitance (CS(off), CD(off)) : 5pF, 20pF
Current - Leakage (IS(off)) (Max) : 5nA (Max)
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-WQFN Exposed Pad, CSP
Supplier Device Package : 16-CSP (5x5)
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 17 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 3.3 V ~ 15 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 15 V
Switch Time (Ton, Toff) (Max) : 35ns, 20ns
-3db Bandwidth : -
Charge Injection : 4pC
Channel Capacitance (CS(off), CD(off)) : 5pF, 20pF
Current - Leakage (IS(off)) (Max) : 5nA (Max)
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-WQFN Exposed Pad, CSP
Supplier Device Package : 16-CSP (5x5)
0
264 in stock
HI-8191PSIF
Holt Integrated Circuits, Inc.
Manufacturer : Holt Integrated Circuits Inc.
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 17 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 3.3 V ~ 15 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 15 V
Switch Time (Ton, Toff) (Max) : 35ns, 20ns
-3db Bandwidth : -
Charge Injection : 4pC
Channel Capacitance (CS(off), CD(off)) : 5pF, 20pF
Current - Leakage (IS(off)) (Max) : 5nA (Max)
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 17 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 3.3 V ~ 15 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 15 V
Switch Time (Ton, Toff) (Max) : 35ns, 20ns
-3db Bandwidth : -
Charge Injection : 4pC
Channel Capacitance (CS(off), CD(off)) : 5pF, 20pF
Current - Leakage (IS(off)) (Max) : 5nA (Max)
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
217 in stock
HI-8192PSIF
Holt Integrated Circuits, Inc.
Manufacturer : Holt Integrated Circuits Inc.
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 17 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 3.3 V ~ 15 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 15 V
Switch Time (Ton, Toff) (Max) : 35ns, 20ns
-3db Bandwidth : -
Charge Injection : 4pC
Channel Capacitance (CS(off), CD(off)) : 5pF, 20pF
Current - Leakage (IS(off)) (Max) : 5nA (Max)
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 17 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 3.3 V ~ 15 V
Voltage - Supply, Dual (V±) : ±3.3 V ~ 15 V
Switch Time (Ton, Toff) (Max) : 35ns, 20ns
-3db Bandwidth : -
Charge Injection : 4pC
Channel Capacitance (CS(off), CD(off)) : 5pF, 20pF
Current - Leakage (IS(off)) (Max) : 5nA (Max)
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
420 in stock
HI-8202PSIF
Holt Integrated Circuits, Inc.
Manufacturer : Holt Integrated Circuits Inc.
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 250ns, 150ns
-3db Bandwidth : -
Charge Injection : -20pC
Channel Capacitance (CS(off), CD(off)) : 15pF, 60pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 20-LSSOP (0.173", 4.40mm Width)
Supplier Device Package : 20-TSSOP
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 250ns, 150ns
-3db Bandwidth : -
Charge Injection : -20pC
Channel Capacitance (CS(off), CD(off)) : 15pF, 60pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 20-LSSOP (0.173", 4.40mm Width)
Supplier Device Package : 20-TSSOP
0
40 in stock
HI9P0201-5Z
Intersil (Renesas Electronics America)
Manufacturer : Renesas Electronics America Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 80 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 185ns, 220ns (Typ)
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 5.5pF, 5.5pF
Current - Leakage (IS(off)) (Max) : 50nA
Crosstalk : -
Operating Temperature : 0°C ~ 75°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 80 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 185ns, 220ns (Typ)
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 5.5pF, 5.5pF
Current - Leakage (IS(off)) (Max) : 50nA
Crosstalk : -
Operating Temperature : 0°C ~ 75°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
896 in stock
HI9P0201-5Z96
Intersil (Renesas Electronics America)
Manufacturer : Renesas Electronics America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 80 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 185ns, 220ns (Typ)
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 5.5pF, 5.5pF
Current - Leakage (IS(off)) (Max) : 50nA
Crosstalk : -
Operating Temperature : 0°C ~ 75°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 80 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 185ns, 220ns (Typ)
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 5.5pF, 5.5pF
Current - Leakage (IS(off)) (Max) : 50nA
Crosstalk : -
Operating Temperature : 0°C ~ 75°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
2455 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
