DG412FEUE+T
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 35 Ohm
Channel-to-Channel Matching (δRon) : 200 mOhm
Voltage - Supply, Single (V+) : 9 V ~ 36 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 175ns, 145ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 15pF, 47pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -105dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 35 Ohm
Channel-to-Channel Matching (δRon) : 200 mOhm
Voltage - Supply, Single (V+) : 9 V ~ 36 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 175ns, 145ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 15pF, 47pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -105dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
0
2691 in stock
DG412HSDJ-E3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 35 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 105ns, 80ns
-3db Bandwidth : -
Charge Injection : 22pC
Channel Capacitance (CS(off), CD(off)) : 12pF, 12pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -88dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 35 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 105ns, 80ns
-3db Bandwidth : -
Charge Injection : 22pC
Channel Capacitance (CS(off), CD(off)) : 12pF, 12pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -88dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
0
105 in stock

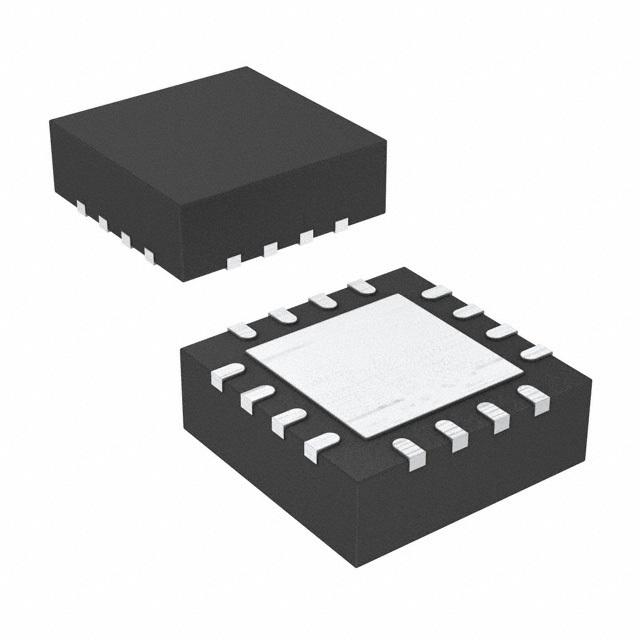

DG412HSDN-T1-E4
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 35 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 105ns, 80ns
-3db Bandwidth : -
Charge Injection : 22pC
Channel Capacitance (CS(off), CD(off)) : 12pF, 12pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -88dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-VQFN Exposed Pad
Supplier Device Package : 16-QFN (4x4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 35 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 105ns, 80ns
-3db Bandwidth : -
Charge Injection : 22pC
Channel Capacitance (CS(off), CD(off)) : 12pF, 12pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -88dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-VQFN Exposed Pad
Supplier Device Package : 16-QFN (4x4)
0
1320 in stock
DG412HSDY-T1-E3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 35 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 105ns, 80ns
-3db Bandwidth : -
Charge Injection : 22pC
Channel Capacitance (CS(off), CD(off)) : 12pF, 12pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -88dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 35 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 105ns, 80ns
-3db Bandwidth : -
Charge Injection : 22pC
Channel Capacitance (CS(off), CD(off)) : 12pF, 12pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -88dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
100 in stock
DG412LEDQ-T1-GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 26 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 50ns, 30ns
-3db Bandwidth : -
Charge Injection : 6.6pC
Channel Capacitance (CS(off), CD(off)) : 5pF, 6pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -114dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 26 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 50ns, 30ns
-3db Bandwidth : -
Charge Injection : 6.6pC
Channel Capacitance (CS(off), CD(off)) : 5pF, 6pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -114dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
0
2883 in stock
DG412LEDY-T1-GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 26 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 50ns, 30ns
-3db Bandwidth : -
Charge Injection : 6.6pC
Channel Capacitance (CS(off), CD(off)) : 5pF, 6pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -114dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 26 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 3 V ~ 16 V
Voltage - Supply, Dual (V±) : ±3 V ~ 8 V
Switch Time (Ton, Toff) (Max) : 50ns, 30ns
-3db Bandwidth : -
Charge Injection : 6.6pC
Channel Capacitance (CS(off), CD(off)) : 5pF, 6pF
Current - Leakage (IS(off)) (Max) : 1nA
Crosstalk : -114dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
897 in stock
DG413AK/883B
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 30 Ohm
Channel-to-Channel Matching (δRon) : 3 Ohm (Max)
Voltage - Supply, Single (V+) : 10 V ~ 30 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 175ns, 145ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 9pF, 9pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -55°C ~ 125°C (TA)
Package / Case : 16-CDIP (0.300", 7.62mm)
Supplier Device Package : 16-CDIP
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 30 Ohm
Channel-to-Channel Matching (δRon) : 3 Ohm (Max)
Voltage - Supply, Single (V+) : 10 V ~ 30 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 175ns, 145ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 9pF, 9pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -55°C ~ 125°C (TA)
Package / Case : 16-CDIP (0.300", 7.62mm)
Supplier Device Package : 16-CDIP
0
66 in stock
DG413CJ+
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 45 Ohm
Channel-to-Channel Matching (δRon) : 3 Ohm (Max)
Voltage - Supply, Single (V+) : 10 V ~ 30 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 175ns, 145ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 9pF, 9pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : 0°C ~ 70°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 45 Ohm
Channel-to-Channel Matching (δRon) : 3 Ohm (Max)
Voltage - Supply, Single (V+) : 10 V ~ 30 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 175ns, 145ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 9pF, 9pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : 0°C ~ 70°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
0
98 in stock
DG413CUE+
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 45 Ohm
Channel-to-Channel Matching (δRon) : 3 Ohm (Max)
Voltage - Supply, Single (V+) : 10 V ~ 30 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 175ns, 145ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 9pF, 9pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : 0°C ~ 70°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 45 Ohm
Channel-to-Channel Matching (δRon) : 3 Ohm (Max)
Voltage - Supply, Single (V+) : 10 V ~ 30 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 175ns, 145ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 9pF, 9pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : 0°C ~ 70°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
0
365 in stock
DG413CY+
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 45 Ohm
Channel-to-Channel Matching (δRon) : 3 Ohm (Max)
Voltage - Supply, Single (V+) : 10 V ~ 30 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 175ns, 145ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 9pF, 9pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : 0°C ~ 70°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SO
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 45 Ohm
Channel-to-Channel Matching (δRon) : 3 Ohm (Max)
Voltage - Supply, Single (V+) : 10 V ~ 30 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 175ns, 145ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 9pF, 9pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : 0°C ~ 70°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SO
0
17 in stock
DG413DJ+
Maxim Integrated
Manufacturer : Maxim Integrated
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 45 Ohm
Channel-to-Channel Matching (δRon) : 3 Ohm (Max)
Voltage - Supply, Single (V+) : 10 V ~ 30 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 175ns, 145ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 9pF, 9pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 45 Ohm
Channel-to-Channel Matching (δRon) : 3 Ohm (Max)
Voltage - Supply, Single (V+) : 10 V ~ 30 V
Voltage - Supply, Dual (V±) : ±4.5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 175ns, 145ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 9pF, 9pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
0
21 in stock
DG413DJ-E3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 35 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 5 V ~ 44 V
Voltage - Supply, Dual (V±) : ±5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 175ns, 145ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 9pF, 9pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NO/NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 35 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 5 V ~ 44 V
Voltage - Supply, Dual (V±) : ±5 V ~ 20 V
Switch Time (Ton, Toff) (Max) : 175ns, 145ns
-3db Bandwidth : -
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 9pF, 9pF
Current - Leakage (IS(off)) (Max) : 250pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-PDIP
0
6 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
