Part Number
Manufacturer
Description
Unit Price
In Stock

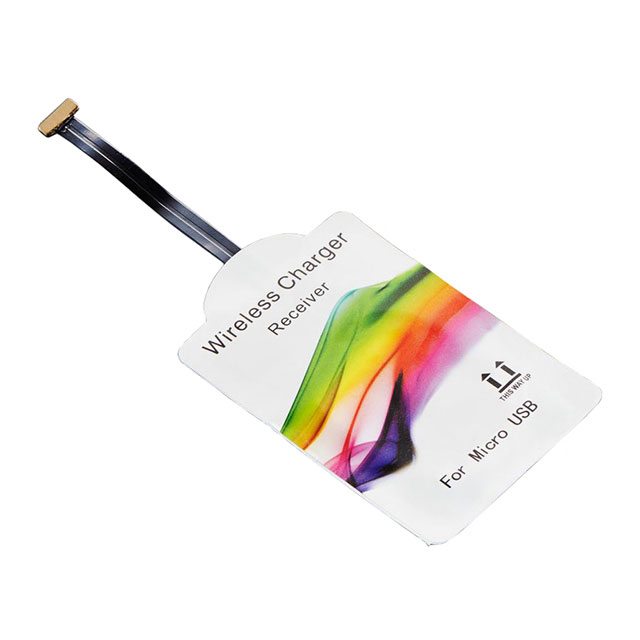

2117
Adafruit
Manufacturer : Adafruit Industries LLC
Series : -
Part Status : Obsolete
Function : Receiver
Type : -
Inductance : -
Tolerance : -
DC Resistance (DCR) : -
Q @ Freq : -
Current Rating : 600mA
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -
Size / Dimension : -
Series : -
Part Status : Obsolete
Function : Receiver
Type : -
Inductance : -
Tolerance : -
DC Resistance (DCR) : -
Q @ Freq : -
Current Rating : 600mA
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -
Size / Dimension : -
0
100 in stock

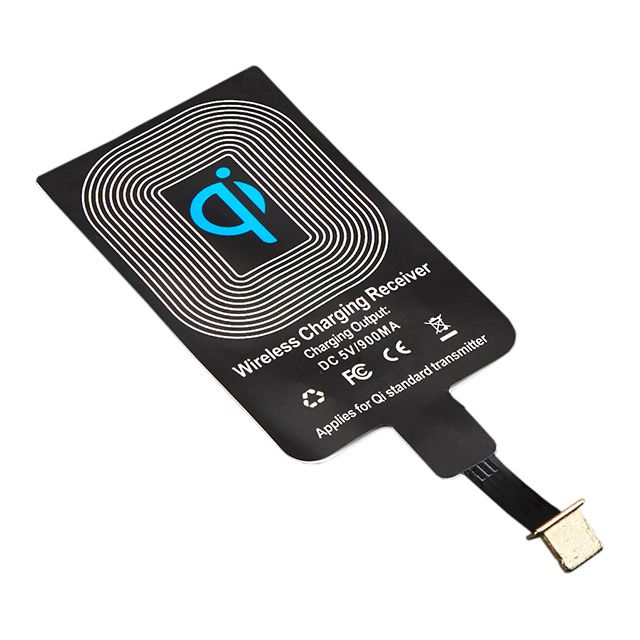

2677
Adafruit
Manufacturer : Adafruit Industries LLC
Series : -
Part Status : Active
Function : Receiver
Type : -
Inductance : -
Tolerance : -
DC Resistance (DCR) : -
Q @ Freq : -
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -
Size / Dimension : 3.94" L x 1.50" W x 0.059" H (100.0mm x 38.0mm x 1.5mm)
Series : -
Part Status : Active
Function : Receiver
Type : -
Inductance : -
Tolerance : -
DC Resistance (DCR) : -
Q @ Freq : -
Current Rating : -
Current - Saturation : -
Frequency - Self Resonant : -
Operating Temperature : -
Size / Dimension : 3.94" L x 1.50" W x 0.059" H (100.0mm x 38.0mm x 1.5mm)
0
100 in stock

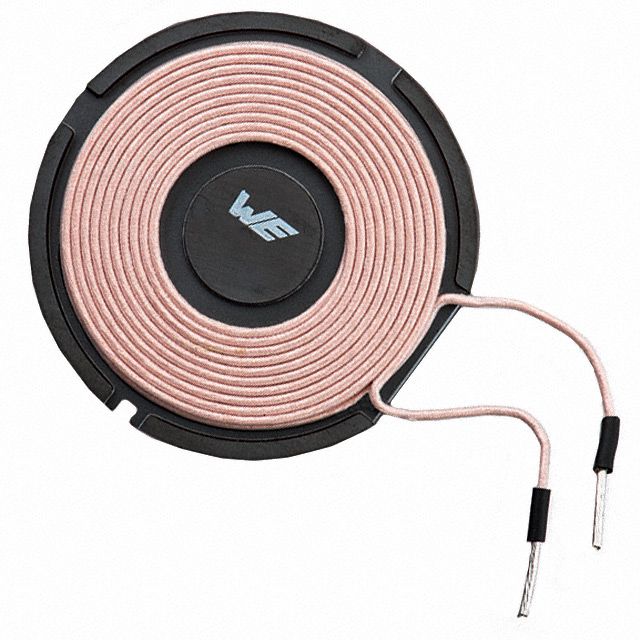

760308100110
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 24µH
Tolerance : ±10%
DC Resistance (DCR) : 70 mOhm
Q @ Freq : 180 @ 125kHz
Current Rating : 6A
Current - Saturation : 10A
Frequency - Self Resonant : 5MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.97" Dia x 0.24" H (50.0mm x 6.0mm)
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 24µH
Tolerance : ±10%
DC Resistance (DCR) : 70 mOhm
Q @ Freq : 180 @ 125kHz
Current Rating : 6A
Current - Saturation : 10A
Frequency - Self Resonant : 5MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.97" Dia x 0.24" H (50.0mm x 6.0mm)
0
168 in stock

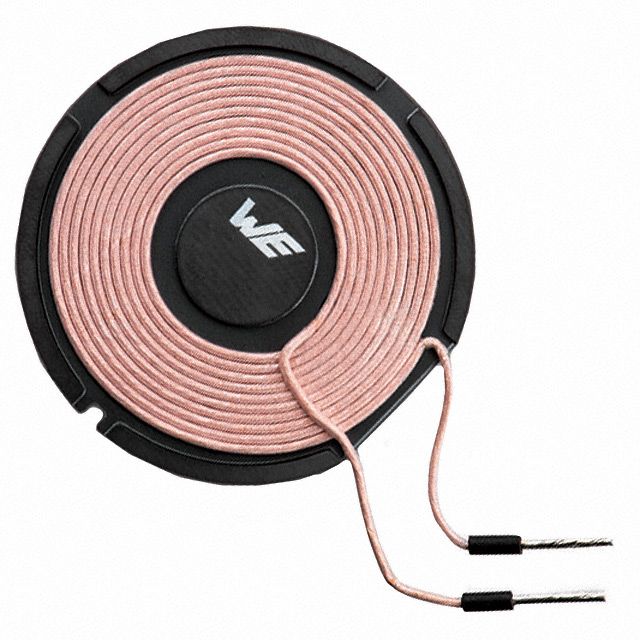

760308100111
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 6.3µH
Tolerance : ±10%
DC Resistance (DCR) : 48 mOhm Max
Q @ Freq : 120 @ 125kHz
Current Rating : 6A
Current - Saturation : 10A
Frequency - Self Resonant : 24MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.97" Dia x 0.19" H (50.0mm x 4.7mm)
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 6.3µH
Tolerance : ±10%
DC Resistance (DCR) : 48 mOhm Max
Q @ Freq : 120 @ 125kHz
Current Rating : 6A
Current - Saturation : 10A
Frequency - Self Resonant : 24MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.97" Dia x 0.19" H (50.0mm x 4.7mm)
0
525 in stock

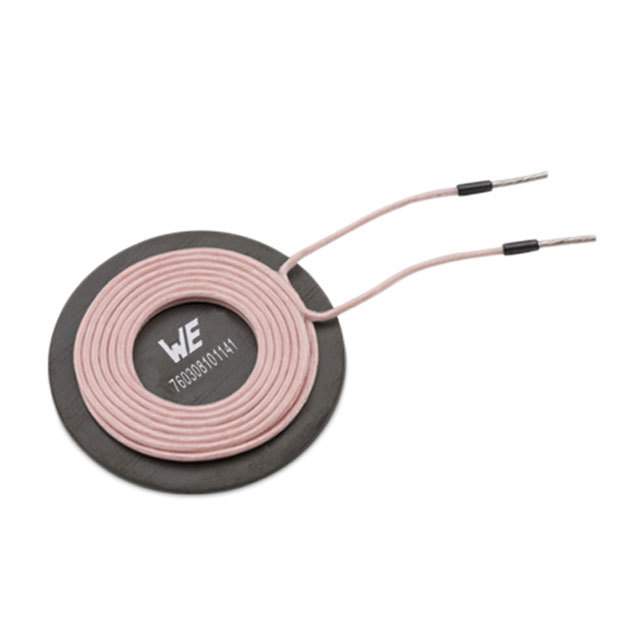

760308100141
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 10µH
Tolerance : ±10%
DC Resistance (DCR) : 30 mOhm Max
Q @ Freq : 180 @ 125kHz
Current Rating : 9A
Current - Saturation : 16A
Frequency - Self Resonant : 11MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.97" L x 1.89" W x 0.24" H (50.0mm x 48.0mm x 6.0mm)
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 10µH
Tolerance : ±10%
DC Resistance (DCR) : 30 mOhm Max
Q @ Freq : 180 @ 125kHz
Current Rating : 9A
Current - Saturation : 16A
Frequency - Self Resonant : 11MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.97" L x 1.89" W x 0.24" H (50.0mm x 48.0mm x 6.0mm)
0
144 in stock

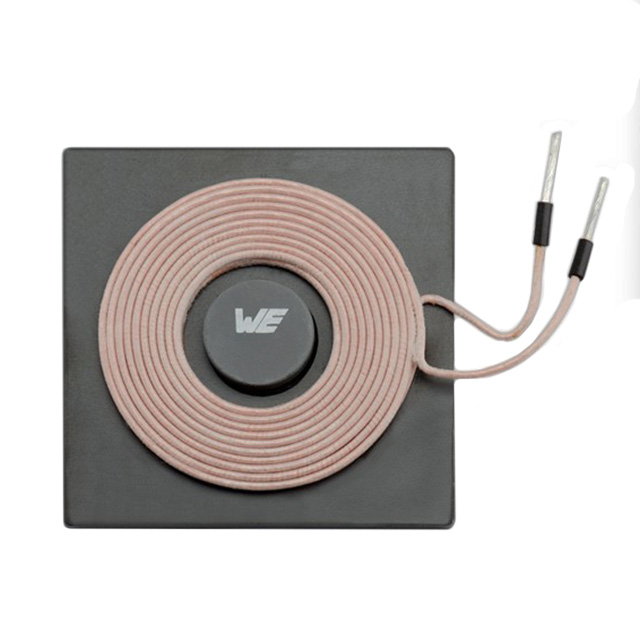

760308100143
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 6µH
Tolerance : ±10%
DC Resistance (DCR) : 18 mOhm Max
Q @ Freq : 180 @ 125kHz
Current Rating : 12A
Current - Saturation : 24A
Frequency - Self Resonant : 16MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.97" Dia x 0.26" H (50.0mm x 6.7mm)
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 6µH
Tolerance : ±10%
DC Resistance (DCR) : 18 mOhm Max
Q @ Freq : 180 @ 125kHz
Current Rating : 12A
Current - Saturation : 24A
Frequency - Self Resonant : 16MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.97" Dia x 0.26" H (50.0mm x 6.7mm)
0
59 in stock

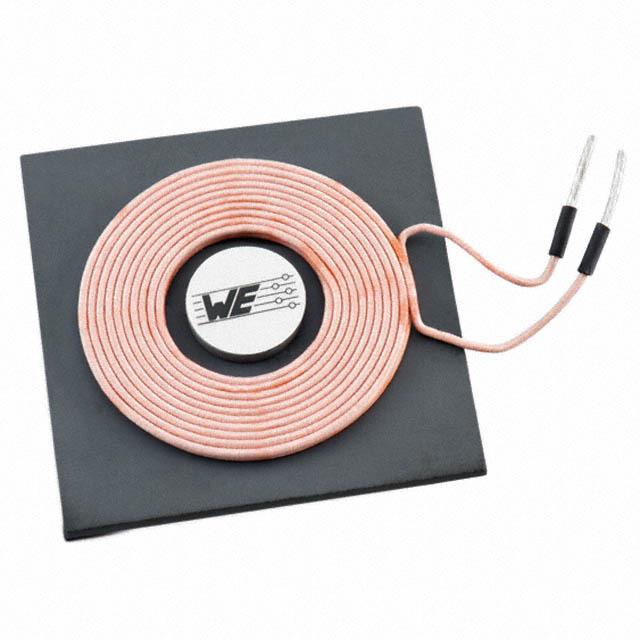

760308101
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 24µH
Tolerance : ±10%
DC Resistance (DCR) : 100 mOhm Max
Q @ Freq : 90 @ 125kHz
Current Rating : 6A
Current - Saturation : 10A
Frequency - Self Resonant : 6MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm)
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 24µH
Tolerance : ±10%
DC Resistance (DCR) : 100 mOhm Max
Q @ Freq : 90 @ 125kHz
Current Rating : 6A
Current - Saturation : 10A
Frequency - Self Resonant : 6MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm)
0
116 in stock

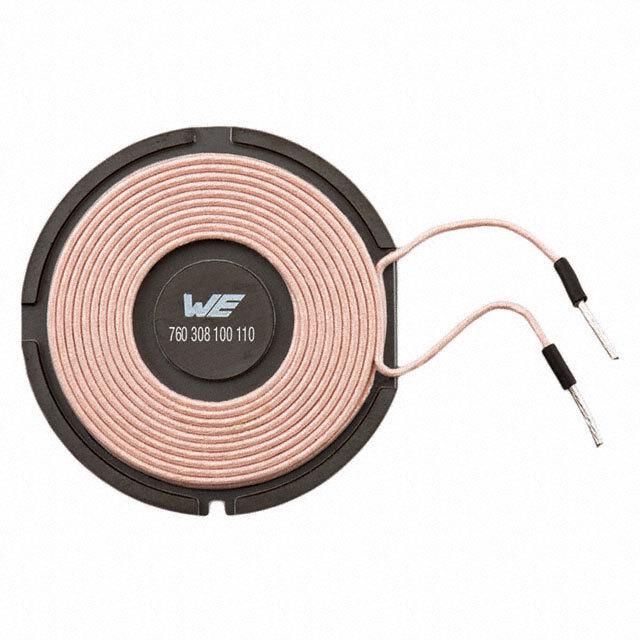

760308101103
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 6.5µH
Tolerance : ±10%
DC Resistance (DCR) : 180 mOhm Max
Q @ Freq : 35 @ 125kHz
Current Rating : 3A
Current - Saturation : 8A
Frequency - Self Resonant : 20MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.18" L x 1.18" W x 0.07" H (30.0mm x 30.0mm x 1.9mm)
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 6.5µH
Tolerance : ±10%
DC Resistance (DCR) : 180 mOhm Max
Q @ Freq : 35 @ 125kHz
Current Rating : 3A
Current - Saturation : 8A
Frequency - Self Resonant : 20MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.18" L x 1.18" W x 0.07" H (30.0mm x 30.0mm x 1.9mm)
0
465 in stock
760308101104
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 6.3µH
Tolerance : ±10%
DC Resistance (DCR) : 125 mOhm Max
Q @ Freq : 42 @ 125kHz
Current Rating : 2.5A
Current - Saturation : 6A
Frequency - Self Resonant : 20MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 0.81" Dia x 0.10" H (20.5mm x 2.6mm)
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 6.3µH
Tolerance : ±10%
DC Resistance (DCR) : 125 mOhm Max
Q @ Freq : 42 @ 125kHz
Current Rating : 2.5A
Current - Saturation : 6A
Frequency - Self Resonant : 20MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 0.81" Dia x 0.10" H (20.5mm x 2.6mm)
0
133 in stock

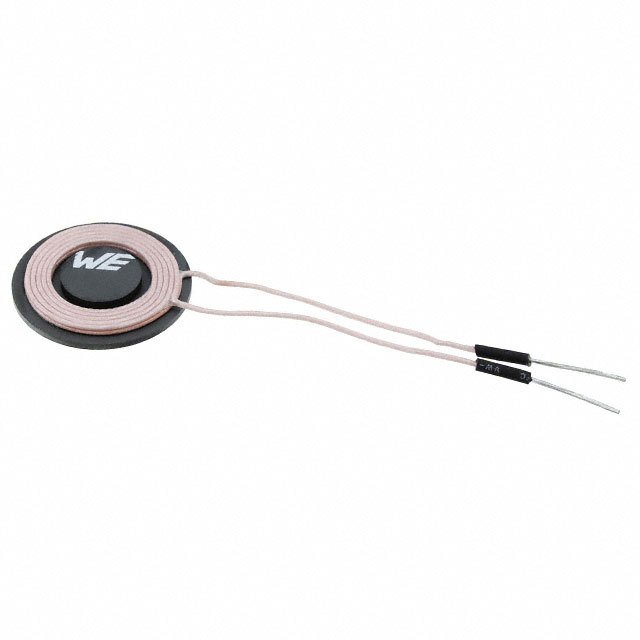

760308101105
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 3.3µH
Tolerance : ±10%
DC Resistance (DCR) : 80 mOhm Max
Q @ Freq : 30 @ 125kHz
Current Rating : 3A
Current - Saturation : 6A
Frequency - Self Resonant : 20MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 0.81" Dia x 0.10" H (20.5mm x 2.6mm)
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 3.3µH
Tolerance : ±10%
DC Resistance (DCR) : 80 mOhm Max
Q @ Freq : 30 @ 125kHz
Current Rating : 3A
Current - Saturation : 6A
Frequency - Self Resonant : 20MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 0.81" Dia x 0.10" H (20.5mm x 2.6mm)
0
81 in stock
760308101141
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 10µH
Tolerance : ±10%
DC Resistance (DCR) : 30 mOhm Max
Q @ Freq : 220 @ 125kHz
Current Rating : 9A
Current - Saturation : 16A
Frequency - Self Resonant : 11MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.97" Dia x 0.20" H (50.0mm x 5.0mm)
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 10µH
Tolerance : ±10%
DC Resistance (DCR) : 30 mOhm Max
Q @ Freq : 220 @ 125kHz
Current Rating : 9A
Current - Saturation : 16A
Frequency - Self Resonant : 11MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.97" Dia x 0.20" H (50.0mm x 5.0mm)
0
20 in stock

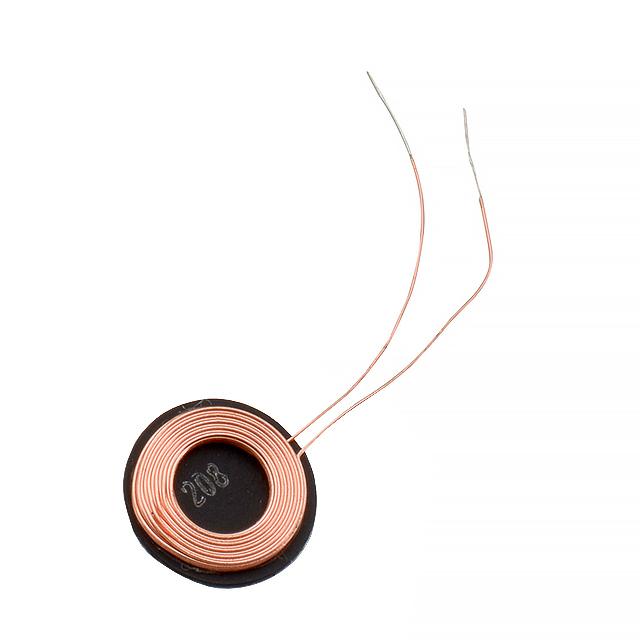

760308101208
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 13µH
Tolerance : ±10%
DC Resistance (DCR) : 400 mOhm
Q @ Freq : 17 @ 125kHz
Current Rating : 0.8A
Current - Saturation : 2A
Frequency - Self Resonant : 26MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 0.39" L x 0.39" W x 0.07" H (10.0mm x 10.0mm x 1.68mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 13µH
Tolerance : ±10%
DC Resistance (DCR) : 400 mOhm
Q @ Freq : 17 @ 125kHz
Current Rating : 0.8A
Current - Saturation : 2A
Frequency - Self Resonant : 26MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 0.39" L x 0.39" W x 0.07" H (10.0mm x 10.0mm x 1.68mm)
0
109 in stock
