Part Number
Manufacturer
Description
Unit Price
In Stock
5220-RC
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : 5200
Part Status : Active
Type : Wirewound
Material - Core : Iron
Inductance : 8.8µH
Tolerance : ±20%
Current Rating : 10A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 21 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 64MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Size / Dimension : 0.560" Dia x 1.250" L (14.22mm x 31.75mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 5200
Part Status : Active
Type : Wirewound
Material - Core : Iron
Inductance : 8.8µH
Tolerance : ±20%
Current Rating : 10A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 21 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 64MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Size / Dimension : 0.560" Dia x 1.250" L (14.22mm x 31.75mm)
Height - Seated (Max) : -
0
241 in stock
5230-RC
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : 5200
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 4µH
Tolerance : ±20%
Current Rating : 8A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 12 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 165MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.380" Dia x 0.875" L (9.65mm x 22.23mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 5200
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 4µH
Tolerance : ±20%
Current Rating : 8A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 12 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 165MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.380" Dia x 0.875" L (9.65mm x 22.23mm)
Height - Seated (Max) : -
0
2569 in stock
5240-RC
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : 5200
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 40µH
Tolerance : ±20%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 82 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 145MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.310" Dia x 1.250" L (7.87mm x 31.75mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 5200
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 40µH
Tolerance : ±20%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 82 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 145MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.310" Dia x 1.250" L (7.87mm x 31.75mm)
Height - Seated (Max) : -
0
1575 in stock
5248-RC
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : 5200
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 68µH
Tolerance : ±20%
Current Rating : 5A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 54 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 4.5MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.560" Dia x 1.250" L (14.22mm x 31.75mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 5200
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 68µH
Tolerance : ±20%
Current Rating : 5A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 54 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 4.5MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.560" Dia x 1.250" L (14.22mm x 31.75mm)
Height - Seated (Max) : -
0
1747 in stock
5250-RC
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : 5200
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±20%
Current Rating : 2A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 216 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.380" Dia x 1.250" L (9.65mm x 31.75mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 5200
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±20%
Current Rating : 2A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 216 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.380" Dia x 1.250" L (9.65mm x 31.75mm)
Height - Seated (Max) : -
0
9535 in stock
5252-RC
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : 5200
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 125µH
Tolerance : ±20%
Current Rating : 3.5A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 80 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 2.25MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.500" Dia x 1.250" L (12.70mm x 31.75mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 5200
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 125µH
Tolerance : ±20%
Current Rating : 3.5A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 80 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 2.25MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.500" Dia x 1.250" L (12.70mm x 31.75mm)
Height - Seated (Max) : -
0
6289 in stock
5254-RC
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : 5200
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 250µH
Tolerance : ±20%
Current Rating : 2.5A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 170 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 1.3MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.440" Dia x 1.250" L (11.18mm x 31.75mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 5200
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 250µH
Tolerance : ±20%
Current Rating : 2.5A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 170 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 1.3MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.440" Dia x 1.250" L (11.18mm x 31.75mm)
Height - Seated (Max) : -
0
1756 in stock

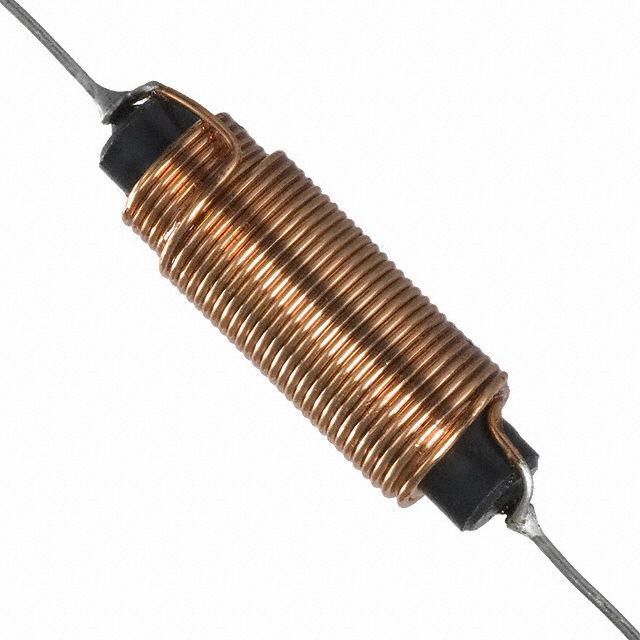

5256-RC
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : 5200
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 500µH
Tolerance : ±20%
Current Rating : 2A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 260 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.560" Dia x 1.250" L (14.22mm x 31.75mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 5200
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 500µH
Tolerance : ±20%
Current Rating : 2A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 260 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.560" Dia x 1.250" L (14.22mm x 31.75mm)
Height - Seated (Max) : -
0
9788 in stock
5258-RC
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : 5200
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1mH
Tolerance : ±20%
Current Rating : 1A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 550 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 650kHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.500" Dia x 1.250" L (12.70mm x 31.75mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 5200
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1mH
Tolerance : ±20%
Current Rating : 1A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 550 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 650kHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.500" Dia x 1.250" L (12.70mm x 31.75mm)
Height - Seated (Max) : -
0
6716 in stock
5300-01-RC
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : 5300
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±10%
Current Rating : 3.3A
Current - Saturation : 3A
Shielding : Unshielded
DC Resistance (DCR) : 18 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 190MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.160" Dia x 0.500" L (4.06mm x 12.70mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 5300
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±10%
Current Rating : 3.3A
Current - Saturation : 3A
Shielding : Unshielded
DC Resistance (DCR) : 18 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 190MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.160" Dia x 0.500" L (4.06mm x 12.70mm)
Height - Seated (Max) : -
0
2455 in stock
5300-03-RC
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : 5300
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1.5µH
Tolerance : ±10%
Current Rating : 3.1A
Current - Saturation : 2.5A
Shielding : Unshielded
DC Resistance (DCR) : 20 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 160MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.160" Dia x 0.500" L (4.06mm x 12.70mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 5300
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1.5µH
Tolerance : ±10%
Current Rating : 3.1A
Current - Saturation : 2.5A
Shielding : Unshielded
DC Resistance (DCR) : 20 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 160MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.160" Dia x 0.500" L (4.06mm x 12.70mm)
Height - Seated (Max) : -
0
9573 in stock
5300-05-RC
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : 5300
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±10%
Current Rating : 2.6A
Current - Saturation : 2A
Shielding : Unshielded
DC Resistance (DCR) : 31 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 130MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Size / Dimension : 0.160" Dia x 0.500" L (4.06mm x 12.70mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 5300
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±10%
Current Rating : 2.6A
Current - Saturation : 2A
Shielding : Unshielded
DC Resistance (DCR) : 31 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 130MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Size / Dimension : 0.160" Dia x 0.500" L (4.06mm x 12.70mm)
Height - Seated (Max) : -
0
580 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
