SRF1260-680M
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 68µH
Inductance - Connected In Series : 272µH
Tolerance : ±20%
Current Rating - Parallel : 2.22A
Current Rating - Series : 1.11A
Current Saturation - Parallel : 2.7A
Current Saturation - Series : 1.35A
DC Resistance (DCR) - Parallel : 117 mOhm Max
DC Resistance (DCR) - Series : 444 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 68µH
Inductance - Connected In Series : 272µH
Tolerance : ±20%
Current Rating - Parallel : 2.22A
Current Rating - Series : 1.11A
Current Saturation - Parallel : 2.7A
Current Saturation - Series : 1.35A
DC Resistance (DCR) - Parallel : 117 mOhm Max
DC Resistance (DCR) - Series : 444 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
0
1238 in stock
SRF1260-681M
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 680µH
Inductance - Connected In Series : 2.72mH
Tolerance : ±20%
Current Rating - Parallel : 700mA
Current Rating - Series : 350mA
Current Saturation - Parallel : 850mA
Current Saturation - Series : 425mA
DC Resistance (DCR) - Parallel : 1.212 Ohm Max
DC Resistance (DCR) - Series : 4.635 Ohm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 680µH
Inductance - Connected In Series : 2.72mH
Tolerance : ±20%
Current Rating - Parallel : 700mA
Current Rating - Series : 350mA
Current Saturation - Parallel : 850mA
Current Saturation - Series : 425mA
DC Resistance (DCR) - Parallel : 1.212 Ohm Max
DC Resistance (DCR) - Series : 4.635 Ohm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
0
181 in stock
SRF1260-6R8Y
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 6.8µH
Inductance - Connected In Series : 27.2µH
Tolerance : ±30%
Current Rating - Parallel : 6.64A
Current Rating - Series : 3.32A
Current Saturation - Parallel : 8.68A
Current Saturation - Series : 4.34A
DC Resistance (DCR) - Parallel : 18.6 mOhm Max
DC Resistance (DCR) - Series : 67.2 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 6.8µH
Inductance - Connected In Series : 27.2µH
Tolerance : ±30%
Current Rating - Parallel : 6.64A
Current Rating - Series : 3.32A
Current Saturation - Parallel : 8.68A
Current Saturation - Series : 4.34A
DC Resistance (DCR) - Parallel : 18.6 mOhm Max
DC Resistance (DCR) - Series : 67.2 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
0
9538 in stock

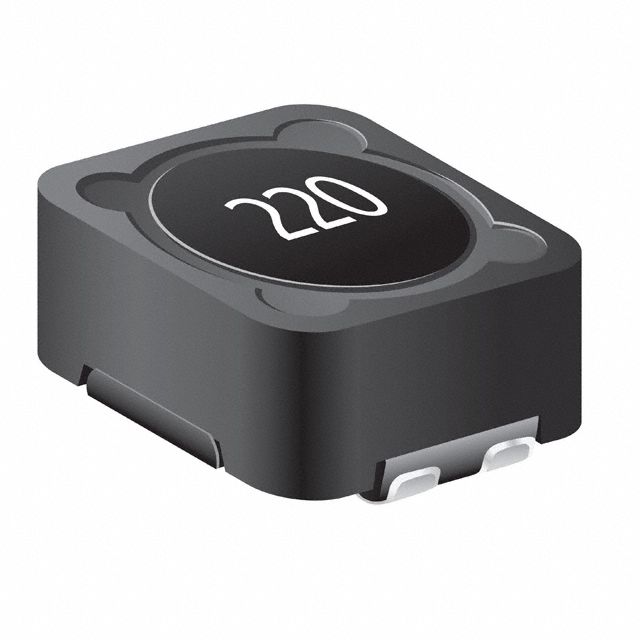

SRF1260-820M
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 82µH
Inductance - Connected In Series : 328µH
Tolerance : ±20%
Current Rating - Parallel : 2.05A
Current Rating - Series : 1.03A
Current Saturation - Parallel : 2.39A
Current Saturation - Series : 1.2A
DC Resistance (DCR) - Parallel : 150 mOhm Max
DC Resistance (DCR) - Series : 568 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 82µH
Inductance - Connected In Series : 328µH
Tolerance : ±20%
Current Rating - Parallel : 2.05A
Current Rating - Series : 1.03A
Current Saturation - Parallel : 2.39A
Current Saturation - Series : 1.2A
DC Resistance (DCR) - Parallel : 150 mOhm Max
DC Resistance (DCR) - Series : 568 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
0
4147 in stock
SRF1260-821M
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 820µH
Inductance - Connected In Series : 3.28mH
Tolerance : ±20%
Current Rating - Parallel : 600mA
Current Rating - Series : 301mA
Current Saturation - Parallel : 770mA
Current Saturation - Series : 385mA
DC Resistance (DCR) - Parallel : 1.46 Ohm Max
DC Resistance (DCR) - Series : 5.363 Ohm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 820µH
Inductance - Connected In Series : 3.28mH
Tolerance : ±20%
Current Rating - Parallel : 600mA
Current Rating - Series : 301mA
Current Saturation - Parallel : 770mA
Current Saturation - Series : 385mA
DC Resistance (DCR) - Parallel : 1.46 Ohm Max
DC Resistance (DCR) - Series : 5.363 Ohm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
0
100 in stock
SRF1260-8R2Y
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 8.2µH
Inductance - Connected In Series : 32.8µH
Tolerance : ±30%
Current Rating - Parallel : 5.54A
Current Rating - Series : 2.77A
Current Saturation - Parallel : 7.89A
Current Saturation - Series : 3.93A
DC Resistance (DCR) - Parallel : 19.4 mOhm Max
DC Resistance (DCR) - Series : 73.7 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 8.2µH
Inductance - Connected In Series : 32.8µH
Tolerance : ±30%
Current Rating - Parallel : 5.54A
Current Rating - Series : 2.77A
Current Saturation - Parallel : 7.89A
Current Saturation - Series : 3.93A
DC Resistance (DCR) - Parallel : 19.4 mOhm Max
DC Resistance (DCR) - Series : 73.7 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
0
901 in stock
SRF1260A-100M
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260A
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 10µH
Inductance - Connected In Series : 40µH
Tolerance : ±20%
Current Rating - Parallel : 5.35A
Current Rating - Series : 2.67A
Current Saturation - Parallel : 7.17A
Current Saturation - Series : 3.59A
DC Resistance (DCR) - Parallel : 24.6 mOhm Max
DC Resistance (DCR) - Series : 93.4 mOhm Max
Shielding : Shielded
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260A
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 10µH
Inductance - Connected In Series : 40µH
Tolerance : ±20%
Current Rating - Parallel : 5.35A
Current Rating - Series : 2.67A
Current Saturation - Parallel : 7.17A
Current Saturation - Series : 3.59A
DC Resistance (DCR) - Parallel : 24.6 mOhm Max
DC Resistance (DCR) - Series : 93.4 mOhm Max
Shielding : Shielded
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
0
100 in stock
SRF1260A-101M
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260A
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 100µH
Inductance - Connected In Series : 400µH
Tolerance : ±20%
Current Rating - Parallel : 1.78A
Current Rating - Series : 892mA
Current Saturation - Parallel : 2.2A
Current Saturation - Series : 1.1A
DC Resistance (DCR) - Parallel : 171 mOhm Max
DC Resistance (DCR) - Series : 656 mOhm Max
Shielding : Shielded
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260A
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 100µH
Inductance - Connected In Series : 400µH
Tolerance : ±20%
Current Rating - Parallel : 1.78A
Current Rating - Series : 892mA
Current Saturation - Parallel : 2.2A
Current Saturation - Series : 1.1A
DC Resistance (DCR) - Parallel : 171 mOhm Max
DC Resistance (DCR) - Series : 656 mOhm Max
Shielding : Shielded
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
0
100 in stock
SRF1260A-102M
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260A
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 1mH
Inductance - Connected In Series : 4mH
Tolerance : ±20%
Current Rating - Parallel : 570mA
Current Rating - Series : 283mA
Current Saturation - Parallel : 700mA
Current Saturation - Series : 350mA
DC Resistance (DCR) - Parallel : 1.854 Ohm Max
DC Resistance (DCR) - Series : 6.782 Ohm Max
Shielding : Shielded
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260A
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 1mH
Inductance - Connected In Series : 4mH
Tolerance : ±20%
Current Rating - Parallel : 570mA
Current Rating - Series : 283mA
Current Saturation - Parallel : 700mA
Current Saturation - Series : 350mA
DC Resistance (DCR) - Parallel : 1.854 Ohm Max
DC Resistance (DCR) - Series : 6.782 Ohm Max
Shielding : Shielded
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
0
100 in stock

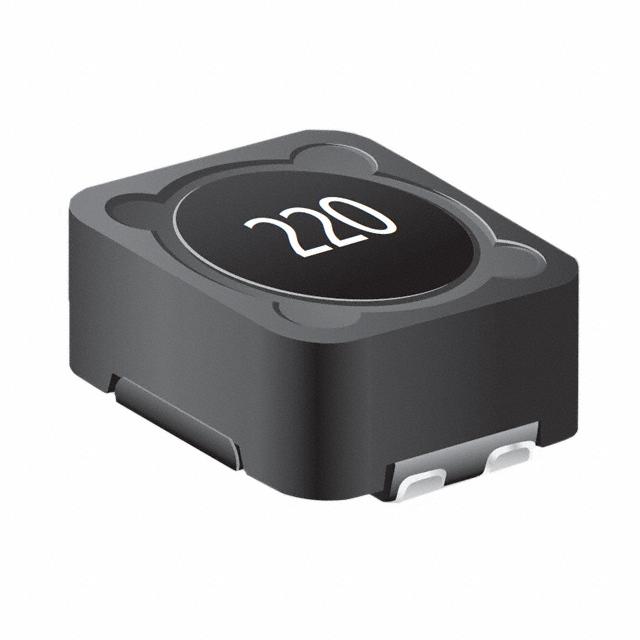

SRF1260A-150M
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260A
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 15µH
Inductance - Connected In Series : 60µH
Tolerance : ±20%
Current Rating - Parallel : 4.27A
Current Rating - Series : 2.13A
Current Saturation - Parallel : 5.69A
Current Saturation - Series : 2.85A
DC Resistance (DCR) - Parallel : 32.9 mOhm Max
DC Resistance (DCR) - Series : 125 mOhm Max
Shielding : Shielded
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260A
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 15µH
Inductance - Connected In Series : 60µH
Tolerance : ±20%
Current Rating - Parallel : 4.27A
Current Rating - Series : 2.13A
Current Saturation - Parallel : 5.69A
Current Saturation - Series : 2.85A
DC Resistance (DCR) - Parallel : 32.9 mOhm Max
DC Resistance (DCR) - Series : 125 mOhm Max
Shielding : Shielded
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
0
100 in stock
SRF1260A-151M
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260A
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 150µH
Inductance - Connected In Series : 600µH
Tolerance : ±20%
Current Rating - Parallel : 1.48A
Current Rating - Series : 739mA
Current Saturation - Parallel : 1.81A
Current Saturation - Series : 905mA
DC Resistance (DCR) - Parallel : 254 mOhm Max
DC Resistance (DCR) - Series : 972 mOhm Max
Shielding : Shielded
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260A
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 150µH
Inductance - Connected In Series : 600µH
Tolerance : ±20%
Current Rating - Parallel : 1.48A
Current Rating - Series : 739mA
Current Saturation - Parallel : 1.81A
Current Saturation - Series : 905mA
DC Resistance (DCR) - Parallel : 254 mOhm Max
DC Resistance (DCR) - Series : 972 mOhm Max
Shielding : Shielded
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
0
100 in stock
SRF1260A-1R0Y
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260A
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 1µH
Inductance - Connected In Series : 4µH
Tolerance : ±30%
Current Rating - Parallel : 15A
Current Rating - Series : 7.51A
Current Saturation - Parallel : 23.6A
Current Saturation - Series : 11.8A
DC Resistance (DCR) - Parallel : 6.2 mOhm Max
DC Resistance (DCR) - Series : 26 mOhm Max
Shielding : Shielded
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF1260A
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 1µH
Inductance - Connected In Series : 4µH
Tolerance : ±30%
Current Rating - Parallel : 15A
Current Rating - Series : 7.51A
Current Saturation - Parallel : 23.6A
Current Saturation - Series : 11.8A
DC Resistance (DCR) - Parallel : 6.2 mOhm Max
DC Resistance (DCR) - Series : 26 mOhm Max
Shielding : Shielded
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.244" (6.20mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
