Part Number
Manufacturer
Description
Unit Price
In Stock
SCX114-301
Bel
Manufacturer : Signal Transformer
Packaging : Tape & Reel (TR)
Series : SCX114
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 300µH
Inductance - Connected In Series : 1.2mH
Tolerance : ±20%
Current Rating - Parallel : 320mA
Current Rating - Series : 160mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 1.525 Ohm Max
DC Resistance (DCR) - Series : 6.1 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.461" L x 0.461" W (11.70mm x 11.70mm)
Height : 0.217" (5.50mm)
Packaging : Tape & Reel (TR)
Series : SCX114
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 300µH
Inductance - Connected In Series : 1.2mH
Tolerance : ±20%
Current Rating - Parallel : 320mA
Current Rating - Series : 160mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 1.525 Ohm Max
DC Resistance (DCR) - Series : 6.1 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.461" L x 0.461" W (11.70mm x 11.70mm)
Height : 0.217" (5.50mm)
0
100 in stock

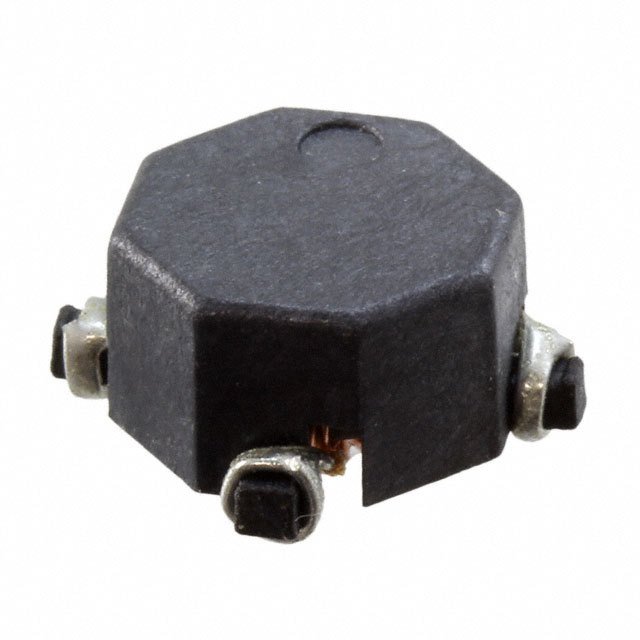

SCX114-320
Bel
Manufacturer : Signal Transformer
Packaging : Tape & Reel (TR)
Series : SCX114
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 32µH
Inductance - Connected In Series : 129.32µH
Tolerance : ±20%
Current Rating - Parallel : 800mA
Current Rating - Series : 400mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 251 mOhm Max
DC Resistance (DCR) - Series : 1.001 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.461" L x 0.461" W (11.70mm x 11.70mm)
Height : 0.217" (5.50mm)
Packaging : Tape & Reel (TR)
Series : SCX114
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 32µH
Inductance - Connected In Series : 129.32µH
Tolerance : ±20%
Current Rating - Parallel : 800mA
Current Rating - Series : 400mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 251 mOhm Max
DC Resistance (DCR) - Series : 1.001 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.461" L x 0.461" W (11.70mm x 11.70mm)
Height : 0.217" (5.50mm)
0
100 in stock
SCX114-4R7
Bel
Manufacturer : Signal Transformer
Packaging : Tape & Reel (TR)
Series : SCX114
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 4.7µH
Inductance - Connected In Series : 18.8µH
Tolerance : ±20%
Current Rating - Parallel : 2A
Current Rating - Series : 1A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 41 mOhm Max
DC Resistance (DCR) - Series : 161 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.461" L x 0.461" W (11.70mm x 11.70mm)
Height : 0.217" (5.50mm)
Packaging : Tape & Reel (TR)
Series : SCX114
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 4.7µH
Inductance - Connected In Series : 18.8µH
Tolerance : ±20%
Current Rating - Parallel : 2A
Current Rating - Series : 1A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 41 mOhm Max
DC Resistance (DCR) - Series : 161 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.461" L x 0.461" W (11.70mm x 11.70mm)
Height : 0.217" (5.50mm)
0
100 in stock
SCX114-500
Bel
Manufacturer : Signal Transformer
Packaging : Tape & Reel (TR)
Series : SCX114
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 50µH
Inductance - Connected In Series : 202.07µH
Tolerance : ±20%
Current Rating - Parallel : 700mA
Current Rating - Series : 350mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 316 mOhm Max
DC Resistance (DCR) - Series : 1.263 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.461" L x 0.461" W (11.70mm x 11.70mm)
Height : 0.217" (5.50mm)
Packaging : Tape & Reel (TR)
Series : SCX114
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 50µH
Inductance - Connected In Series : 202.07µH
Tolerance : ±20%
Current Rating - Parallel : 700mA
Current Rating - Series : 350mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 316 mOhm Max
DC Resistance (DCR) - Series : 1.263 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.461" L x 0.461" W (11.70mm x 11.70mm)
Height : 0.217" (5.50mm)
0
100 in stock
SCX114-680
Bel
Manufacturer : Signal Transformer
Packaging : Tape & Reel (TR)
Series : SCX114
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 68µH
Inductance - Connected In Series : 273.61µH
Tolerance : ±20%
Current Rating - Parallel : 660mA
Current Rating - Series : 330mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 373 mOhm Max
DC Resistance (DCR) - Series : 1.49 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.461" L x 0.461" W (11.70mm x 11.70mm)
Height : 0.217" (5.50mm)
Packaging : Tape & Reel (TR)
Series : SCX114
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 68µH
Inductance - Connected In Series : 273.61µH
Tolerance : ±20%
Current Rating - Parallel : 660mA
Current Rating - Series : 330mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 373 mOhm Max
DC Resistance (DCR) - Series : 1.49 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.461" L x 0.461" W (11.70mm x 11.70mm)
Height : 0.217" (5.50mm)
0
100 in stock
SCX114-8R0
Bel
Manufacturer : Signal Transformer
Packaging : Tape & Reel (TR)
Series : SCX114
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 8µH
Inductance - Connected In Series : 32.33µH
Tolerance : ±20%
Current Rating - Parallel : 1.8A
Current Rating - Series : 900mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 52 mOhm Max
DC Resistance (DCR) - Series : 208 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.461" L x 0.461" W (11.70mm x 11.70mm)
Height : 0.217" (5.50mm)
Packaging : Tape & Reel (TR)
Series : SCX114
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 8µH
Inductance - Connected In Series : 32.33µH
Tolerance : ±20%
Current Rating - Parallel : 1.8A
Current Rating - Series : 900mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 52 mOhm Max
DC Resistance (DCR) - Series : 208 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.461" L x 0.461" W (11.70mm x 11.70mm)
Height : 0.217" (5.50mm)
0
100 in stock
SCX114-9R6
Bel
Manufacturer : Signal Transformer
Packaging : Tape & Reel (TR)
Series : SCX114
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 9.6µH
Inductance - Connected In Series : 38.48µH
Tolerance : ±20%
Current Rating - Parallel : 1.7A
Current Rating - Series : 850mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 57 mOhm Max
DC Resistance (DCR) - Series : 227 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.461" L x 0.461" W (11.70mm x 11.70mm)
Height : 0.217" (5.50mm)
Packaging : Tape & Reel (TR)
Series : SCX114
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 9.6µH
Inductance - Connected In Series : 38.48µH
Tolerance : ±20%
Current Rating - Parallel : 1.7A
Current Rating - Series : 850mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 57 mOhm Max
DC Resistance (DCR) - Series : 227 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.461" L x 0.461" W (11.70mm x 11.70mm)
Height : 0.217" (5.50mm)
0
100 in stock
SCX114-R47
Bel
Manufacturer : Signal Transformer
Packaging : Tape & Reel (TR)
Series : SCX114
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 470nH
Inductance - Connected In Series : 1.67µH
Tolerance : ±20%
Current Rating - Parallel : 5.5A
Current Rating - Series : 2.75A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 9 mOhm Max
DC Resistance (DCR) - Series : 40 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.461" L x 0.461" W (11.70mm x 11.70mm)
Height : 0.217" (5.50mm)
Packaging : Tape & Reel (TR)
Series : SCX114
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 470nH
Inductance - Connected In Series : 1.67µH
Tolerance : ±20%
Current Rating - Parallel : 5.5A
Current Rating - Series : 2.75A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 9 mOhm Max
DC Resistance (DCR) - Series : 40 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.461" L x 0.461" W (11.70mm x 11.70mm)
Height : 0.217" (5.50mm)
0
100 in stock
SCX114-R68
Bel
Manufacturer : Signal Transformer
Packaging : Tape & Reel (TR)
Series : SCX114
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 680nH
Inductance - Connected In Series : 2.4µH
Tolerance : ±20%
Current Rating - Parallel : 5.1A
Current Rating - Series : 2.55A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 11 mOhm Max
DC Resistance (DCR) - Series : 45 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.461" L x 0.461" W (11.70mm x 11.70mm)
Height : 0.217" (5.50mm)
Packaging : Tape & Reel (TR)
Series : SCX114
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 680nH
Inductance - Connected In Series : 2.4µH
Tolerance : ±20%
Current Rating - Parallel : 5.1A
Current Rating - Series : 2.55A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 11 mOhm Max
DC Resistance (DCR) - Series : 45 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.461" L x 0.461" W (11.70mm x 11.70mm)
Height : 0.217" (5.50mm)
0
100 in stock
SCX147-0R47
Bel
Manufacturer : Signal Transformer
Packaging : Tape & Reel (TR)
Series : SCX147
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 470nH
Inductance - Connected In Series : 1.76µH
Tolerance : ±20%
Current Rating - Parallel : 7A
Current Rating - Series : 3.5A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 4 mOhm Max
DC Resistance (DCR) - Series : 16 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.567" L x 0.567" W (14.40mm x 14.40mm)
Height : 0.276" (7.00mm)
Packaging : Tape & Reel (TR)
Series : SCX147
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 470nH
Inductance - Connected In Series : 1.76µH
Tolerance : ±20%
Current Rating - Parallel : 7A
Current Rating - Series : 3.5A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 4 mOhm Max
DC Resistance (DCR) - Series : 16 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.567" L x 0.567" W (14.40mm x 14.40mm)
Height : 0.276" (7.00mm)
0
100 in stock
SCX147-0R8
Bel
Manufacturer : Signal Transformer
Packaging : Tape & Reel (TR)
Series : SCX147
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 800nH
Inductance - Connected In Series : 3.14µH
Tolerance : ±20%
Current Rating - Parallel : 6A
Current Rating - Series : 3A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 5 mOhm Max
DC Resistance (DCR) - Series : 20 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.567" L x 0.567" W (14.40mm x 14.40mm)
Height : 0.276" (7.00mm)
Packaging : Tape & Reel (TR)
Series : SCX147
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 800nH
Inductance - Connected In Series : 3.14µH
Tolerance : ±20%
Current Rating - Parallel : 6A
Current Rating - Series : 3A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 5 mOhm Max
DC Resistance (DCR) - Series : 20 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.567" L x 0.567" W (14.40mm x 14.40mm)
Height : 0.276" (7.00mm)
0
100 in stock
SCX147-100
Bel
Manufacturer : Signal Transformer
Packaging : Tape & Reel (TR)
Series : SCX147
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 10µH
Inductance - Connected In Series : 38.42µH
Tolerance : ±20%
Current Rating - Parallel : 3.4A
Current Rating - Series : 1.7A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 20 mOhm Max
DC Resistance (DCR) - Series : 79 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.567" L x 0.567" W (14.40mm x 14.40mm)
Height : 0.276" (7.00mm)
Packaging : Tape & Reel (TR)
Series : SCX147
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 10µH
Inductance - Connected In Series : 38.42µH
Tolerance : ±20%
Current Rating - Parallel : 3.4A
Current Rating - Series : 1.7A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 20 mOhm Max
DC Resistance (DCR) - Series : 79 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.567" L x 0.567" W (14.40mm x 14.40mm)
Height : 0.276" (7.00mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
