Part Number

Manufacturer

Description

Unit Price

In Stock

PM3604-10-B-RC

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Bulk
Series : PM3600
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 10µH
Inductance - Connected In Series : 40µH
Tolerance : ±20%
Current Rating - Parallel : 2.7A
Current Rating - Series : 1.35A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 28 mOhm Max
DC Resistance (DCR) - Series : 110 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.452" W (13.97mm x 11.48mm)
Height : 0.265" (6.73mm)

0

100 in stock

PM3604-10-RC

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PM3600
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 10µH
Inductance - Connected In Series : 40µH
Tolerance : ±20%
Current Rating - Parallel : 2.7A
Current Rating - Series : 1.35A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 28 mOhm Max
DC Resistance (DCR) - Series : 110 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.452" W (13.97mm x 11.48mm)
Height : 0.265" (6.73mm)

0

1833 in stock

PM3604-150-B

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Bulk
Series : PM3600
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 150µH
Inductance - Connected In Series : 600µH
Tolerance : ±20%
Current Rating - Parallel : 780mA
Current Rating - Series : 390mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 320 mOhm Max
DC Resistance (DCR) - Series : 1.28 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.452" W (13.97mm x 11.48mm)
Height : 0.265" (6.73mm)

0

100 in stock

PM3604-150-B-RC

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Bulk
Series : PM3600
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 150µH
Inductance - Connected In Series : 600µH
Tolerance : ±20%
Current Rating - Parallel : 780mA
Current Rating - Series : 390mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 320 mOhm Max
DC Resistance (DCR) - Series : 1.28 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.452" W (13.97mm x 11.48mm)
Height : 0.265" (6.73mm)

0

100 in stock

PM3604-150-RC

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PM3600
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 150µH
Inductance - Connected In Series : 600µH
Tolerance : ±20%
Current Rating - Parallel : 780mA
Current Rating - Series : 390mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 320 mOhm Max
DC Resistance (DCR) - Series : 1.28 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.452" W (13.97mm x 11.48mm)
Height : 0.265" (6.73mm)

0

1131 in stock

PM3604-15-B

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Bulk
Series : PM3600
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 15µH
Inductance - Connected In Series : 60µH
Tolerance : ±20%
Current Rating - Parallel : 2.2A
Current Rating - Series : 1.1A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 41 mOhm Max
DC Resistance (DCR) - Series : 160 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.452" W (13.97mm x 11.48mm)
Height : 0.265" (6.73mm)

0

100 in stock

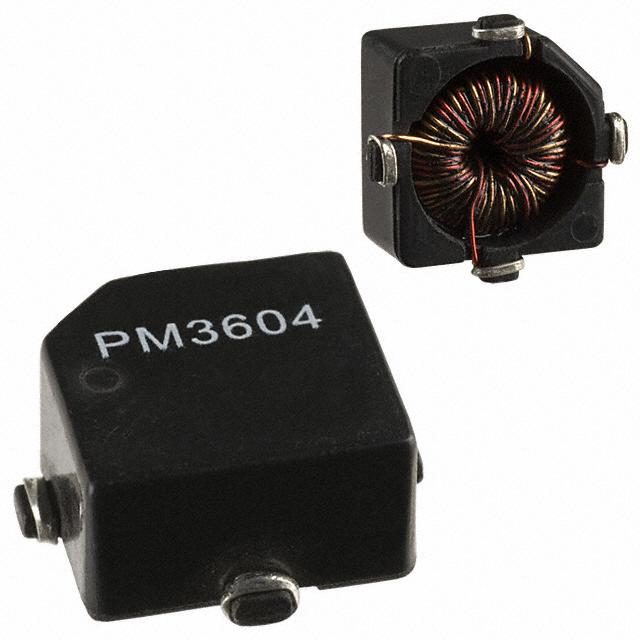

PM3604-15-B-RC

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Bulk
Series : PM3600
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 15µH
Inductance - Connected In Series : 60µH
Tolerance : ±20%
Current Rating - Parallel : 2.2A
Current Rating - Series : 1.1A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 41 mOhm Max
DC Resistance (DCR) - Series : 160 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.452" W (13.97mm x 11.48mm)
Height : 0.265" (6.73mm)

0

100 in stock

PM3604-15-RC

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PM3600
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 15µH
Inductance - Connected In Series : 60µH
Tolerance : ±20%
Current Rating - Parallel : 2.2A
Current Rating - Series : 1.1A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 41 mOhm Max
DC Resistance (DCR) - Series : 160 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.452" W (13.97mm x 11.48mm)
Height : 0.265" (6.73mm)

0

9121 in stock

PM3604-200-B

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Bulk
Series : PM3600
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 200µH
Inductance - Connected In Series : 800µH
Tolerance : ±20%
Current Rating - Parallel : 650mA
Current Rating - Series : 330mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 470 mOhm Max
DC Resistance (DCR) - Series : 1.88 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.452" W (13.97mm x 11.48mm)
Height : 0.265" (6.73mm)

0

100 in stock

PM3604-200-B-RC

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Bulk
Series : PM3600
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 200µH
Inductance - Connected In Series : 800µH
Tolerance : ±20%
Current Rating - Parallel : 650mA
Current Rating - Series : 330mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 470 mOhm Max
DC Resistance (DCR) - Series : 1.88 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.452" W (13.97mm x 11.48mm)
Height : 0.265" (6.73mm)

0

100 in stock

PM3604-200-RC

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PM3600
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 200µH
Inductance - Connected In Series : 800µH
Tolerance : ±20%
Current Rating - Parallel : 650mA
Current Rating - Series : 330mA
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 470 mOhm Max
DC Resistance (DCR) - Series : 1.88 Ohm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.452" W (13.97mm x 11.48mm)
Height : 0.265" (6.73mm)

0

1334 in stock

PM3604-20-B

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Bulk
Series : PM3600
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 20µH
Inductance - Connected In Series : 80µH
Tolerance : ±20%
Current Rating - Parallel : 2.02A
Current Rating - Series : 1.01A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 49 mOhm Max
DC Resistance (DCR) - Series : 200 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.452" W (13.97mm x 11.48mm)
Height : 0.265" (6.73mm)

0

100 in stock
