Part Number
Manufacturer
Description
Unit Price
In Stock
744851039
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-DCT
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 390nH
Inductance - Connected In Series : 1.56µH
Tolerance : ±20%
Current Rating - Parallel : 10.6A
Current Rating - Series : 5.3A
Current Saturation - Parallel : 50A
Current Saturation - Series : 25A
DC Resistance (DCR) - Parallel : 6 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.906" L x 0.728" W (23.00mm x 18.50mm)
Height : 0.453" (11.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-DCT
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 390nH
Inductance - Connected In Series : 1.56µH
Tolerance : ±20%
Current Rating - Parallel : 10.6A
Current Rating - Series : 5.3A
Current Saturation - Parallel : 50A
Current Saturation - Series : 25A
DC Resistance (DCR) - Parallel : 6 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.906" L x 0.728" W (23.00mm x 18.50mm)
Height : 0.453" (11.50mm)
0
100 in stock
744851056
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-DCT
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 560nH
Inductance - Connected In Series : 2.24µH
Tolerance : ±20%
Current Rating - Parallel : 9.8A
Current Rating - Series : 4.9A
Current Saturation - Parallel : 40A
Current Saturation - Series : 20A
DC Resistance (DCR) - Parallel : 6.7 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.906" L x 0.728" W (23.00mm x 18.50mm)
Height : 0.453" (11.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-DCT
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 560nH
Inductance - Connected In Series : 2.24µH
Tolerance : ±20%
Current Rating - Parallel : 9.8A
Current Rating - Series : 4.9A
Current Saturation - Parallel : 40A
Current Saturation - Series : 20A
DC Resistance (DCR) - Parallel : 6.7 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.906" L x 0.728" W (23.00mm x 18.50mm)
Height : 0.453" (11.50mm)
0
100 in stock
744851101
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-DCT
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 10µH
Inductance - Connected In Series : 40µH
Tolerance : ±10%
Current Rating - Parallel : 5.3A
Current Rating - Series : 2.65A
Current Saturation - Parallel : 8A
Current Saturation - Series : 4A
DC Resistance (DCR) - Parallel : 22 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.906" L x 0.728" W (23.00mm x 18.50mm)
Height : 0.453" (11.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-DCT
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 10µH
Inductance - Connected In Series : 40µH
Tolerance : ±10%
Current Rating - Parallel : 5.3A
Current Rating - Series : 2.65A
Current Saturation - Parallel : 8A
Current Saturation - Series : 4A
DC Resistance (DCR) - Parallel : 22 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.906" L x 0.728" W (23.00mm x 18.50mm)
Height : 0.453" (11.50mm)
0
100 in stock

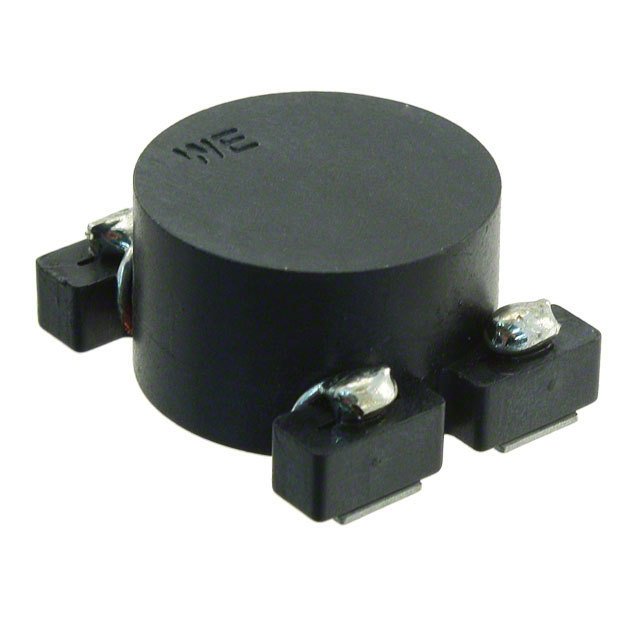

744851221
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-DCT
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 22µH
Inductance - Connected In Series : 88µH
Tolerance : ±10%
Current Rating - Parallel : 3.5A
Current Rating - Series : 1.75A
Current Saturation - Parallel : 2.7A
Current Saturation - Series : 1.35A
DC Resistance (DCR) - Parallel : 45 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.906" L x 0.728" W (23.00mm x 18.50mm)
Height : 0.453" (11.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-DCT
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 22µH
Inductance - Connected In Series : 88µH
Tolerance : ±10%
Current Rating - Parallel : 3.5A
Current Rating - Series : 1.75A
Current Saturation - Parallel : 2.7A
Current Saturation - Series : 1.35A
DC Resistance (DCR) - Parallel : 45 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.906" L x 0.728" W (23.00mm x 18.50mm)
Height : 0.453" (11.50mm)
0
100 in stock
744851331
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-DCT
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 33µH
Inductance - Connected In Series : 132µH
Tolerance : ±10%
Current Rating - Parallel : 2.5A
Current Rating - Series : 1.25A
Current Saturation - Parallel : 2.3A
Current Saturation - Series : 1.15A
DC Resistance (DCR) - Parallel : 70 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.906" L x 0.728" W (23.00mm x 18.50mm)
Height : 0.453" (11.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-DCT
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 33µH
Inductance - Connected In Series : 132µH
Tolerance : ±10%
Current Rating - Parallel : 2.5A
Current Rating - Series : 1.25A
Current Saturation - Parallel : 2.3A
Current Saturation - Series : 1.15A
DC Resistance (DCR) - Parallel : 70 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.906" L x 0.728" W (23.00mm x 18.50mm)
Height : 0.453" (11.50mm)
0
100 in stock
744851470
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-DCT
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 4.7µH
Inductance - Connected In Series : 18.8µH
Tolerance : ±10%
Current Rating - Parallel : 7.2A
Current Rating - Series : 3.6A
Current Saturation - Parallel : 11A
Current Saturation - Series : 5.5A
DC Resistance (DCR) - Parallel : 14 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.906" L x 0.728" W (23.00mm x 18.50mm)
Height : 0.453" (11.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-DCT
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 4.7µH
Inductance - Connected In Series : 18.8µH
Tolerance : ±10%
Current Rating - Parallel : 7.2A
Current Rating - Series : 3.6A
Current Saturation - Parallel : 11A
Current Saturation - Series : 5.5A
DC Resistance (DCR) - Parallel : 14 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.906" L x 0.728" W (23.00mm x 18.50mm)
Height : 0.453" (11.50mm)
0
284 in stock
74485540080
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CFWI
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 800nH
Inductance - Connected In Series : 3.2µH
Tolerance : ±20%
Current Rating - Parallel : 28A
Current Rating - Series : 14A
Current Saturation - Parallel : 62A
Current Saturation - Series : 31A
DC Resistance (DCR) - Parallel : 2.56 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : 4-SMD
Size / Dimension : 0.610" L x 0.520" W (15.50mm x 13.20mm)
Height : 0.413" (10.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CFWI
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 800nH
Inductance - Connected In Series : 3.2µH
Tolerance : ±20%
Current Rating - Parallel : 28A
Current Rating - Series : 14A
Current Saturation - Parallel : 62A
Current Saturation - Series : 31A
DC Resistance (DCR) - Parallel : 2.56 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : 4-SMD
Size / Dimension : 0.610" L x 0.520" W (15.50mm x 13.20mm)
Height : 0.413" (10.50mm)
0
100 in stock
74485540101
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CFWI
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 10µH
Inductance - Connected In Series : -
Tolerance : ±20%
Current Rating - Parallel : 13A
Current Rating - Series : -
Current Saturation - Parallel : 13.5A
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 13.9 mOhm
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : 4-SMD
Size / Dimension : 0.610" L x 0.520" W (15.50mm x 13.20mm)
Height : 0.492" (12.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CFWI
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 10µH
Inductance - Connected In Series : -
Tolerance : ±20%
Current Rating - Parallel : 13A
Current Rating - Series : -
Current Saturation - Parallel : 13.5A
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 13.9 mOhm
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : 4-SMD
Size / Dimension : 0.610" L x 0.520" W (15.50mm x 13.20mm)
Height : 0.492" (12.50mm)
0
100 in stock
74485540120
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CFWI
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 1.2µH
Inductance - Connected In Series : 4.8µH
Tolerance : ±20%
Current Rating - Parallel : 23A
Current Rating - Series : 11.5A
Current Saturation - Parallel : 47A
Current Saturation - Series : 23.5A
DC Resistance (DCR) - Parallel : 3.84 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : 4-SMD
Size / Dimension : 0.610" L x 0.520" W (15.50mm x 13.20mm)
Height : 0.413" (10.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CFWI
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 1.2µH
Inductance - Connected In Series : 4.8µH
Tolerance : ±20%
Current Rating - Parallel : 23A
Current Rating - Series : 11.5A
Current Saturation - Parallel : 47A
Current Saturation - Series : 23.5A
DC Resistance (DCR) - Parallel : 3.84 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : 4-SMD
Size / Dimension : 0.610" L x 0.520" W (15.50mm x 13.20mm)
Height : 0.413" (10.50mm)
0
100 in stock
74485540170
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CFWI
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 1.7µH
Inductance - Connected In Series : 6.8µH
Tolerance : ±20%
Current Rating - Parallel : 21A
Current Rating - Series : 10.5A
Current Saturation - Parallel : 39A
Current Saturation - Series : 19.5A
DC Resistance (DCR) - Parallel : 5.28 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : 4-SMD
Size / Dimension : 0.610" L x 0.520" W (15.50mm x 13.20mm)
Height : 0.413" (10.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CFWI
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 1.7µH
Inductance - Connected In Series : 6.8µH
Tolerance : ±20%
Current Rating - Parallel : 21A
Current Rating - Series : 10.5A
Current Saturation - Parallel : 39A
Current Saturation - Series : 19.5A
DC Resistance (DCR) - Parallel : 5.28 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : 4-SMD
Size / Dimension : 0.610" L x 0.520" W (15.50mm x 13.20mm)
Height : 0.413" (10.50mm)
0
100 in stock
74485540220
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CFWI
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 2.2µH
Inductance - Connected In Series : 8.8µH
Tolerance : ±20%
Current Rating - Parallel : 18A
Current Rating - Series : 9A
Current Saturation - Parallel : 35A
Current Saturation - Series : 17.5A
DC Resistance (DCR) - Parallel : 6.72 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : 4-SMD
Size / Dimension : 0.610" L x 0.520" W (15.50mm x 13.20mm)
Height : 0.413" (10.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CFWI
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 2.2µH
Inductance - Connected In Series : 8.8µH
Tolerance : ±20%
Current Rating - Parallel : 18A
Current Rating - Series : 9A
Current Saturation - Parallel : 35A
Current Saturation - Series : 17.5A
DC Resistance (DCR) - Parallel : 6.72 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : 4-SMD
Size / Dimension : 0.610" L x 0.520" W (15.50mm x 13.20mm)
Height : 0.413" (10.50mm)
0
100 in stock
74485540290
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CFWI
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 2.9µH
Inductance - Connected In Series : 11.6µH
Tolerance : ±20%
Current Rating - Parallel : 17A
Current Rating - Series : 8.5A
Current Saturation - Parallel : 29A
Current Saturation - Series : 14.5A
DC Resistance (DCR) - Parallel : 8.96 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : 4-SMD
Size / Dimension : 0.610" L x 0.520" W (15.50mm x 13.20mm)
Height : 0.413" (10.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CFWI
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 2.9µH
Inductance - Connected In Series : 11.6µH
Tolerance : ±20%
Current Rating - Parallel : 17A
Current Rating - Series : 8.5A
Current Saturation - Parallel : 29A
Current Saturation - Series : 14.5A
DC Resistance (DCR) - Parallel : 8.96 mOhm Max
DC Resistance (DCR) - Series : -
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : 4-SMD
Size / Dimension : 0.610" L x 0.520" W (15.50mm x 13.20mm)
Height : 0.413" (10.50mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
