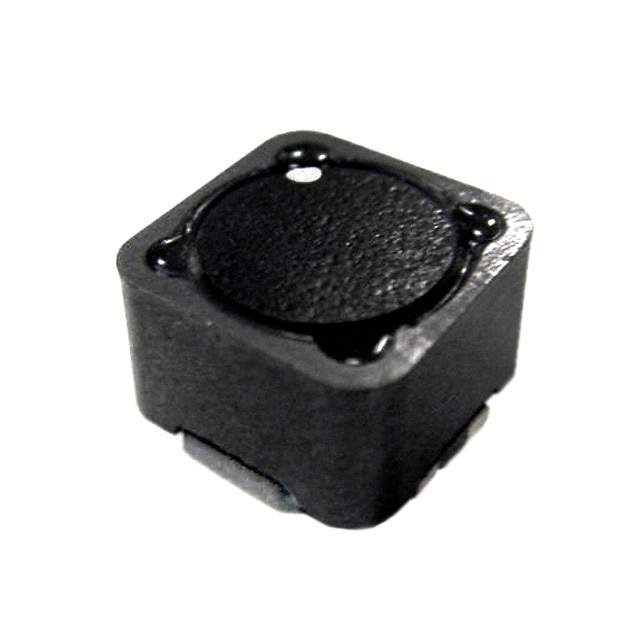

HM78D-12106R8MLFTR
TT Electronics
Manufacturer : TT Electronics/BI Magnetics
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 6.8µH
Inductance - Connected In Series : 27.2µH
Tolerance : ±20%
Current Rating - Parallel : 3.1A
Current Rating - Series : 1.55A
Current Saturation - Parallel : 14.2A
Current Saturation - Series : 7.1A
DC Resistance (DCR) - Parallel : 17 mOhm Max
DC Resistance (DCR) - Series : 68 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.413" (10.50mm)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 6.8µH
Inductance - Connected In Series : 27.2µH
Tolerance : ±20%
Current Rating - Parallel : 3.1A
Current Rating - Series : 1.55A
Current Saturation - Parallel : 14.2A
Current Saturation - Series : 7.1A
DC Resistance (DCR) - Parallel : 17 mOhm Max
DC Resistance (DCR) - Series : 68 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.413" (10.50mm)
0
100 in stock
HM78D-12108R2MLFTR
TT Electronics
Manufacturer : TT Electronics/BI Magnetics
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 8.2µH
Inductance - Connected In Series : 32.8µH
Tolerance : ±20%
Current Rating - Parallel : 2.25A
Current Rating - Series : 1.125A
Current Saturation - Parallel : 12.85A
Current Saturation - Series : 6.45A
DC Resistance (DCR) - Parallel : 18 mOhm Max
DC Resistance (DCR) - Series : 72 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.413" (10.50mm)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 8.2µH
Inductance - Connected In Series : 32.8µH
Tolerance : ±20%
Current Rating - Parallel : 2.25A
Current Rating - Series : 1.125A
Current Saturation - Parallel : 12.85A
Current Saturation - Series : 6.45A
DC Resistance (DCR) - Parallel : 18 mOhm Max
DC Resistance (DCR) - Series : 72 mOhm Max
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.413" (10.50mm)
0
100 in stock
HM78D-128101MLFTR
TT Electronics
Manufacturer : TT Electronics/BI Magnetics
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 100µH
Inductance - Connected In Series : 400µH
Tolerance : ±20%
Current Rating - Parallel : 2A
Current Rating - Series : 1.1A
Current Saturation - Parallel : 3.4A
Current Saturation - Series : 1.7A
DC Resistance (DCR) - Parallel : 150 mOhm
DC Resistance (DCR) - Series : 600 mOhm
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.317" (8.05mm)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 100µH
Inductance - Connected In Series : 400µH
Tolerance : ±20%
Current Rating - Parallel : 2A
Current Rating - Series : 1.1A
Current Saturation - Parallel : 3.4A
Current Saturation - Series : 1.7A
DC Resistance (DCR) - Parallel : 150 mOhm
DC Resistance (DCR) - Series : 600 mOhm
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.317" (8.05mm)
0
100 in stock
HM78D-128102KLFTR
TT Electronics
Manufacturer : TT Electronics/BI Magnetics
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 1mH
Inductance - Connected In Series : 4.8mH
Tolerance : ±10%
Current Rating - Parallel : 600mA
Current Rating - Series : 300mA
Current Saturation - Parallel : 1.1A
Current Saturation - Series : 560mA
DC Resistance (DCR) - Parallel : 1.415 Ohm
DC Resistance (DCR) - Series : 5.66 Ohm
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.317" (8.05mm)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 1mH
Inductance - Connected In Series : 4.8mH
Tolerance : ±10%
Current Rating - Parallel : 600mA
Current Rating - Series : 300mA
Current Saturation - Parallel : 1.1A
Current Saturation - Series : 560mA
DC Resistance (DCR) - Parallel : 1.415 Ohm
DC Resistance (DCR) - Series : 5.66 Ohm
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.317" (8.05mm)
0
100 in stock
HM78D-128120MLFTR
TT Electronics
Manufacturer : TT Electronics/BI Magnetics
Packaging : Tape & Reel (TR)
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 12µH
Inductance - Connected In Series : 48µH
Tolerance : ±20%
Current Rating - Parallel : 6A
Current Rating - Series : 2.9A
Current Saturation - Parallel : 9.6A
Current Saturation - Series : 4.8A
DC Resistance (DCR) - Parallel : 31 mOhm
DC Resistance (DCR) - Series : 124 mOhm
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.317" (8.05mm)
Packaging : Tape & Reel (TR)
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 12µH
Inductance - Connected In Series : 48µH
Tolerance : ±20%
Current Rating - Parallel : 6A
Current Rating - Series : 2.9A
Current Saturation - Parallel : 9.6A
Current Saturation - Series : 4.8A
DC Resistance (DCR) - Parallel : 31 mOhm
DC Resistance (DCR) - Series : 124 mOhm
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.317" (8.05mm)
0
100 in stock
HM78D-128121KLFTR
TT Electronics
Manufacturer : TT Electronics/BI Magnetics
Packaging : Tape & Reel (TR)
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 120µH
Inductance - Connected In Series : 480µH
Tolerance : ±10%
Current Rating - Parallel : 1.9A
Current Rating - Series : 1A
Current Saturation - Parallel : 3.2A
Current Saturation - Series : 1.6A
DC Resistance (DCR) - Parallel : 205 mOhm
DC Resistance (DCR) - Series : 820 mOhm
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.317" (8.05mm)
Packaging : Tape & Reel (TR)
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 120µH
Inductance - Connected In Series : 480µH
Tolerance : ±10%
Current Rating - Parallel : 1.9A
Current Rating - Series : 1A
Current Saturation - Parallel : 3.2A
Current Saturation - Series : 1.6A
DC Resistance (DCR) - Parallel : 205 mOhm
DC Resistance (DCR) - Series : 820 mOhm
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.317" (8.05mm)
0
100 in stock

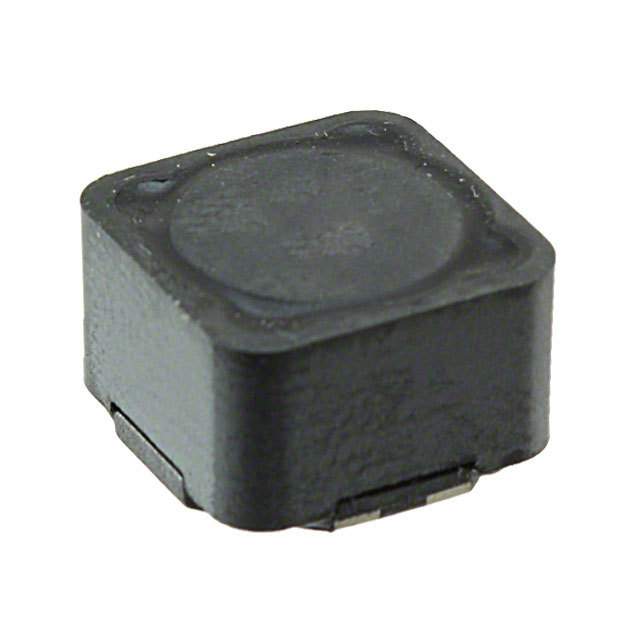

HM78D-128151KLFTR
TT Electronics
Manufacturer : TT Electronics/BI Magnetics
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 150µH
Inductance - Connected In Series : 600µH
Tolerance : ±10%
Current Rating - Parallel : 1.8A
Current Rating - Series : 890mA
Current Saturation - Parallel : 2.8A
Current Saturation - Series : 1.4A
DC Resistance (DCR) - Parallel : 230 mOhm
DC Resistance (DCR) - Series : 920 mOhm
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.317" (8.05mm)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 150µH
Inductance - Connected In Series : 600µH
Tolerance : ±10%
Current Rating - Parallel : 1.8A
Current Rating - Series : 890mA
Current Saturation - Parallel : 2.8A
Current Saturation - Series : 1.4A
DC Resistance (DCR) - Parallel : 230 mOhm
DC Resistance (DCR) - Series : 920 mOhm
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.317" (8.05mm)
0
100 in stock
HM78D-128180MLFTR
TT Electronics
Manufacturer : TT Electronics/BI Magnetics
Packaging : Tape & Reel (TR)
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 18µH
Inductance - Connected In Series : 72µH
Tolerance : ±20%
Current Rating - Parallel : 5.5A
Current Rating - Series : 2.5A
Current Saturation - Parallel : 8A
Current Saturation - Series : 3.9A
DC Resistance (DCR) - Parallel : 40 mOhm
DC Resistance (DCR) - Series : 158 mOhm
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.317" (8.05mm)
Packaging : Tape & Reel (TR)
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 18µH
Inductance - Connected In Series : 72µH
Tolerance : ±20%
Current Rating - Parallel : 5.5A
Current Rating - Series : 2.5A
Current Saturation - Parallel : 8A
Current Saturation - Series : 3.9A
DC Resistance (DCR) - Parallel : 40 mOhm
DC Resistance (DCR) - Series : 158 mOhm
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.317" (8.05mm)
0
100 in stock
HM78D-128181KLFTR
TT Electronics
Manufacturer : TT Electronics/BI Magnetics
Packaging : Tape & Reel (TR)
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 180µH
Inductance - Connected In Series : 720µH
Tolerance : ±10%
Current Rating - Parallel : 1.7A
Current Rating - Series : 840mA
Current Saturation - Parallel : 2.5A
Current Saturation - Series : 1.3A
DC Resistance (DCR) - Parallel : 255 mOhm
DC Resistance (DCR) - Series : 1.02 Ohm
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.317" (8.05mm)
Packaging : Tape & Reel (TR)
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 180µH
Inductance - Connected In Series : 720µH
Tolerance : ±10%
Current Rating - Parallel : 1.7A
Current Rating - Series : 840mA
Current Saturation - Parallel : 2.5A
Current Saturation - Series : 1.3A
DC Resistance (DCR) - Parallel : 255 mOhm
DC Resistance (DCR) - Series : 1.02 Ohm
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.317" (8.05mm)
0
100 in stock
HM78D-128220MLFTR
TT Electronics
Manufacturer : TT Electronics/BI Magnetics
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 22µH
Inductance - Connected In Series : 88µH
Tolerance : ±20%
Current Rating - Parallel : 5.2A
Current Rating - Series : 2.2A
Current Saturation - Parallel : 6.8A
Current Saturation - Series : 3.5A
DC Resistance (DCR) - Parallel : 48 mOhm
DC Resistance (DCR) - Series : 190 mOhm
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.317" (8.05mm)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 22µH
Inductance - Connected In Series : 88µH
Tolerance : ±20%
Current Rating - Parallel : 5.2A
Current Rating - Series : 2.2A
Current Saturation - Parallel : 6.8A
Current Saturation - Series : 3.5A
DC Resistance (DCR) - Parallel : 48 mOhm
DC Resistance (DCR) - Series : 190 mOhm
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.317" (8.05mm)
0
100 in stock
HM78D-128221KLFTR
TT Electronics
Manufacturer : TT Electronics/BI Magnetics
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 220µH
Inductance - Connected In Series : 880µH
Tolerance : ±10%
Current Rating - Parallel : 1.6A
Current Rating - Series : 750mA
Current Saturation - Parallel : 2.3A
Current Saturation - Series : 1.1A
DC Resistance (DCR) - Parallel : 345 mOhm
DC Resistance (DCR) - Series : 1.38 Ohm
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.317" (8.05mm)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 220µH
Inductance - Connected In Series : 880µH
Tolerance : ±10%
Current Rating - Parallel : 1.6A
Current Rating - Series : 750mA
Current Saturation - Parallel : 2.3A
Current Saturation - Series : 1.1A
DC Resistance (DCR) - Parallel : 345 mOhm
DC Resistance (DCR) - Series : 1.38 Ohm
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.317" (8.05mm)
0
100 in stock
HM78D-128270MLFTR
TT Electronics
Manufacturer : TT Electronics/BI Magnetics
Packaging : Tape & Reel (TR)
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 27µH
Inductance - Connected In Series : 108µH
Tolerance : ±20%
Current Rating - Parallel : 4.7A
Current Rating - Series : 2A
Current Saturation - Parallel : 6.5A
Current Saturation - Series : 3.4A
DC Resistance (DCR) - Parallel : 60 mOhm
DC Resistance (DCR) - Series : 240 mOhm
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.317" (8.05mm)
Packaging : Tape & Reel (TR)
Series : HM78D
Part Status : Discontinued at
Number of Coils : 2
Inductance - Connected In Parallel : 27µH
Inductance - Connected In Series : 108µH
Tolerance : ±20%
Current Rating - Parallel : 4.7A
Current Rating - Series : 2A
Current Saturation - Parallel : 6.5A
Current Saturation - Series : 3.4A
DC Resistance (DCR) - Parallel : 60 mOhm
DC Resistance (DCR) - Series : 240 mOhm
Shielding : Shielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height : 0.317" (8.05mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
