Part Number

Manufacturer

Description

Unit Price

In Stock

CL-4-8

Bel

Manufacturer : Signal Transformer
Packaging : Bulk
Series : CL
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 5mH
Inductance - Connected In Series : 20mH
Tolerance : -
Current Rating - Parallel : 8A
Current Rating - Series : 4A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 75 mOhm
DC Resistance (DCR) - Series : 300 mOhm
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : Nonstandard
Size / Dimension : 3.000" L x 2.874" W (76.20mm x 73.00mm)
Height : 2.500" (63.50mm)

2 in stock

CL-50-100

Bel

Manufacturer : Signal Transformer
Packaging : Bulk
Series : CL
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 120µH
Inductance - Connected In Series : 500µH
Tolerance : -
Current Rating - Parallel : 100A
Current Rating - Series : 50A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 1.1 mOhm
DC Resistance (DCR) - Series : 4.3 mOhm
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : Nonstandard
Size / Dimension : 4.500" L x 3.752" W (114.30mm x 95.30mm)
Height : 3.752" (95.30mm)

1 in stock

CL-6-12

Bel

Manufacturer : Signal Transformer
Packaging : Bulk
Series : CL
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : 3mH
Inductance - Connected In Series : 12mH
Tolerance : -
Current Rating - Parallel : 12A
Current Rating - Series : 6A
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : 38 mOhm
DC Resistance (DCR) - Series : 150 mOhm
Shielding : Unshielded
Ratings : -
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : Nonstandard
Size / Dimension : 3.374" L x 3.059" W (85.70mm x 77.70mm)
Height : 2.811" (71.40mm)

2 in stock

CTX0.33-1A-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 402nH
Inductance - Connected In Series : 1.61µH
Tolerance : ±25%
Current Rating - Parallel : 10A
Current Rating - Series : 4.98A
Current Saturation - Parallel : 12.5A
Current Saturation - Series : 6.25A
DC Resistance (DCR) - Parallel : 3.7 mOhm Max
DC Resistance (DCR) - Series : 15 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.165" (4.19mm)

100 in stock

CTX0.33-2A-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 284nH
Inductance - Connected In Series : 1.14µH
Tolerance : ±25%
Current Rating - Parallel : 10.9A
Current Rating - Series : 5.47A
Current Saturation - Parallel : 18.8A
Current Saturation - Series : 9.38A
DC Resistance (DCR) - Parallel : 3.3 mOhm Max
DC Resistance (DCR) - Series : 13.2 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.235" (5.97mm)

100 in stock

CTX0.33-3A-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 368nH
Inductance - Connected In Series : 1.47µH
Tolerance : ±25%
Current Rating - Parallel : 11.4A
Current Rating - Series : 5.72A
Current Saturation - Parallel : 15A
Current Saturation - Series : 7.5A
DC Resistance (DCR) - Parallel : 3.2 mOhm Max
DC Resistance (DCR) - Series : 12.8 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.190" (4.83mm)

100 in stock

CTX0.68-1A-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 752nH
Inductance - Connected In Series : 3.01µH
Tolerance : ±25%
Current Rating - Parallel : 9A
Current Rating - Series : 4.48A
Current Saturation - Parallel : 9.4A
Current Saturation - Series : 4.69A
DC Resistance (DCR) - Parallel : 4.6 mOhm Max
DC Resistance (DCR) - Series : 18.5 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.165" (4.19mm)

100 in stock

CTX0.68-2A-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 675nH
Inductance - Connected In Series : 2.7µH
Tolerance : ±25%
Current Rating - Parallel : 9.4A
Current Rating - Series : 4.68A
Current Saturation - Parallel : 12.5A
Current Saturation - Series : 6.25A
DC Resistance (DCR) - Parallel : 4.5 mOhm Max
DC Resistance (DCR) - Series : 18 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height : 0.235" (5.97mm)

100 in stock

CTX0.68-3A-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Series : OCTA-PAC® PLUS
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : 688nH
Inductance - Connected In Series : 2.75µH
Tolerance : ±25%
Current Rating - Parallel : 9.3A
Current Rating - Series : 4.64A
Current Saturation - Parallel : 11.3A
Current Saturation - Series : 5.63A
DC Resistance (DCR) - Parallel : 4.8 mOhm Max
DC Resistance (DCR) - Series : 19.4 mOhm Max
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height : 0.190" (4.83mm)

100 in stock

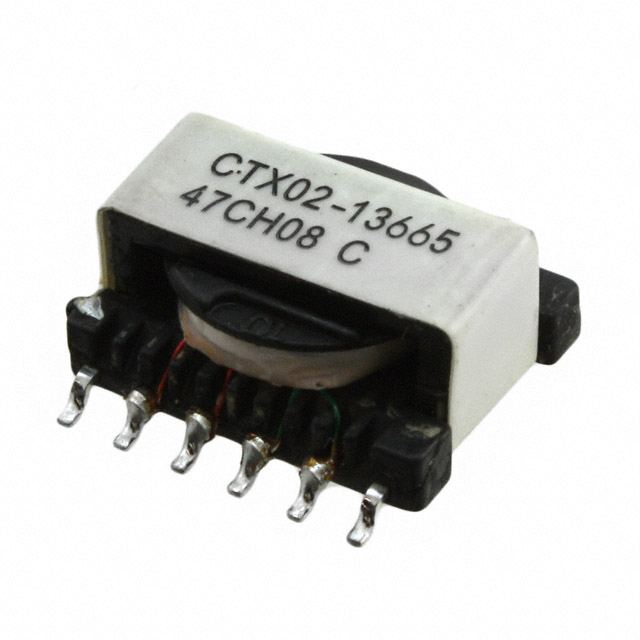

CTX02-13665

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : OCTA-PAC®
Part Status : Obsolete
Number of Coils : 2
Inductance - Connected In Parallel : -
Inductance - Connected In Series : 1.254mH
Tolerance : ±20%
Current Rating - Parallel : -
Current Rating - Series : -
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : -
DC Resistance (DCR) - Series : -
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 12-SMD
Size / Dimension : 0.634" L x 0.661" W (16.10mm x 16.80mm)
Height : 0.291" (7.40mm)

100 in stock

CTX02-18713-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OCTA-PAC®
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : -
Inductance - Connected In Series : -
Tolerance : -
Current Rating - Parallel : -
Current Rating - Series : -
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : -
DC Resistance (DCR) - Series : -
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : Nonstandard
Size / Dimension : 0.299" L x 0.299" W (7.60mm x 7.60mm)
Height : 0.171" (4.35mm)

3467 in stock

CTX02-18714-R

Bussmann (Eaton)

2801 in stock
