Common Mode Chokes Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

UF1717H-103YR25-01

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Bulk
Series : UF
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 1kHz
Current Rating (Max) : 250mA
DC Resistance (DCR) (Max) : 3.5 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -20°C ~ 120°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.689" L x 0.610" W (17.50mm x 15.50mm)
Height (Max) : 0.492" (12.50mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

UF1717H-132Y0R7-01

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Bulk
Series : UF
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.3mH @ 1kHz
Current Rating (Max) : 700mA
DC Resistance (DCR) (Max) : 500 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -20°C ~ 120°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.689" L x 0.610" W (17.50mm x 15.50mm)
Height (Max) : 0.492" (12.50mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

UF1717H-152Y0R6-01

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Bulk
Series : UF
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.5mH @ 1kHz
Current Rating (Max) : 600mA
DC Resistance (DCR) (Max) : 550 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -20°C ~ 120°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.689" L x 0.610" W (17.50mm x 15.50mm)
Height (Max) : 0.492" (12.50mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

UF1717H-201Y1R6-01

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Bulk
Series : UF
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 200µH @ 1kHz
Current Rating (Max) : 1.6A
DC Resistance (DCR) (Max) : 100 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -20°C ~ 120°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.689" L x 0.610" W (17.50mm x 15.50mm)
Height (Max) : 0.492" (12.50mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

UF1717H-282Y0R5-01

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Bulk
Series : UF
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.8mH @ 1kHz
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 1 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -20°C ~ 120°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.689" L x 0.610" W (17.50mm x 15.50mm)
Height (Max) : 0.492" (12.50mm)
Package / Case : Horizontal, 4 PC Pin

1819 in stock

UF1717H-342Y0R4-01

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Bulk
Series : UF
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.4mH @ 1kHz
Current Rating (Max) : 400mA
DC Resistance (DCR) (Max) : 1.3 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -20°C ~ 120°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.689" L x 0.610" W (17.50mm x 15.50mm)
Height (Max) : 0.492" (12.50mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

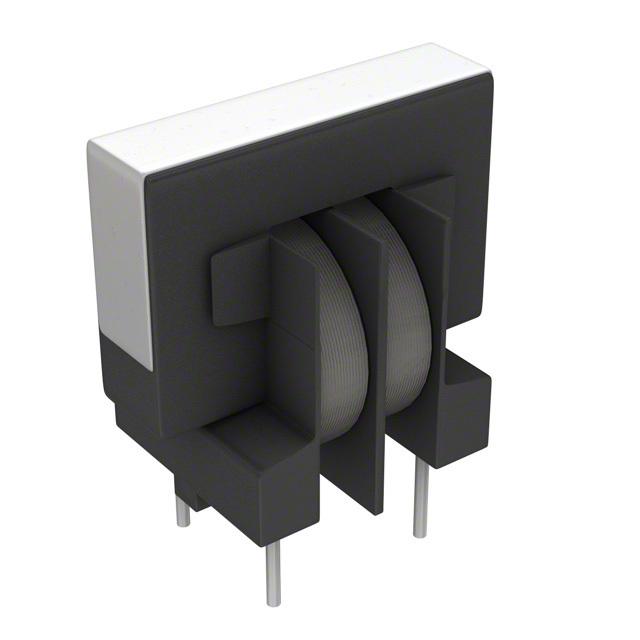

UF1717H-601Y1R0-01

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Bulk
Series : UF
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 600µH @ 1kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 200 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -20°C ~ 120°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.689" L x 0.610" W (17.50mm x 15.50mm)
Height (Max) : 0.492" (12.50mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

UF1717H-702Y0R3-01

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Bulk
Series : UF
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 7mH @ 1kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 2.5 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -20°C ~ 120°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.689" L x 0.610" W (17.50mm x 15.50mm)
Height (Max) : 0.492" (12.50mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

UF1717HB-153YR15-01

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Bulk
Series : UF
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 150mA
DC Resistance (DCR) (Max) : 5 Ohm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.689" L x 0.610" W (17.50mm x 15.50mm)
Height (Max) : 0.492" (12.50mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

UF1717HB-702Y0R3-01

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Bulk
Series : UF
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 2.5 Ohm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.689" L x 0.610" W (17.50mm x 15.50mm)
Height (Max) : 0.492" (12.50mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

UF1717V-100Y3R0-03

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Bulk
Series : UF
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10µH @ 1kHz
Current Rating (Max) : 3A
DC Resistance (DCR) (Max) : 50 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -20°C ~ 120°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.689" L x 0.433" W (17.50mm x 11.00mm)
Height (Max) : 0.669" (17.00mm)
Package / Case : Vertical, 4 PC Pin

100 in stock

UF1717V-103YR25-02

TDK Corporation

Manufacturer : TDK Corporation
Packaging : Bulk
Series : UF
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 1kHz
Current Rating (Max) : 250mA
DC Resistance (DCR) (Max) : 3.5 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -20°C ~ 120°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.689" L x 0.433" W (17.50mm x 11.00mm)
Height (Max) : 0.669" (17.00mm)
Package / Case : Vertical, 4 PC Pin

100 in stock
